Overview

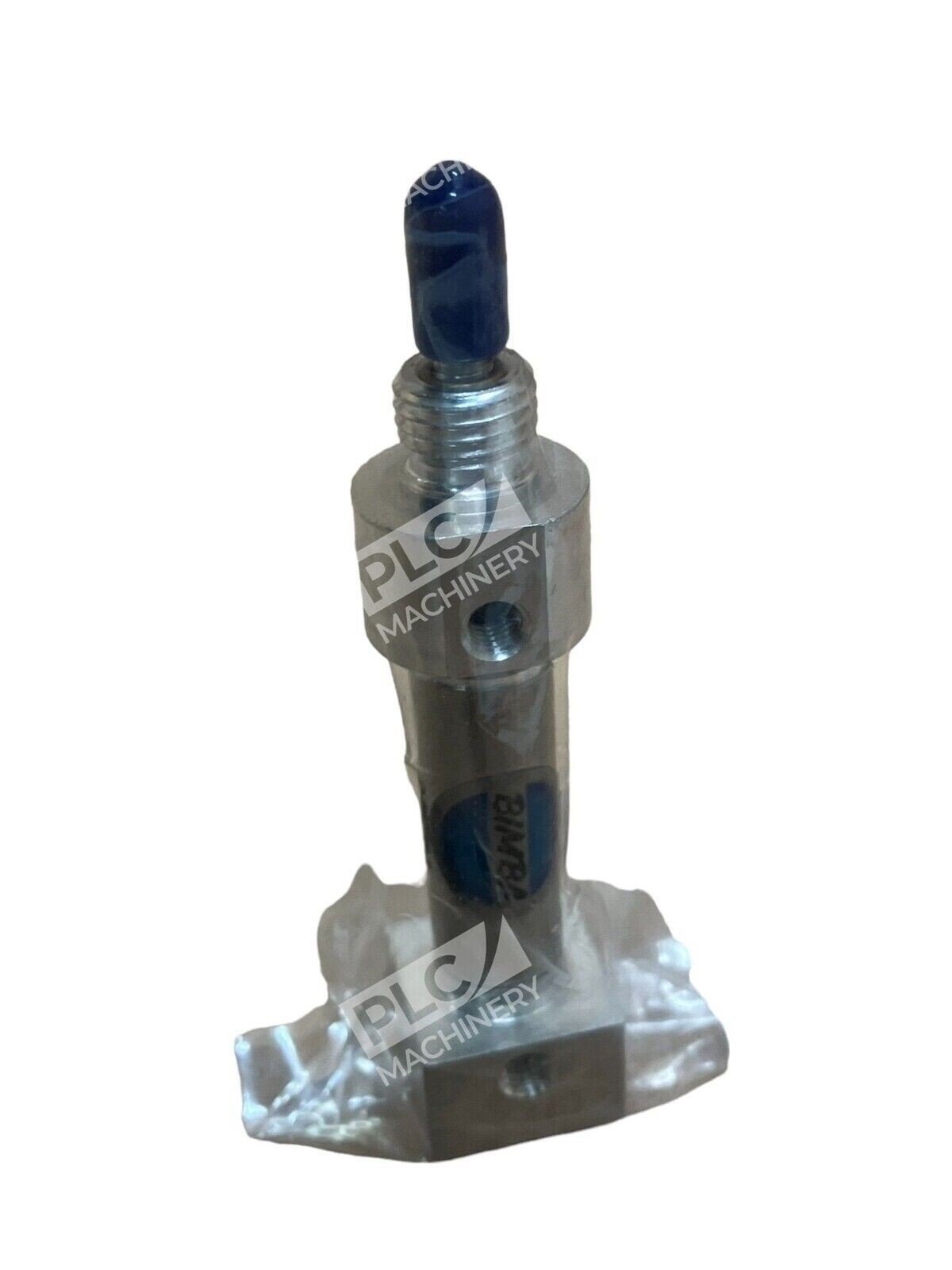

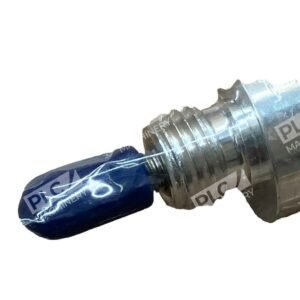

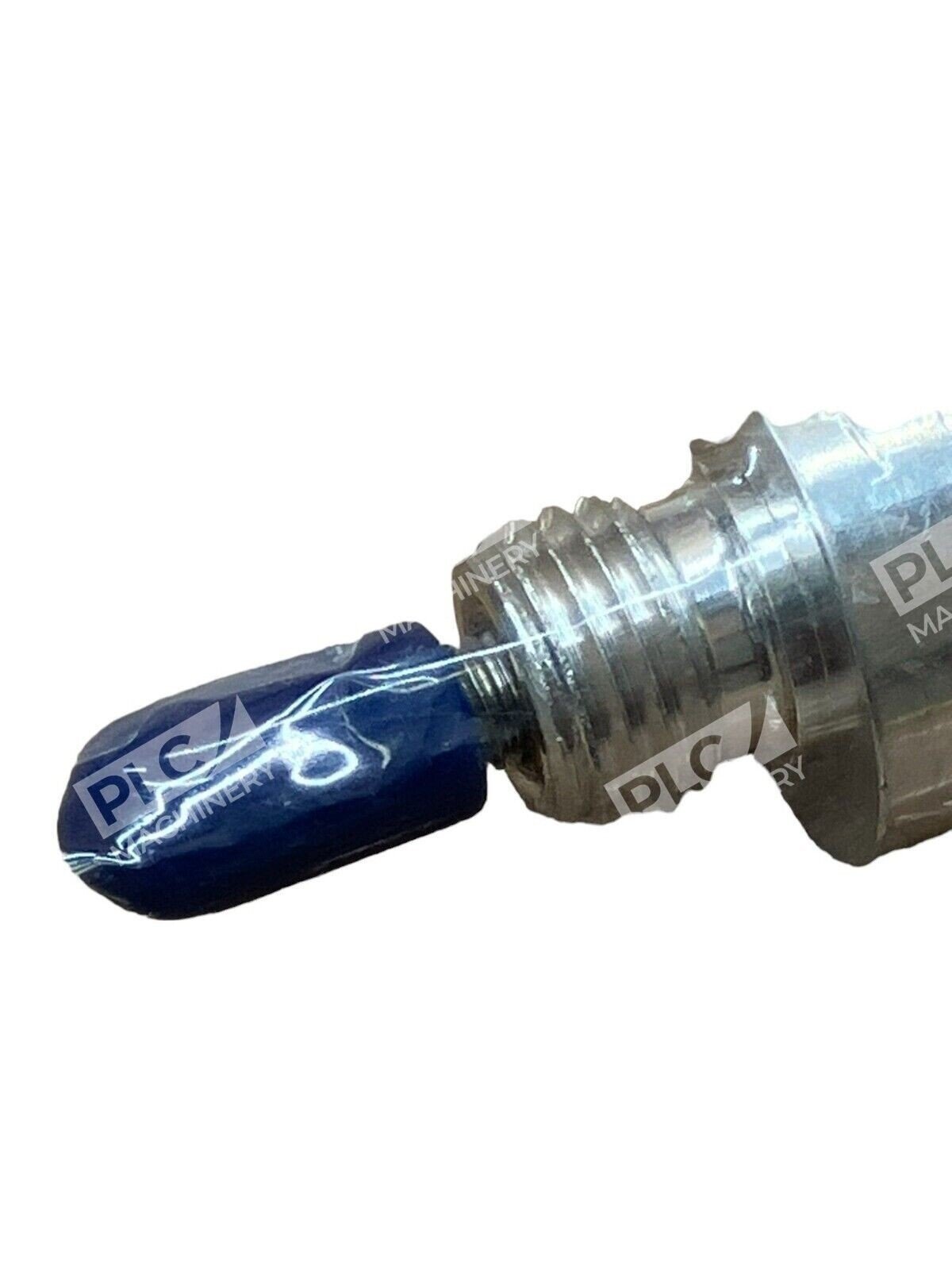

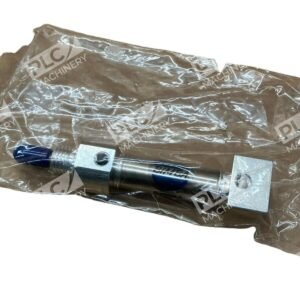

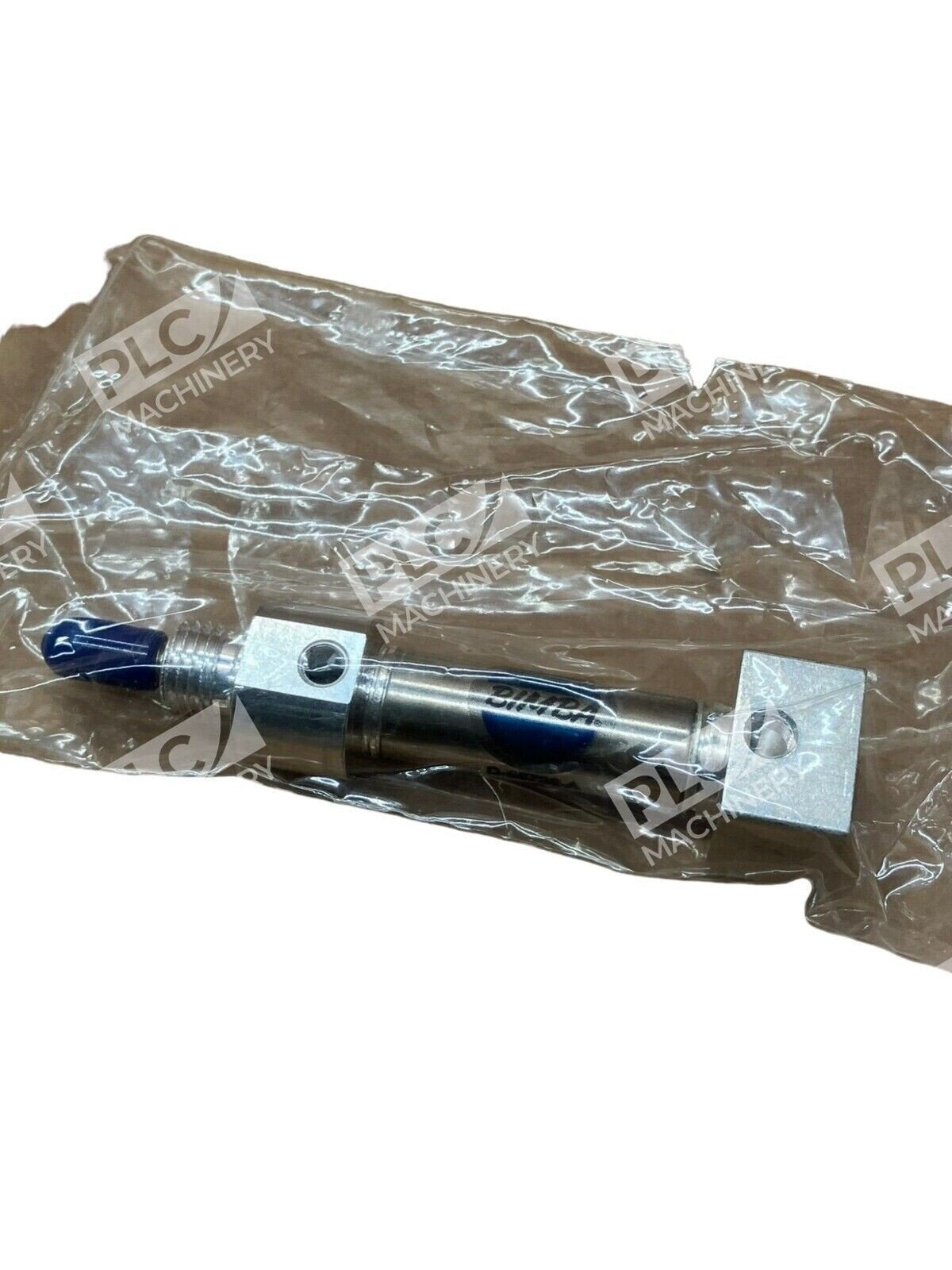

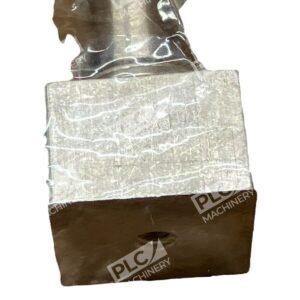

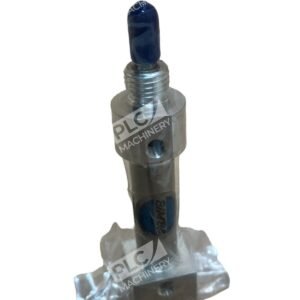

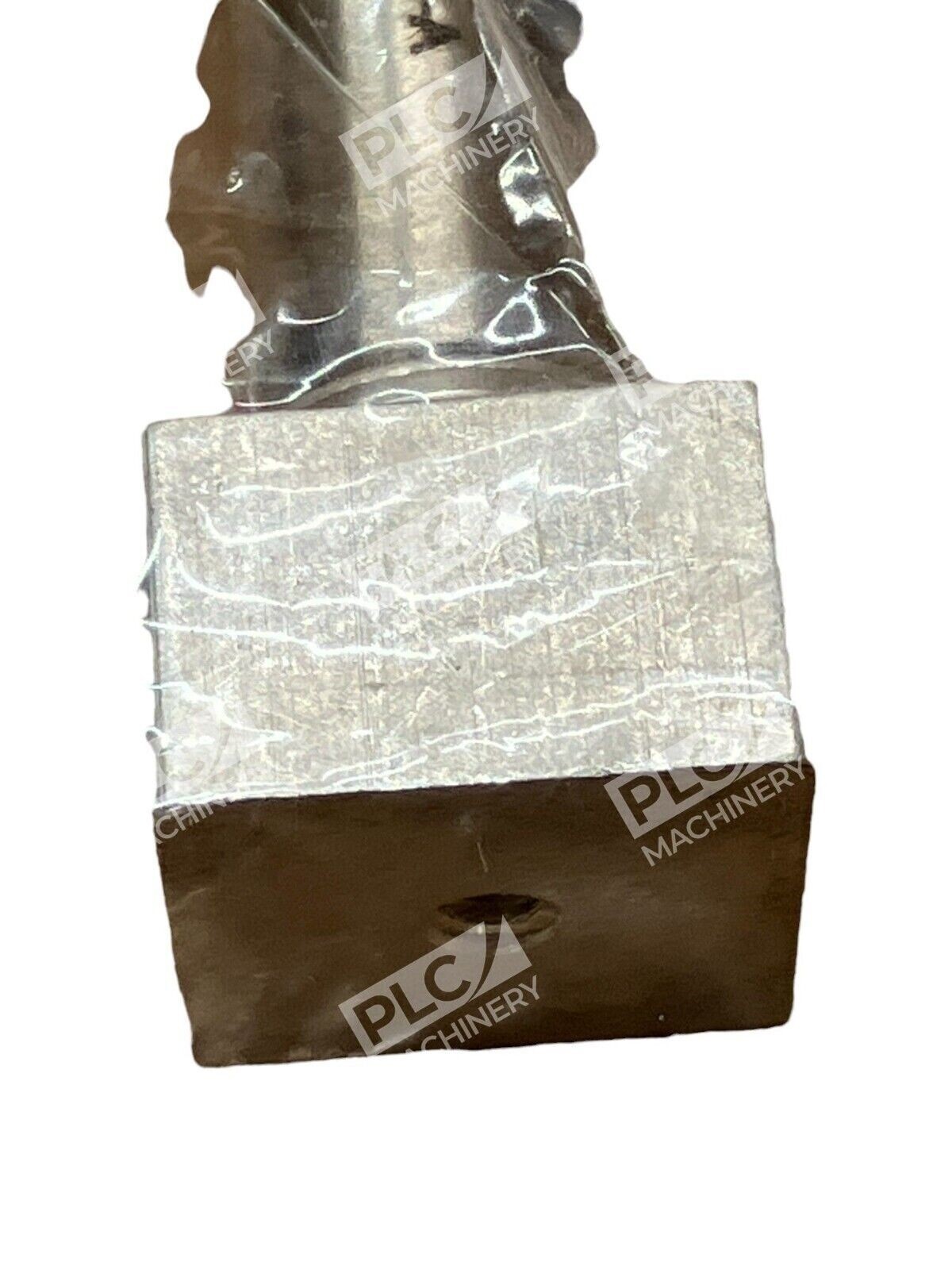

The Bimba D-86736-A is a pneumatic cylinder engineered for reliable linear motion in compressed air systems. Bimba pneumatic cylinders use compressed air to produce linear motion and consist of a body and a piston actuated by air and/or spring. This model is designed for industrial automation, manufacturing, and production equipment where consistent, low-maintenance performance is critical.
Key Features
- Double-acting pneumatic cylinder design for push and pull force
- Non-repairable air cylinder design that sets the standard for reliability and low maintenance
- Compressed air operation with standard pneumatic port connections
- Durable carbon steel construction for long service life
- New, open box condition—fully functional and ready to install
- Compatible with standard industrial pneumatic systems and ISO/NFPA standards
Technical Specifications
Detailed specifications for the D-86736-A are best confirmed by consulting the official Bimba catalog or your system integrator. Common specifications for this series may include standard bore sizes and stroke lengths based on Bimba’s modular cylinder design.
| Manufacturer | Bimba (IMI Bimba / Norgren) |
| Model | D-86736-A |
| Cylinder Type | Double-Acting Pneumatic |
| Operating Medium | Compressed Air (Dry) |
| Port Connections | NPT or SAE standard (verify with manufacturer) |
| Pressure Rating | Consult Bimba datasheet for rated PSI |
| Rod Material | Carbon Steel (standard) |
| Seals | Nitrile or equivalent (verify with documentation) |
| Condition | New – Open Box |
Typical Applications
- Industrial automation clamping and holding systems
- Manufacturing equipment feed and discharge mechanisms
- Material handling and conveyor system actuation
- Machine tool indexing and positioning
- Production press and stamping equipment
- Assembly line automation and fixtures
Compatibility & Replacements
Compatible With
- Standard ISO/NFPA pneumatic system components
- Industrial air compressors (oil-free or regulated dry air)
- Pneumatic control valves and manifolds
- Solenoid valve control systems
- PLC and automation controller integration
- ISO 4401 ported air preparation equipment
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or consult Bimba’s replacement cross-reference documentation before ordering. Part interchangeability depends on matching bore, stroke, rod size, port location, and mounting style.
Works With
- Pneumatic control systems and PLC automation platforms
- ISO 4401 and CETOP 05 directional control valves
- Pressure regulators, flow controls, and air preparation units
- Tube and fitting systems (standard NPT or SAE ports)
- Pneumatic sensor feedback for position monitoring
- Norgren integrated motion control solutions (Bimba is now part of Norgren)
