Overview

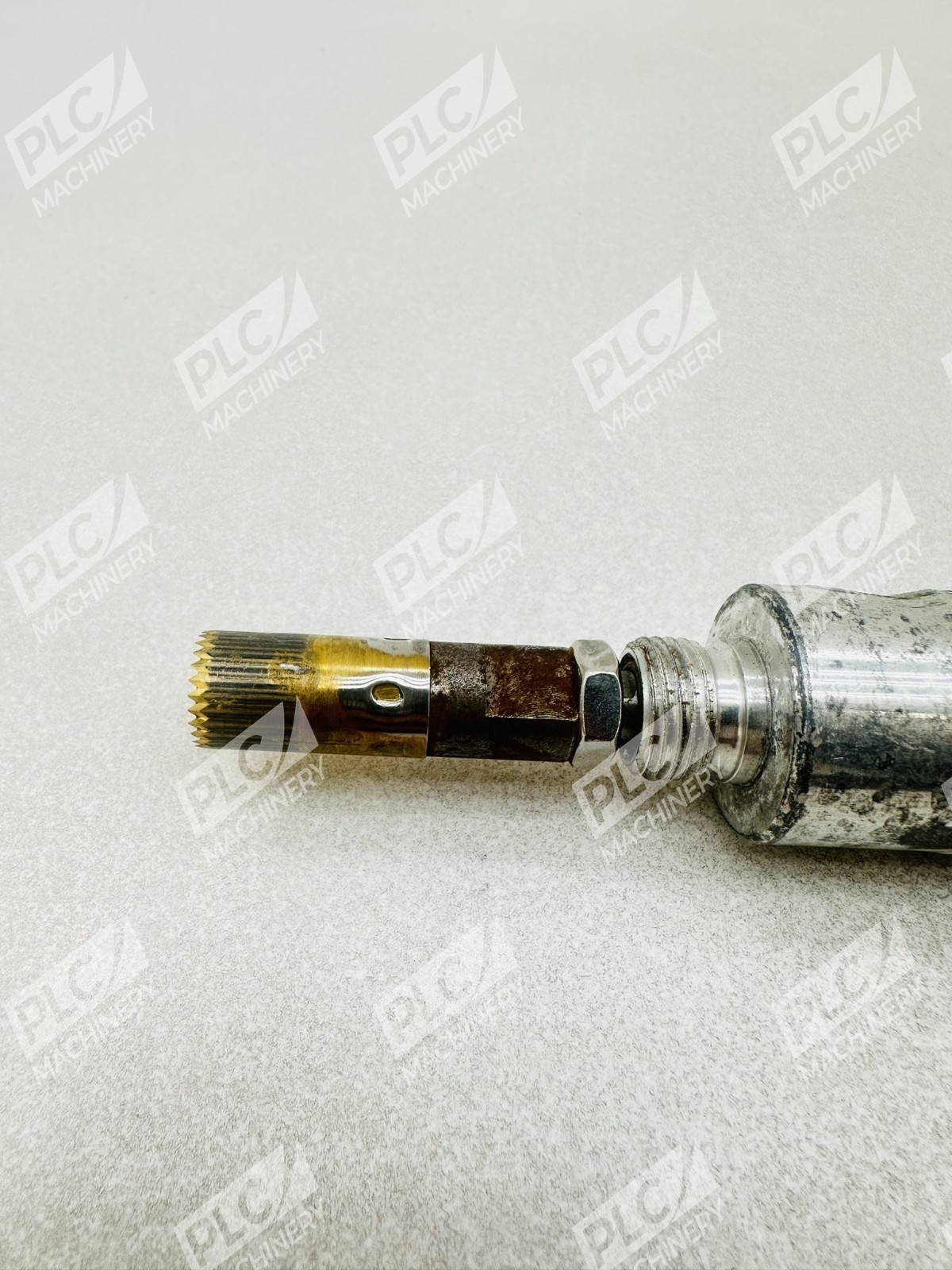

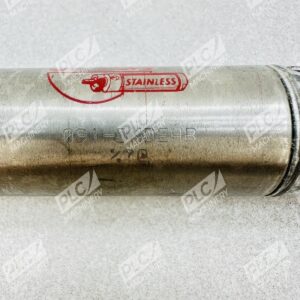

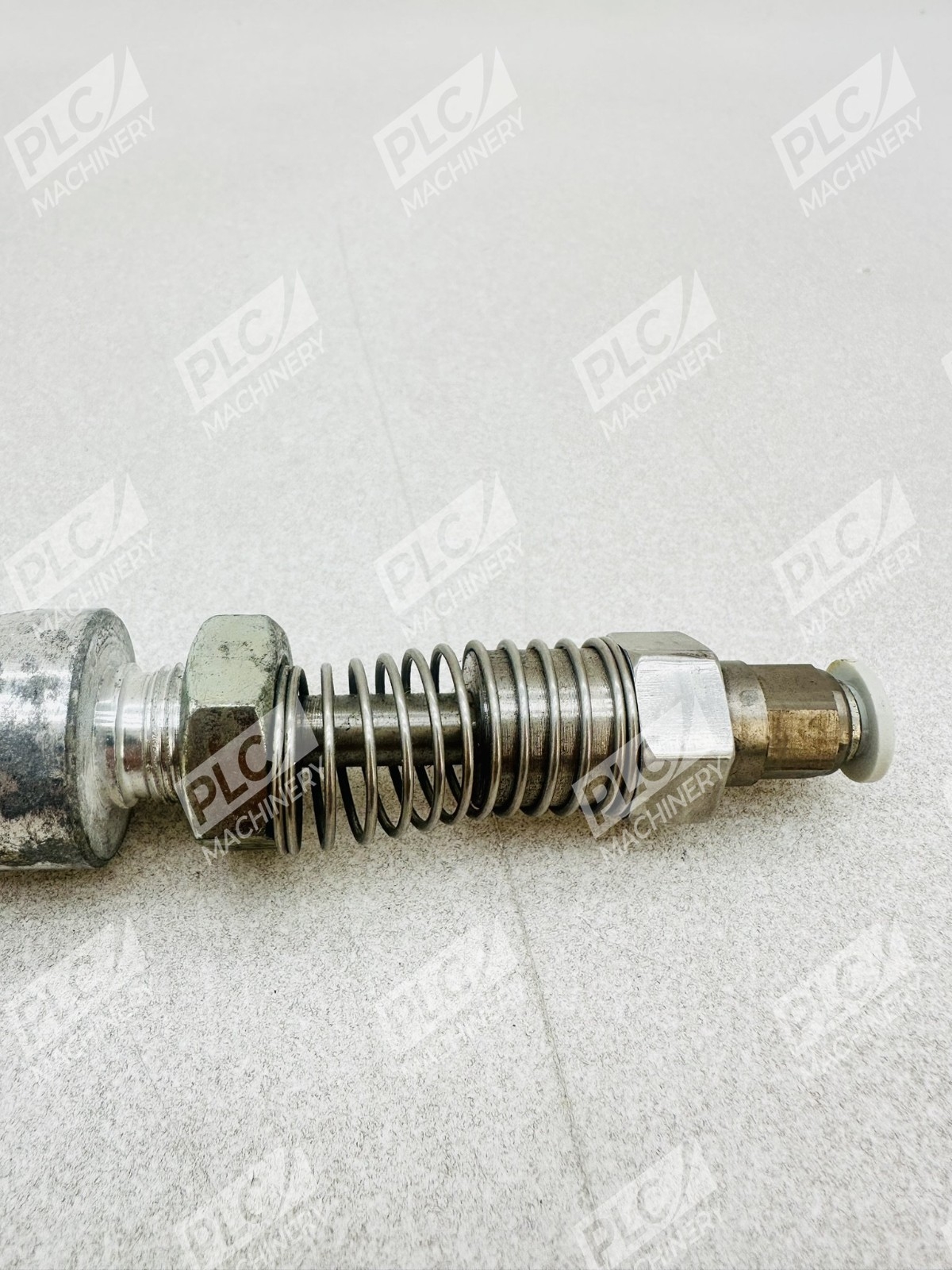

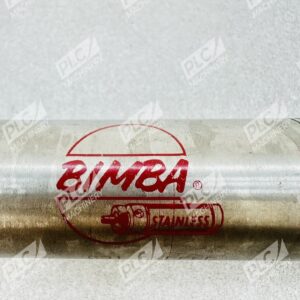

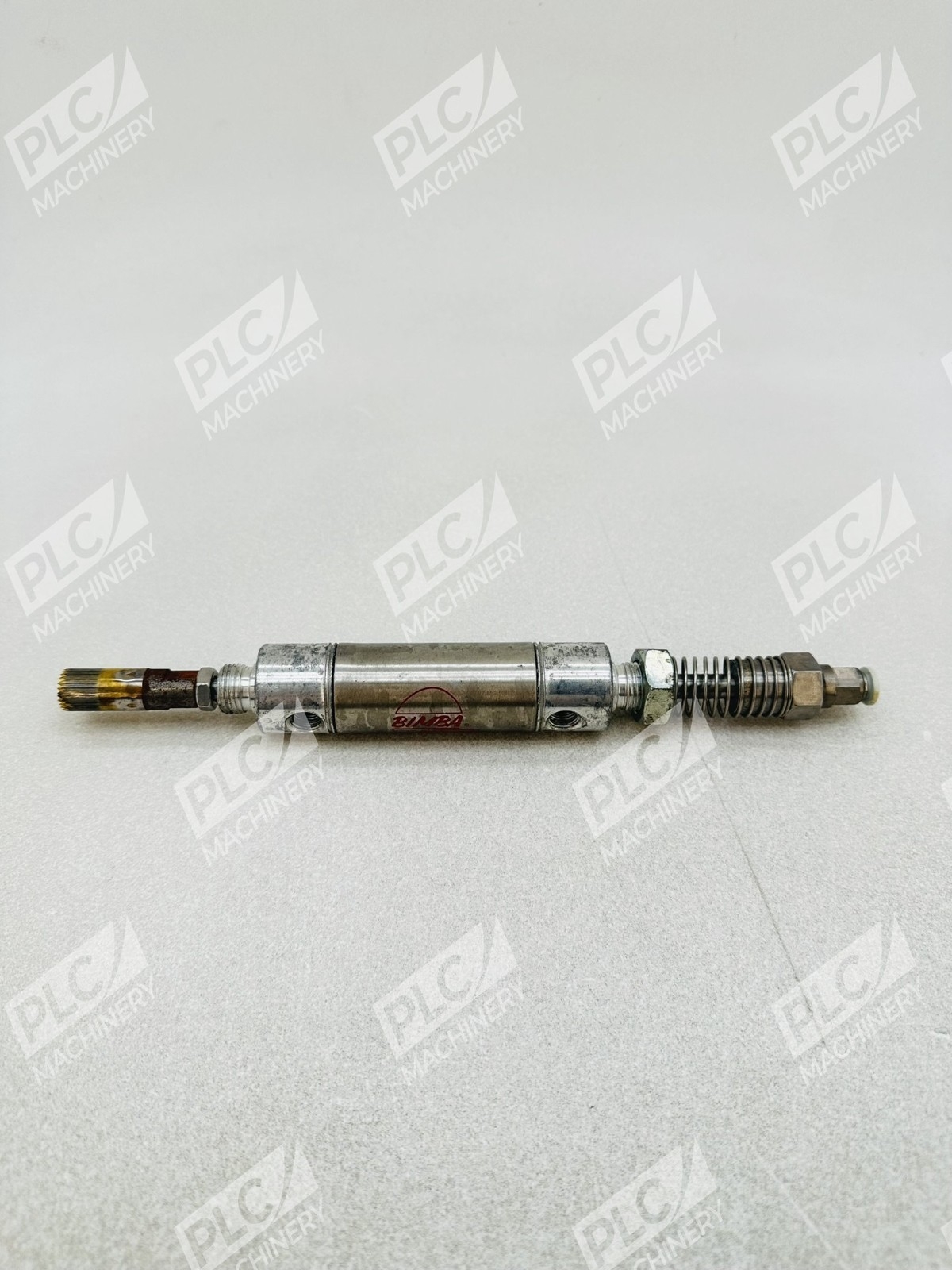

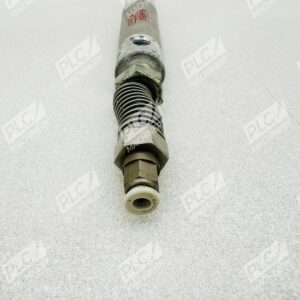

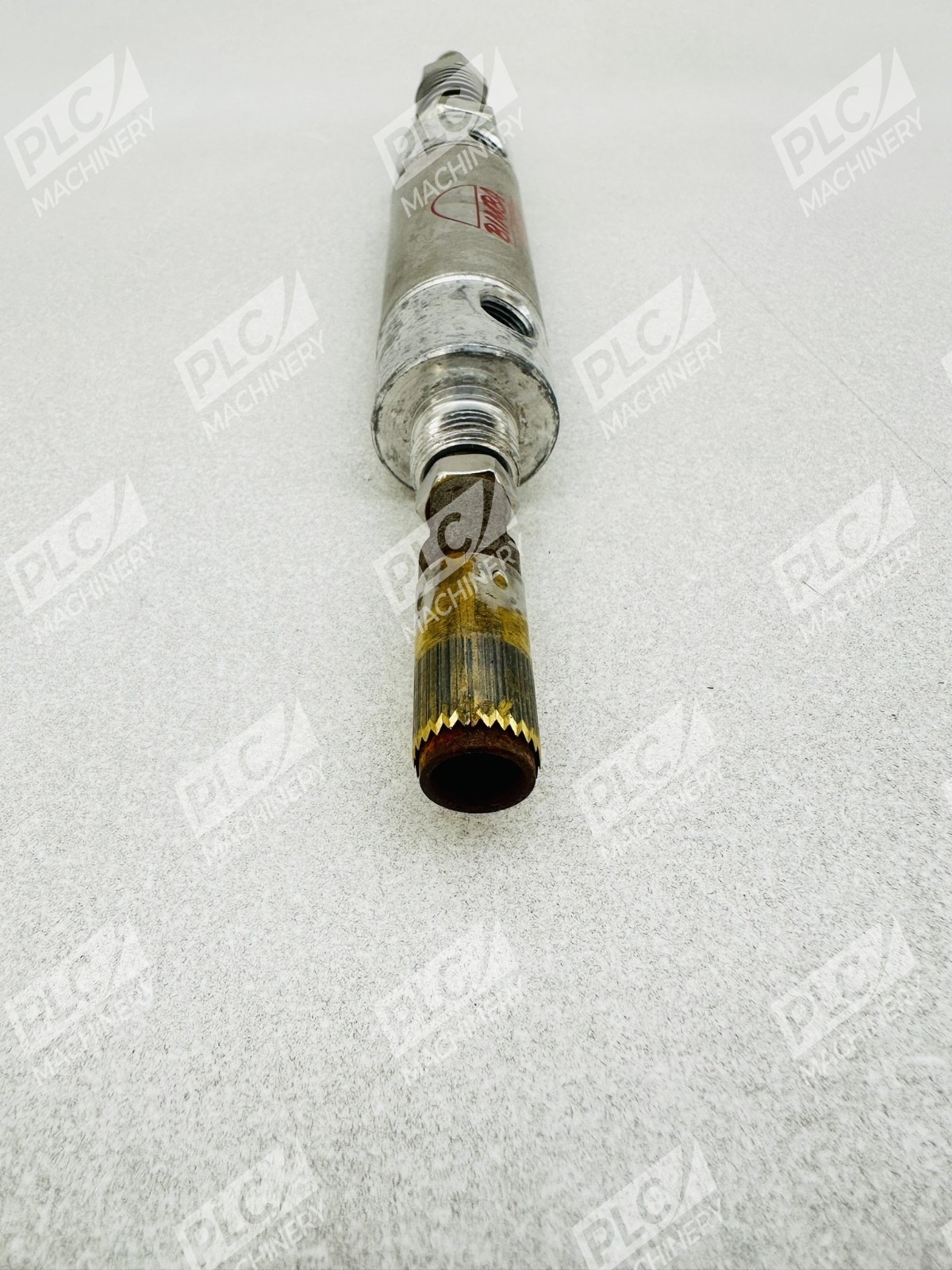

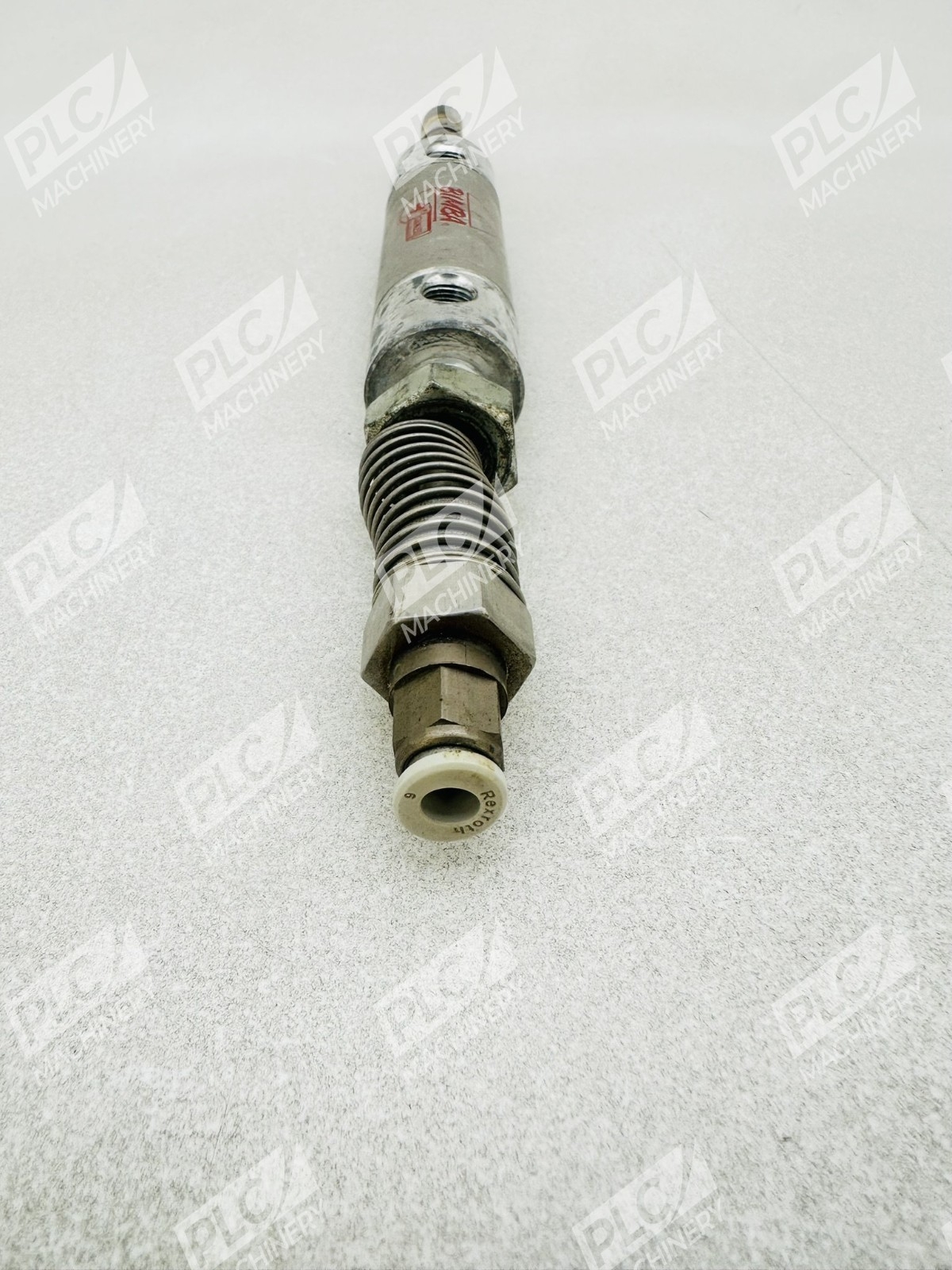

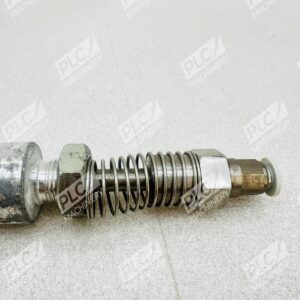

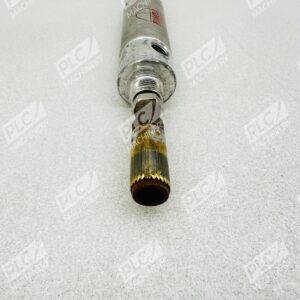

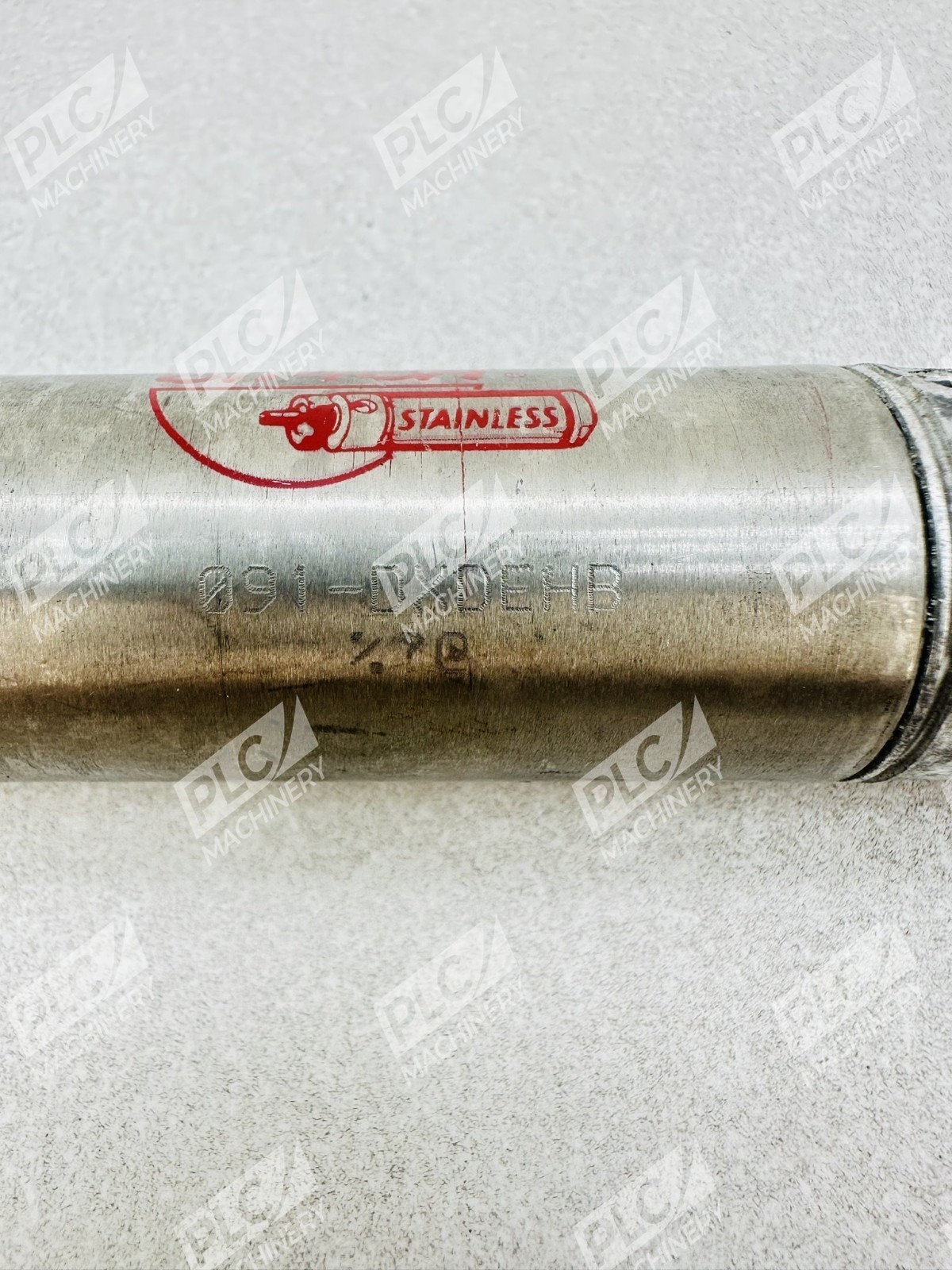

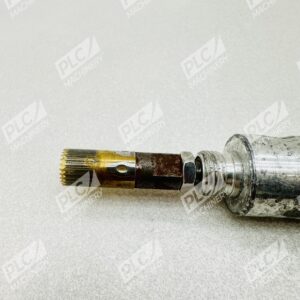

The Bimba 091-DXDEHB is a double-acting, double-end rod pneumatic cylinder from Bimba’s Original Line series. Constructed with a stainless steel rod and built-in magnet, this cylinder is designed for applications requiring corrosion resistance and dependable performance in demanding industrial environments. The 091-DXDEHB is part of Bimba’s time-tested 09 series of compact pneumatic actuators, engineered to provide consistent, efficient operation across manufacturing, automation, and fluid power systems.
Key Features
- Double-acting, double-end rod configuration for bidirectional force output
- Stainless steel rod and construction for corrosion resistance in harsh environments
- Built-in magnet for position sensing compatibility
- Permanent grease lubrication requires no additional maintenance during service
- Original Line design known for reliability and extended service life
- Compact 09-series form factor suitable for space-constrained applications
Technical Specifications
- Bore: 1-1/16 inch
- Stroke: 1 inch
- Rod Diameter: 5/16-24 UNF-2A (threaded male)
- Mounting Style: Double-end with 5/8-18 threaded mounting nuts
- Pneumatic Ports: 2 x 1/8″ NPT (National Pipe Thread) threaded ports
- Rod Material: Stainless steel
- Action Type: Double-acting
- Design Series: Original Line / 09 Series
- Operating Pressure: 250 psi maximum
- Weight: Approximately 0.45 lbs
Typical Applications
The Bimba 091-DXDEHB excels in applications where stainless steel construction and compact dimensions are essential:
- Food and beverage processing machinery requiring corrosion-resistant components
- Pharmaceutical and cleanroom automation systems
- Fluid power control circuits in laboratory and testing equipment
- Industrial automation requiring position-sensing capabilities
- Material handling and assembly line machinery
- Automated gate and valve actuation systems
Compatibility & Replacements
Compatible With
- Pneumatic control systems rated for 250 psi or less
- Standard 1/8″ NPT pneumatic supply and return lines
- Magnetic proximity switches and position-sensing devices
- Double-acting solenoid valves with 1/8″ NPT cavity ports
- Industrial pneumatic component networks and fluid power systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 091-DXDEHB configuration may serve as a direct replacement for other Bimba 091 series double-end rod models with matching bore (1-1/16″) and stroke (1″) specifications. Related Bimba models include the 091-DXDE and similar Original Line configurations.
Works With
- Standard pneumatic air supply systems (1/8″ NPT compatible)
- Manual and solenoid-operated directional control valves
- Pneumatic logic and shuttle valve systems
- Position-sensing and feedback control systems via built-in magnet
- Industrial automation platforms using compressed air actuation
