Overview

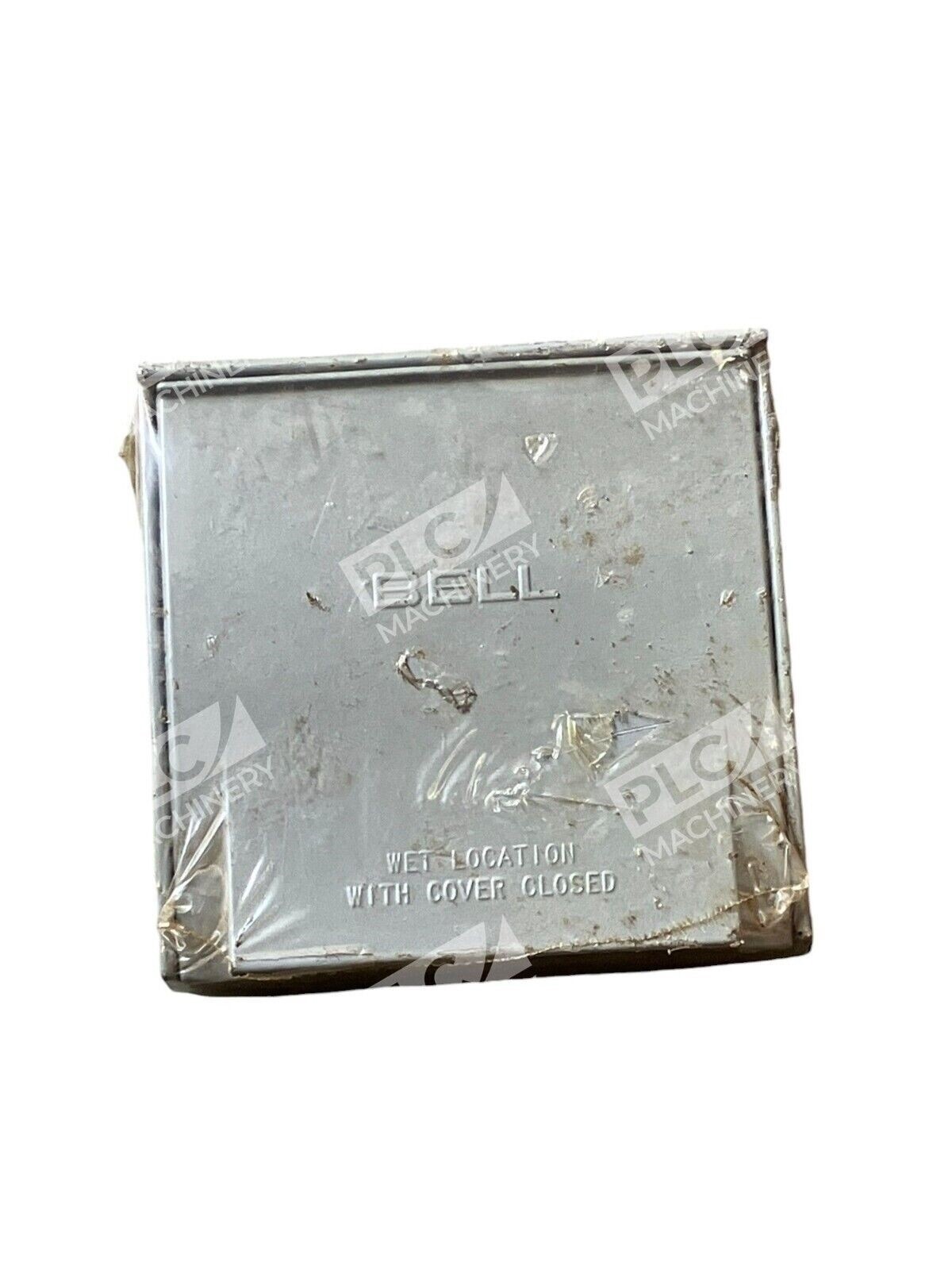

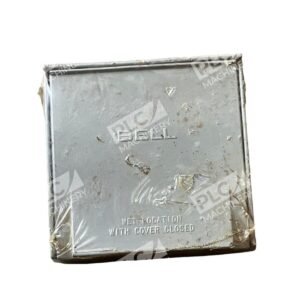

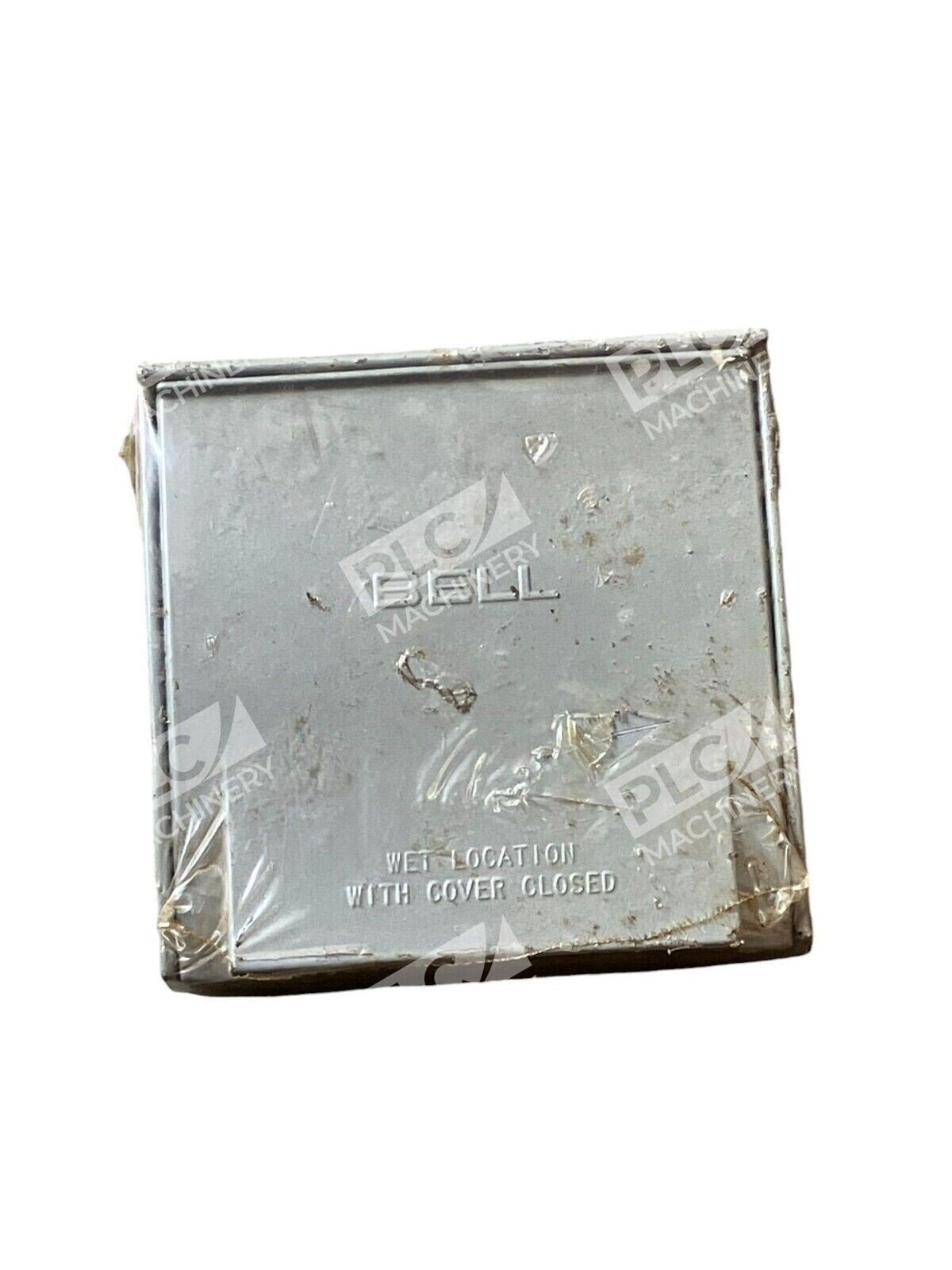

Bell 5036-0 is a professional-grade weatherproof electrical device cover engineered for outdoor installations. Part of the Rayntite series, this two-gang cover houses 30-50A receptacles and delivers rugged protection in harsh environments. The cover features die-cast aluminum construction with state-of-the-art powder coating for maximum durability and weather resistance.
Key Features
- Rugged die-cast aluminum construction with powder-coated finish
- Self-closing lids assure weatherproof protection when receptacle is not in use
- Padlockable with 1/4 inch diameter hole for security
- May be mounted directly to box or device

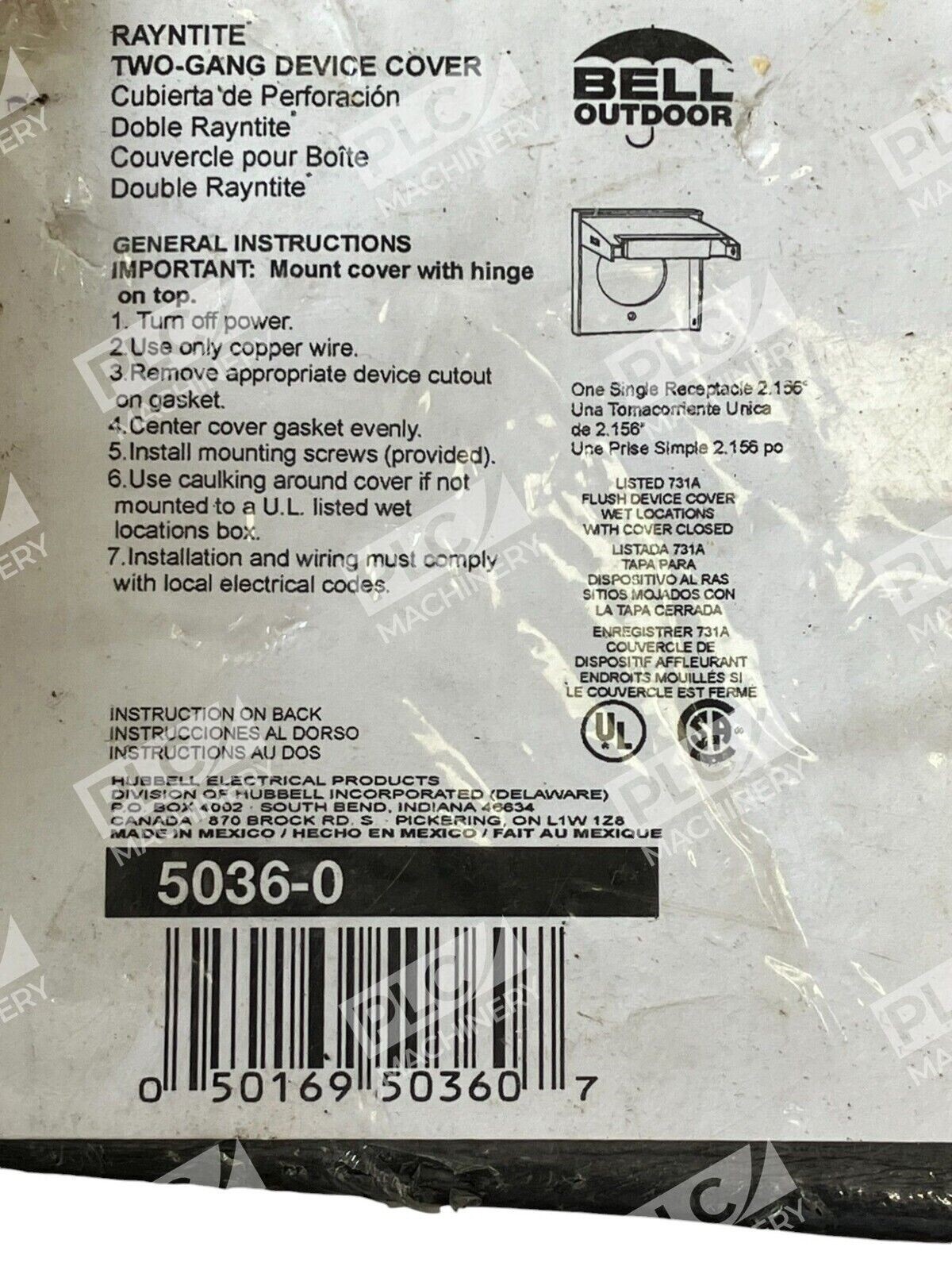

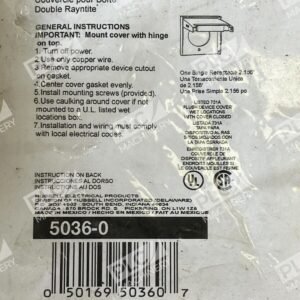

- Installation hardware, gasket, and multilingual instructions included
- NEMA 3R weatherproof rating for outdoor use
Technical Specifications
- Manufacturer: Bell (Raco / Hubbell)
- Part Number: 5036-0
- Configuration: Two-Gang weatherproof cover
- Receptacle Type: 30-50A, 2.156 inch diameter hole
- Material: Aluminum
- Finish: Powder coated gray
- NEMA Rating: 3R (outdoor, weatherproof)
- Mount Type: Vertical mount
- Weight: 0.675 lbs
- Dimensions: 4.563 in. (W) × 4.5 in. (H) × 1.188 in. (D)
- UPC: 050169503607
- Padlock Hole: 1/4 inch diameter
Typical Applications
The Bell 5036-0 is ideal for:
- Outdoor electrical receptacle protection in wet or corrosive environments
- Industrial sites, construction areas, and marine installations
- Residential and commercial outdoor power applications
- Equipment requiring lockable weatherproof access
- Temporary and permanent outdoor power distribution setups
Compatibility & Replacements
Compatible With
- 30-50A outdoor receptacles (2.156 inch diameter)
- Standard electrical boxes and enclosures with vertical mounting
- NEMA 3R-rated outdoor electrical systems
- Most weatherproof receptacle configurations
Replaces / Drop-In Replacement For
Verify specific replacement compatibility with your system integrator before ordering, as weatherproof covers may have mounting variations.
Works With
- Outdoor electrical installations requiring NEMA 3R protection
- Standard electrical box mounting hardware
- Standard padlocks (1/4 inch diameter hole)
- Gasket-sealed weatherproof enclosure systems
