Overview

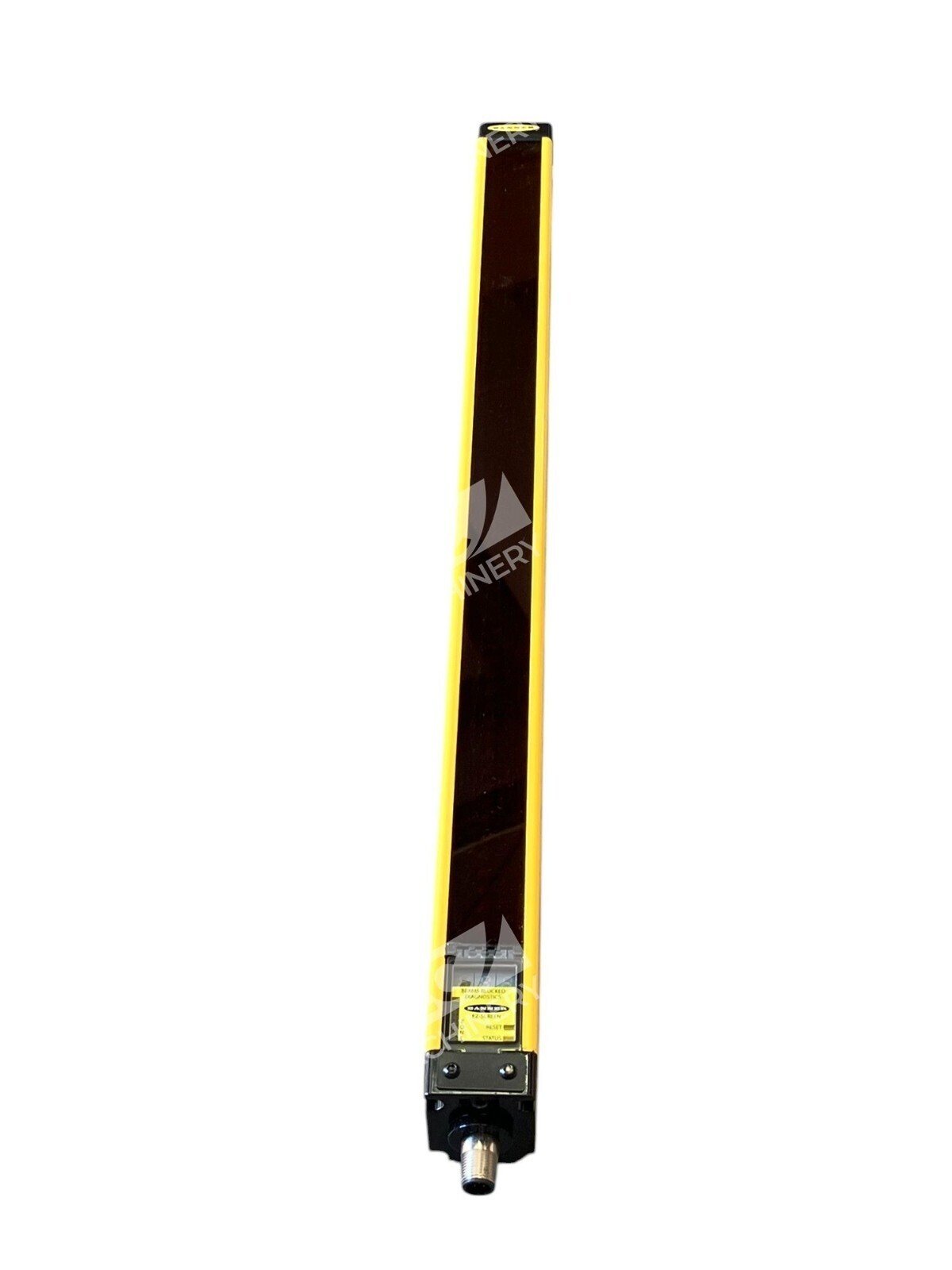

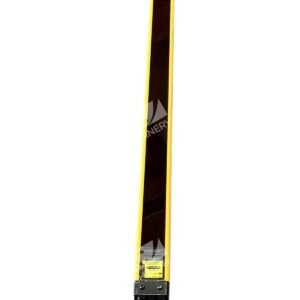

The Banner SLSR14-450Q8 EZ-Screen receiver is a Type 4 safety light curtain designed for personnel and equipment protection in industrial automation environments. With a 450mm defined scanning area and 14mm beam resolution, this receiver operates at distances up to 6 meters (20 feet) and connects via 8-pin M12 connector for straightforward integration into safety control circuits.
Key Features
- 14mm beam resolution — detects small objects and fingers for precise personnel protection
- 450mm sensing height — covers medium-span machine access points and guard openings
- 6-meter detection range — adequate for standard machine guarding layouts
- M12 8-pin connector — industry-standard plug-and-play integration
- Type 4 safety rating — meets EN 61496-1 safety light screen standards
- Receiver unit — pairs with SLSE14-450Q8 emitter or equivalent transmitter

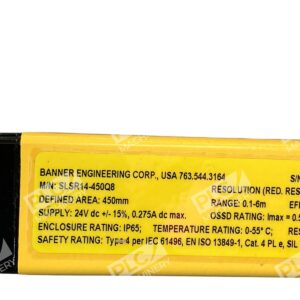

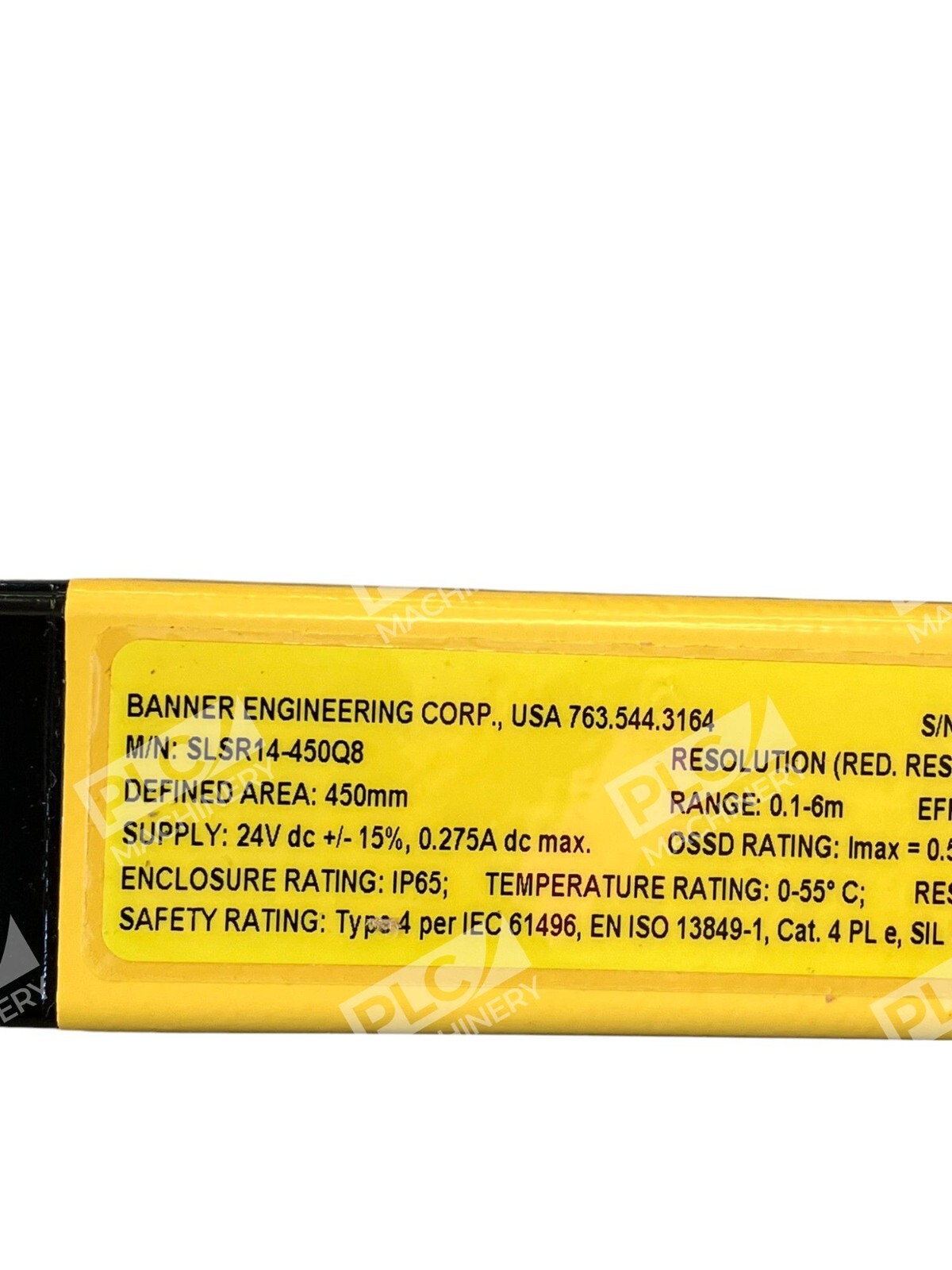

Technical Specifications
- Model: SLSR14-450Q8
- Product Type: EZ-Screen Safety Light Curtain Receiver
- Resolution: 14mm
- Sensing Range: 6m (20 ft)
- Defined Area: 450mm (17.7 in)
- Housing Length: 522mm (20.6 in)
- Connection: 8-pin M12 Connector
- Beam Count: 60 beams
- Response Time: 19ms
- Safety Category: Type 4 (EN 61496-1)
- Series: 14/30 Series
Typical Applications
The Banner SLSR14-450Q8 receiver is ideal for:
- Press and punch machine guarding
- Industrial robot work cell perimeter protection
- Assembly line access point barriers
- Packaging and labeling machine safety zones
- Metal stamping and fabrication equipment safeguarding
- Custom automation system integration requiring Type 4 safety certification
Compatibility & Replacements
Compatible With
- SLSE14-450Q8 EZ-Screen Emitter (paired transmitter)
- SLSCP14-450Q88 EZ-Screen Cascade Pair systems
- Banner EZ-SCREEN SLS safety light curtain control modules and relays
- Standard M12 8-pin safety connector ecosystems
- ISO 13849-1 PLd and SIL 2 safety control architectures
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The SLSR14-450Q8 receiver is a discrete component designed to replace only identical Banner 14mm-resolution receiver units in existing EZ-Screen installations.
Works With
- Banner EZ-SCREEN SLS control software and configuration tools
- Standard industrial safety relay modules and contactors
- M12 connector harnesses and quick-disconnect cables
- PLC safety modules with hardwired discrete I/O interfaces
- Emergency stop and interlocking safety circuits
