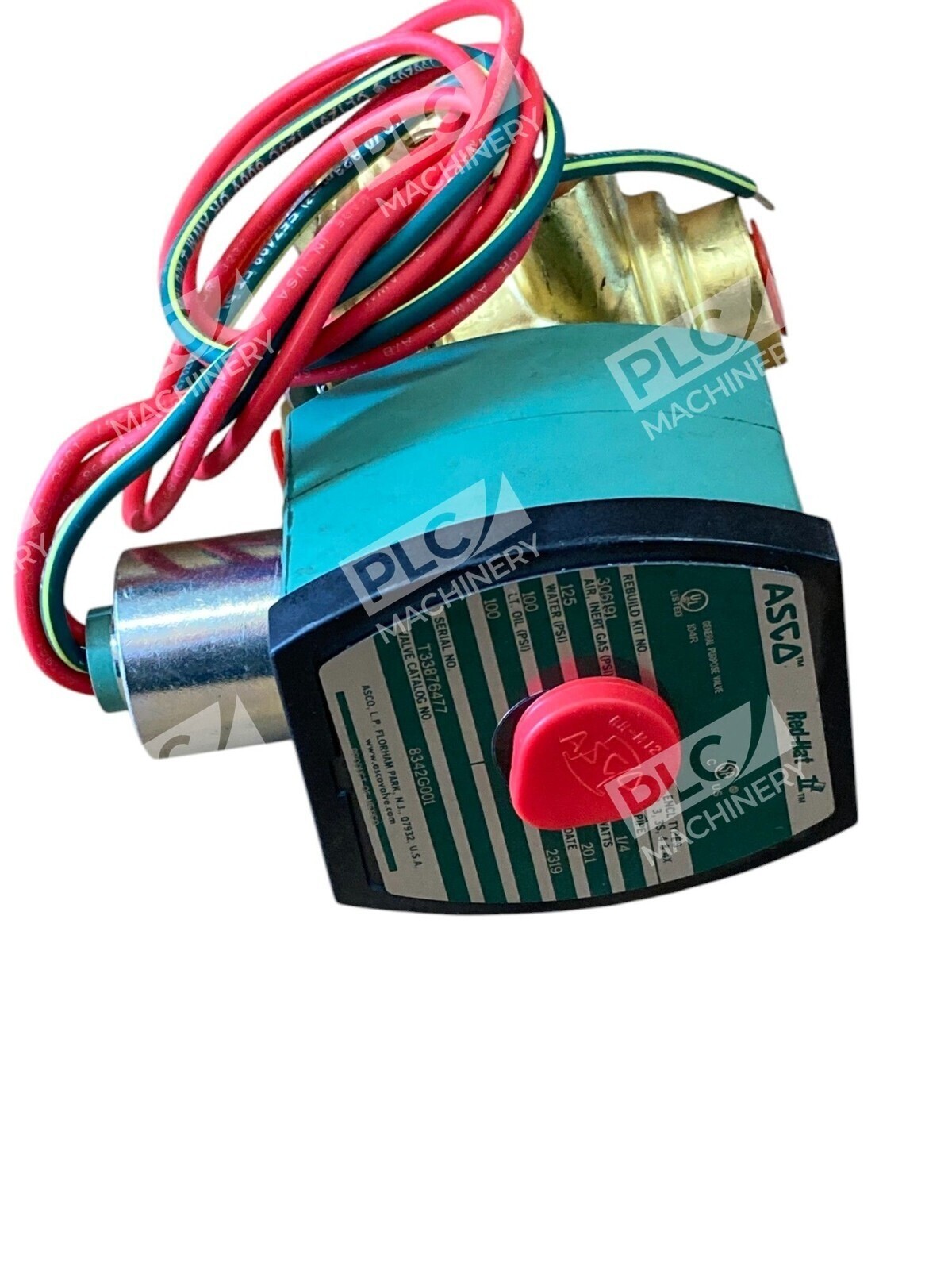

Overview
The ASCO 8342G001-120/60 is part of the proven Red Hat II Series 8342 line of general service solenoid valves. This direct acting 4-way, 2-position valve is engineered for reliable control of compressed air, inert gas, water, and light oil in industrial automation systems, pneumatic circuits, and process control applications.
Key Features
- 4-Way/2-Position Direct Acting Design: Simple, proven solenoid actuation with no external pilot pressure required
- Single Solenoid Construction: Straightforward operation and maintenance

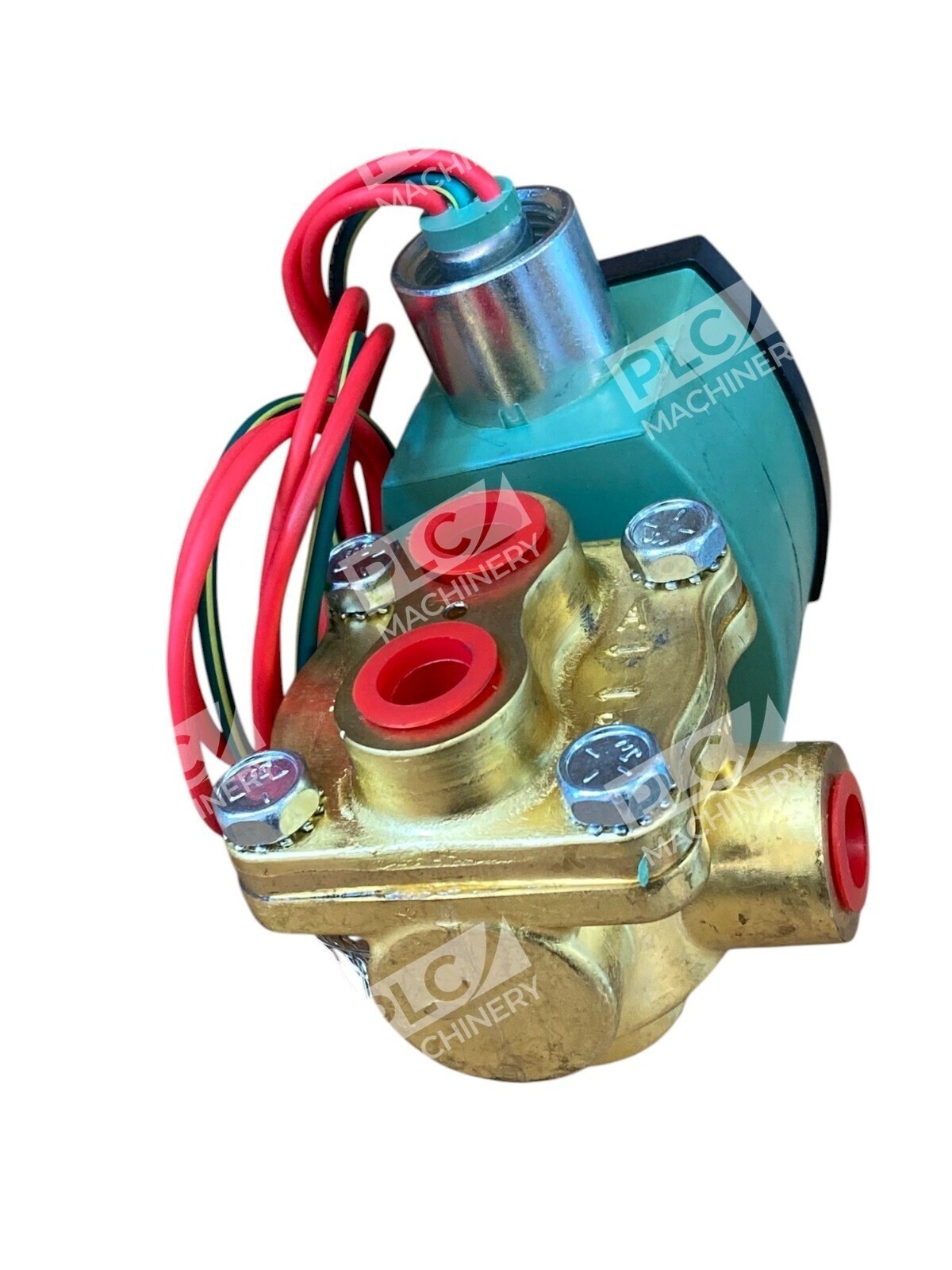

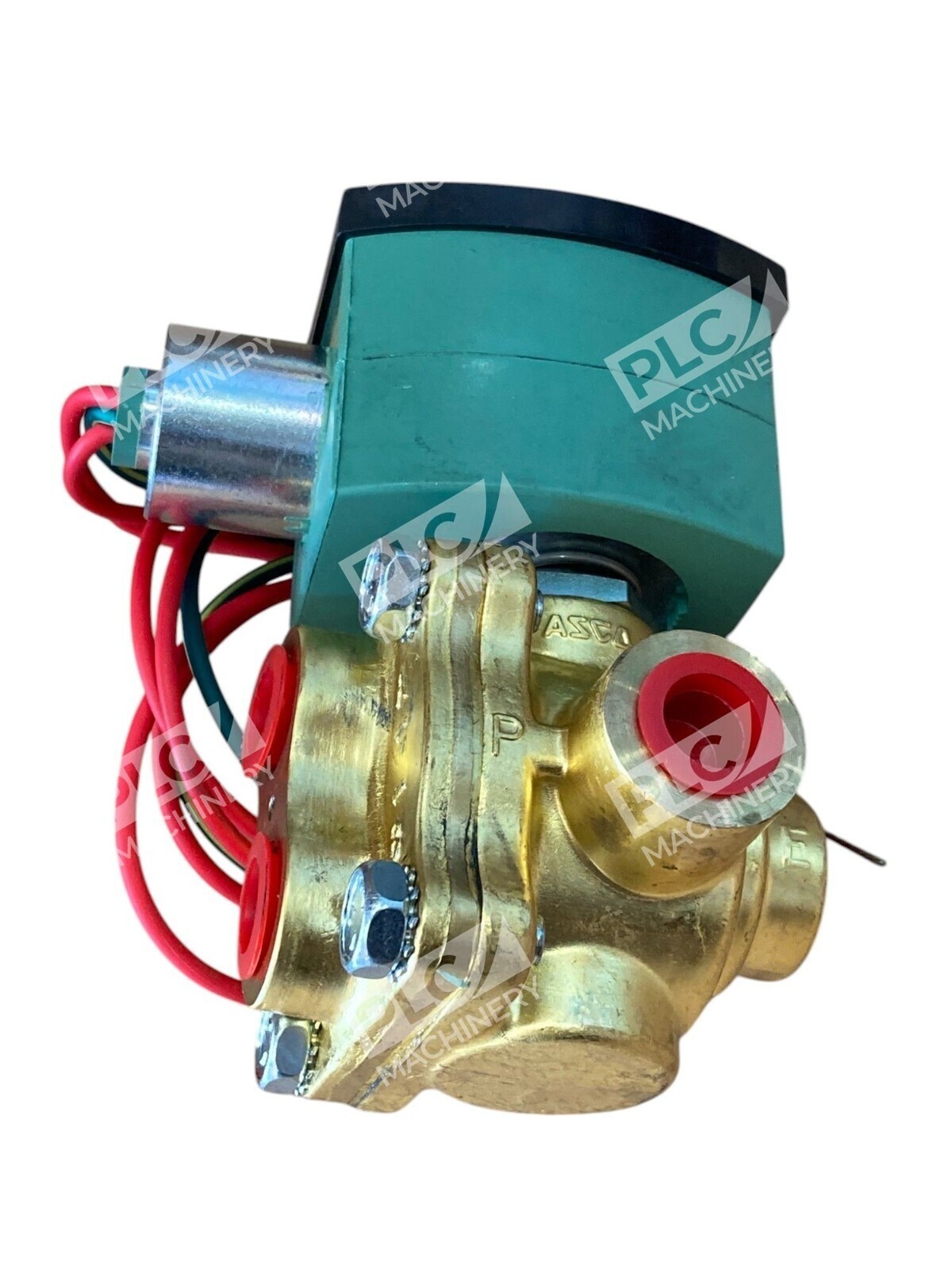

- Brass Body with PTFE Internals: Durable, corrosion-resistant construction rated for air, water, and light oil
- Class F Coil: 20.1W power rating; operates at 120VAC/60Hz
- 1/4″ NPT Porting: Industry-standard female threaded ports for easy manifold and system integration
- 0.70 Cv Flow Coefficient: Balanced flow capacity for general service applications
Technical Specifications
- Valve Type: 4-Way/2-Position Direct Acting Solenoid Valve
- Port Size: 1/4″ Female NPT
- Orifice: 3/16″ diameter
- Body Material: Brass
- Seal Material: PTFE (Polytetrafluoroethylene)
- Spring Material: Stainless Steel (302)
- Core Tube: Stainless Steel (305)
- Pressure Rating: 125 psig (air/inert gas), 100 psig (water), 100 psig (light oil) @ 160°F
- Flow Coefficient (Cv): 0.70

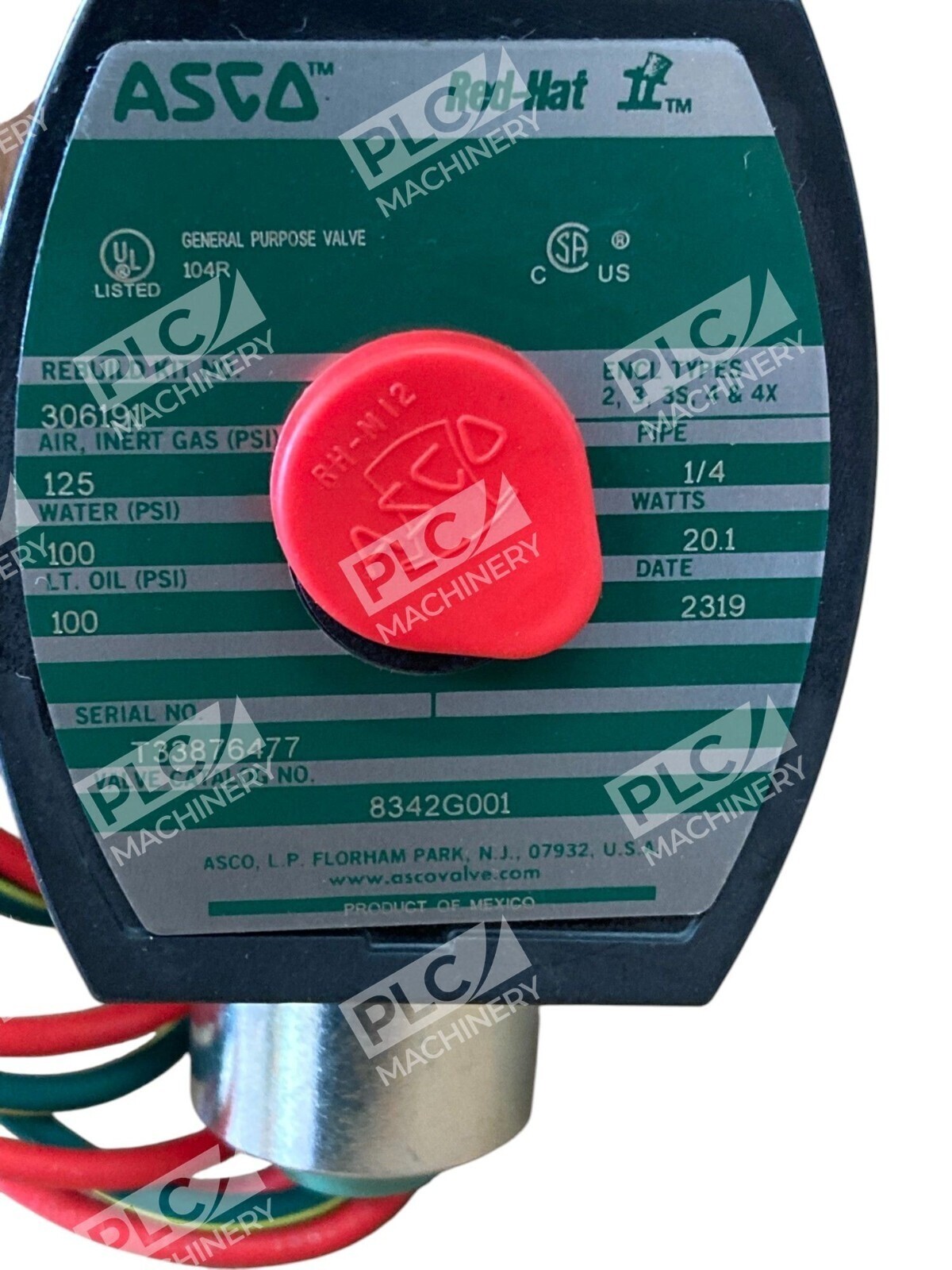

- Coil Rating: 120VAC/60Hz, 20.1W, Class F
- Max Operating Temperature: 160°F
- Series: 8342 Red Hat II
Typical Applications
The ASCO 8342G001-120/60 is widely used for:
- Pneumatic cylinder and actuator control in manufacturing and assembly lines
- Compressed air distribution and switching in process automation
- General service fluid control in machine tools and industrial equipment
- Water and light oil flow regulation in hydraulic and lubrication systems
- Vent and exhaust control in production facilities
Compatibility & Replacements
Compatible With
- Standard pneumatic manifold blocks with 1/4″ NPT cavity
- Industrial control panels and 120VAC power circuits
- Most pneumatic and general service fluid systems requiring 4-way valve control
- Factory automation and machinery using compressed air actuation
Replaces / Drop-In Replacement For
- Earlier versions of ASCO 8342 series general service solenoid valves
- Verify specific replacement compatibility with your system integrator or ASCO applications engineer before ordering
Works With
- 120VAC/60Hz control circuits and industrial relay logic systems
- PLC (Programmable Logic Controller) solenoid coil outputs
- Pneumatic control manifolds and valve islands
- Standard ported and cavity-based subplate mounting systems
- Rebuild Kit 304691-ASCO for field maintenance and service
