Overview

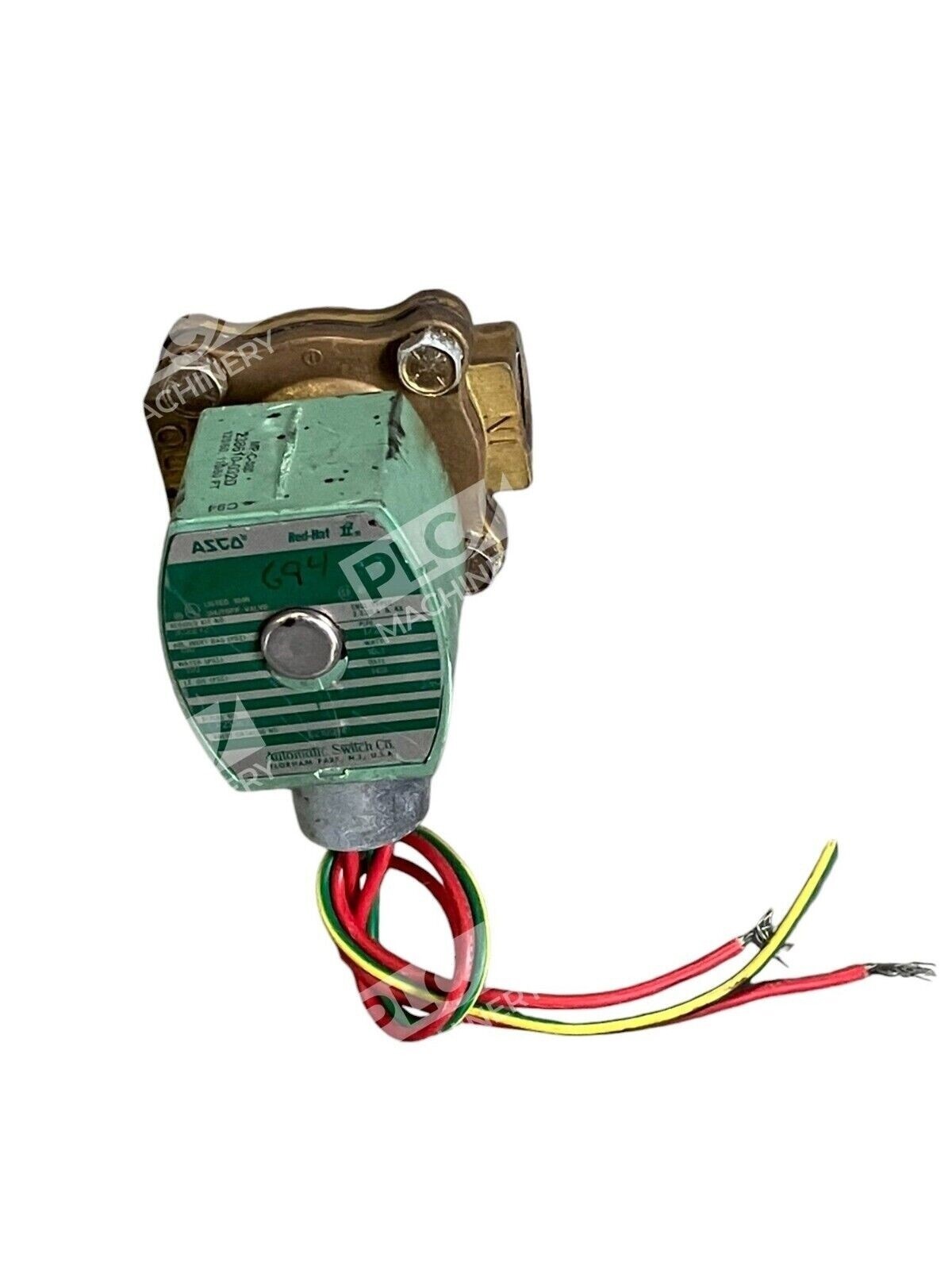

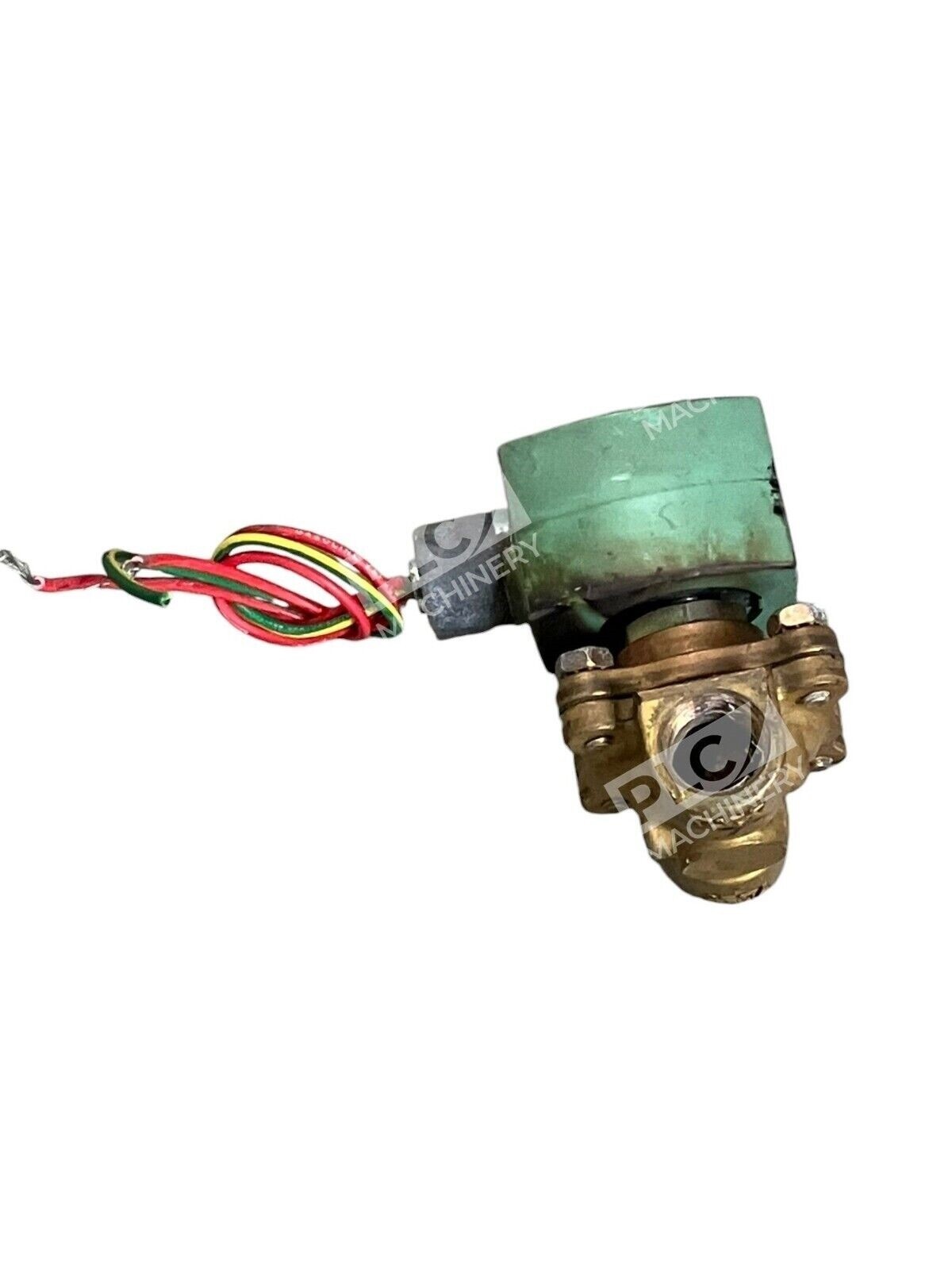

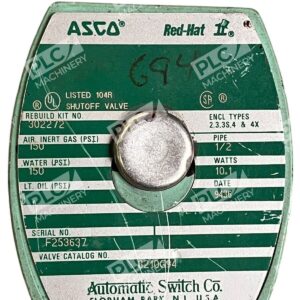

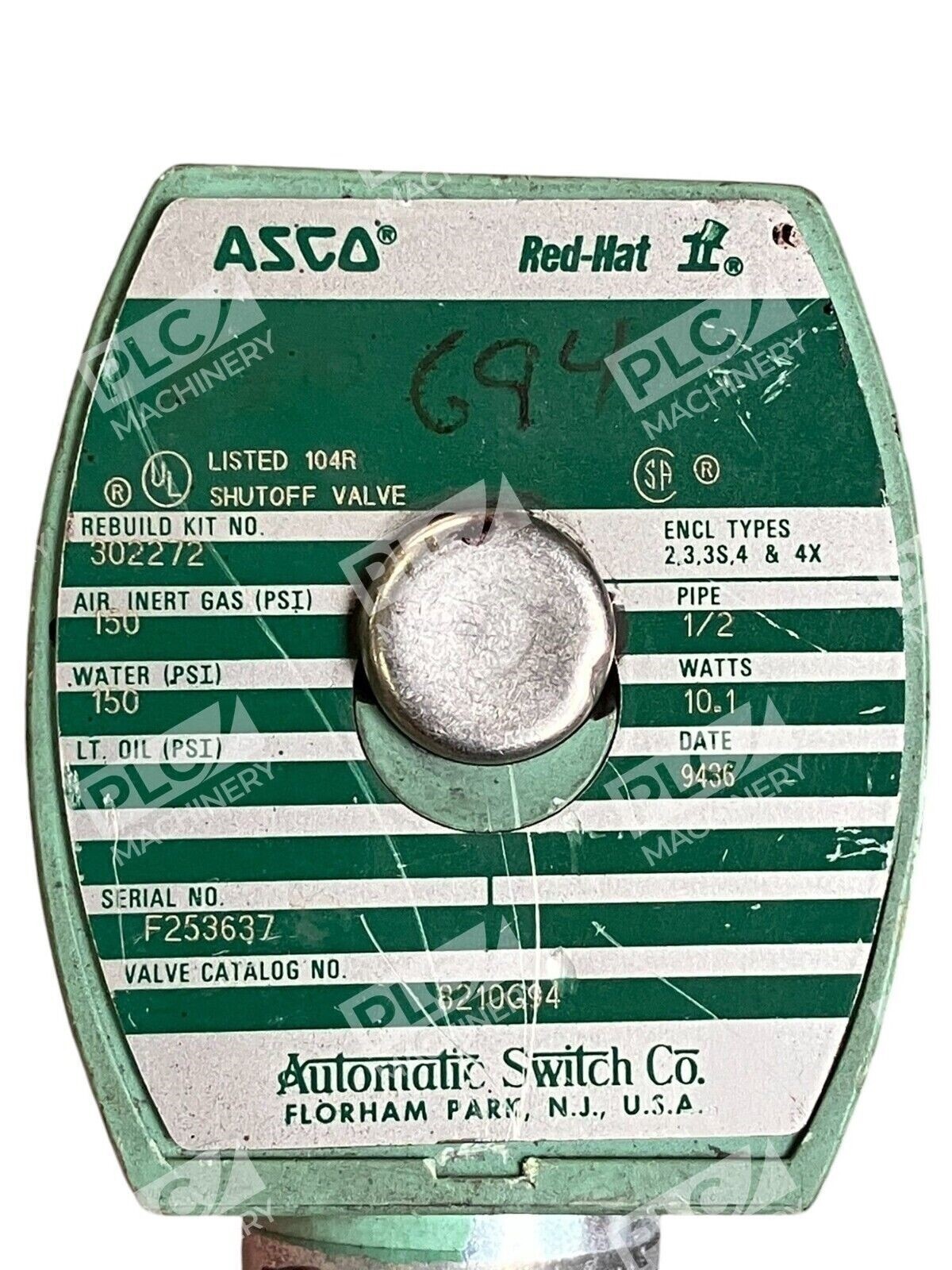

The Asco 8210G94 is a RedHat series, pilot-operated solenoid valve engineered for general-service fluid control in industrial applications. This 2-way 2-position normally closed solenoid valve features a 1/2 in NPT connection with a brass body. Designed for general fluid control applications, it is constructed with a brass body and NBR seals for efficient operation across a broad pressure range.
Key Features
- Pilot-Operated Design: Utilizes a diaphragm-style internal pilot to manage high flow rates with minimal internal leakage
- Normally Closed (NC): Sealed until the coil is energized to open the valve
- Durable Brass Construction: Brass body with NBR seals provides efficient operation and corrosion resistance
- High Flow Capacity: Features a 5/8 in orifice for reliable flow control
- Multiple Media Support: Suitable for air, water, light oil, non-corrosive fluid, and inert gas service
- Sealed Enclosure Options: Available with NEMA 1, 2, 3, 3S, 4, and 4X enclosure types for diverse environmental conditions
Technical Specifications
- Port Size: 1/2 in NPT
- Valve Type: 2-way 2-position normally closed
- Pressure Rating (AC): 150 psi air, 40 psi DC
- Pressure Rating (Water): 150 psi
- Orifice Size: 5/8 inch
- Body Material: Brass
- Seal Material: NBR/PTFE
- Operating Temperature (Fluid): 180°F AC, 150°F DC
- Coil Wattage (120V Standard): 10.1 W
- Dimensions: 2.28 in W x 3.84 in H x 2-3/4 in length (inlet to outlet)
- Enclosure Rating: NEMA 4X
Typical Applications
The Asco 8210G94 is widely used in industrial water control, automation systems, and compressed air applications. Common uses include:
- Industrial water systems and shut-off control
- Compressed air automation and pneumatic circuits
- HVAC and commercial water systems
- General fluid control in automation
- Light oil and inert gas service
- Washdown and corrosive-resistant enclosure environments (NEMA 4X)
Compatibility & Replacements
Compatible With
- 1/2″ NPT threaded port systems (standard industrial water and air lines)
- AC power supplies (120V, 240V, 480V coil options available)
- Standard industrial solenoid control circuits
- Pilot-operated pneumatic and hydraulic control systems
- ISO 4401 NG10 manifold cavity (industry standard)
Replaces / Drop-In Replacement For
The Asco 8210G94 is part of the RedHat 8210 series general-service line. Related models in the same series include 8210B057, 8210B058, and 8210B059. Verify compatibility with your system integrator before ordering used units, as specific coil voltages and enclosure types vary by model suffix.
Works With
- Solenoid control panels and PLC-based automation systems
- 24V DC, 120V AC, 240V AC, and 480V AC solenoid coils (sold separately or as complete assemblies)
- Pressure gauges and flow meters for diagnostics
- Standard solenoid valve pilot drain systems
- Manifold block integration in multi-valve circuits
[
{“label”: “Manufacturer”, “value”: “Asco (Emerson)”},
{“label”: “Part Number”, “value”: “8210G94”},
{“label”: “Series”, “value”: “RedHat 8210”},
{“label”: “Port Size”, “value”: “1/2 in NPT”},
{“label”: “Valve Type”, “value”: “2-Way 2-Position Normally Closed”},
{“label”: “Pressure Rating (Air/Gas)”, “value”: “150 psi AC, 40 psi DC”},
{“label”: “Pressure Rating (Water)”, “value”: “150 psi”},
{“label”: “Flow Coefficient (Cv)”, “value”: “0.7 – 4.0 (varies by coil voltage)”},
{“label”: “Orifice Size”, “value”: “5/8 inch”},
{“label”: “Body Material”, “value”: “Brass”},
{“label”: “Seal Material”, “value”: “NBR/PTFE”},
{“label”: “Operating Temperature”, “value”: “180°F AC, 150°F DC”},
{“label”: “Coil Wattage”, “value”: “10.1 W”},
{“label”: “Enclosure Rating”, “value”: “NEMA 1, 2, 3, 3S, 4, 4X”},
{“label”: “Condition”, “value”: “Used”}
]
