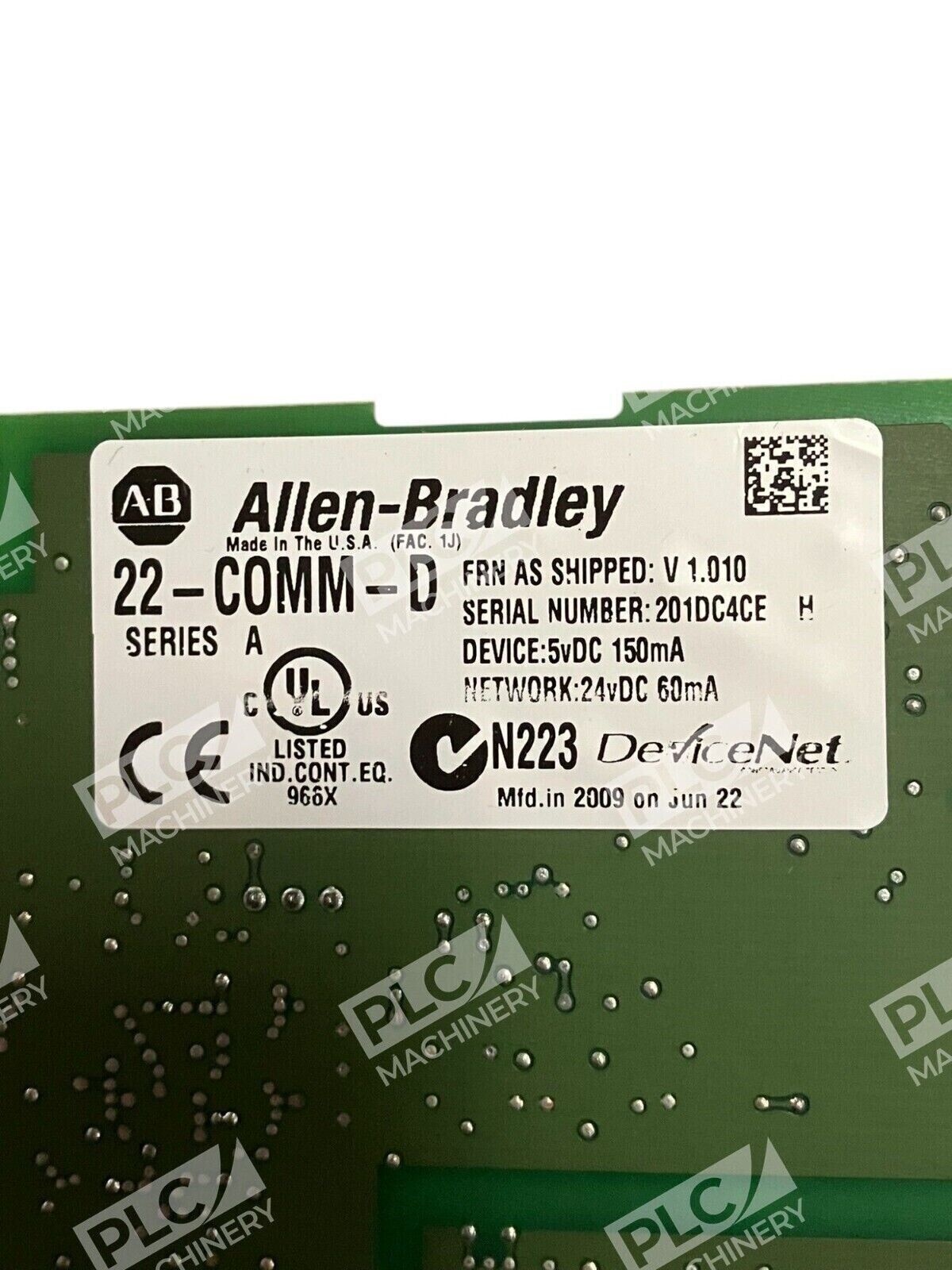

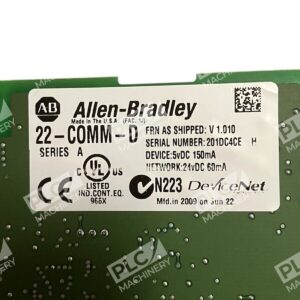

Allen Bradley N223 DeviceNet Powerflex Devicenet Adapter 22-COMM-D /A

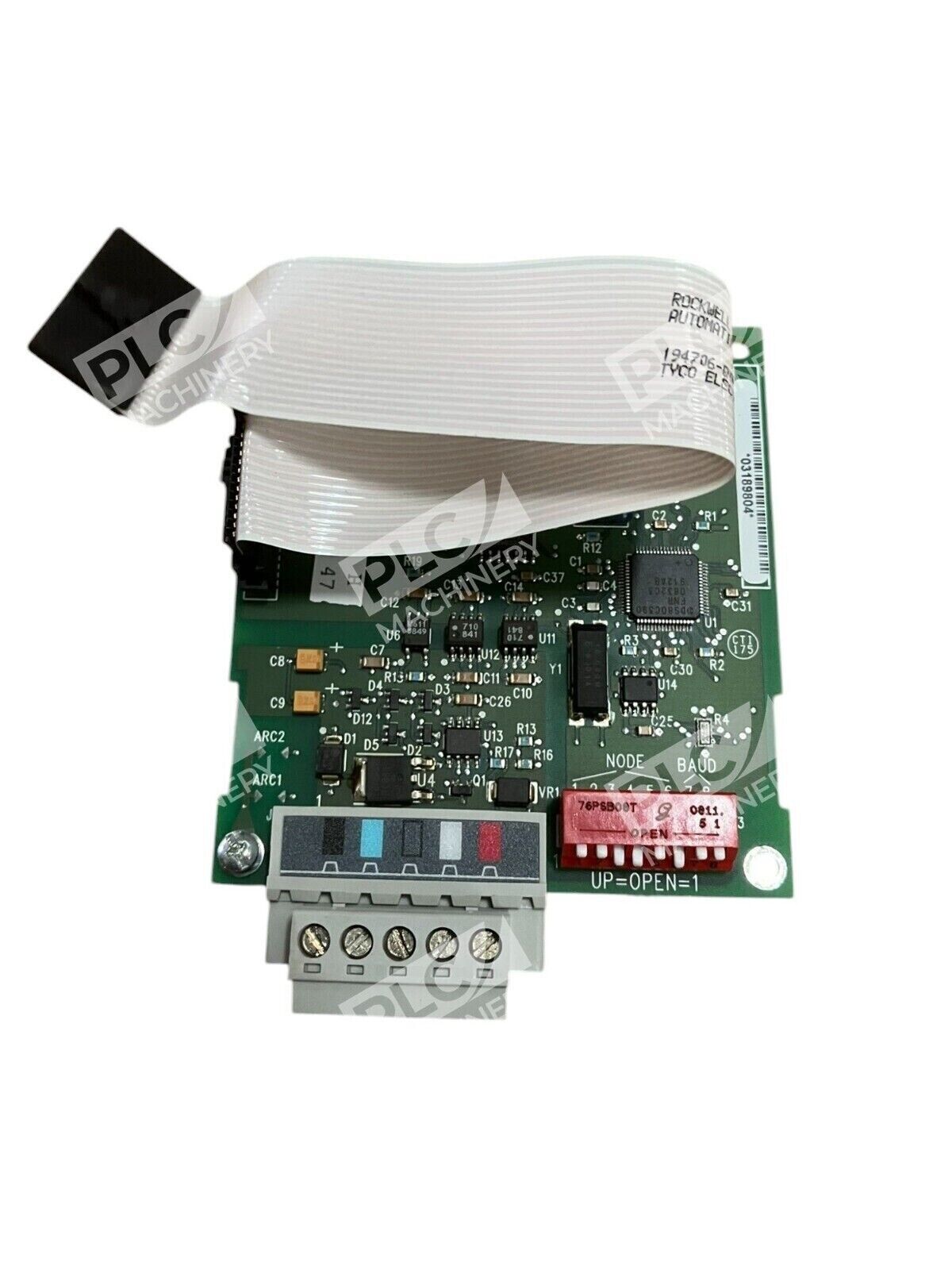

Allen-Bradley 22-COMM-D DeviceNet Adapter

The Allen-Bradley 22-COMM-D is a DeviceNet communication adapter designed to integrate PowerFlex 4-Class drives seamlessly into DeviceNet networks. This adapter facilitates efficient and reliable data exchange in industrial automation environments, supporting both Single and Multi-Drive modes of operation.

Technical Specifications

• Model: 22-COMM-D
• Type: DeviceNet Communication Adapter
• Compatible Drives: PowerFlex 4, PowerFlex 4M, PowerFlex 40, PowerFlex 40P, PowerFlex 400
• Mounting: Internal Mount or via DSI External Comms Kit (22-XCOMM-DC-BASE)
• Power Supply: 5V DC (supplied by the drive)
• Current Draw: 150 mA (device), 60 mA (network)
• Communication Ports:
  • DeviceNet Connector: 5-pin linear plug
  • DSI Connector: 20-pin, single-row shrouded male header
• Data Transfer Rates: 125 kbps, 250 kbps, 500 kbps
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 5% to 95% (non-condensing)
• Manufacturer: Rockwell Automation

Key Features

• Supports both Single and Multi-Drive modes (up to 5 drives in Multi-Drive mode)
• Reduces hardware costs and network node count in Multi-Drive configurations
• LED indicators for module, network, and communication status
• Node address and data rate configuration via DIP switches
• Compatible with configuration tools such as RSNetWorx for DeviceNet, DriveExplorer, and DriveExecutive
• Supports explicit messaging and automatic device replacement (ADR)

Compatible Components & Accessories

• Allen-Bradley PowerFlex 4-Class drives
• DSI External Comms Kit (22-XCOMM-DC-BASE)
• Configuration software: RSNetWorx for DeviceNet, DriveExplorer, DriveExecutive
• DeviceNet cables and connectors

Industry Applications

• Factory automation systems
• Process control applications
• Material handling systems
• Packaging machinery
• Water and wastewater treatment facilities

Installation & Maintenance Notes

• Ensure proper installation within the drive or DSI External Comms Kit
• Set the operating mode jumper to select between Single or Multi-Drive mode
• Configure node address and data rate switches for unique DeviceNet node identification
• Use appropriate configuration tools for parameter setup and diagnostics
• Refer to the user manual for detailed installation and maintenance guidelines
