Overview

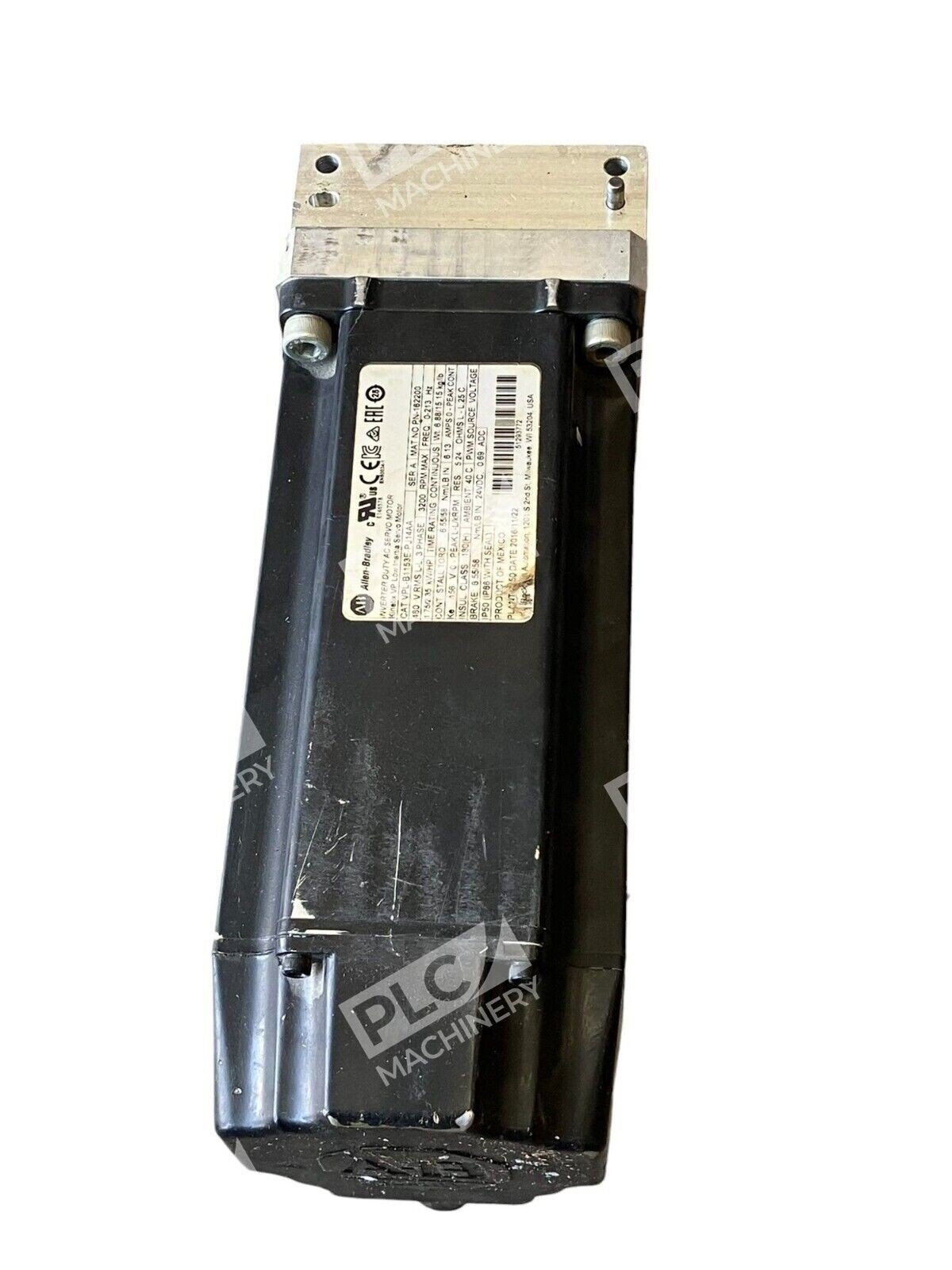

The Allen-Bradley VPL-B1153E-PJ14AA is a low-inertia brushless servo motor from the Kinetix VPL product line. This 480V AC motor is engineered for dynamic, high-performance motion control in industrial automation, packaging, assembly, and precision positioning applications. The motor features a compact 115mm bolt circle frame, three magnet stacks, and a multi-turn digital feedback encoder, making it ideal for systems requiring rapid acceleration and precise speed regulation.
Key Features
- Low-Inertia Design: Brushless permanent magnet rotor minimizes settling time and enables rapid acceleration/deceleration cycles.
- High-Resolution Feedback: 18-bit single-turn and 12-bit multi-turn digital encoder delivers accurate real-time position and velocity feedback.
- Integrated Holding Brake: 24V DC electromechanical brake ensures load holding and safe machine stops without external spring-applied brakes.
- SpeedTEC DIN Connector: Right-angle DIN connector simplifies control wiring and reduces cabinet footprint.
- Keyed Shaft & IEC Flange: Keyed shaft design ensures positive drive engagement; IEC metric mounting flange enables direct coupling to gearboxes and load adaptors.
- Kinetix 5500/5700 Compatibility: Native support for Allen-Bradley Kinetix 5500 and 5700 servo drives via EtherNet/IP or DeviceNet protocols.

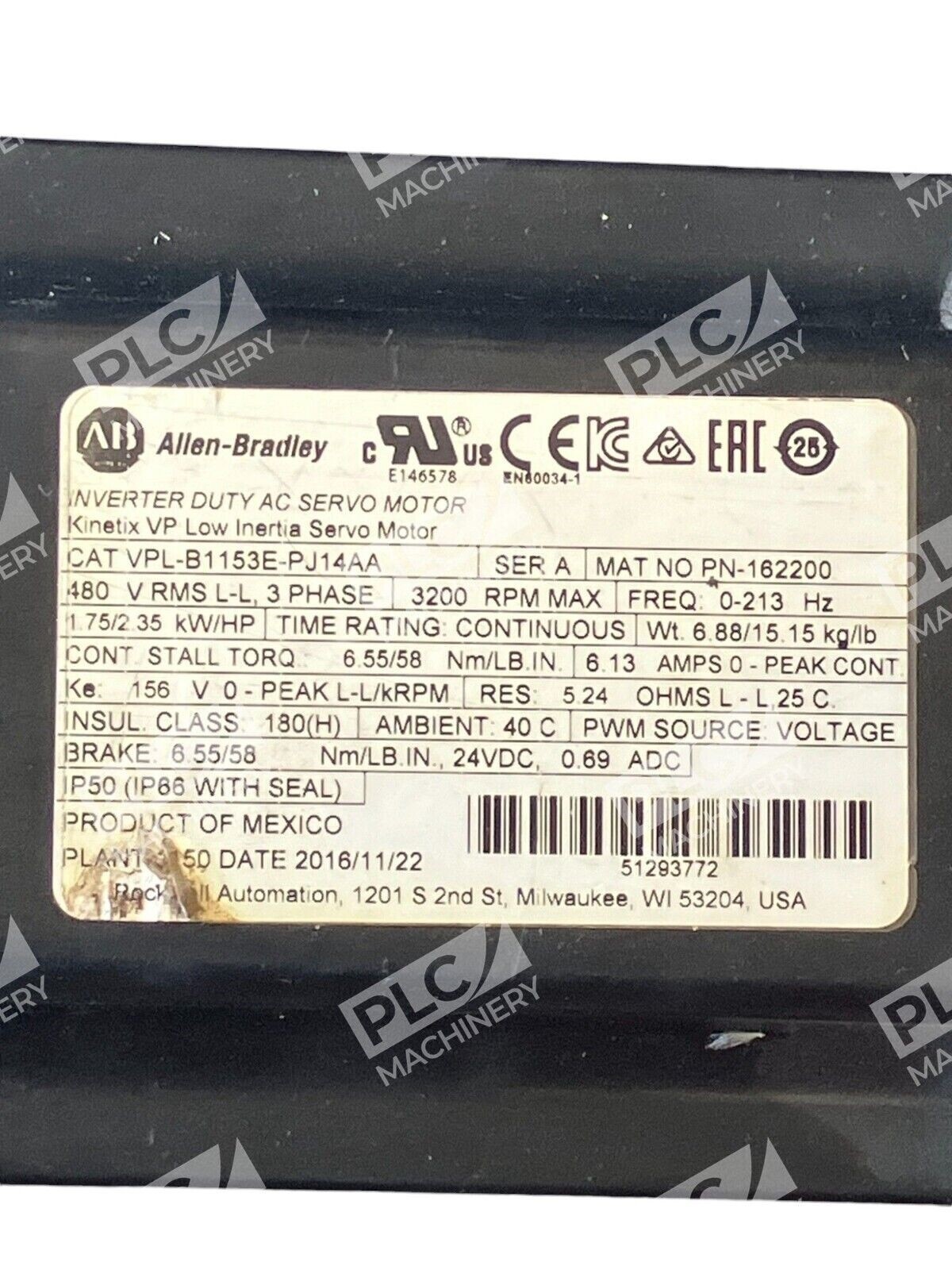

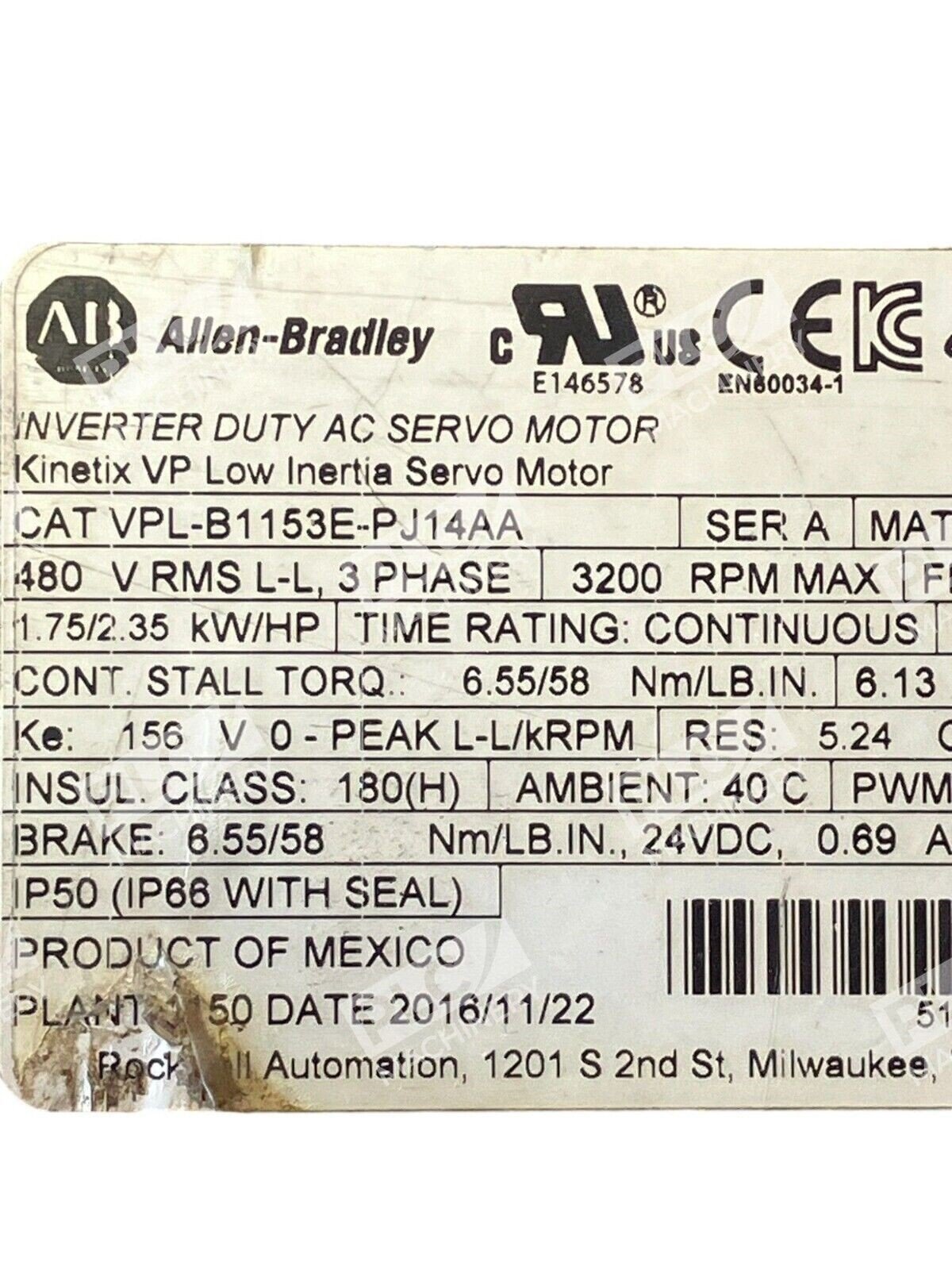

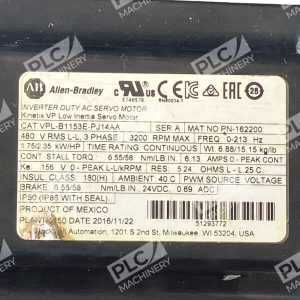

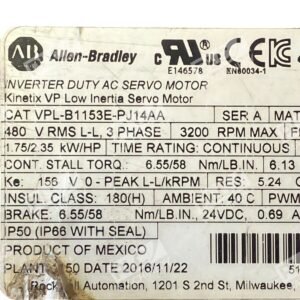

Technical Specifications
- Motor Type: Synchronous brushless permanent magnet AC servo motor
- Input Voltage: 480V AC, three-phase, 50/60 Hz
- Rated Speed: 3500 RPM
- Frame Size: 115mm bolt circle diameter (IEC metric)
- Magnet Configuration: 3 magnet stacks
- Encoder Type: Multi-turn digital encoder (18-bit single-turn + 12-bit multi-turn)
- Shaft Design: Keyed shaft
- Connector: SpeedTEC right-angle DIN
- Holding Brake: 24V DC integral brake (included)
- Mounting Flange: IEC metric, free-mount holes
- Protection Class: IP65
- Insulation Class: F
- Operating Temperature: 0–40°C ambient (motor winding)
- Storage Temperature: –20–65°C
Typical Applications
- Pick-and-place robotic arms in automotive and electronics assembly
- Web-fed printing and label applicator systems requiring constant-speed or variable-speed control
- Rotary indexing tables and carousel machines
- Precision grinding and polishing spindles
- Food & beverage packaging lines (non-harsh environment)
- Textiles and converting equipment requiring synchronized motion
- General-purpose motion control in modern machine tools and CNC peripherals
Compatibility & Replacements
The VPL-B1153E-PJ14AA is part of the Kinetix VPL family and is fully compatible with Kinetix 5500 and 5700 servo drives. Control cables must be Allen-Bradley 2090 series cables (available in PVC, PUR, or TPE jackets). Direct mechanical replacements within the B1153 frame include the VPL-B1153F-PJ14AA (400V variant, 4500 RPM). For 480V B1153-frame motors, confirm the suffix letter (E = 3500 RPM, F = 4500 RPM) to ensure correct speed rating. The motor’s SpeedTEC DIN connector is incompatible with earlier single-cable connector designs; verify drive compatibility before substitution. Genuine Rockwell Automation spare parts, including seal kits and encoder modules, are available through authorized distributors.
