Overview

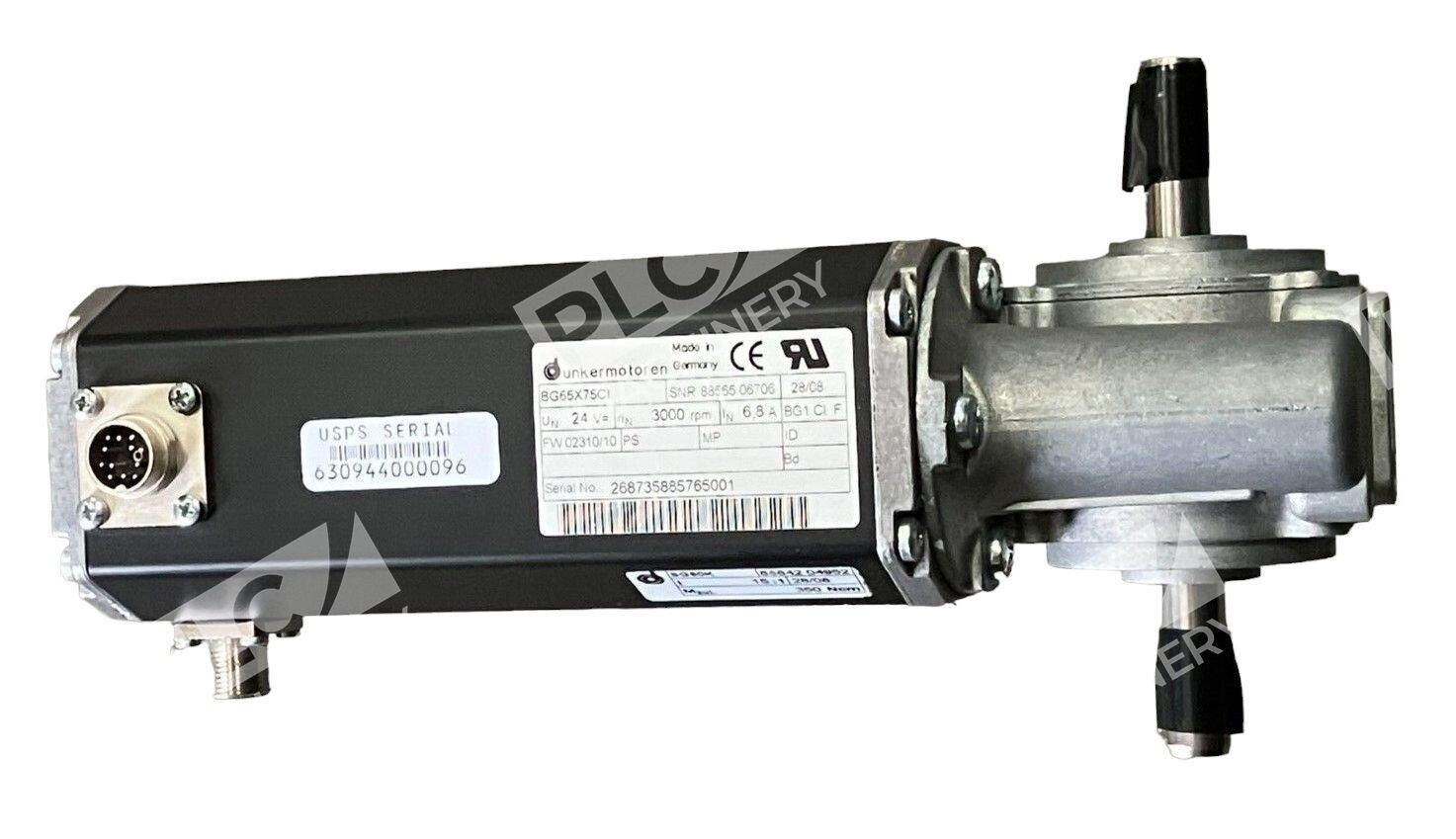

The Dunkermotoren BG65X75CI is a brushless DC servo motor engineered for high-precision motion control in industrial automation environments. Manufactured by AMETEK Dunkermotoren, a global leader in intelligent integrated drive solutions, this motor combines compact frame-size design with advanced brushless technology for dependable, low-maintenance operation. The BG65X75CI supports 4-quadrant drive capability with dynamic positioning, making it suitable for applications demanding accurate speed and torque control across a wide range of industrial sectors.
Key Features
- Brushless DC motor construction eliminates brush wear and reduces maintenance requirements
- 24VDC supply for safe, standard industrial control environments
- Integrated motion controller option enables 4-quadrant operation with dynamic positioning
- Optional incremental encoder (RE30-3-500) permits speed regulation down to 1 rpm for ultra-low-speed applications
- Compact 65mm frame size with flexible integration into space-constrained installations
- Compatible with various gear reduction units and planetary gearboxes for torque multiplication
Technical Specifications

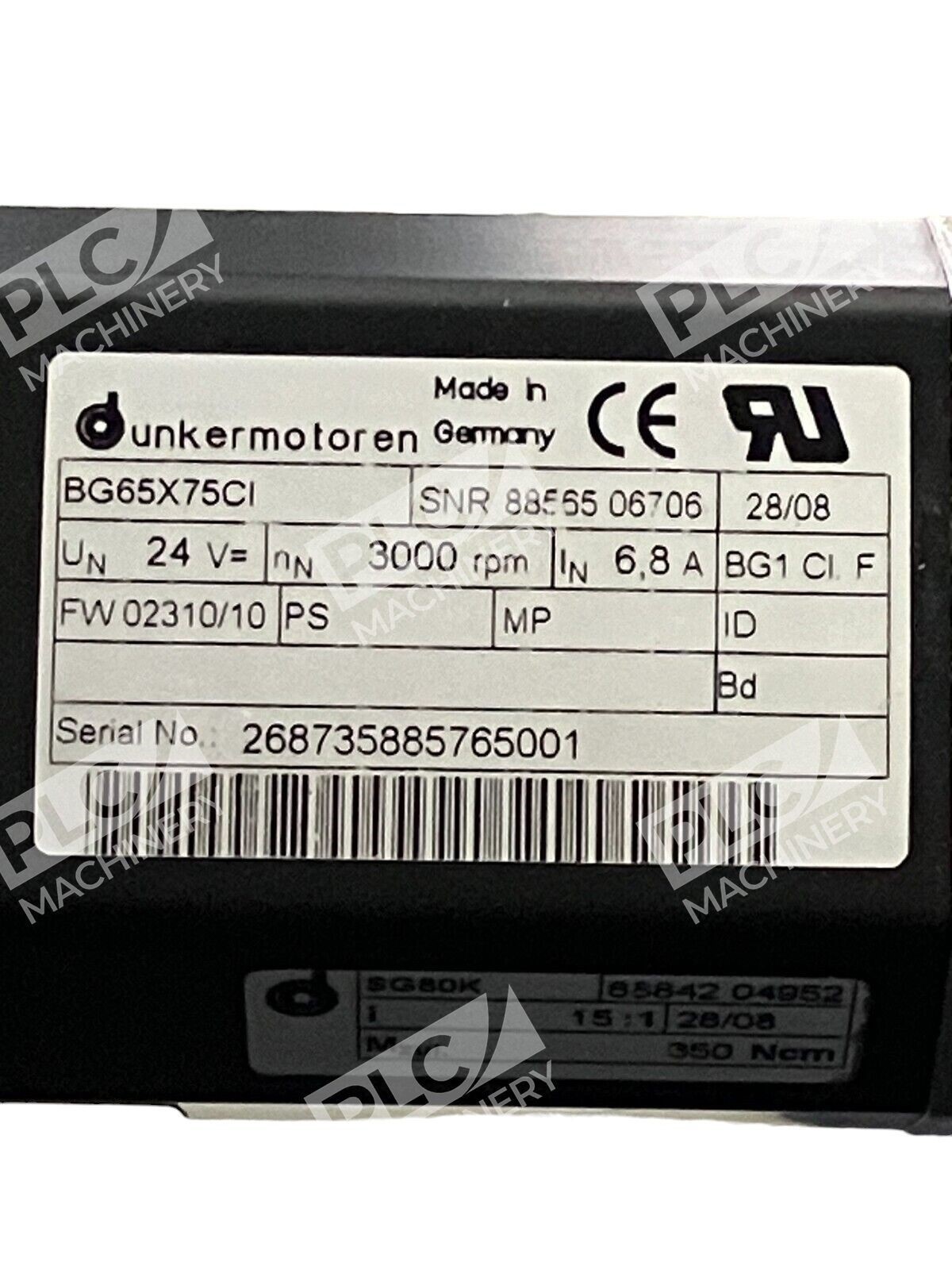

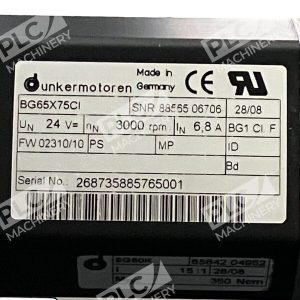

- Manufacturer: AMETEK Dunkermotoren
- Model Number: BG65X75CI
- Motor Type: Brushless DC (BLDC)
- Frame Size: 65 mm
- Supply Voltage: 24 VDC
- Rated Speed: 2960–3100 rpm (base configuration)
- Encoder Option: RE30-3-500 incremental encoder (3-channel, 500 ppr)

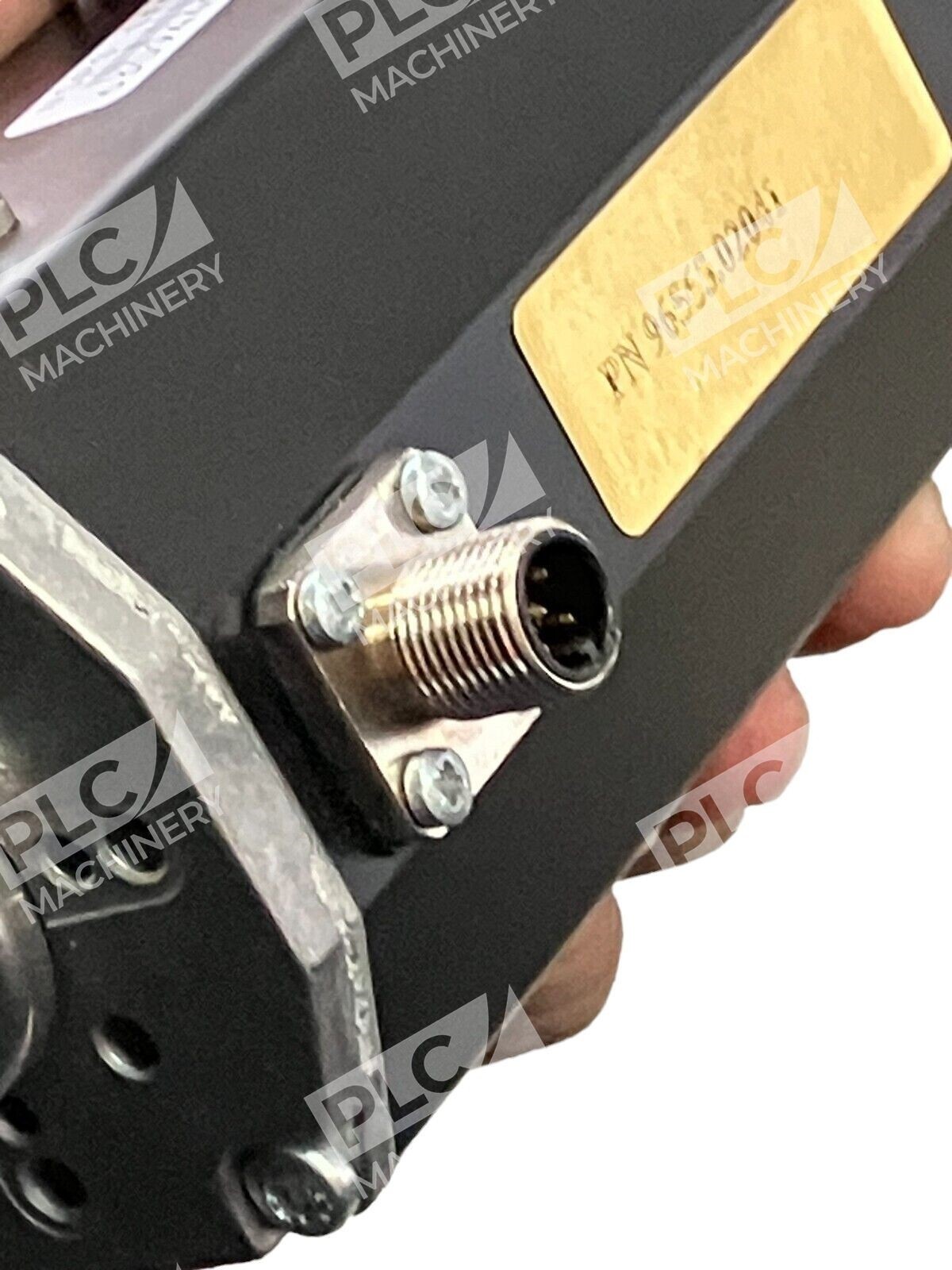

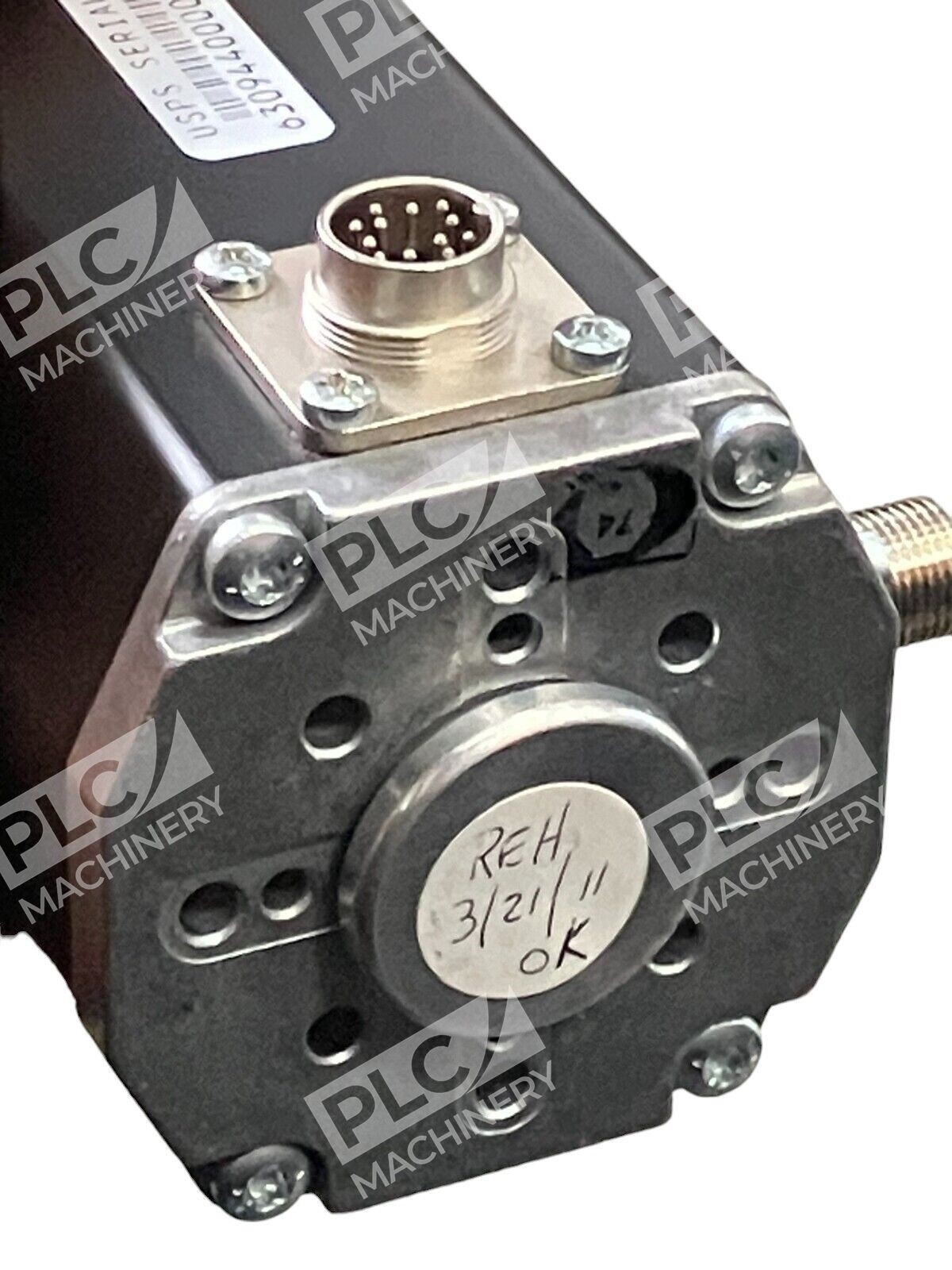

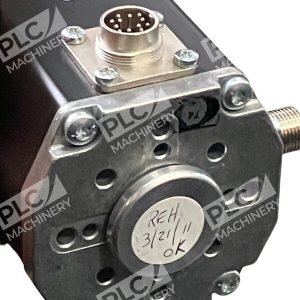

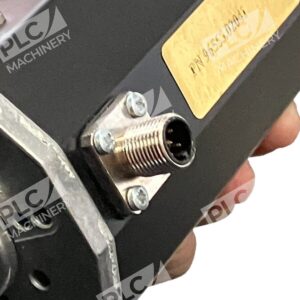

- Connector Type: Round connector (male) for logic/parametrization
- Drive Capability: 4-quadrant with dynamic positioning
- Weight (typical): 6.10 lbs
- Communication Interfaces: CAN-Open, I/O Mode
Typical Applications
- Precision positioning and speed control in assembly automation
- Material handling and conveyor systems requiring variable speed
- Laboratory and test equipment with encoder feedback
- Medical device manufacturing and diagnostic equipment
- Packaging machinery and print-head positioning
- Small-scale CNC and robotics motion platforms
Compatibility & Replacements
Compatible With
- Dunkermotoren integrated 4-quadrant motion controllers
- RE30-3-500 and compatible incremental encoders
- CAN-Open communication networks
- Standard 24 VDC industrial power supplies

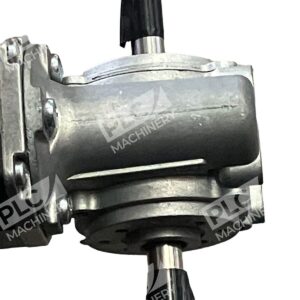

- Dunkermotoren planetary gearbox series (PLG60, PLG63, and others)

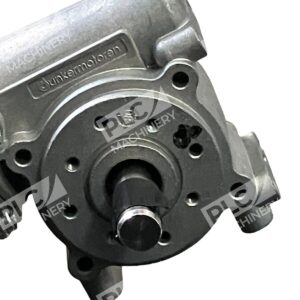

- Both shaft-drive and flexible-coupling mounting configurations
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering.
Works With
- CAN-Open protocol for distributed control systems
- Dunkermotoren PC-based programming and starter kits
- Incremental encoder feedback (RE30 series)
- Standard 24 VDC logic control circuits
- Integrated controller firmware for speed, torque, and position modes
