Overview

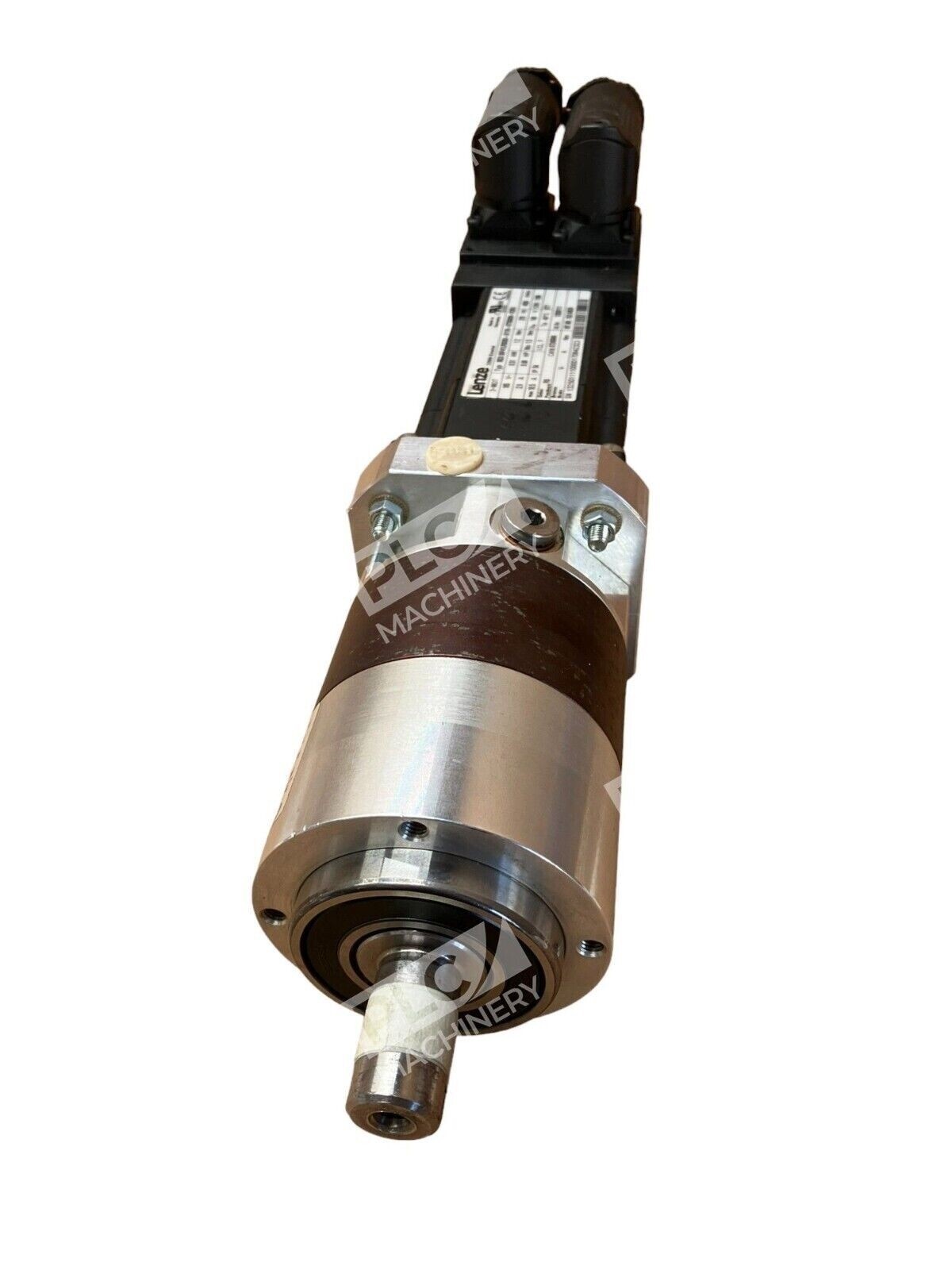

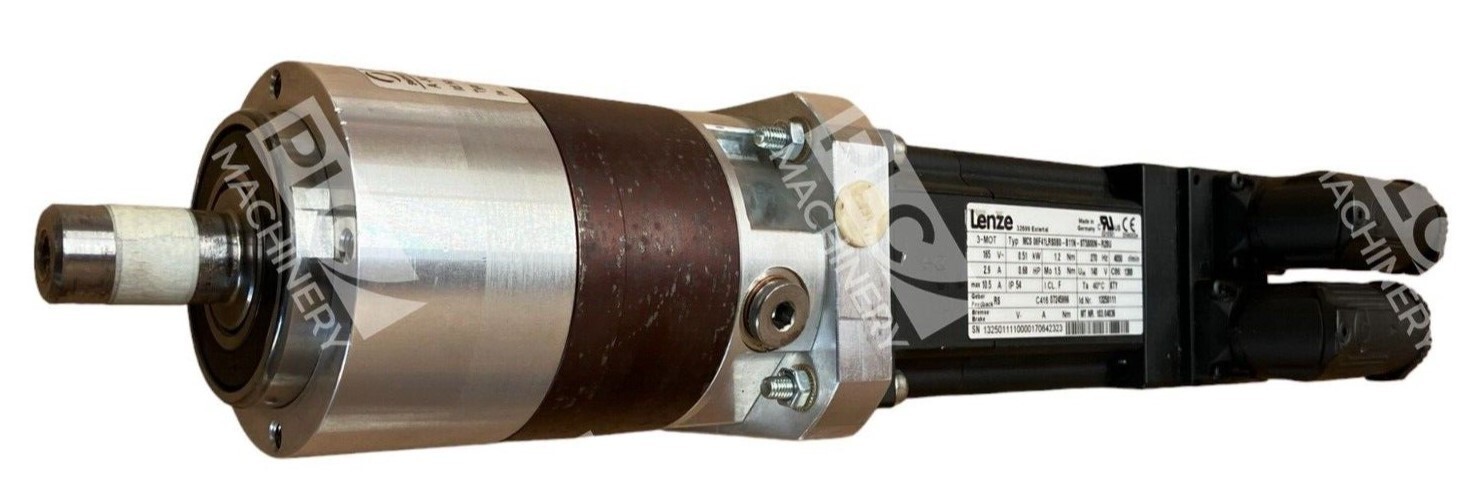

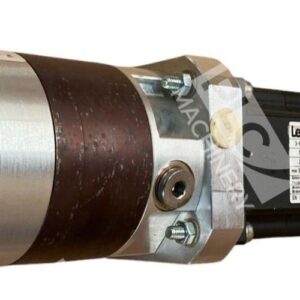

The Lenze MCS 06F41LRS0B0-B11N-ST5S00N-R2SU is a synchronous servo motor from Lenze’s MCS series, engineered for precision motion control in industrial automation. This 06F frame-size motor delivers 0.51 kW continuous power at up to 4100 RPM, making it suitable for machine tools, packaging equipment, and automated assembly systems requiring reliable servo performance.
Key Features
- MCS synchronous servo motor with proven Lenze reliability
- 0.51 kW (0.68 HP) continuous power output
- Resolver feedback for precise position and speed control
- 400 VAC, 1.5 A supply voltage for industrial environments
- IP54 enclosure rating for natural ventilation cooling
- Standard shaft with key, 11 mm diameter for common coupling options
- No integral brake (suitable for horizontal, non-holding applications)

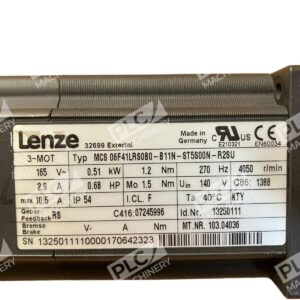

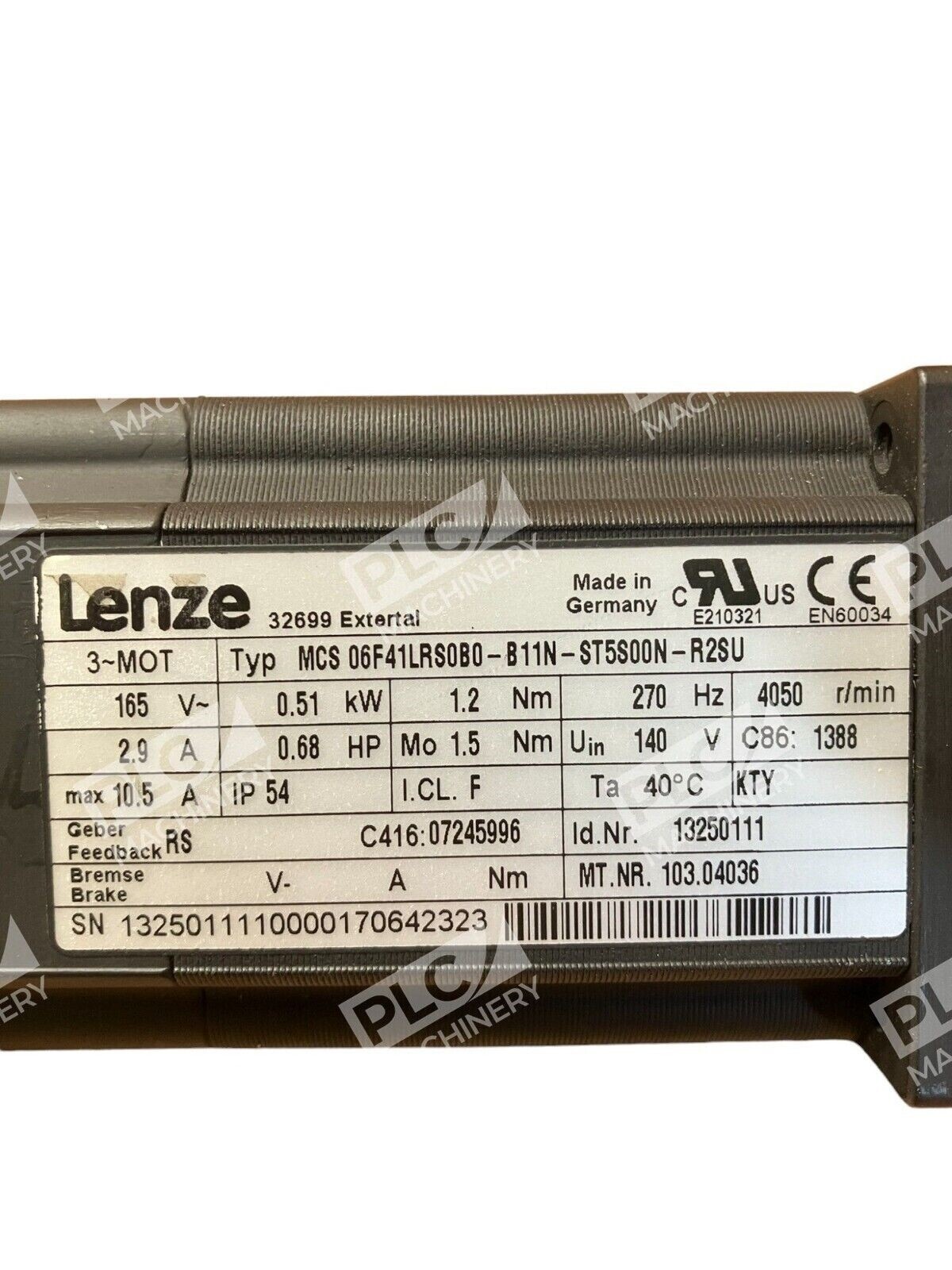

Technical Specifications
- Motor Type: MCS Synchronous Servo
- Frame Size: 06F
- Rated Power: 0.51 kW (0.68 HP)
- Rated Speed: 4100 RPM nominal
- Rated Torque: 1.20 Nm
- Supply Voltage: 400 VAC, 3-phase
- Rated Current: 1.5 A
- Feedback: Resolver (analog position/speed feedback)

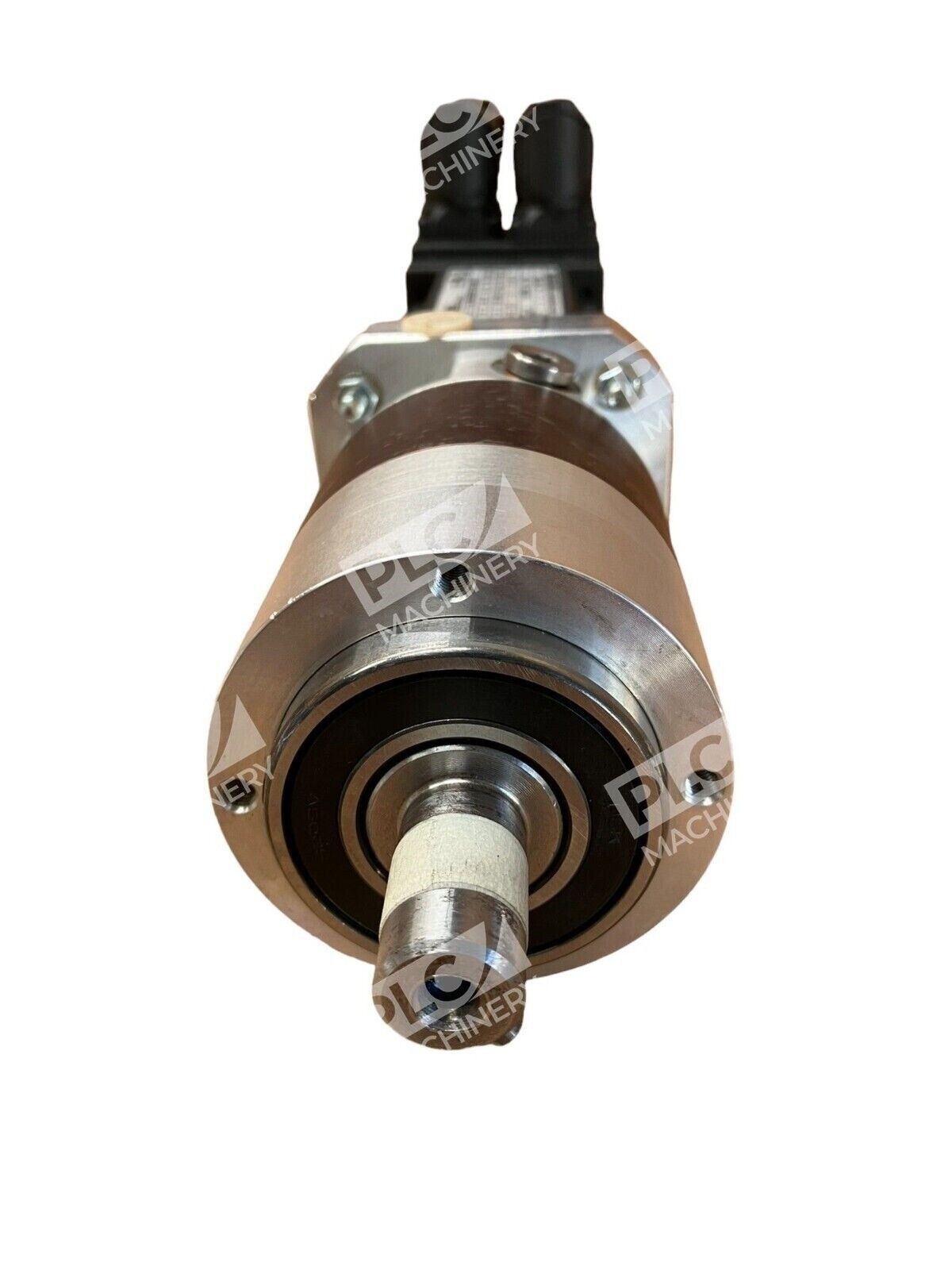

- Shaft: Standard with key, 11 mm diameter

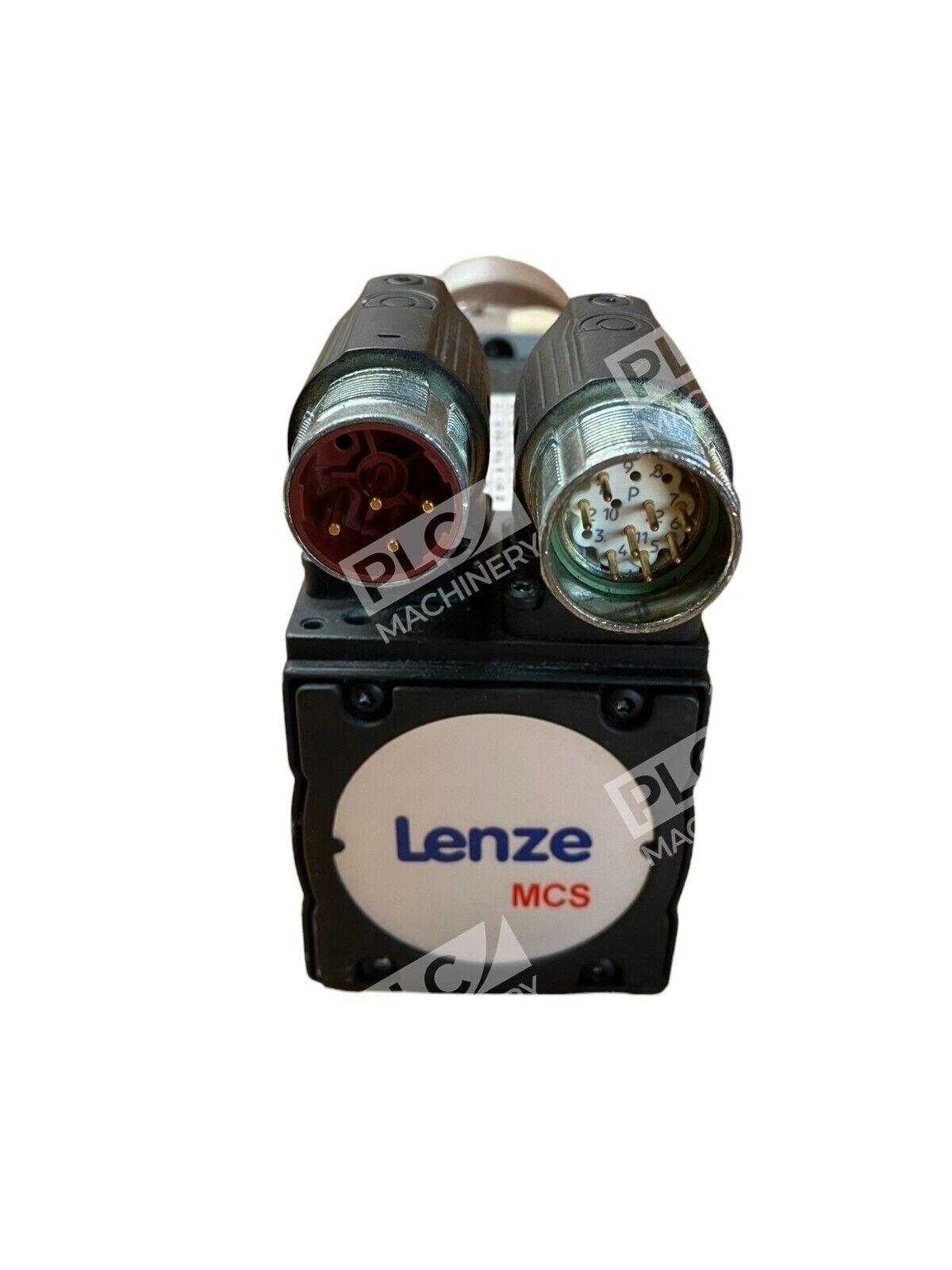

- Connectors: Round plugs (DIN or equivalent)
- Cooling: Natural ventilation (IP54)
- Protection Rating: IP54
- Brake: None
Typical Applications
- CNC machine tool axes (XYZ positioning)
- Packaging and labeling equipment servo drives
- Textile machinery spindle drives
- Automated assembly and transfer systems
- Industrial printing and converting equipment
- Precision motion platforms requiring smooth acceleration
Compatibility & Replacements
Compatible With
- Lenze AC vector drives (ESV, ESMD, ECI series)
- Lenze servo drives supporting resolver feedback
- Industrial control systems using 400 VAC 3-phase power
- Systems requiring 0.51 kW servo-grade motion
Replaces / Drop-In Replacement For
- MCS06F41-RS0B0-B11N-ST5S00N-R0SU (variant with different feedback configuration)
- Other 06F frame Lenze synchronous servos with equivalent ratings
- Verify shaft diameter (11 mm) and connector type with your existing installation before ordering
Works With
- Lenze DCS motion control software
- Industrial servo drive controllers with resolver input
- Standard mechanical couplings (shaft key D-cut compatible)
- 420 mm2 cable glands and junction boxes for IP54 compliance
