Overview

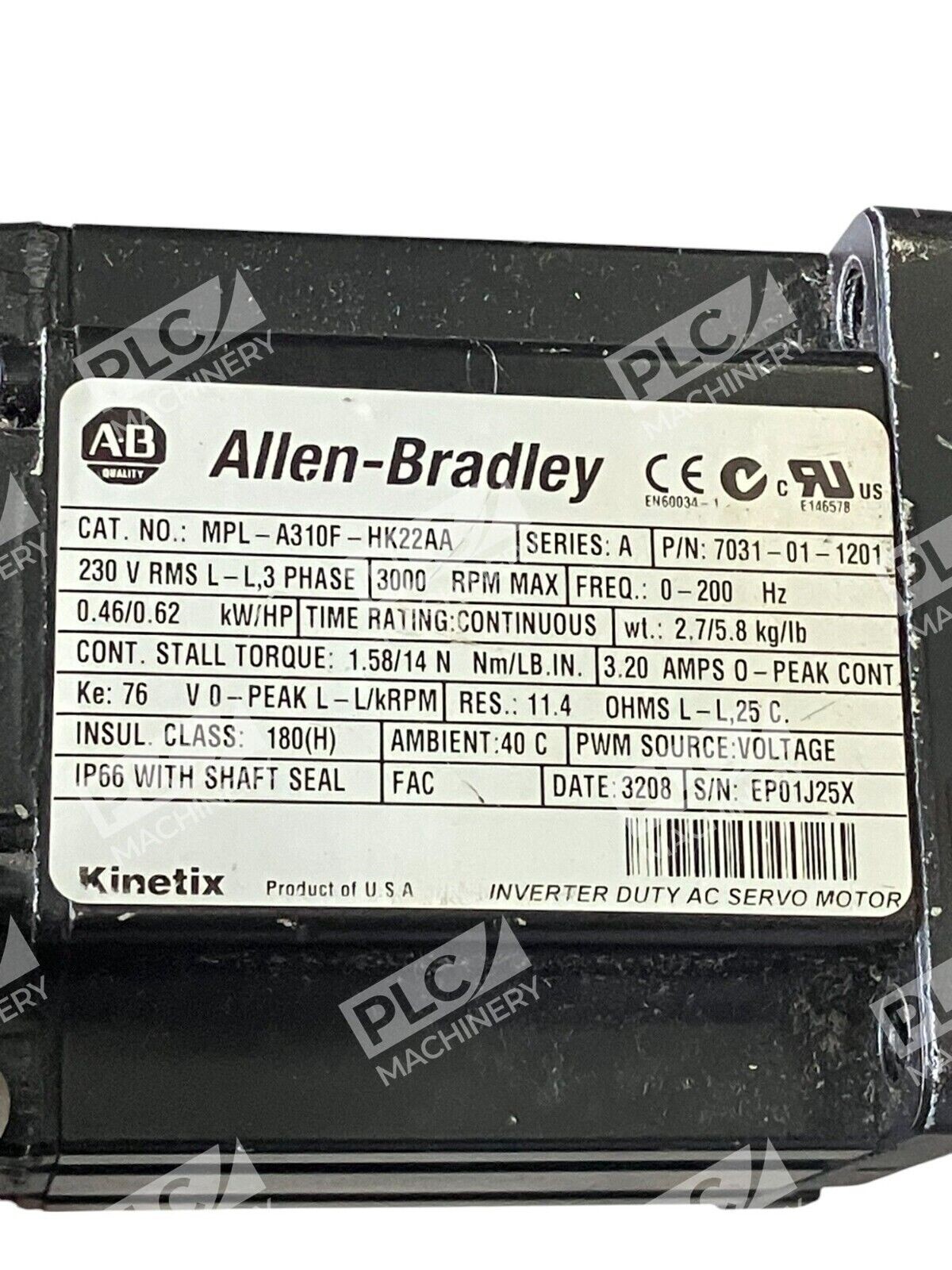

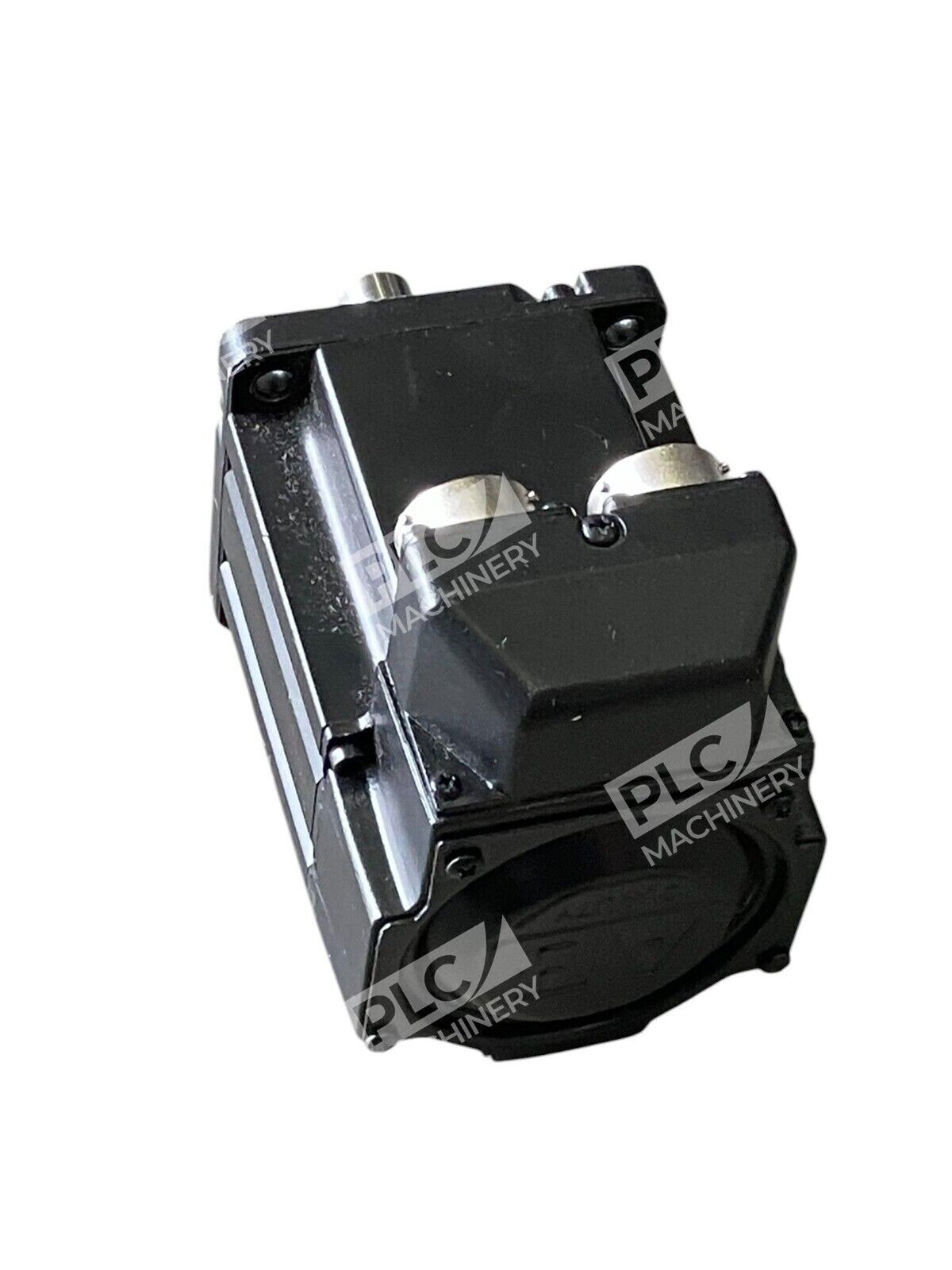

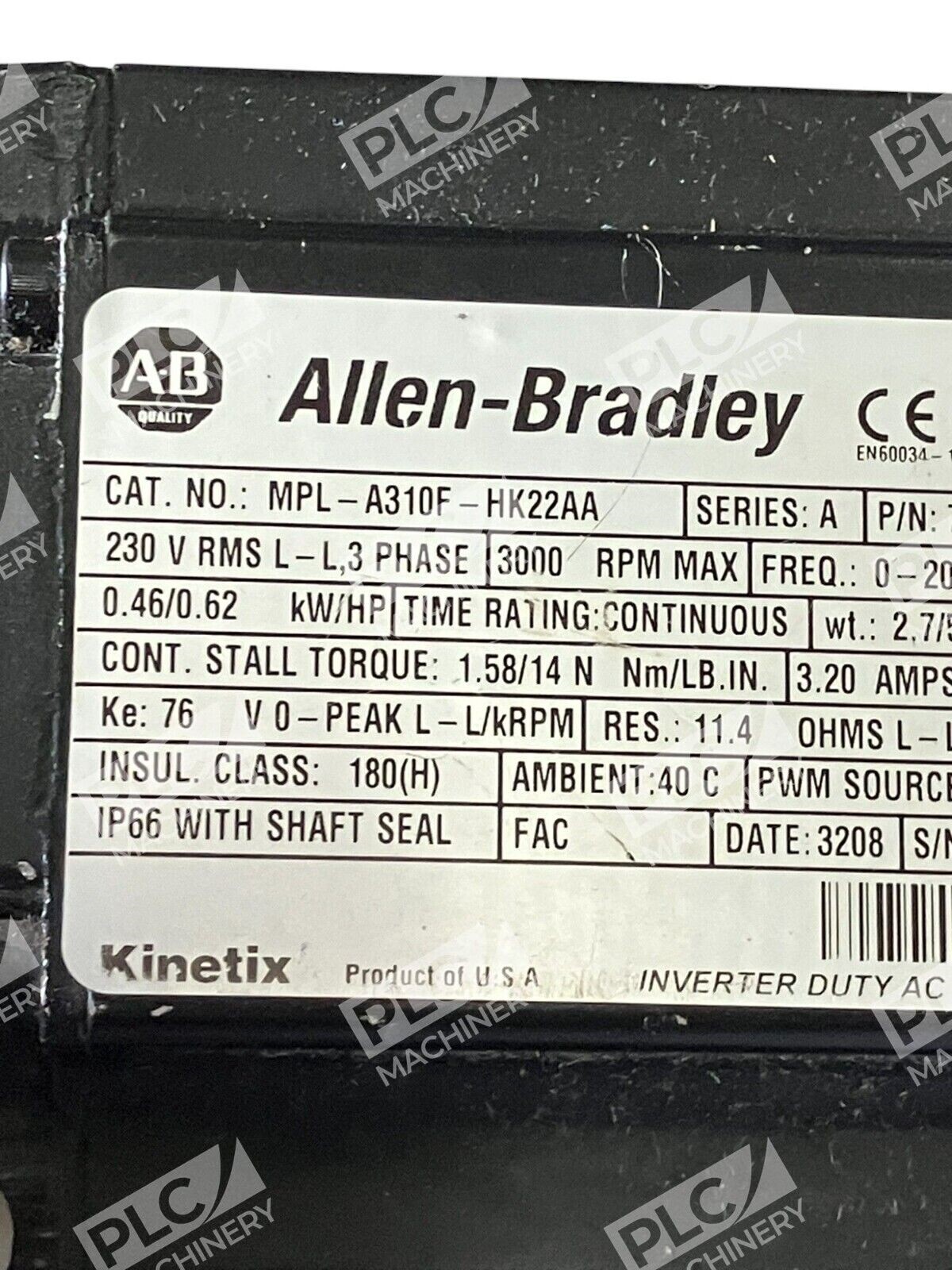

The Allen-Bradley MPL-A310F-HK22AA servo motor is a high-performance brushless permanent magnet motor designed for demanding motion control applications. This Kinetix MP-series low-inertia motor combines rapid acceleration with precise positioning feedback, making it ideal for automated manufacturing and assembly lines where reliability and speed matter.
Key Features
- Low-inertia brushless design — enables quick acceleration and smooth dynamic response
- 2000-line incremental encoder — provides 8000 PPR for precise position and velocity feedback
- Bayonet connector interface — circular, right-angle, 180° rotatable for flexible installation
- Rated for 240V AC operation — integrates directly with Kinetix servo drives and standard industrial power
- No shaft key or seal — standard OEM configuration; shaft is unsecured to mating load
- Compact 100mm frame, 1-inch stack — fits space-constrained control cabinets and machine designs
Technical Specifications
This motor is engineered for continuous duty within rated thermal limits (0–40°C ambient). The permanent magnet rotor design and optimized winding technology deliver efficient torque across the speed range, with thermal management designed to keep the motor cool under sustained operation.
Typical Applications
- Automated assembly and material handling equipment
- CNC machine tool spindle and axis drives
- Robotic arm and cartesian gantry positioning
- Conveyor and sorting system indexing
- High-speed packaging and labeling machinery
Compatibility & Replacements
The MPL-A310F-HK22AA integrates with Kinetix 6000, 6200, 6500, and 7000 series servo drives, as well as other Allen-Bradley and third-party servo controllers supporting standard incremental encoder feedback and three-phase AC power. Related variants in the MP-A310F family include the MPL-A310F-MK22AA (multi-turn encoder) and MPL-A310F-HJ22AA (shaft key included). Ensure encoder type and shaft configuration match your application and drive controller before installation.
