<h2>Overview</h2>

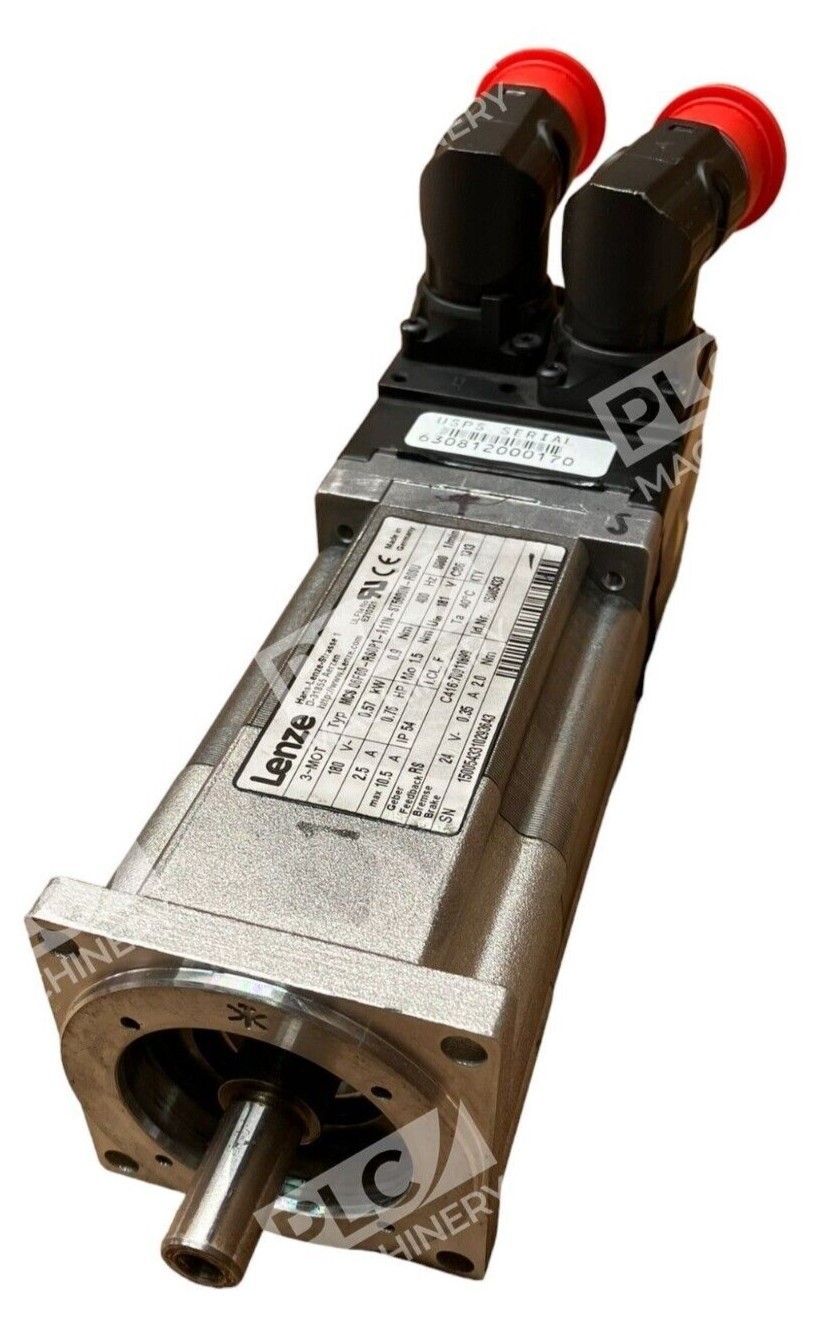

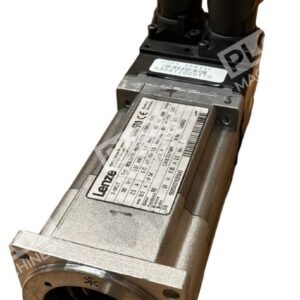

<p>The <strong>Lenze MCS 06F60-RS0P1-A11N-ST5S00N-R0SU</strong> is a compact synchronous servo motor from Lenze’s proven MCS family, engineered for precision motion applications requiring fast acceleration, smooth speed control, and repeatable positioning. This 06F motor size delivers high dynamics in a compact footprint, making it ideal for machine tools, automation systems, and industrial robotics.</p>
<h2>Key Features</h2>
<ul>
<li><strong>Synchronous Design:</strong> Zero phase lag between command and output for precise tracking and positioning control.</li>
<li><strong>Resolver Feedback:</strong> Robust analog feedback suitable for rugged environments and direct drive applications.</li>
<li><strong>Integrated 24VDC Brake:</strong> Provides holding torque when de-energized; essential for vertical axis and load-holding applications.</li>
<li><strong>400 VAC 3-Phase Operation:</strong> Compatible with standard industrial three-phase power supplies across EU and international markets.</li>
<li><strong>IP54 Sealed Enclosure:</strong> Dust and splash protection suitable for manufacturing floor environments.</li>
<li><strong>Compact 06F Frame:</strong> Space-efficient footprint reduces mechanical design complexity in tight installations.</li>
</ul>

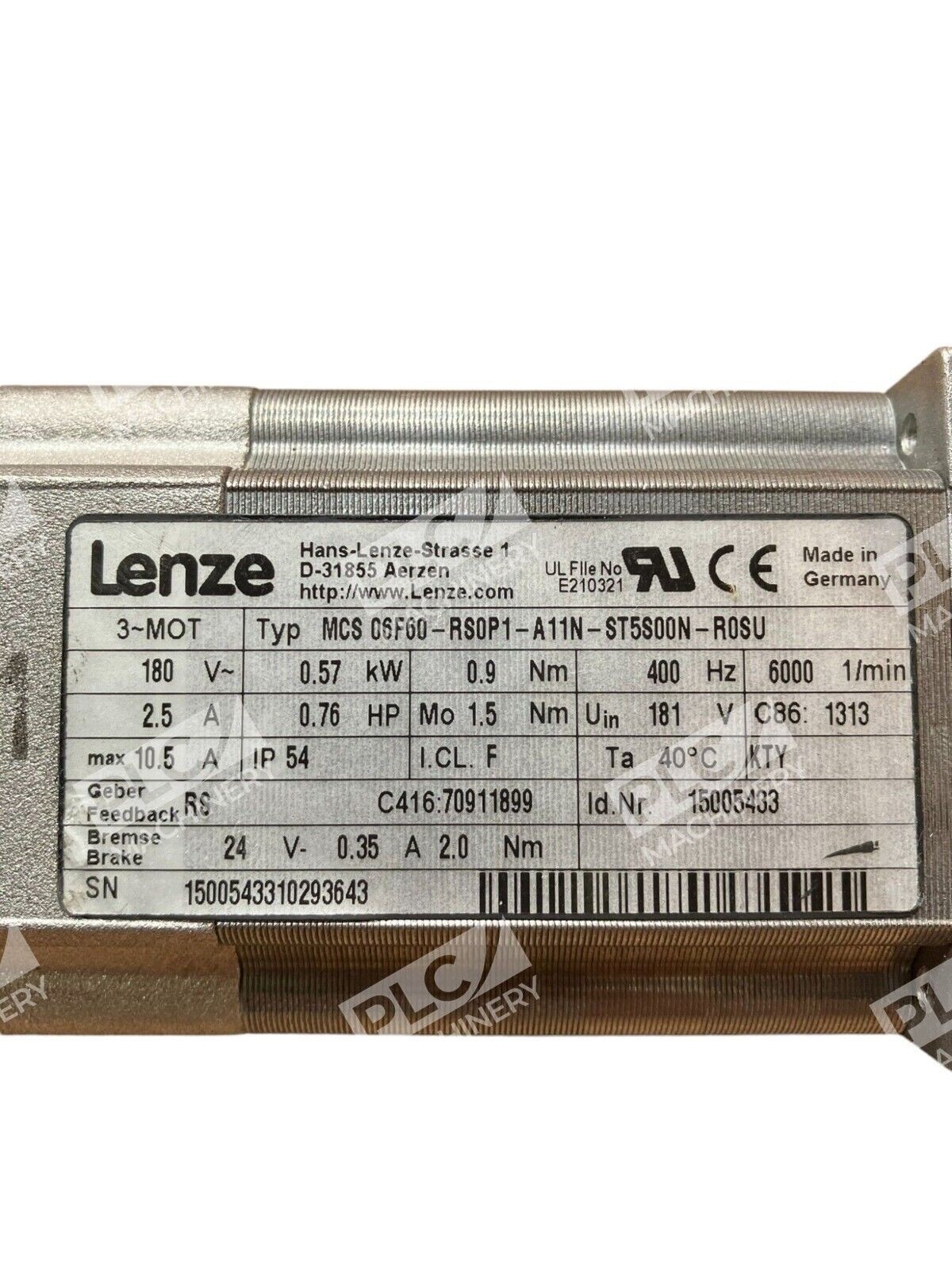

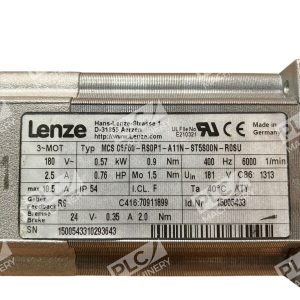

<h2>Technical Specifications</h2>
<ul>
<li><strong>Supply Voltage:</strong> 400 VAC 3-phase</li>
<li><strong>Motor Size / Frame:</strong> 06F</li>
<li><strong>Maximum Speed:</strong> 4100 RPM (rated)</li>
<li><strong>Feedback System:</strong> Resolver (analog feedback)</li>
<li><strong>Brake:</strong> 24VDC electromagnetic brake, integrated</li>
<li><strong>Shaft Configuration:</strong> Standard shaft without key, diameter 11 mm</li>

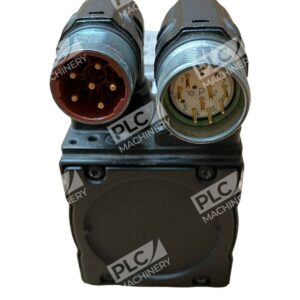

<li><strong>Connectors:</strong> Round plugs for motor and brake</li>
<li><strong>IP Rating:</strong> IP54 (dust and splash protected)</li>
<li><strong>Cooling:</strong> Natural ventilation</li>
<li><strong>Weight (Approx.):</strong> 10 lbs</li>
</ul>
<h2>Typical Applications</h2>
<ul>
<li>CNC machine tool spindles and servo axes</li>
<li>Precision robotics and gantry systems</li>
<li>High-speed material handling and pick-and-place equipment</li>
<li>Packaging machinery requiring precise timing and synchronization</li>
<li>Textile and web-handling systems</li>
<li>Printing and finishing machinery with load-holding requirements</li>
</ul>
<h2>Compatibility & Replacements</h2>
<h3>Compatible With</h3>
<ul>
<li>Lenze servo drives and motion controllers supporting resolver feedback</li>
<li>Third-party servo amplifiers with analog resolver input channels</li>
<li>Standard industrial 400 VAC 3-phase power distribution systems</li>
<li>24VDC control circuits for brake actuation</li>
</ul>
<h3>Replaces / Drop-In Replacement For</h3>
<ul>
<li>Other Lenze MCS 06F60 variants with equivalent frame and resolver feedback configuration</li>
<li>Verify compatibility with your system integrator or Lenze before ordering for load and dynamic requirements.</li>
</ul>
<h3>Works With</h3>
<ul>
<li>Lenze Standard Frequency Converter (SFC) and MultiSafe drives</li>
<li>Lenze PLC and motion control software (InfoLink)</li>
<li>CANopen and EtherCAT communication modules (via appropriate Lenze controller)</li>
<li>Resolver-to-digital converters for integration with modern control systems</li>
</ul>
