Overview

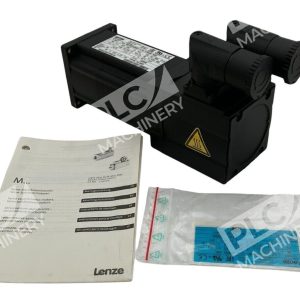

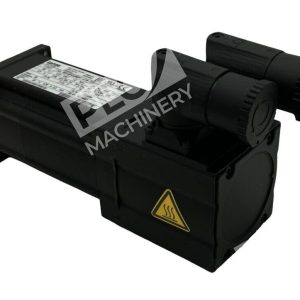

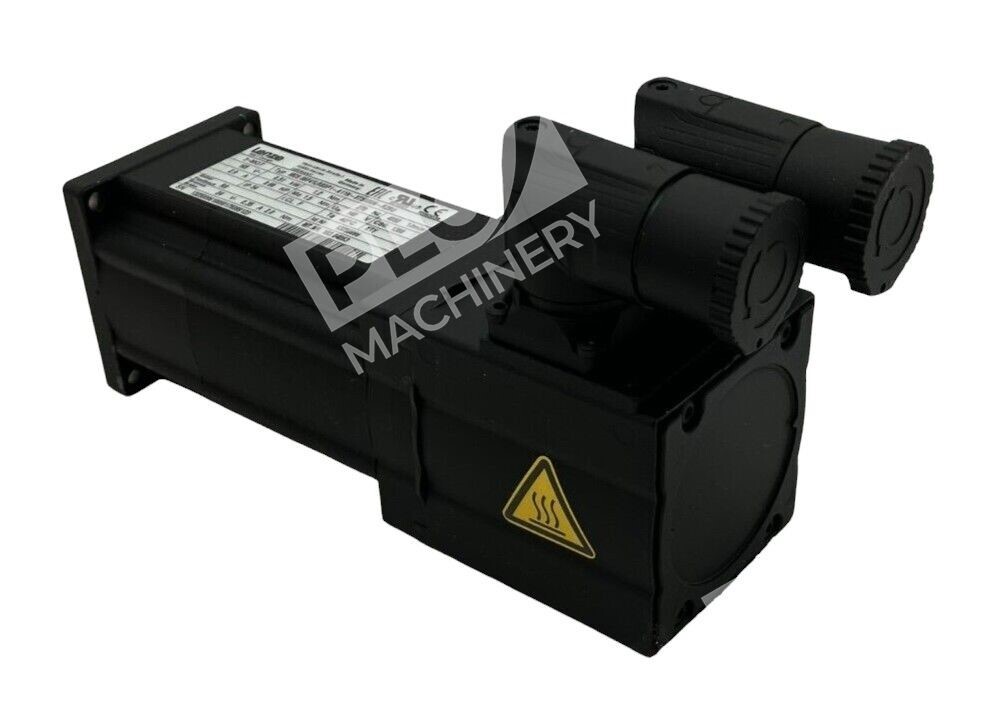

The Lenze MCS 06F41LRS0P1-A11N-ST5S00N-R2SU servo motor is a compact synchronous servo motor from Lenze’s proven MCS series. Engineered for demanding industrial automation applications, this 06F-frame motor delivers precise speed and torque control with integral resolver feedback for closed-loop positioning. Built in Germany, it combines reliability with modern servo performance in a space-efficient package.
Key Features
- Synchronous servo motor with integral resolver feedback for accurate position sensing
- IP54 dust-protected enclosure rated for industrial environments
- Standard shaft without key, shaft diameter 11 mm (0.42″)
- Natural ventilation cooling for reliable continuous operation
- 24 VDC electromechanical brake for holding torque and safety
- Round plug connectors for straightforward wiring and quick changeover

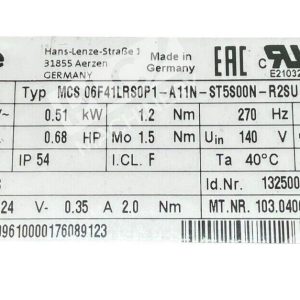

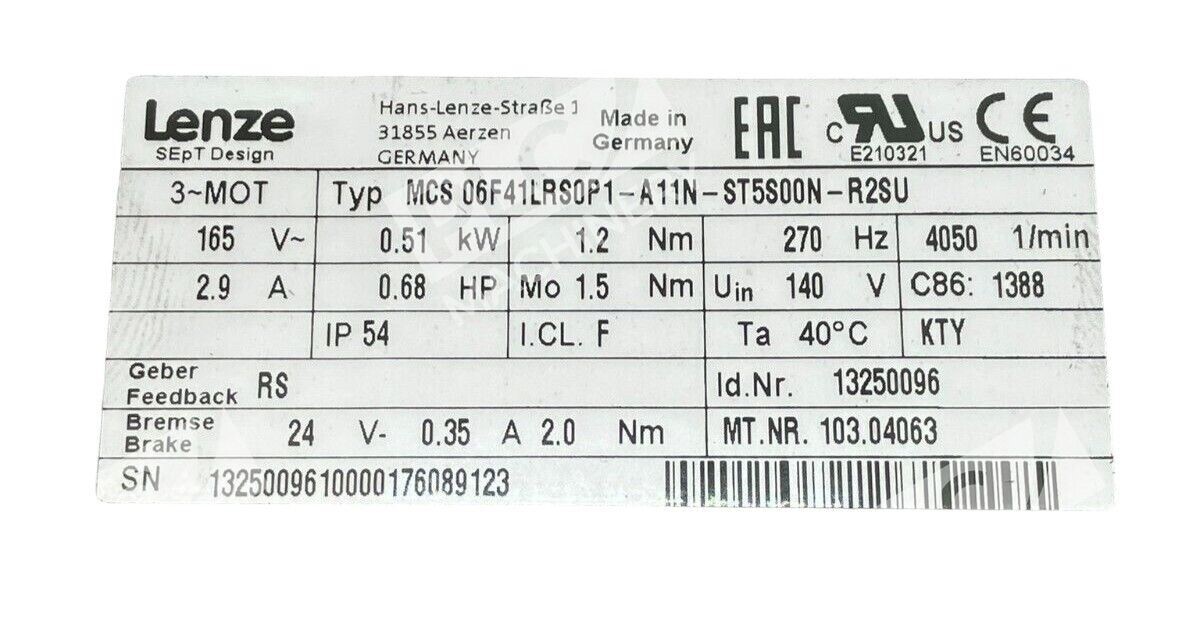

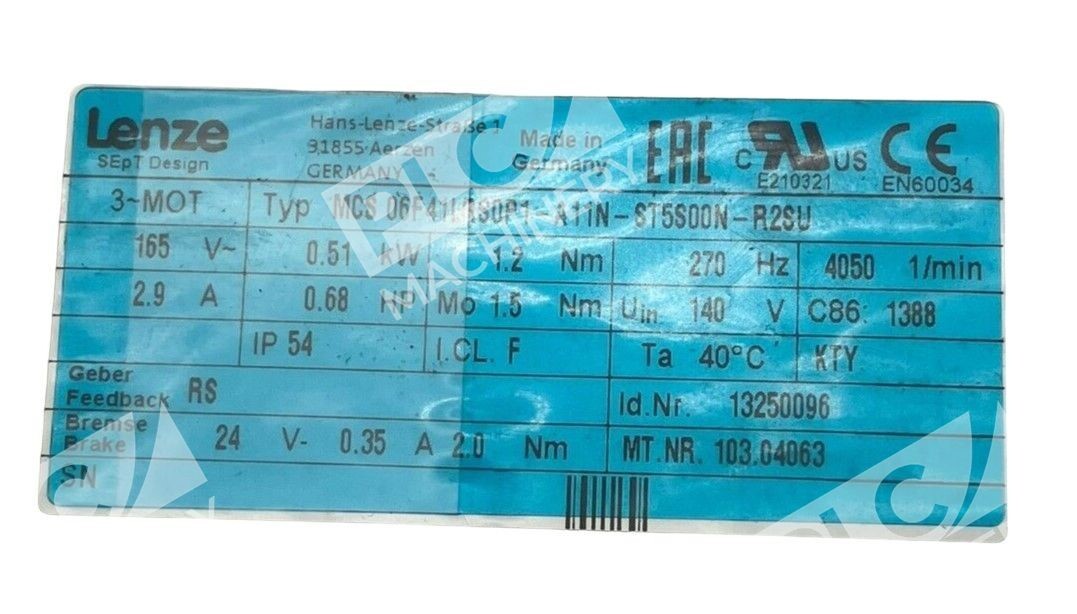

Technical Specifications
Detailed motor performance and electrical characteristics:
- Rated Power: 0.51 kW
- Rated Torque: 1.50 Nm
- Rated Speed: 4050 RPM
- Rated Voltage: 140 V AC
- Rated Frequency: 270 Hz
- Rated Current: 2.9 A
- Mains Voltage (Supply): 165 V AC
- Temperature Class: 40°C
- Motor Size: 06F
- Feedback Type: Resolver
- Brake: 24 VDC electromechanical
- Protection Rating: IP54
- Cooling: Natural ventilation (TENV)
Typical Applications
The Lenze MCS 06F41LRS0P1-A11N-ST5S00N-R2SU servo motor is widely used in:
- Industrial machinery with synchronized speed and position requirements
- Textile, printing, and converting equipment requiring precise speed control
- Packaging and material handling systems with brake-equipped holding requirements
- Automation systems demanding compact, field-proven servo solutions
Compatibility & Replacements
Compatible With
- Lenze AC tech drive systems (AC tech frequency converters and servo drives)
- Standard three-phase 165 VAC motor supply circuits
- Motion control systems requiring resolver feedback input modules
- 24 VDC brake control circuits
Replaces / Drop-In Replacement For
The Lenze MCS 06F41LRS0P1-A11N-ST5S00N-R2SU may replace or substitute for similar Lenze MCS 06F41 variants with identical frame, shaft, and connector specifications. Verify exact electrical and feedback compatibility with your drive system before ordering.
Works With
- Lenze AC tech servo drive controllers
- Standard industrial VFD and servo drive systems with resolver input
- Control systems using 165 VAC three-phase power supply
- Industrial motion control networks and automation platforms
