Overview

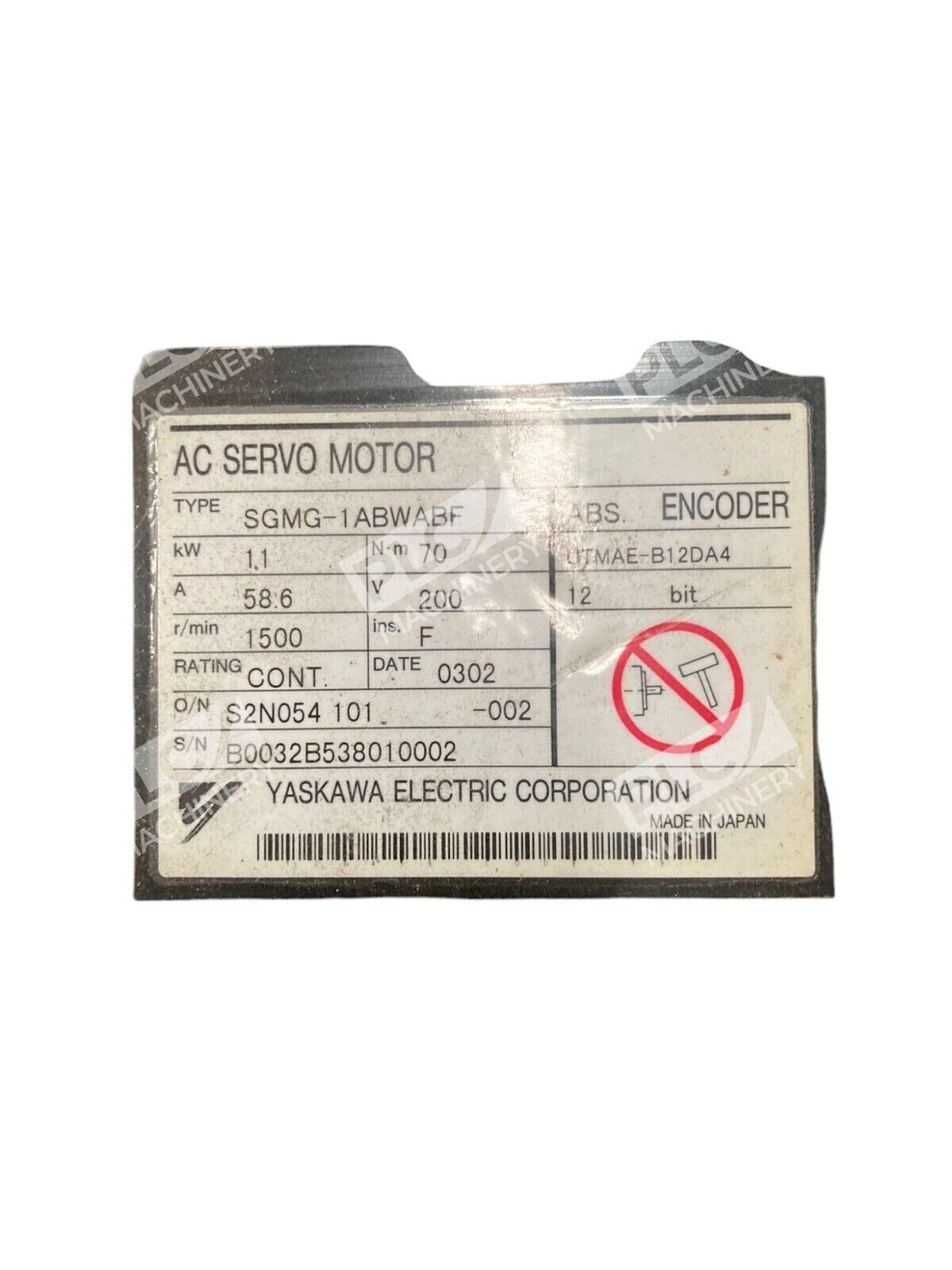

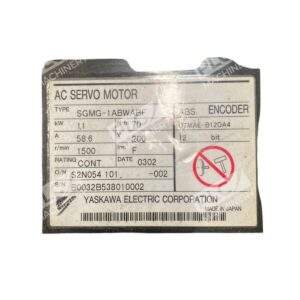

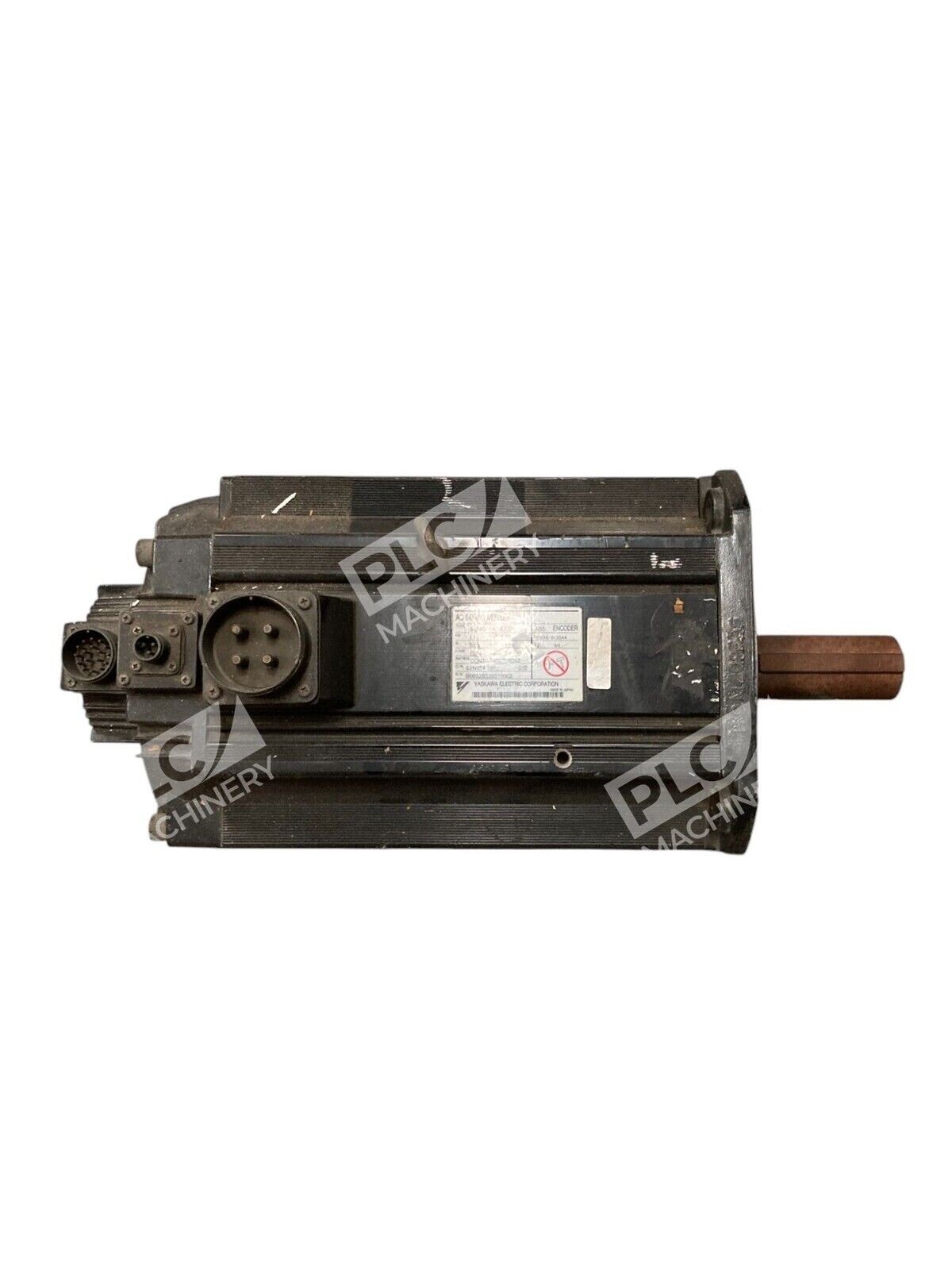

The Yaskawa SGMG-1ABWABF is a three-phase AC servo motor from Yaskawa’s SGMG series, a field-proven line of medium-capacity brushless servomotors. This used unit delivers 11 kW of continuous power with a continuous torque output of 70 Nm at rated speed. Operating at 1500 RPM with 200V AC three-phase supply, the SGMG-1ABWABF is engineered for industrial automation, precision motion control, and machine tool applications requiring reliable, repeatable positioning and speed regulation.
Key Features
- Continuous power: 11 kW at 1500 RPM
- Continuous torque: 70 Nm—ideal for medium-load motion applications
- 200V AC three-phase input—standard industrial voltage compatibility
- Brushless AC servo design—low maintenance, high efficiency, and extended service life
- Suitable for use with Yaskawa SGDV/SGDB drive systems and servo packs
- Encoder feedback support for closed-loop motion control
Technical Specifications
- Rated Power: 11 kW
- Rated Torque: 70 Nm
- Rated Speed: 1500 RPM
- Supply Voltage: 200V AC, three-phase
- Motor Type: Brushless AC servo motor
- Series: SGMG (Sigma II)
- Encoder: Integrated rotary encoder (standard)
- Insulation Class: Class B (per IEC standards)
- Cooling Method: Flange-mounted with heat dissipation fins
- Duty Cycle: Continuous (rated conditions)
Typical Applications
The SGMG-1ABWABF is well-suited for:
- Injection molding machine servo systems
- Machine tool spindle drives and servo axes
- Automotive assembly and handling equipment
- Printing and paper processing machinery
- Robotics and multi-axis positioning systems
- Industrial conveyor systems requiring precision control
- Replacement in existing Yaskawa servo installations
Compatibility & Replacements
Compatible With
- Yaskawa SGDV SERVOPACK drive units (200V, 400V configurations)
- Yaskawa SGDB SERVOPACK controllers
- DeviceNet field network communication (with optional modules)
- Yaskawa MP2000/MP3000 machine controllers
- Standard three-phase 200V AC industrial power distribution
- Servo encoder feedback systems and resolver inputs
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The SGMG-1ABWABF may serve as a direct replacement for other medium-capacity SGMG-series motors in 11 kW, 1500 RPM configurations. Consult the original equipment documentation and Yaskawa compatibility matrices to confirm.
Works With
- Yaskawa SigmaWin+ engineering and tuning software
- Yaskawa SigmaJunmaSize+ servo drive selection tool
- Closed-loop vector control (via compatible servo pack)
- Standard servo encoder feedback protocols
- Motion control platforms using EtherCAT or PROFIBUS interfaces (with appropriate modules)
