Overview
The Allen-Bradley 100-FA22 is a front-mounting auxiliary contact block designed for use with 100-C series contactors and 700-CF relays. This four-pole auxiliary contact unit provides additional switching capability for logic and status signal monitoring in motor control and automation circuits. Featuring screw terminals and snap-on installation technology, the 100-FA22 delivers fast, reliable switching with minimal installation effort.
Key Features

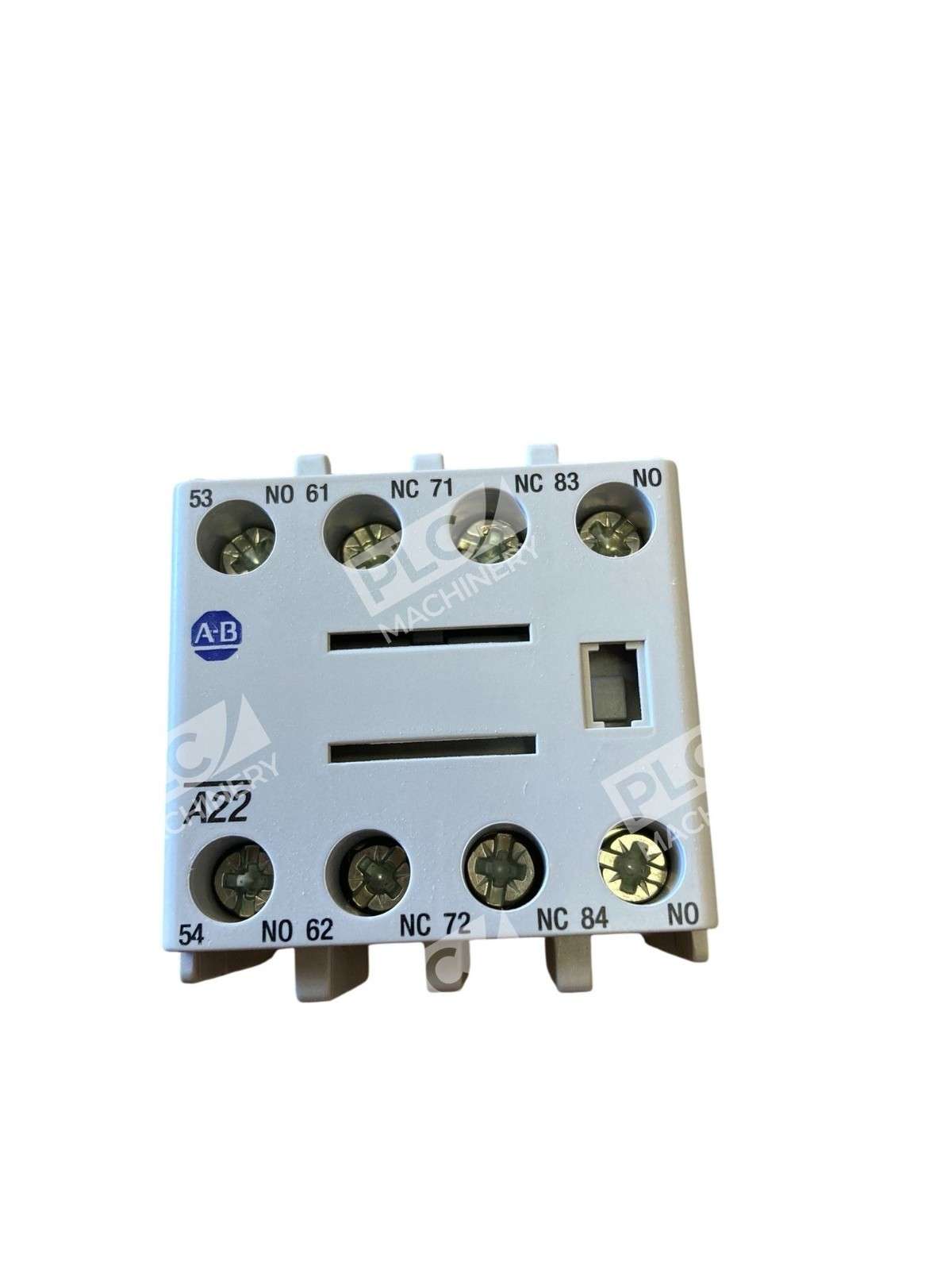

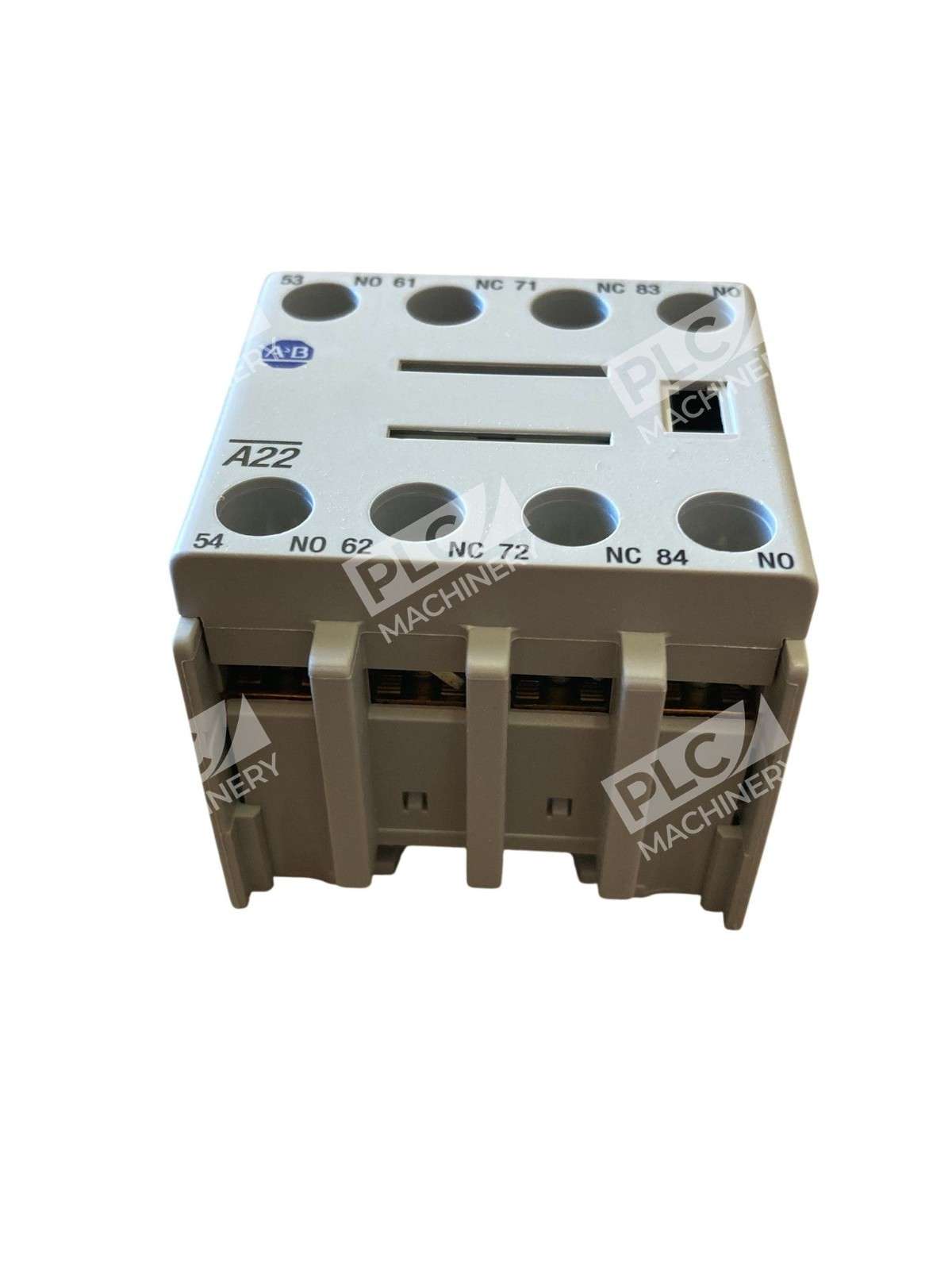

- 4-Pole Configuration: 2 normally open and 2 normally closed contacts for flexible circuit control

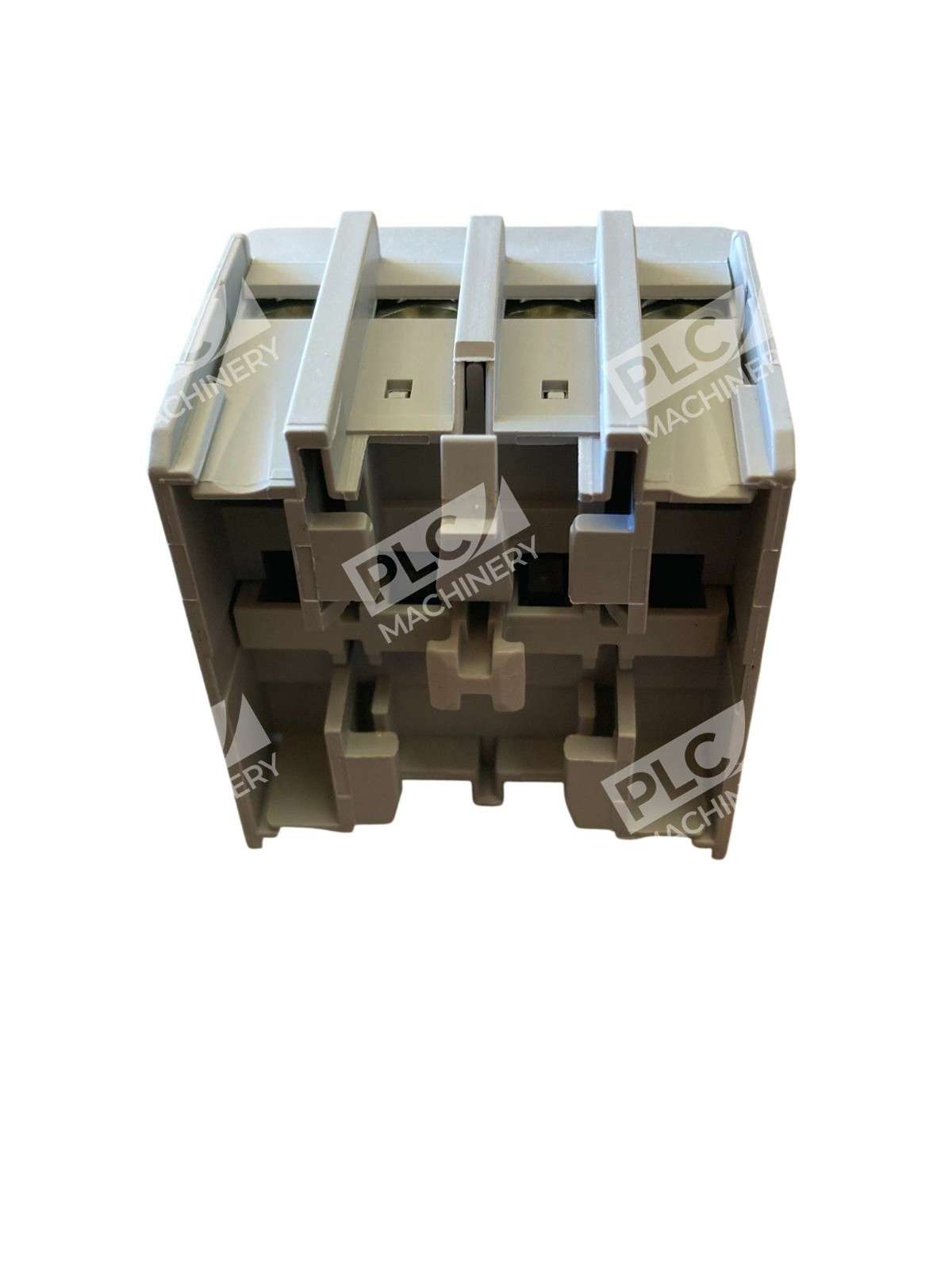

- Front-Mount Design: Snap-on installation for quick connection and removal to minimize downtime
- Screw Terminals: Durable, tool-free connection points rated for 10A at 600V
- High Contact Reliability: Reduces maintenance needs and machine failure downtime
- Industrial Standards Certified: Meets CCC, CE, CUL, GOST, KC, and UL standards
- Wide Operating Temperature: -25°C to +60°C operating range
Technical Specifications

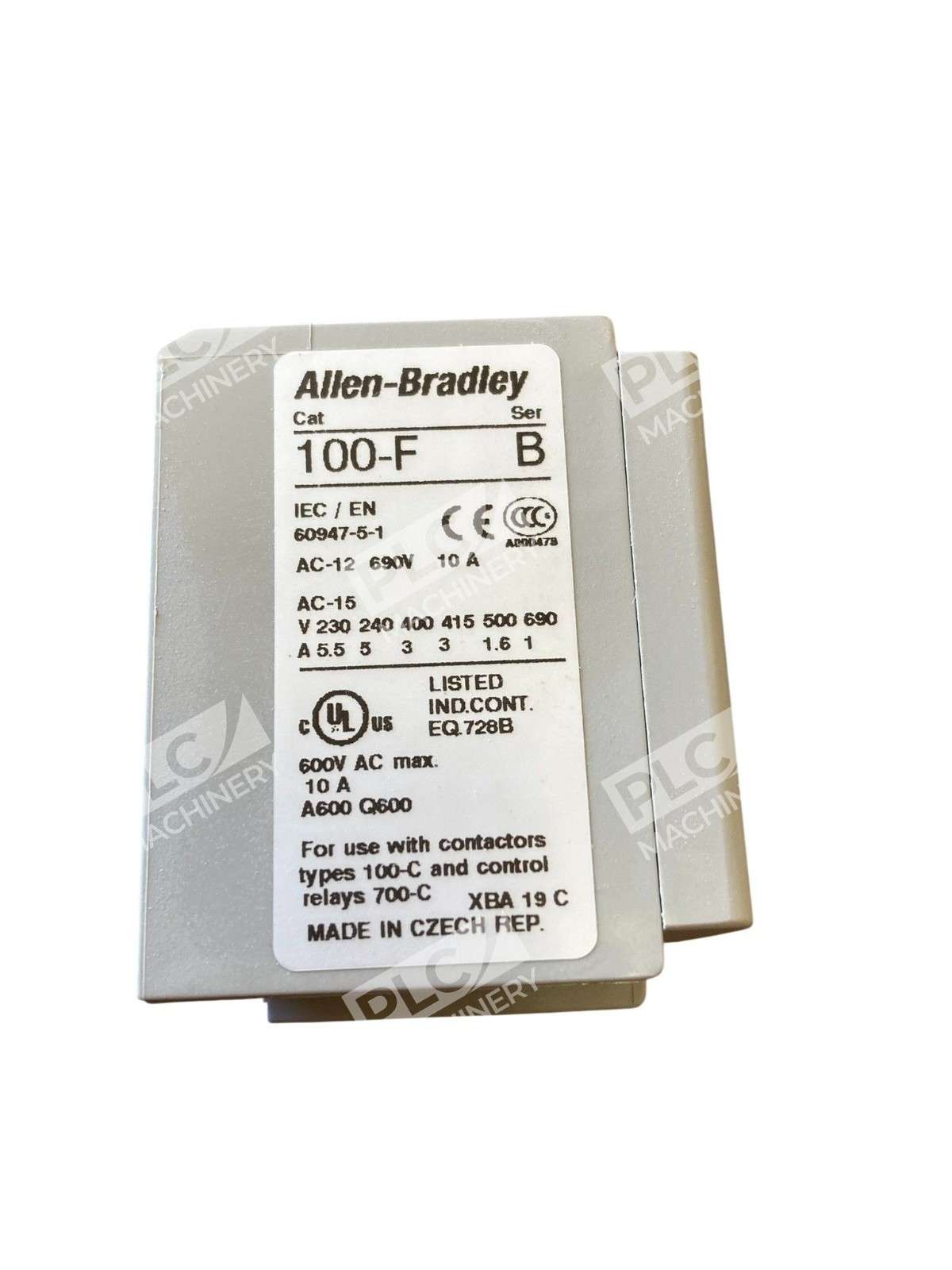

The 100-FA22 is rated 10A at 600V with a 2NO/2NC contact configuration. Minimum operating temperature is -25°C with a maximum of +60°C. The unit features screw terminal connections and is designed for NEMA size 0-3 contactors. The block can accommodate up to 8 contacts total (2 side + 1 top maximum per contactor) with minimum switching voltage of 17V 5mA per DIN 19240.
Typical Applications
- Motor control circuits requiring auxiliary status signals
- Safety interlocks and permissive logic
- Control panel automation and monitoring
- IEC and NEMA-rated electrical control systems
- Industrial automation equipment and machinery
- PLC and relay-based control integration
Compatibility & Replacements
Compatible With
- 100-C contactors
- 104-C, 100S-C, 104S-C contactors
- 700-CF relays
- 700S-CF relays
- MCS (Motor Control Station) systems
Replaces / Drop-In Replacement For
- Original equipment manufacturer part 100-FA22
- Rockwell Automation catalog 100-FA22 (UPC: 662072612866)
Works With
- Allen-Bradley motor starters and contactors (100 series)
- Rockwell Automation control systems
- Direct wiring to PLCs and relay logic circuits
- Industrial control panel designs meeting UL/CSA/CE standards
