Overview

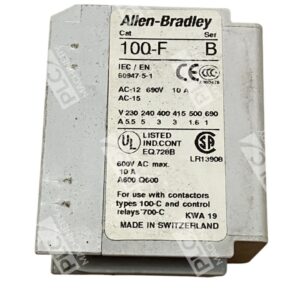

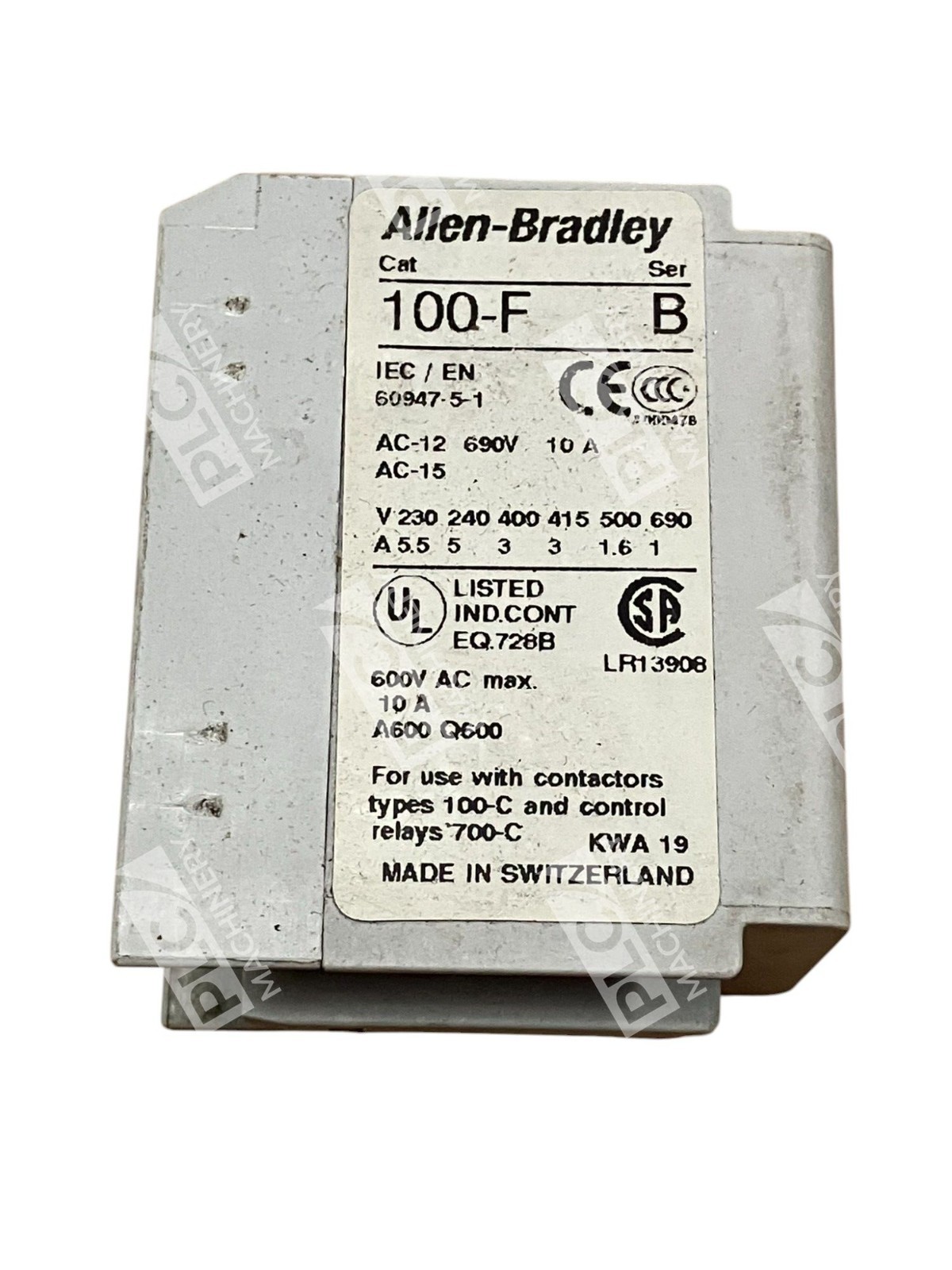

The Allen-Bradley 100-F Series B auxiliary contact block is a front-mounted supplementary contact module designed for integration with 100-C contactors and 700-C control relays. This 690V 10A AC-15 rated contact block provides precise electrical feedback and interlocking in industrial control circuits. The Series B designation confirms compliance with IEC/EN 60947-5-1 standards, ensuring reliable operation in demanding manufacturing and automation environments.
Key Features
- 690V / 10A Rating: AC-15 duty cycle with 600VAC maximum, suitable for motor control and switching applications
- Front-Mount Configuration: Direct connection to 100-C contactors and 700-C relays without modification

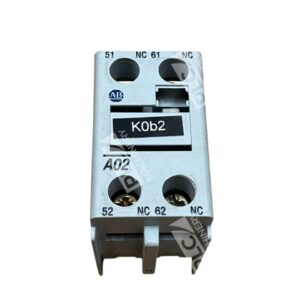

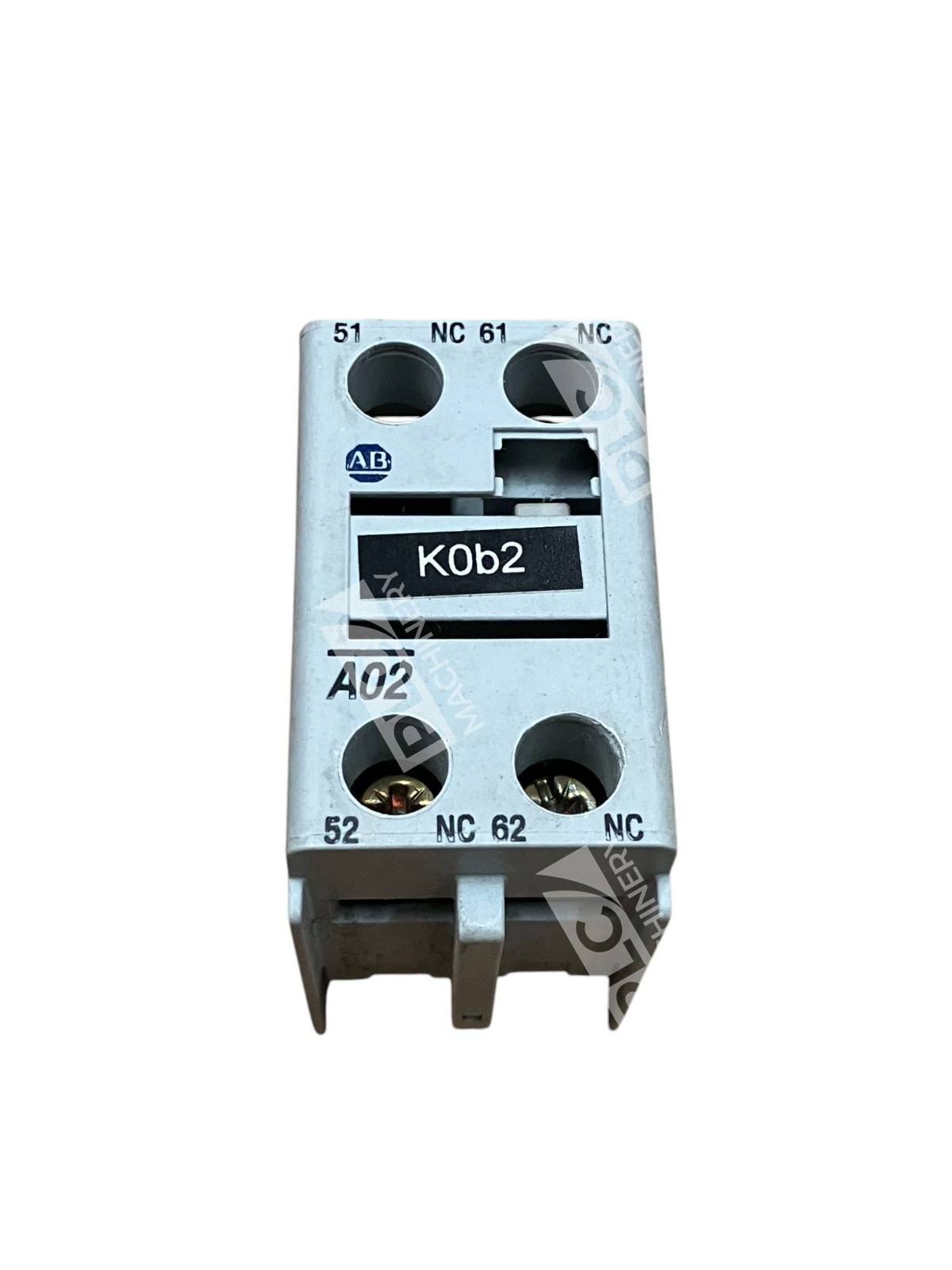

- 2-Contact Design: Provides dual switching capability for complex control logic
- Series B Build: IEC/EN 60947-5-1 compliant for international industrial standards
- Compact Form Factor: Integrates seamlessly into control panels and electrical enclosures
Technical Specifications
- Voltage Rating: 690VAC
- Current Rating: 10A
- Contact Configuration: 2-pole front-mount
- Duty Cycle: AC-15
- Maximum Operating Voltage: 600VAC
- Series Designation: B
- Standards Compliance: IEC/EN 60947-5-1
- Compatible Contactors: 100-C series
- Compatible Relays: 700-C series
- Mounting Type: Front-mount
Typical Applications
The 100-F contact block is widely used in:
- Three-phase motor control circuits requiring feedback confirmation
- Interlocking systems for multiple contactor coordination
- Safety and permissive circuits in manufacturing machinery
- Panel-mounted control relay logic implementation
- Industrial automation systems with strict switching reliability requirements
Compatibility & Replacements

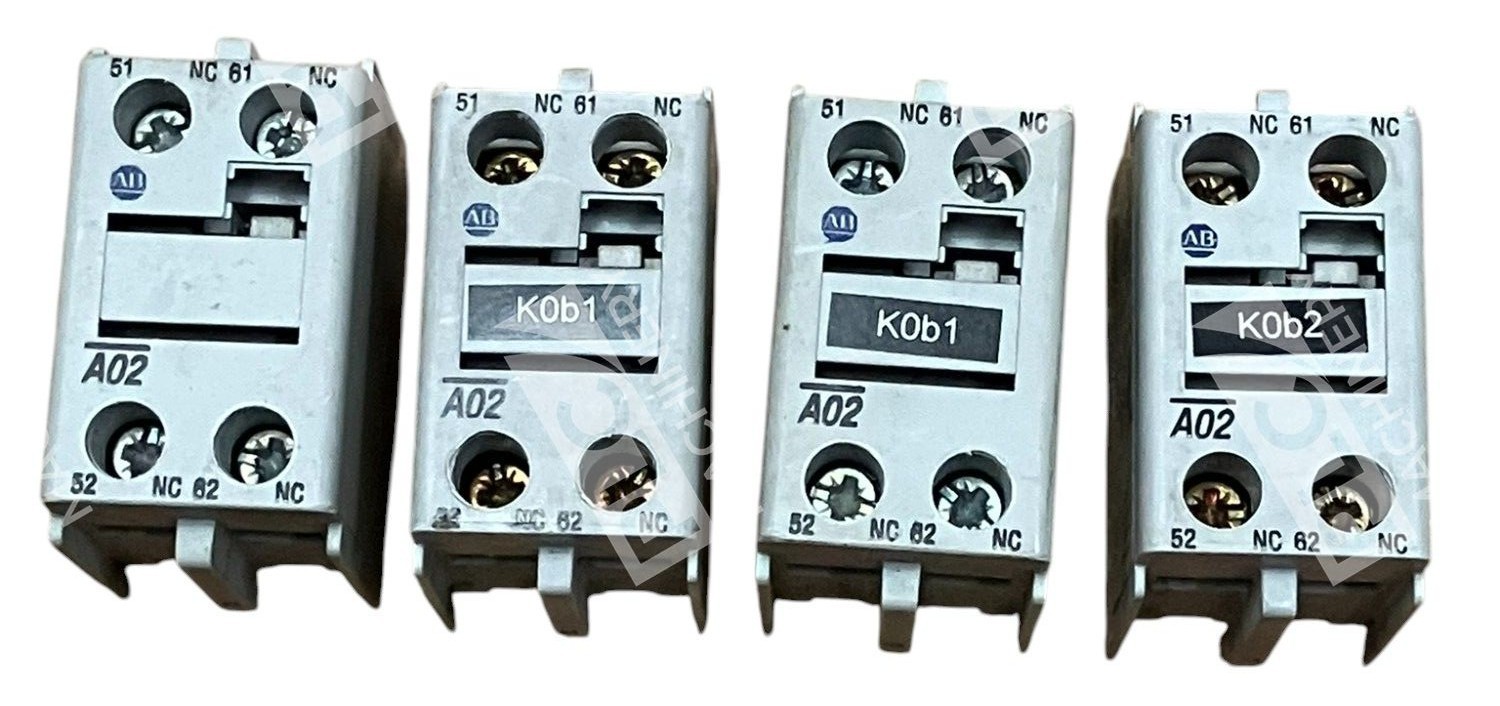

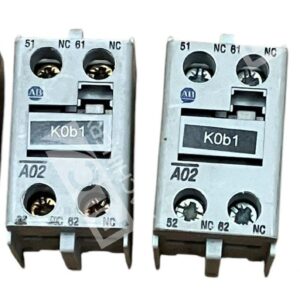

The 100-F Series B contact block is a direct fit for existing 100-C contactor installations. Interchangeable with earlier Series A versions where mechanical compatibility is confirmed. This lot of 4 units provides spare capacity for multi-contactor control systems, reducing downtime from contact wear or failure. For systems requiring side-mount configuration, the parallel 100-S Series B contact block offers identical electrical specifications with alternative mounting. Always verify mechanical mounting geometry with your specific contactor generation before ordering replacement stock.
