Overview

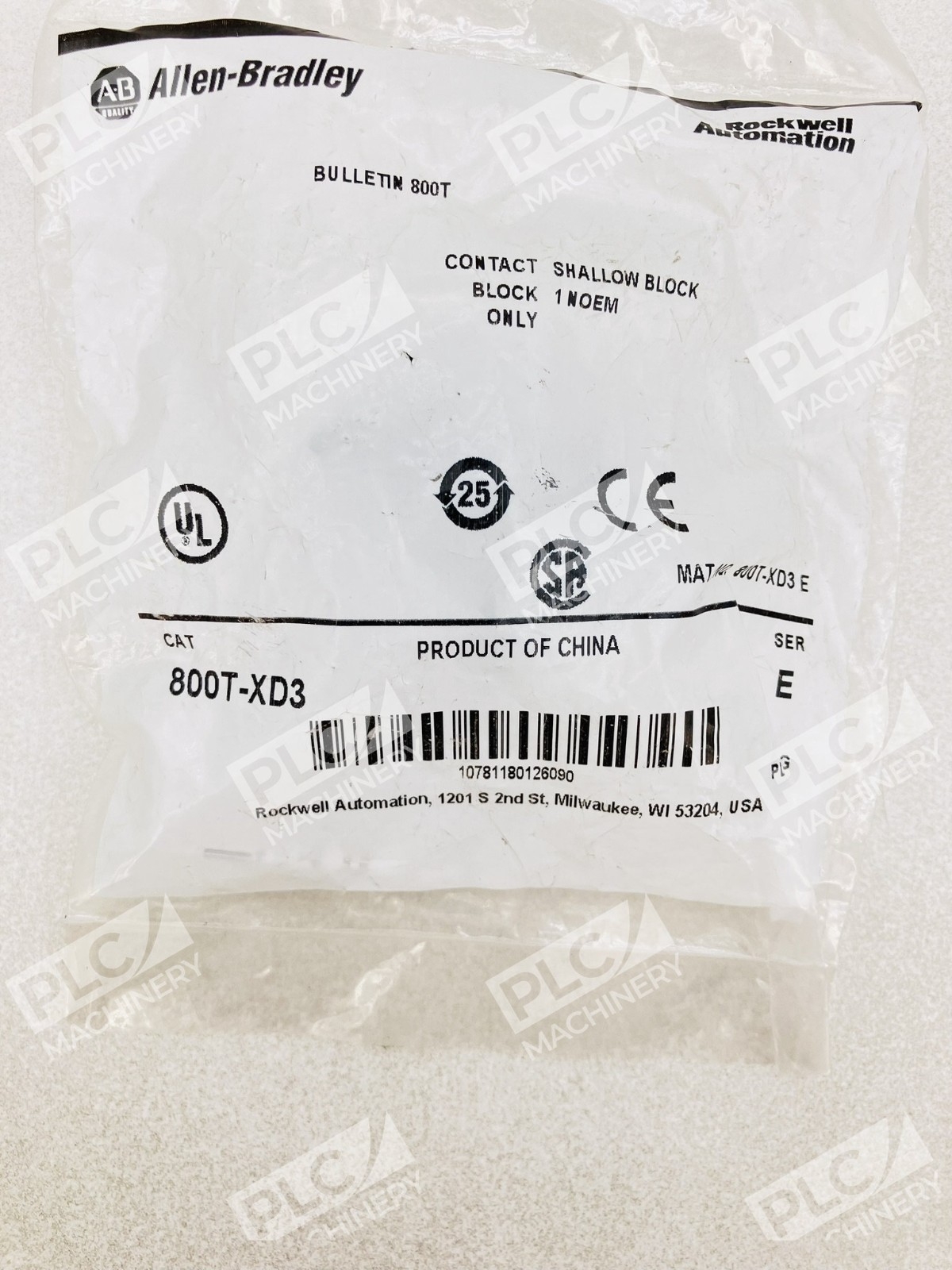

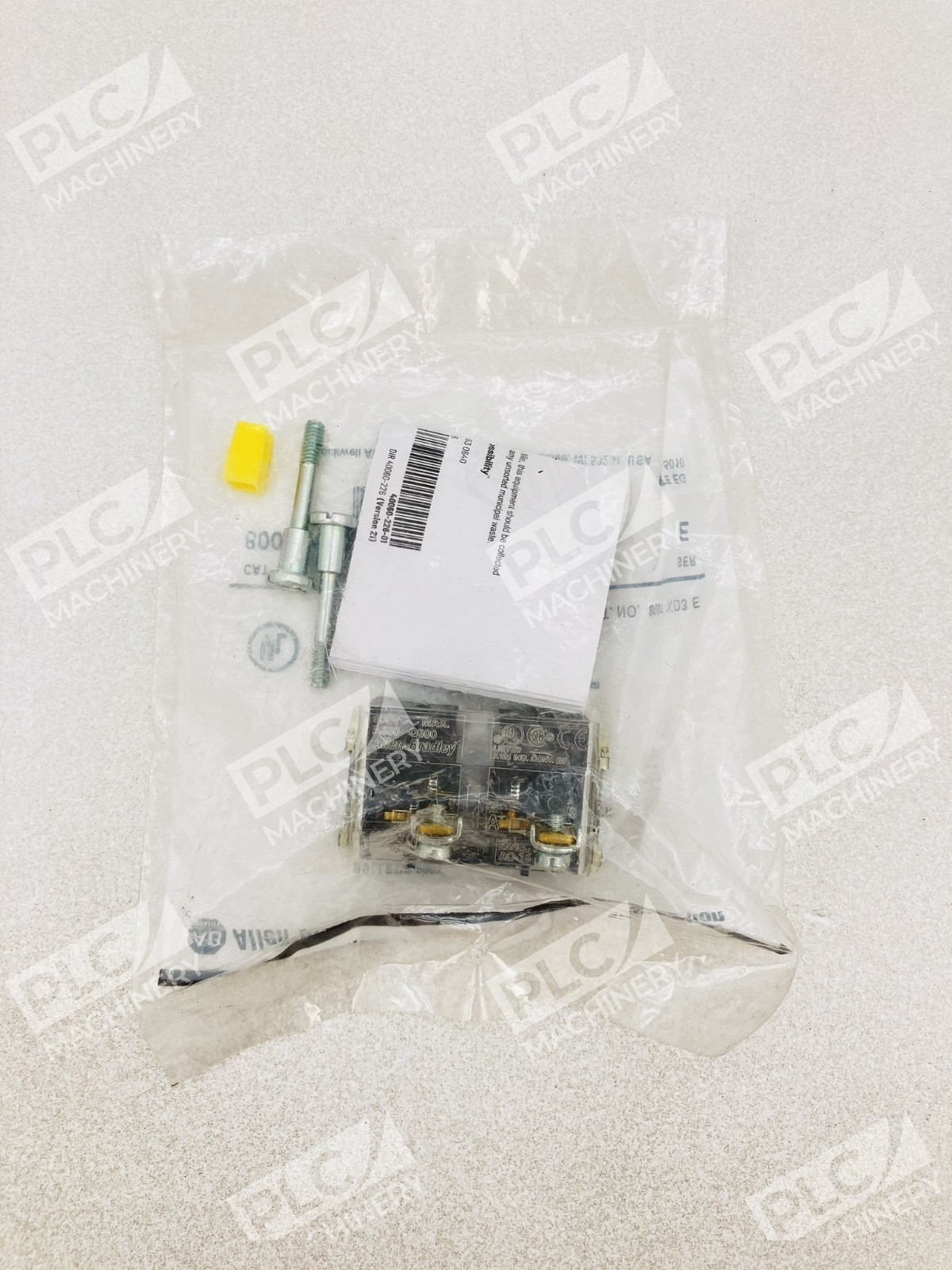

The Allen-Bradley 800T-XD3 contact block is a shallow-design module engineered for the 800T series 30mm push button platform. This lot includes seven new in box units, each featuring one normally open contact with early make capability. The shallow block configuration allows for compact panel mounting while maintaining robust 600VAC / 10A electrical performance across demanding industrial automation applications.
Key Features
- 1 Normally Open (1NO) contact with Early Make functionality for reliable signal switching
- Shallow block design optimizes panel space without sacrificing contact integrity
- Screw terminal connections for secure, field-serviceable wiring
- Base mount configuration integrates seamlessly with 800T push button operators
- Certified for UL, CUL, CE, CSA, CCC, KC, and MARINE applications
- Compact dimensions suitable for restricted enclosure spaces
Technical Specifications
Contact configuration follows standard 800T nomenclature: 1NOEM (1 Normally Open, Early Make). The electrical rating supports 10 Amps at 600VAC continuous duty. Mechanical life expectancy meets or exceeds 150,000 operations when properly maintained. Terminal type is screw for field termination, and the mounting method is base (panel-side attachment). Overall size class is 30mm, with non-metallic construction for electrical isolation.
Typical Applications
- Machine start/stop control circuits and E-stop emergency systems
- Process automation selector switches and multi-position control
- Pilot light indication blocks for visual status feedback
- Motor starter interlocks and equipment protection circuits
- Light tower and indicator column assemblies
- Industrial panel-mount control stations in Type 4/13 enclosures
Compatibility & Replacements
Compatible With
- Allen-Bradley 800T Series 30mm push button operators and enclosure-mount assemblies
- 800T modular contact block platforms (stacked or single-block configurations)
- IEC 60947-4-1 compliant push button control circuits
- Industrial control enclosures rated Type 4/4X and Type 13
- Legacy and current Allen-Bradley 800T installations worldwide
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to confirm the 800T-XD3 configuration matches your specific contact requirement. While the shallow block design is standard across the 800T platform, alternative configurations such as 800T-XD4, 800T-XD5, and other contact variants exist for different switching needs.
Works With
- Allen-Bradley 800T push button operators and pilot light modules
- 3rd-party 30mm ISO-compliant push button platforms
- Standard industrial control wiring and terminal strips
- Legacy 24VDC and 120VAC control circuit architectures
