Overview

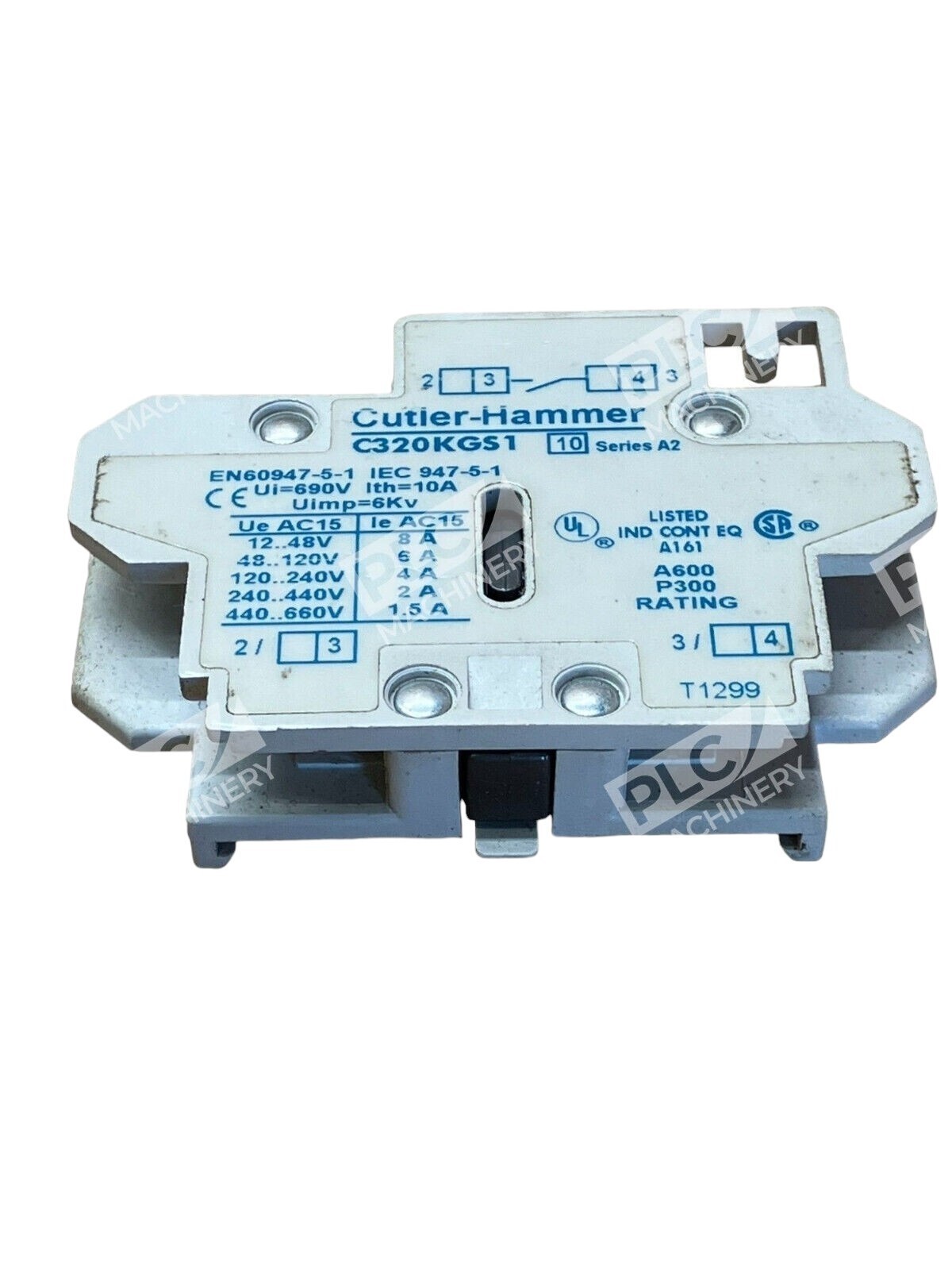

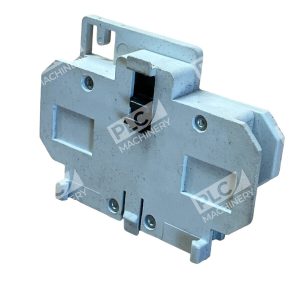

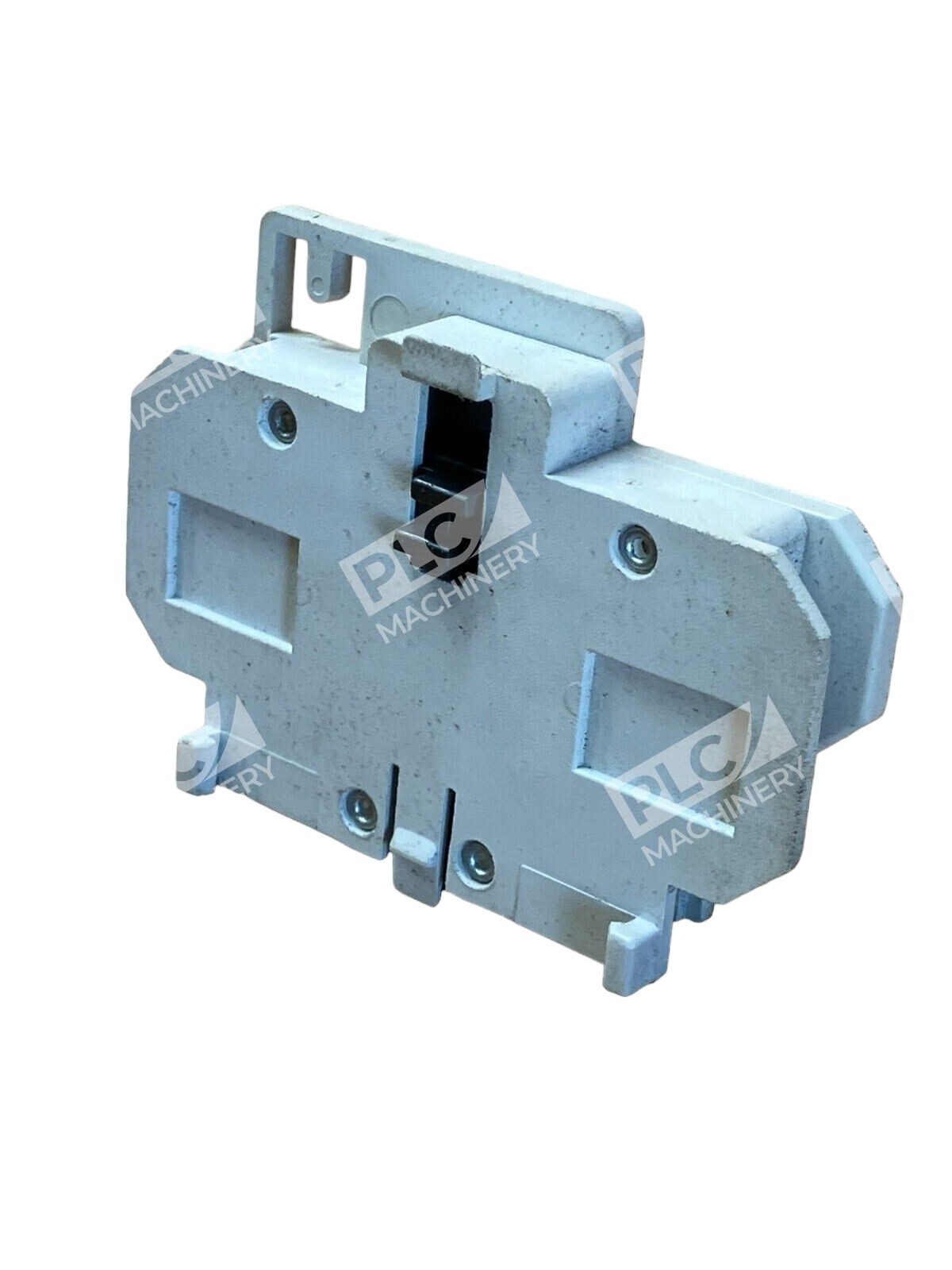

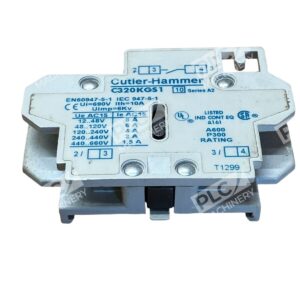

The Eaton Cutler-Hammer C320KGS1 is a Freedom series auxiliary contact accessory for NEMA-rated starters and contactors. This 1NO (normally open) contact block features a side-mount installation and snap-on design for quick integration into existing contactor assemblies. The bifurcated contact design with silver-cadmium alloy provides stable switching performance in low-energy logic circuits, making it ideal for PLC input signaling, control panel interlocking, and status monitoring applications.
Key Features
- 1NO contact configuration – Single normally open contact for reliable signal feedback
- Snap-on installation – Quick, tool-free mounting on compatible starters and contactors
- Bifurcated contact design – Silver-cadmium alloy contacts suited for low-energy (logic level) circuits
- NEMA-rated – Certified for use on Eaton Freedom series Size 00–2 starters and contactors
- Compact side-mount format – Fits standard contactor baseplate without modification
Technical Specifications
- Voltage Rating: 120–600 VAC; 250 VDC (0.55 A)
- Current Rating: 10 A @ 120 VAC; 1.1 A @ 120 VDC
- Contact Configuration: 1NO
- Mounting Type: Side mount
- Contact Material: Silver-cadmium alloy (bifurcated)
- Series: A2 / Freedom Accessory
- Dimensions: 3-1/2″ × 2-1/2″ × 2″
- Snap-on Terminals: Standard
- Maximum Contact Blocks: 2 per contactor
- Suitable For: Eaton Freedom NEMA Size 00–2 contactors and starters
Typical Applications
- Motor control logic: Feedback signaling for run/stop status to PLC or relay logic
- Control panel interlocking: Safety and sequencing circuits in industrial electrical assemblies
- HVAC/refrigeration: Contactor status monitoring in thermostat and compressor control
- Manufacturing automation: Indicator lights and permissive logic in machine control systems
- Low-voltage switching: Ideal for 24 VDC and logic-level control circuits
Compatibility & Replacements
Compatible With
- Eaton Freedom series NEMA Size 00–2 contactors
- Eaton Freedom series NEMA Size 00–2 starters (AE series)
- Eaton CE series contactors
- Standard PLC and relay logic input circuits (120 VAC / 24 VDC)
- Control panel and electrical enclosure assemblies
Replaces / Drop-In Replacement For
- Original equipment auxiliary contacts on Eaton Freedom series contactors
- Worn or failed 1NO snap-on auxiliary contacts on compatible starters
Works With
- Allen-Bradley PLC input modules (24 VDC logic level)
- Siemens S7-1200 / S7-1500 digital inputs
- Mitsubishi FX and Q-series PLC inputs
- Omron CJ-series and CP-series PLC input terminals
- Schneider Electric Modicon M340 / M580 discrete input cards
- Standard 24 VDC relay logic circuits
