Overview

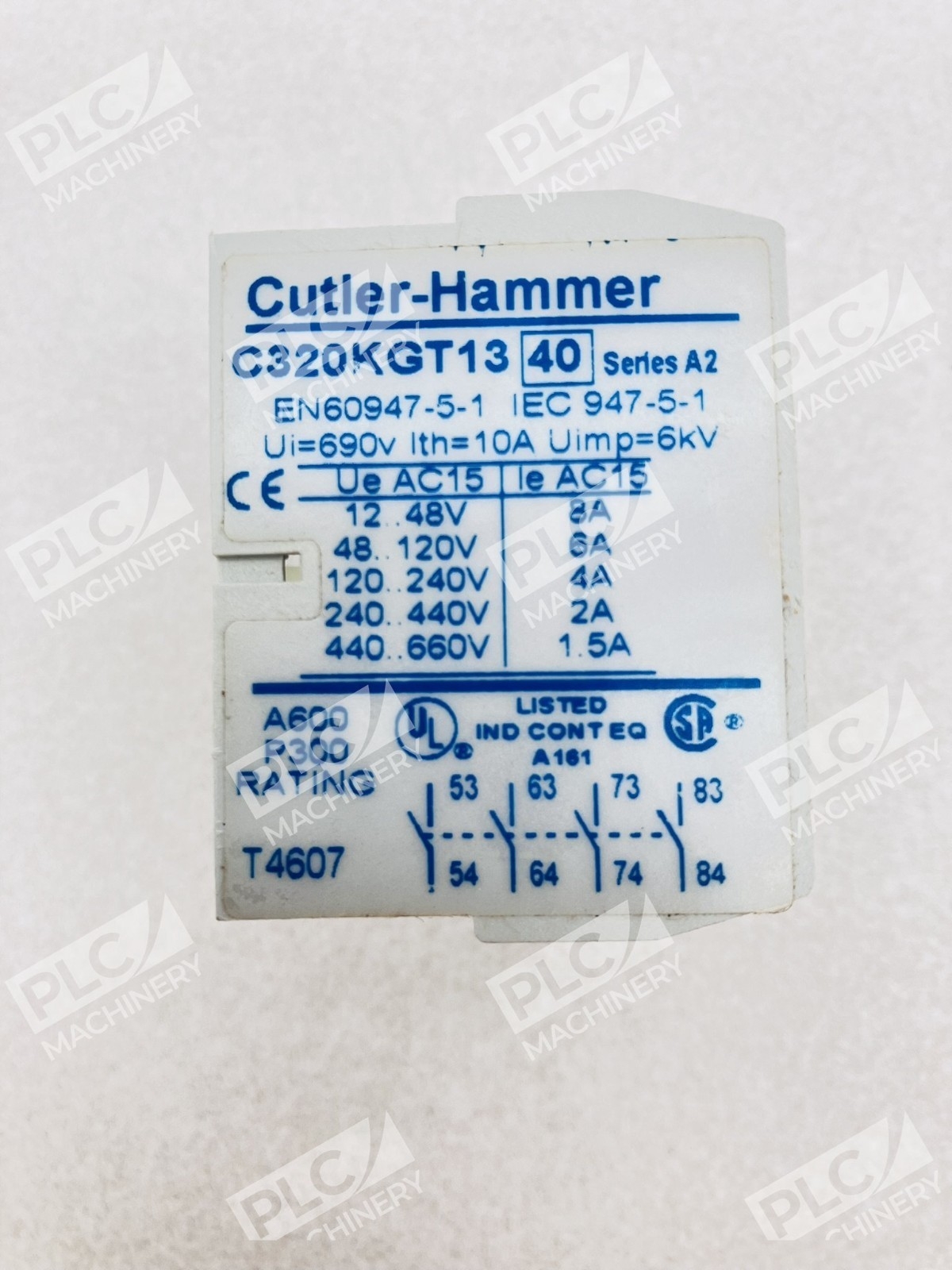

The Eaton Cutler-Hammer C320KGT13 is a Freedom Series auxiliary contact block engineered for reliable auxiliary switching and monitoring in industrial motor control applications. This top-mounted contact block provides four normally open (4NO) contacts, making it ideal for adding status signaling and interlocking functions to Size 00-2 AN16 contactors and motor starters. The screw terminal design ensures secure connections in demanding electrical environments.
Key Features
- 4 normally open (4NO) contact configuration for flexible logic control
- Top-mounted design for easy installation and accessibility
- Screw-type terminals for secure, reliable wiring
- Compatible with Size 00-2 AN16 contactors and starters
- Freedom Series — proven Eaton/Cutler-Hammer industrial motor control platform
- 10 Amp continuous current rating per contact
Technical Specifications
- Product Series: Freedom Series

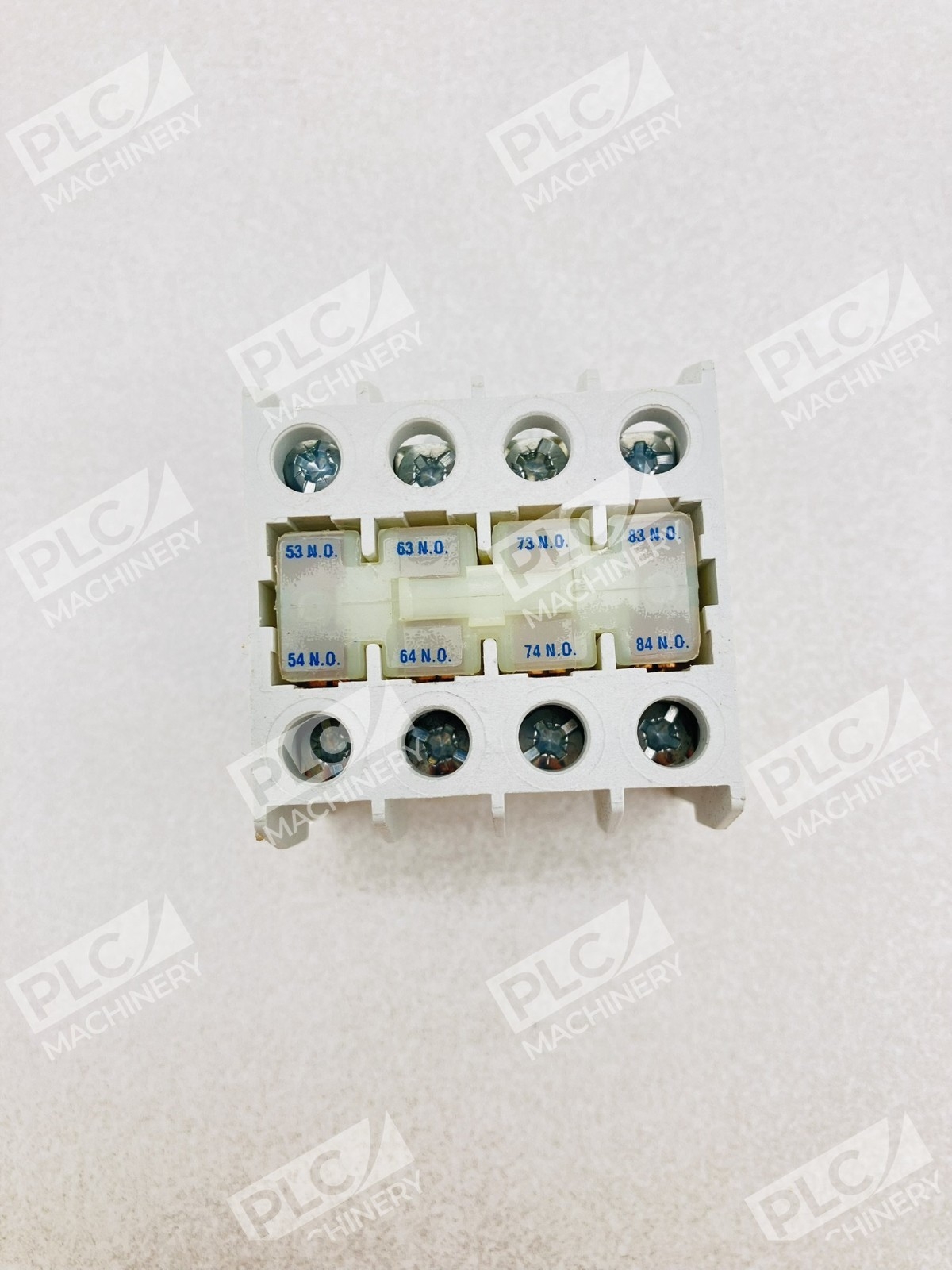

- Contact Configuration: 4NO (4 Normally Open)
- Mounting Style: Top Mount

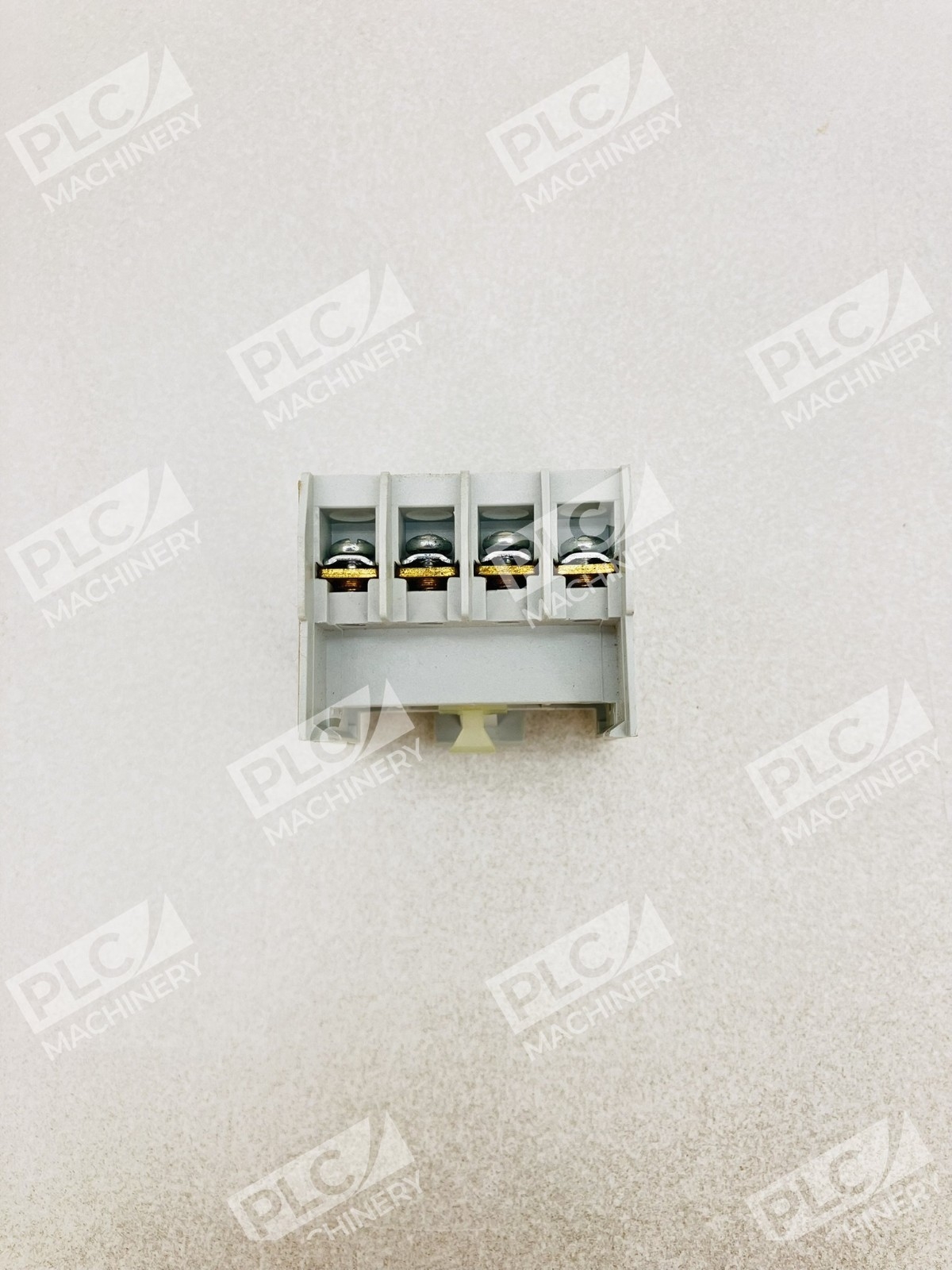

- Terminal Type: Screw

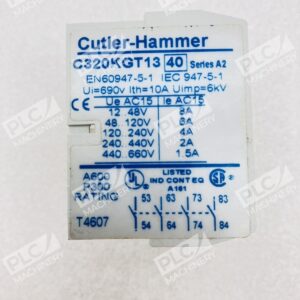

- Current Rating: 10 Amps per contact
- Compatible Contactor Sizes: Size 00 to Size 2 AN16
- Mounting Method: DIN Rail / Surface Mount
- Manufacturer: Eaton Corporation (Cutler-Hammer Division)
- UPC: 782113413686
Typical Applications
- Motor control interlocking and status signaling
- Auxiliary switching in programmable logic controller (PLC) input circuits
- Contactor and starter monitoring in manufacturing and process automation
- HVAC and pump station control systems
- Industrial machinery start/stop logic and safety circuits
- Equipment status indication and remote monitoring
Compatibility & Replacements
Compatible With
- Eaton Cutler-Hammer Size 00 to Size 2 AN16 Contactors
- Eaton Cutler-Hammer Freedom Series Motor Starters
- Industrial motor control panels and enclosures
- Standard 24 VDC and 120 VAC control circuits
Replaces / Drop-In Replacement For
- Direct replacement for original Eaton C320KGT13 units
- Verify compatibility with your specific contactor model before ordering
Works With
- Eaton Freedom Series contactors and motor starters (all sizes 00–2)
- Standard industrial control wiring and DIN rail mounting systems
- 24 VDC and 120 VAC control voltage applications
- PLC input modules (24 VDC/120 VAC logic levels)
