Overview

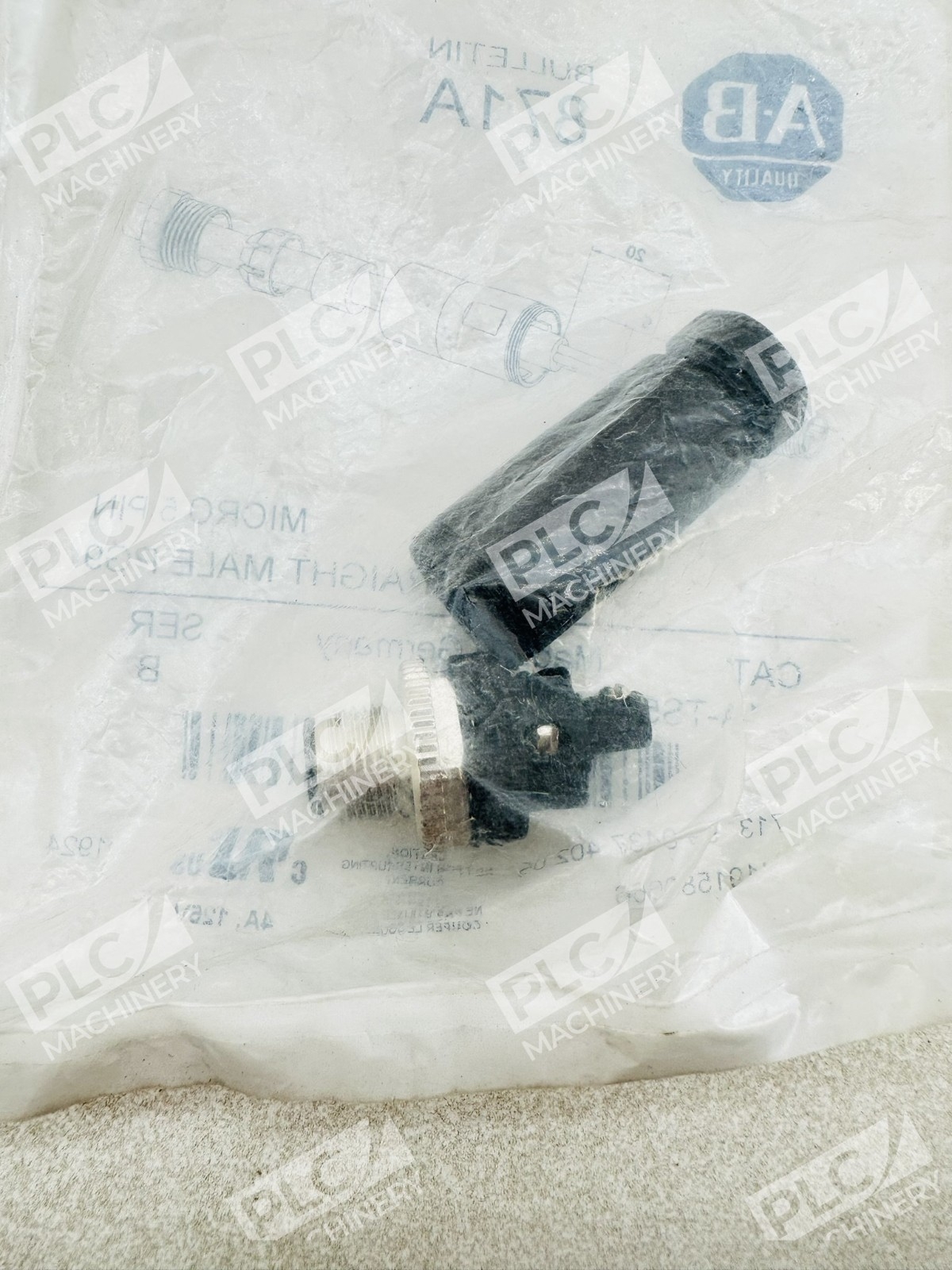

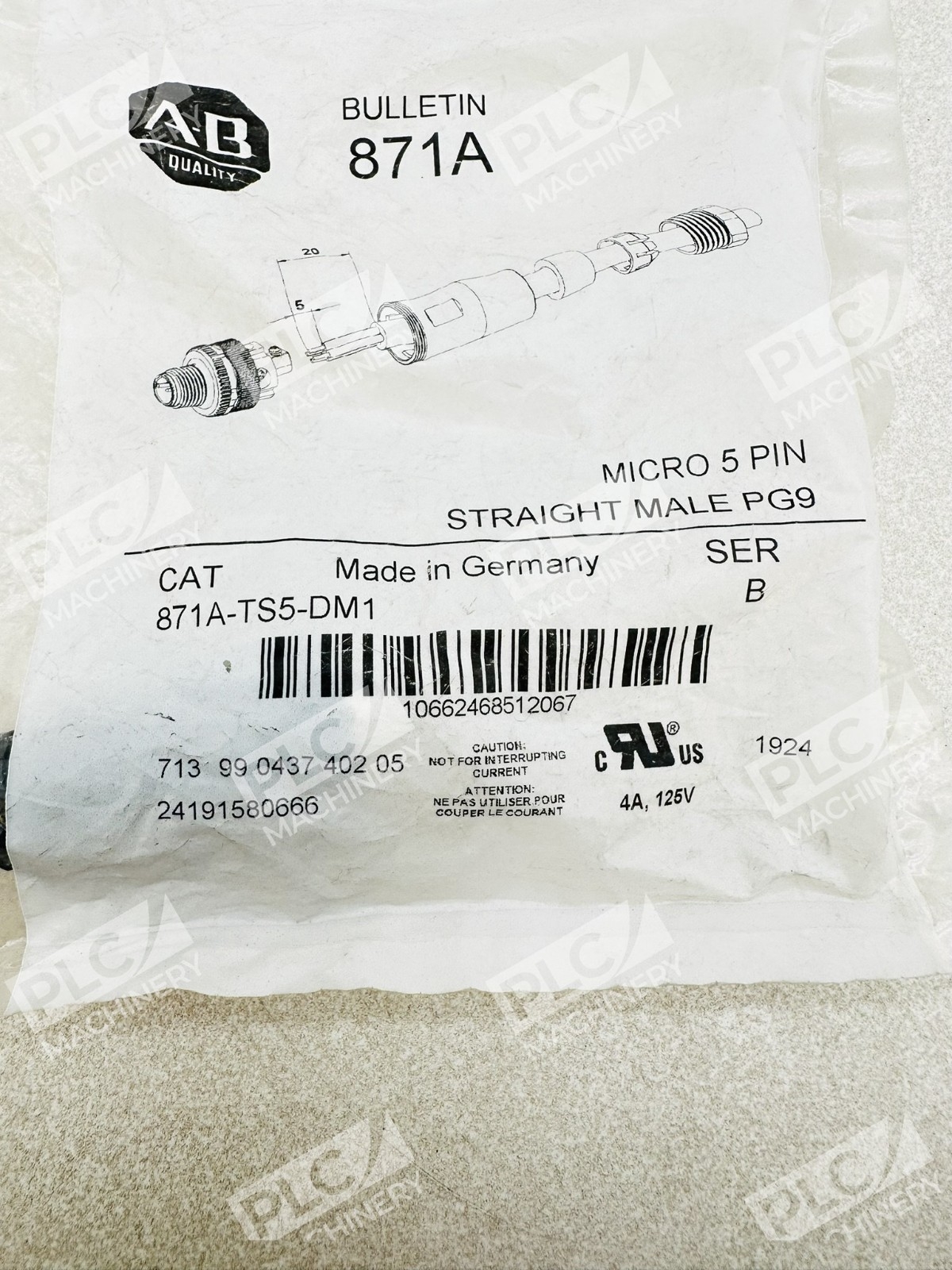

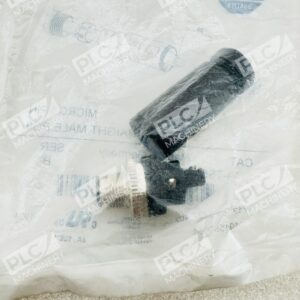

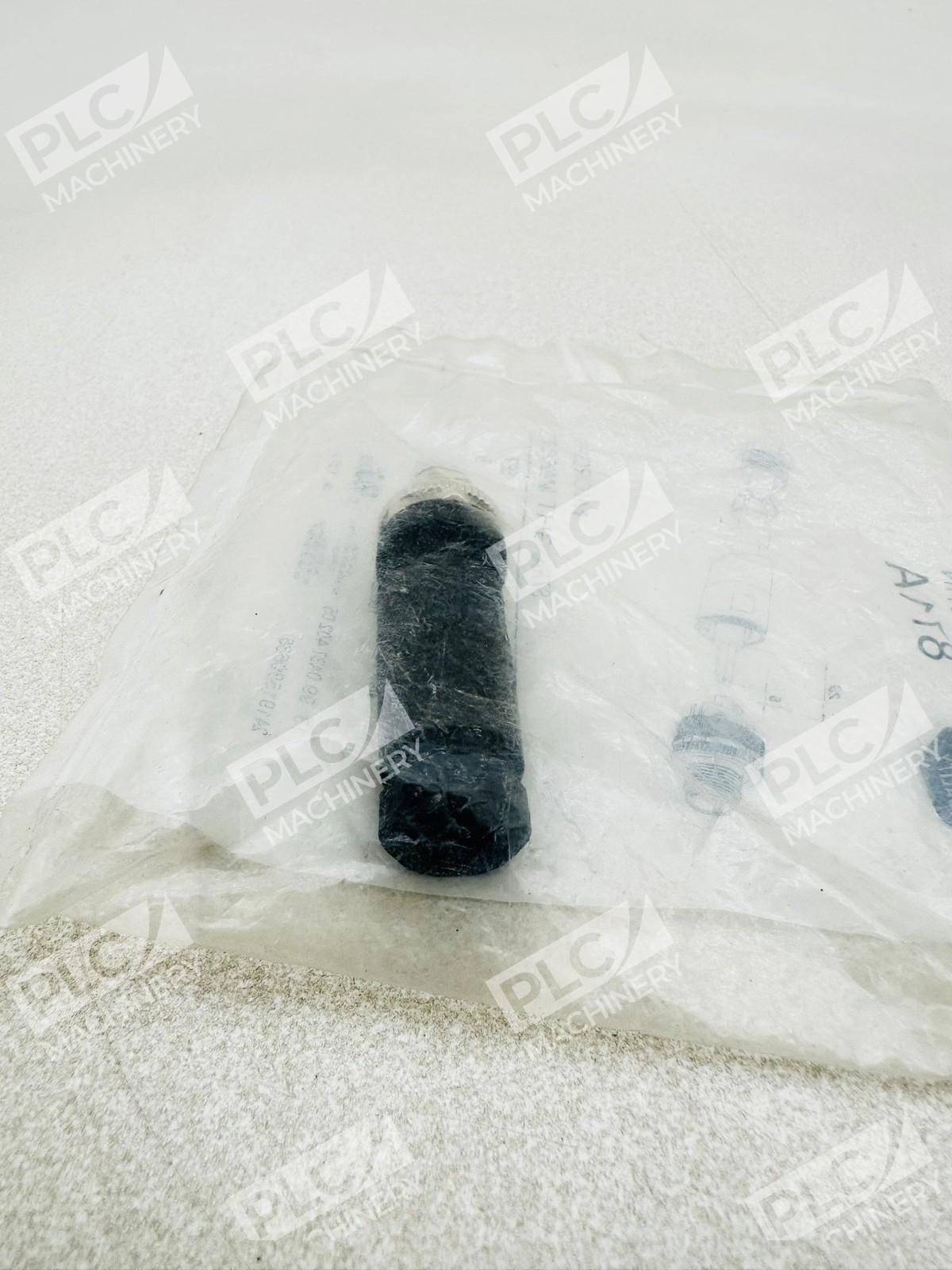

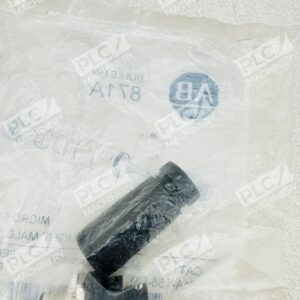

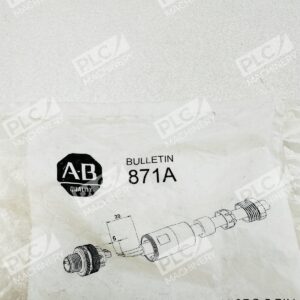

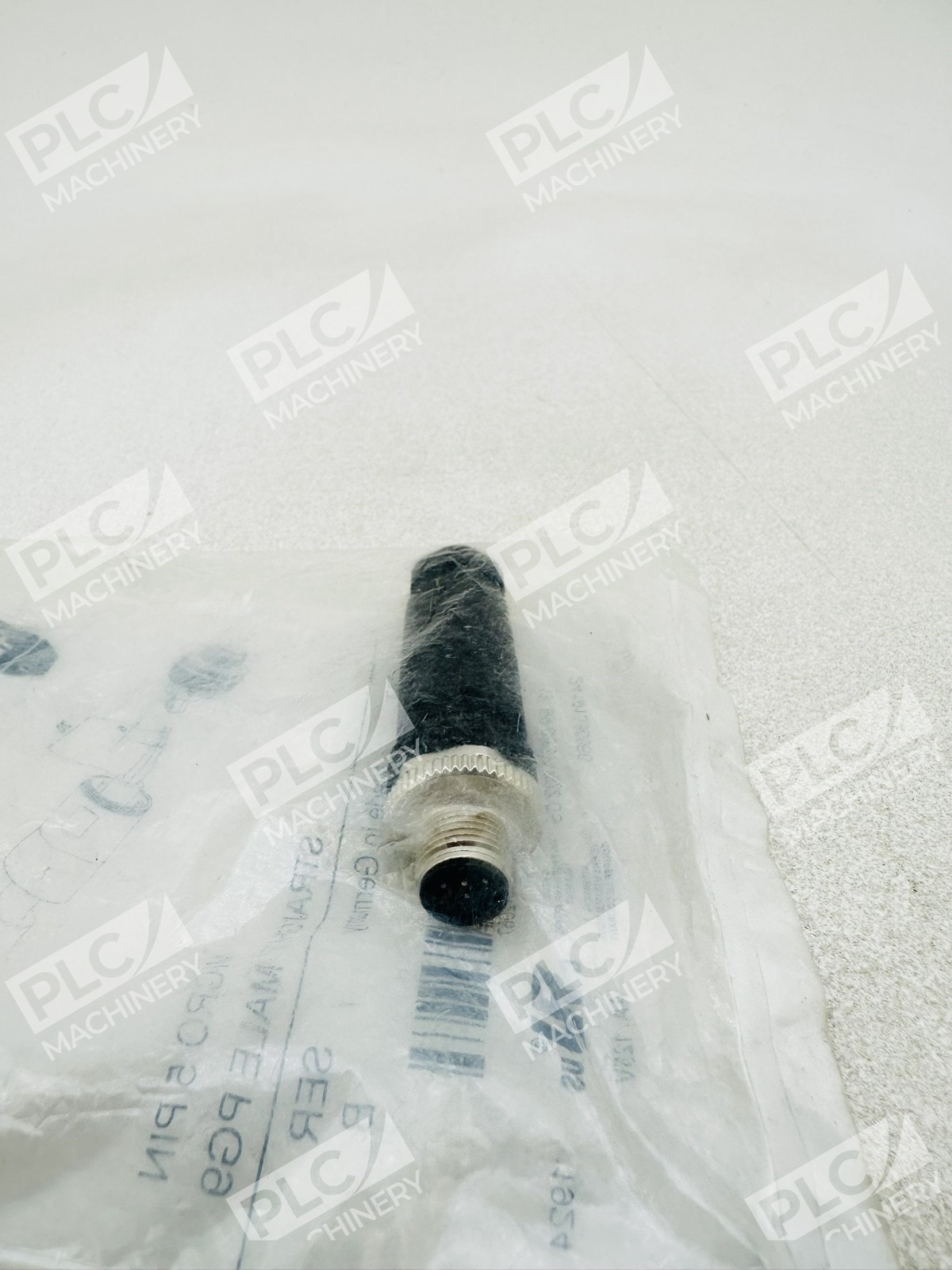

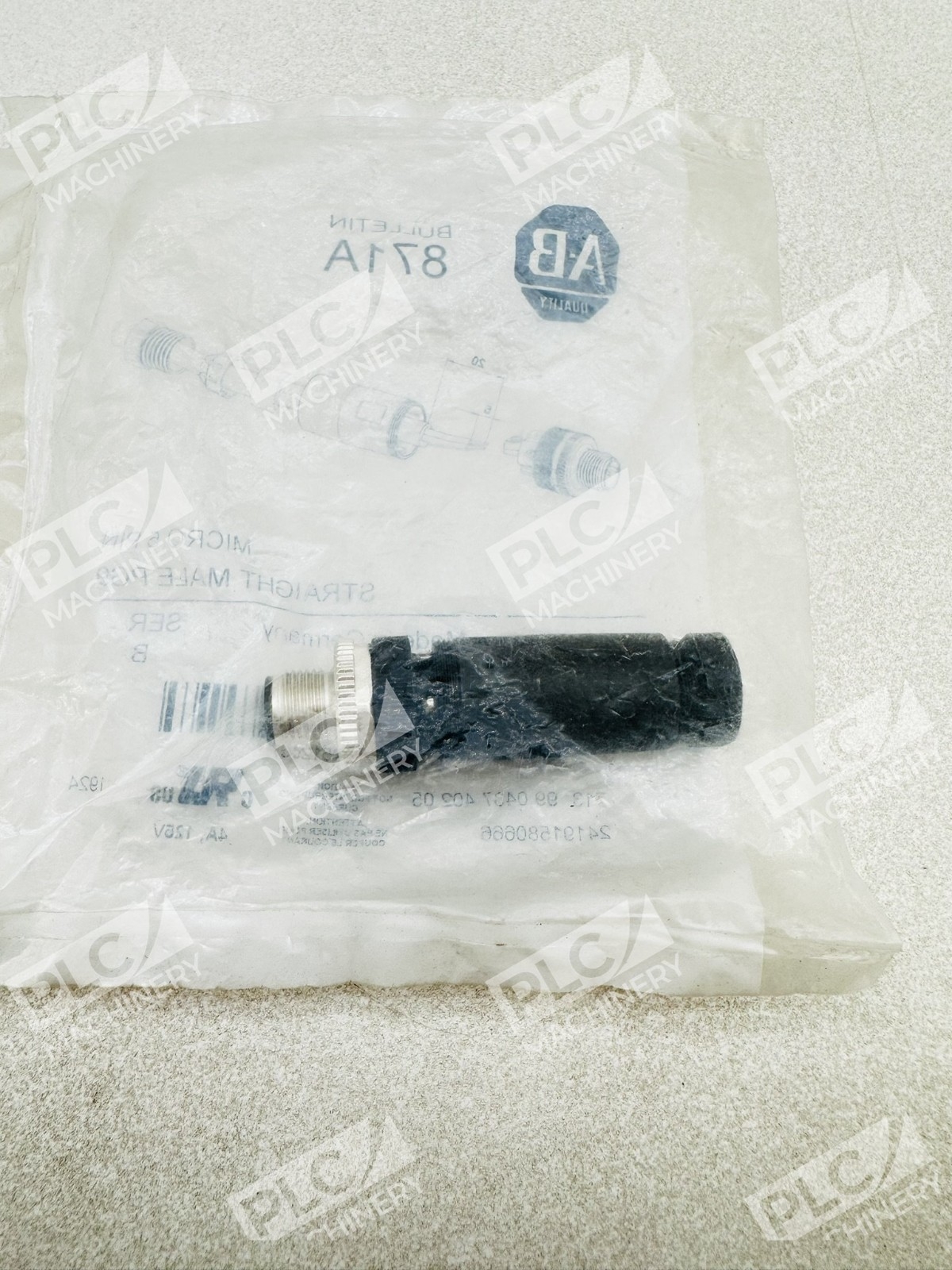

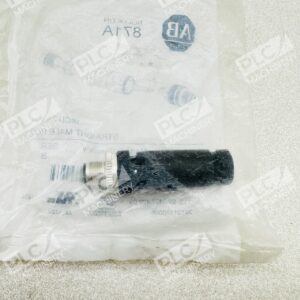

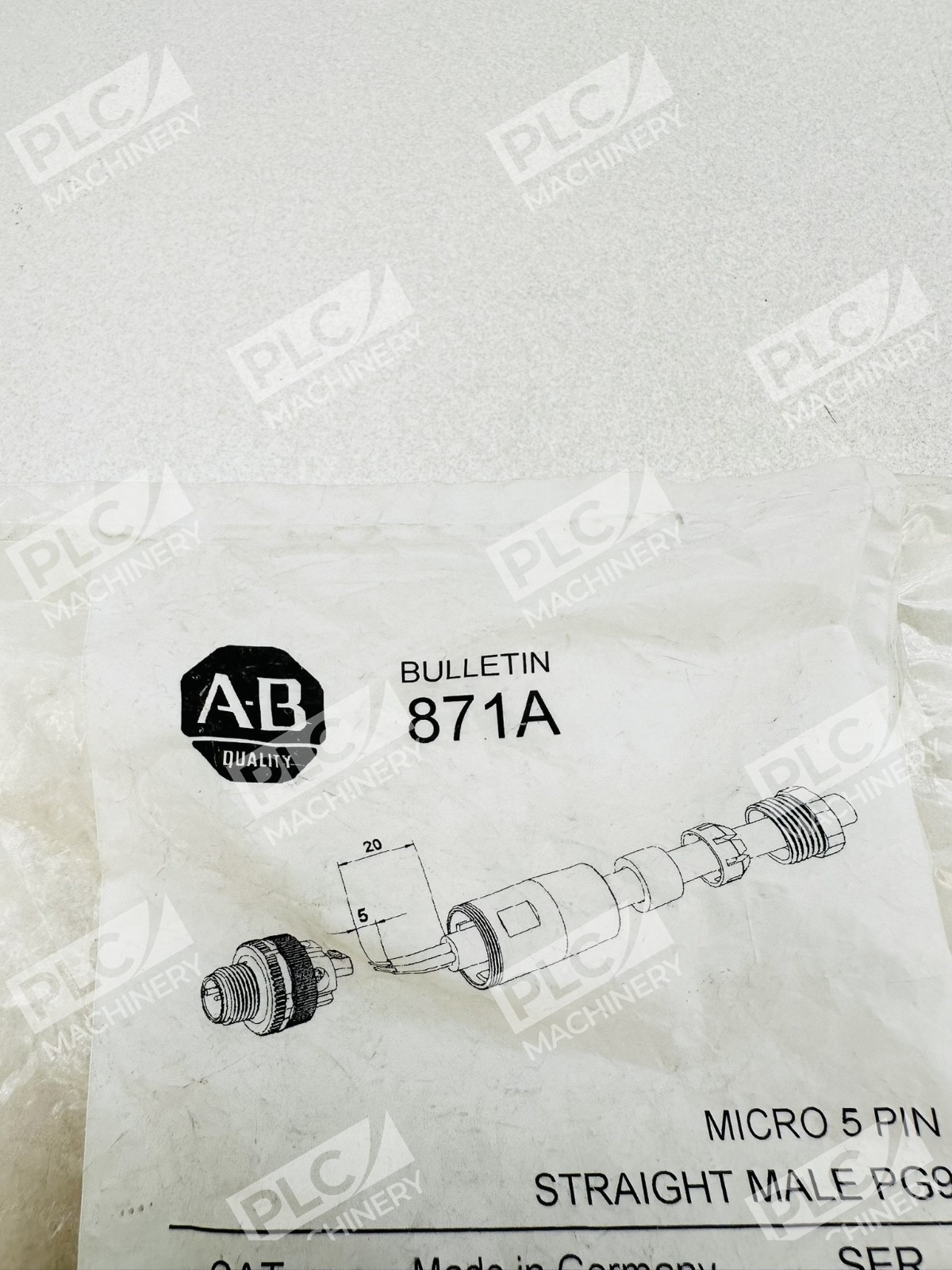

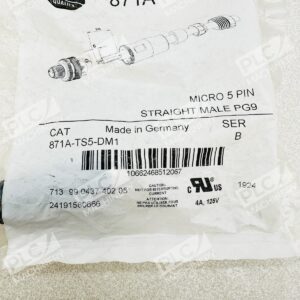

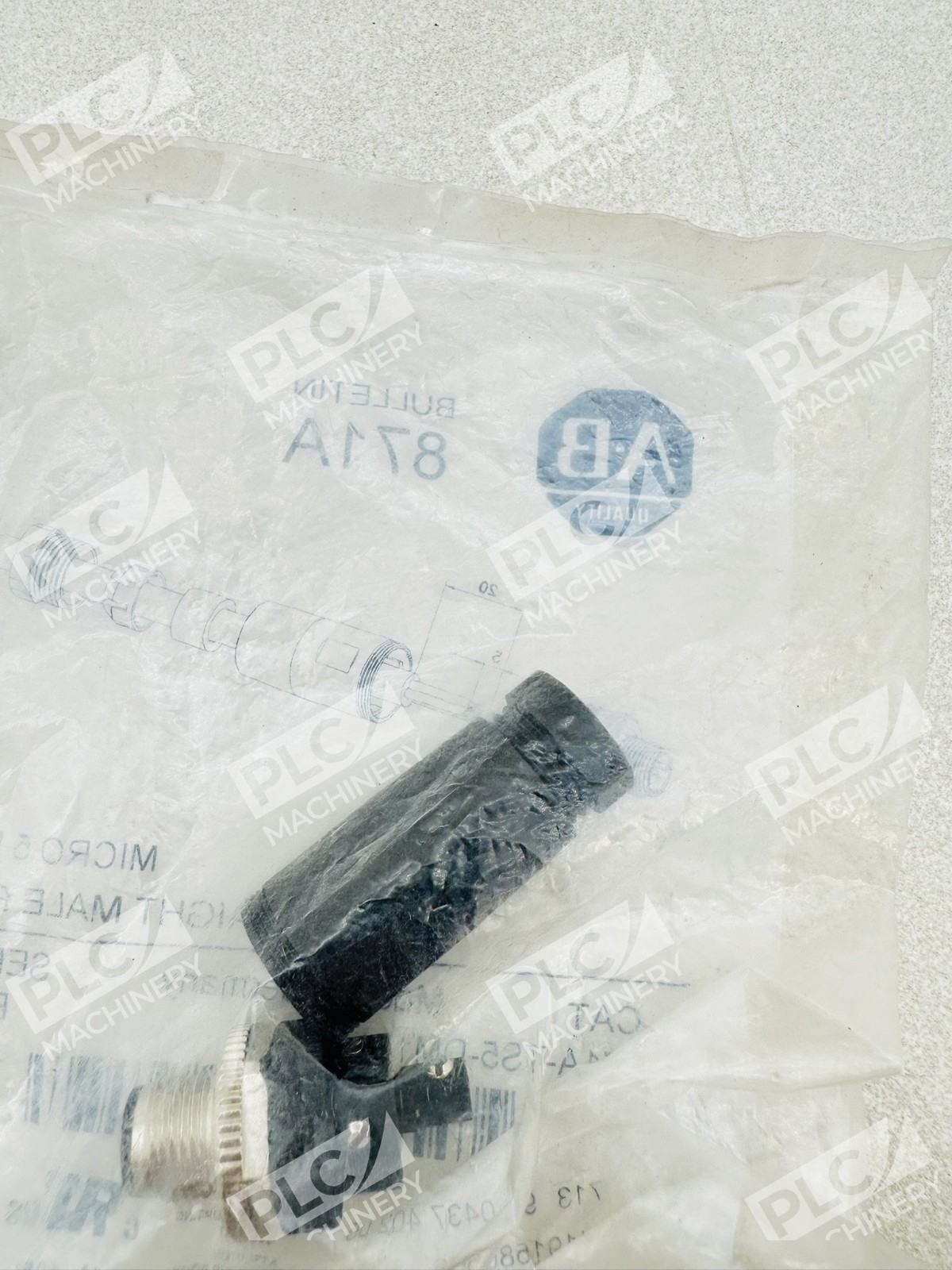

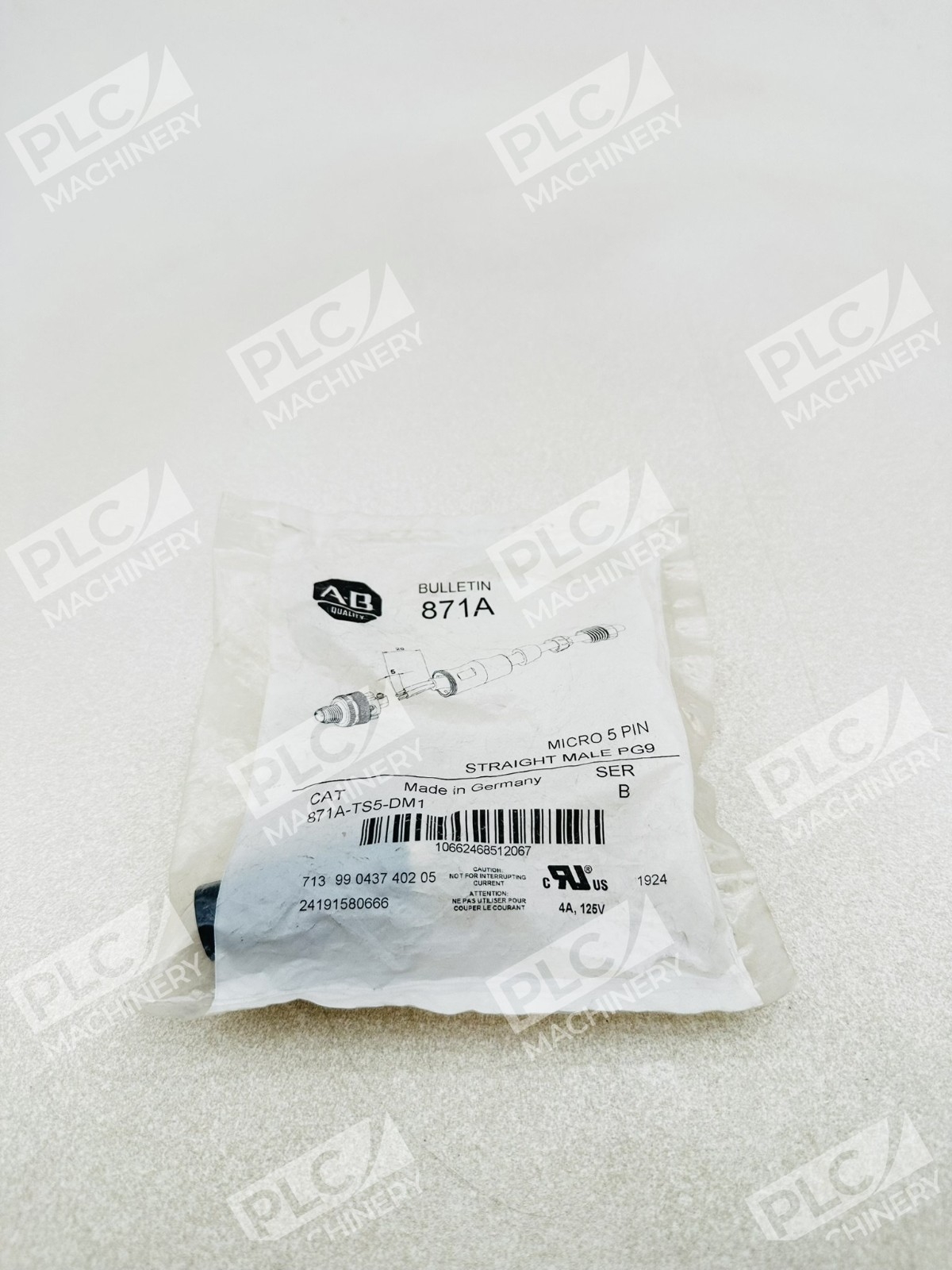

The Allen-Bradley 871A-TS5-DM1 is a field-attachable terminal chamber connector designed for industrial automation and control applications. This micro M12 straight male connector features a 5-pin configuration with external threads, making it suitable for secure and reliable electrical connections in demanding manufacturing and process control environments.
Key Features
- M12 micro connector with straight male orientation
- 5-pin terminal chamber configuration
- PG9 cable gland accommodation for 6–8 mm cable
- Series B standard materials and construction
- DC-rated connector for industrial sensor and control signal applications
- Field-attachable design for flexible cable assembly
Technical Specifications
- Connector Type: M12 Micro, Straight Male
- Pin Count: 5-pin
- Cable Size: 6–8 mm (0.24–0.31 inches)
- Gland Type: PG9
- Amperage Rating: 4 Amp
- Design: Terminal chamber with external threads
- Materials: Standard materials per Series B specification
- Orientation: Straight
- Application: DC control and sensor applications
Typical Applications
- Proximity sensors and inductive switches
- Industrial photoelectric sensors
- Motor control and drive circuits
- PLC and distributed I/O wiring
- Factory automation and process control
- Control panel terminal connections
Compatibility & Replacements
Compatible With
- Allen-Bradley M12 connector systems and ecosystems
- Standard M12 micro industrial sensor networks
- DC control circuits and automation platforms
- Industrial terminal boxes and control panels
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or controls engineer before ordering to confirm this connector is the correct replacement for your existing equipment.
Works With
- M12 sensor and actuator networks
- Allen-Bradley CompactLogix and ControlLogix systems
- Distributed I/O modules accepting M12 connectors
- Industrial automation control platforms with M12 support
