Overview

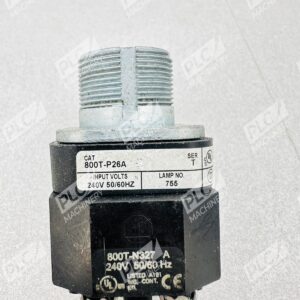

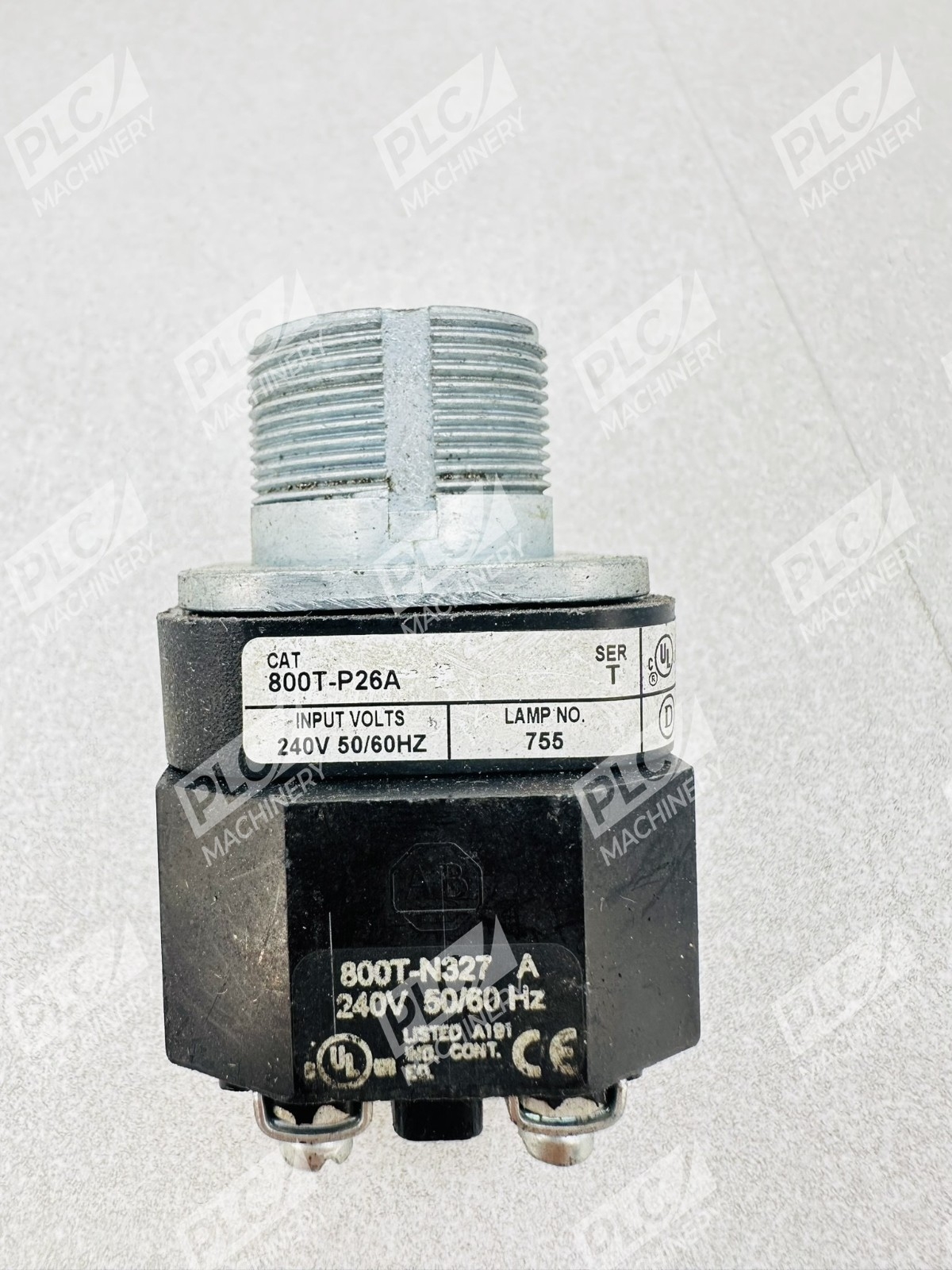

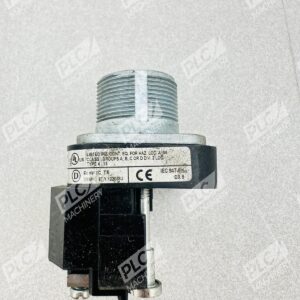

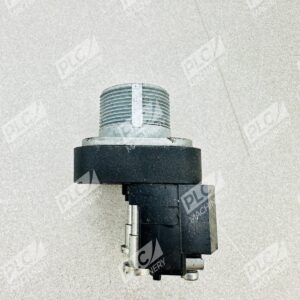

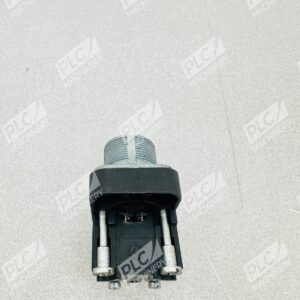

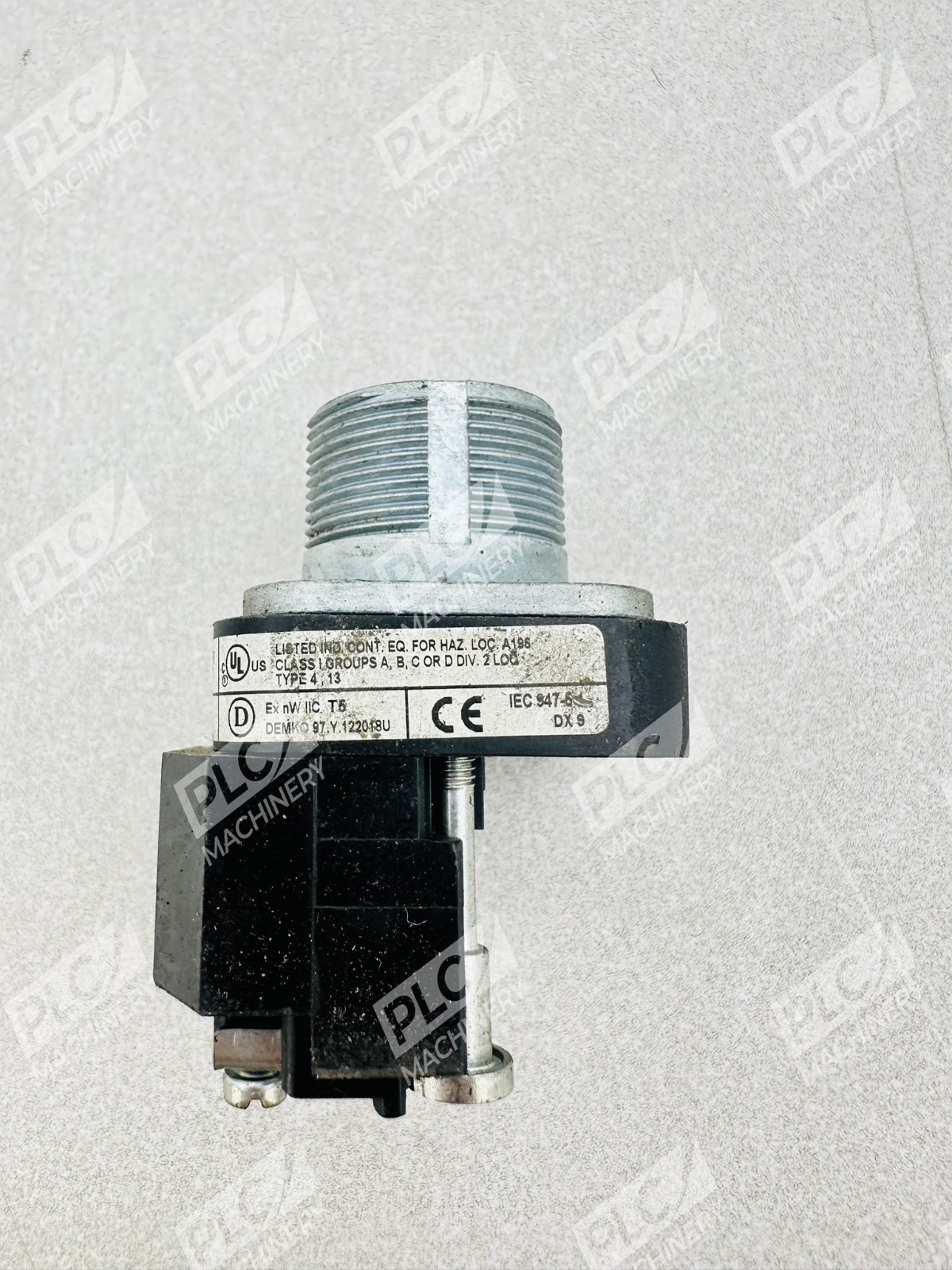

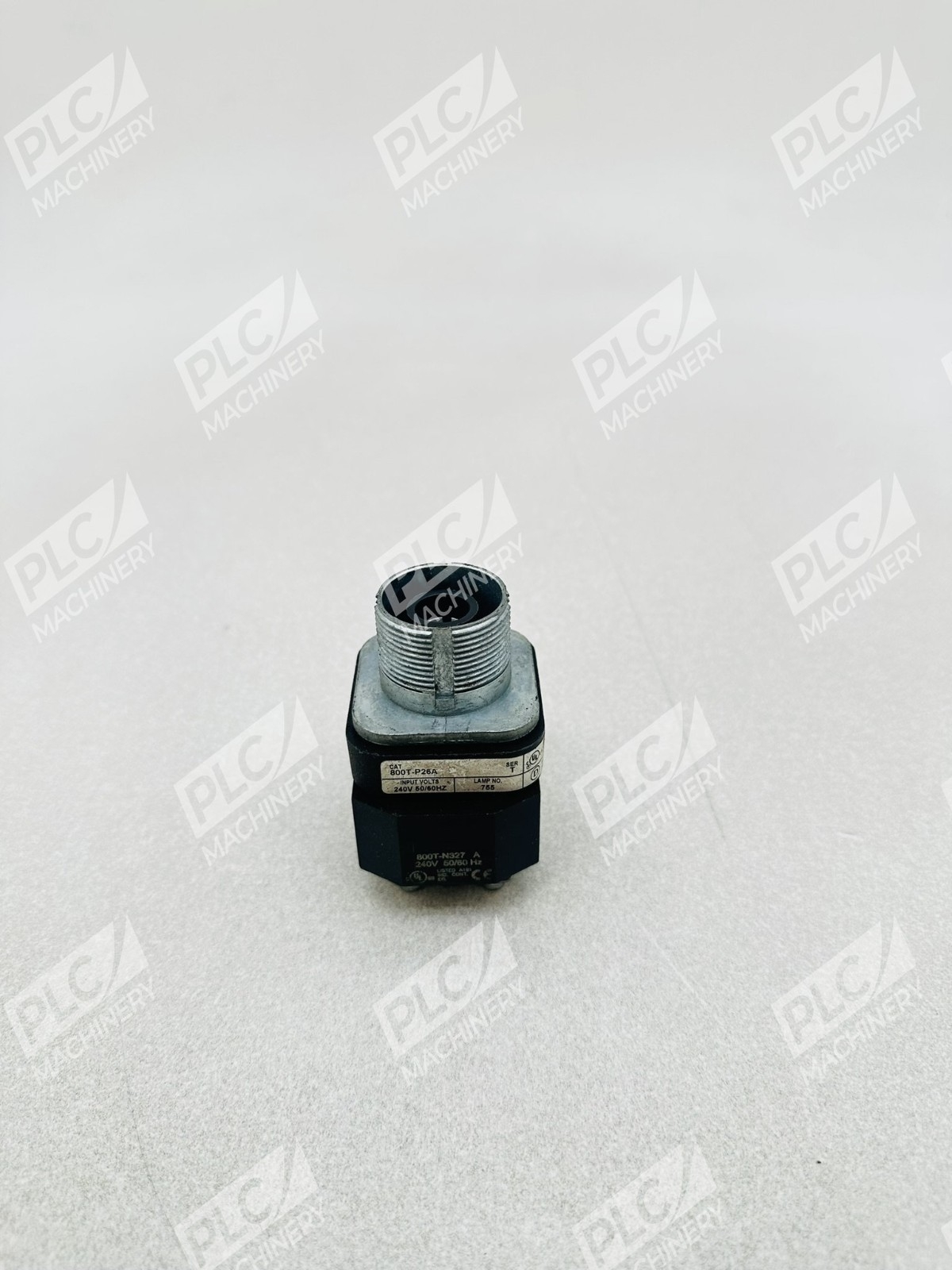

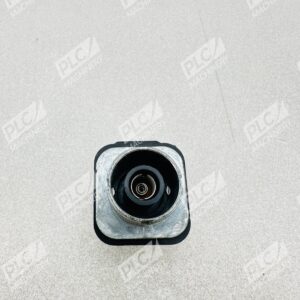

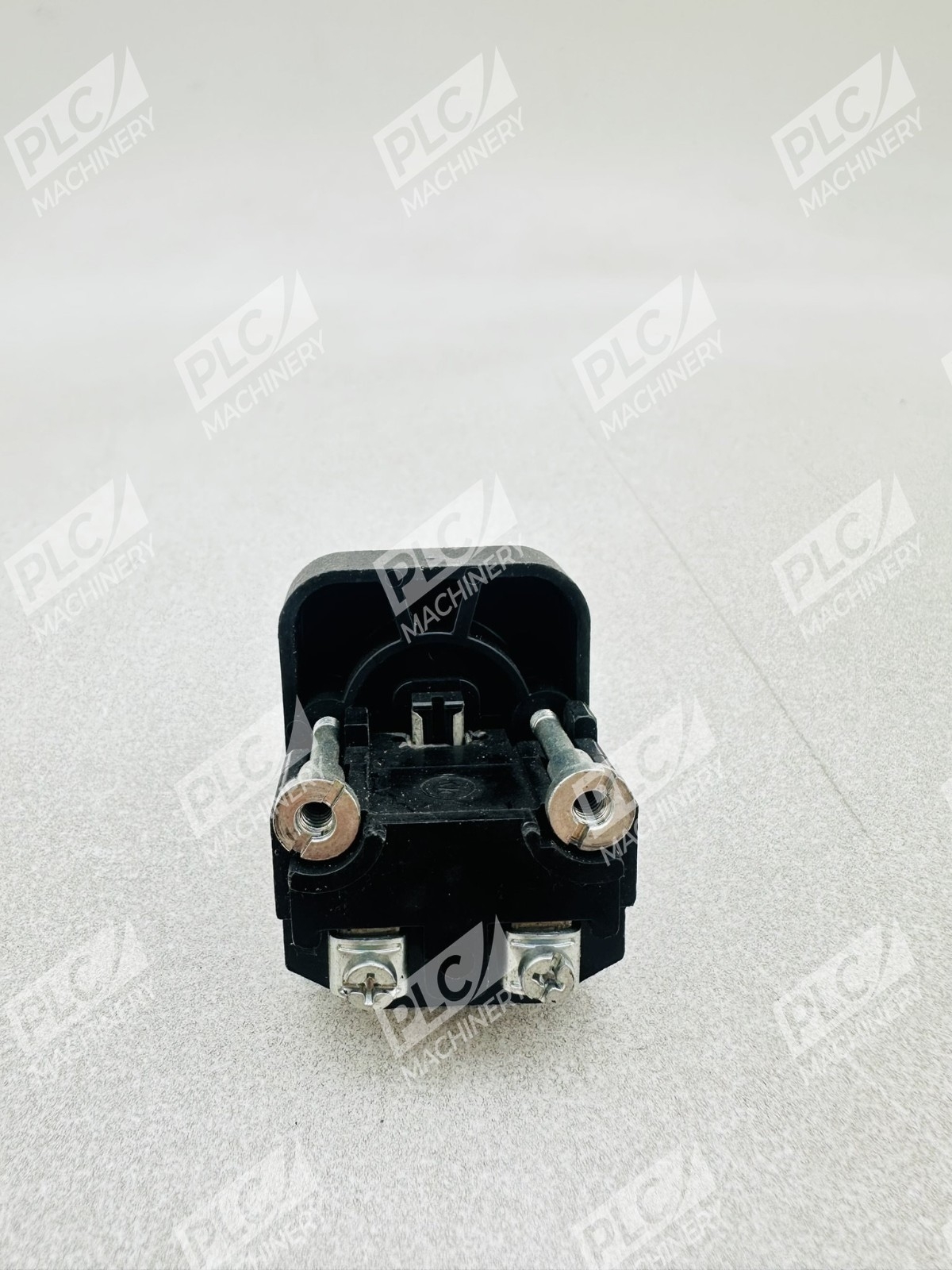

The Allen-Bradley 800T-P26A pilot light is an incandescent indicator light designed for industrial control applications requiring visual status feedback. This 30mm pushbutton-type pilot light delivers bright amber illumination to clearly indicate machine status or system conditions in industrial environments. Its NEMA 4/13 rating ensures durability in harsh conditions including wet and oily industrial settings.
Key Features
- 30mm diameter compact form factor for standard control panel cutouts
- Amber lens provides high visibility in low-light industrial environments
- Incandescent illumination with proven reliability in harsh duty cycles
- NEMA 4/13 rated enclosure protection for watertight and oiltight service
- Push button configuration enables tactile feedback and visual indication
- 240V AC rated for North American industrial electrical systems
Technical Specifications
- Voltage Rating: 240V AC
- Illumination Type: Incandescent
- Lens Color: Amber
- Operator Size: 30mm
- Operator Type: Push Button
- NEMA Rating: Type 4/13 (Watertight, Oiltight)
- Certifications: UL, CSA/CUL, CE, KC
- Series: Allen-Bradley 800T Bulletin
- Mount Style: Panel mount 30mm cutout
Typical Applications
This pilot light is ideal for applications including:
- Machine status indication in manufacturing control stations
- Equipment power and operation feedback in industrial automation systems
- Process status indication on control panels in food, chemical, and automotive plants
- Alarm and alert signaling on electrical enclosures and cabinets
- Push-to-test functionality for periodic lamp verification in safety-critical applications
Compatibility & Replacements
Compatible With
- Allen-Bradley 800T series modular control stations and enclosures
- Standard 30mm pilot light operator mounting footprints in industrial control panels
- 240V AC industrial electrical systems with panel-mount installation
- NEMA 4/13 enclosed machine control cabinets and electrical rooms
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. The 800T-P26A amber variant replaces other 800T pilot lights where amber color coding is required; different color variants (800T-P26R red, 800T-P26G green, 800T-P26B blue) are available as color-specific replacements.
Works With
- Allen-Bradley 800T contact blocks and electrical modules
- Industrial control systems requiring visual status indication and feedback
- Modular machine control and operator interface stations
- Standard electrical enclosure wiring and terminal connections
