Overview

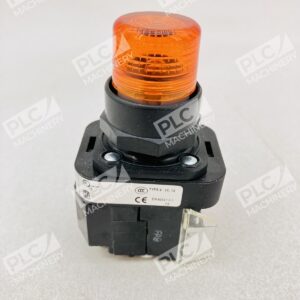

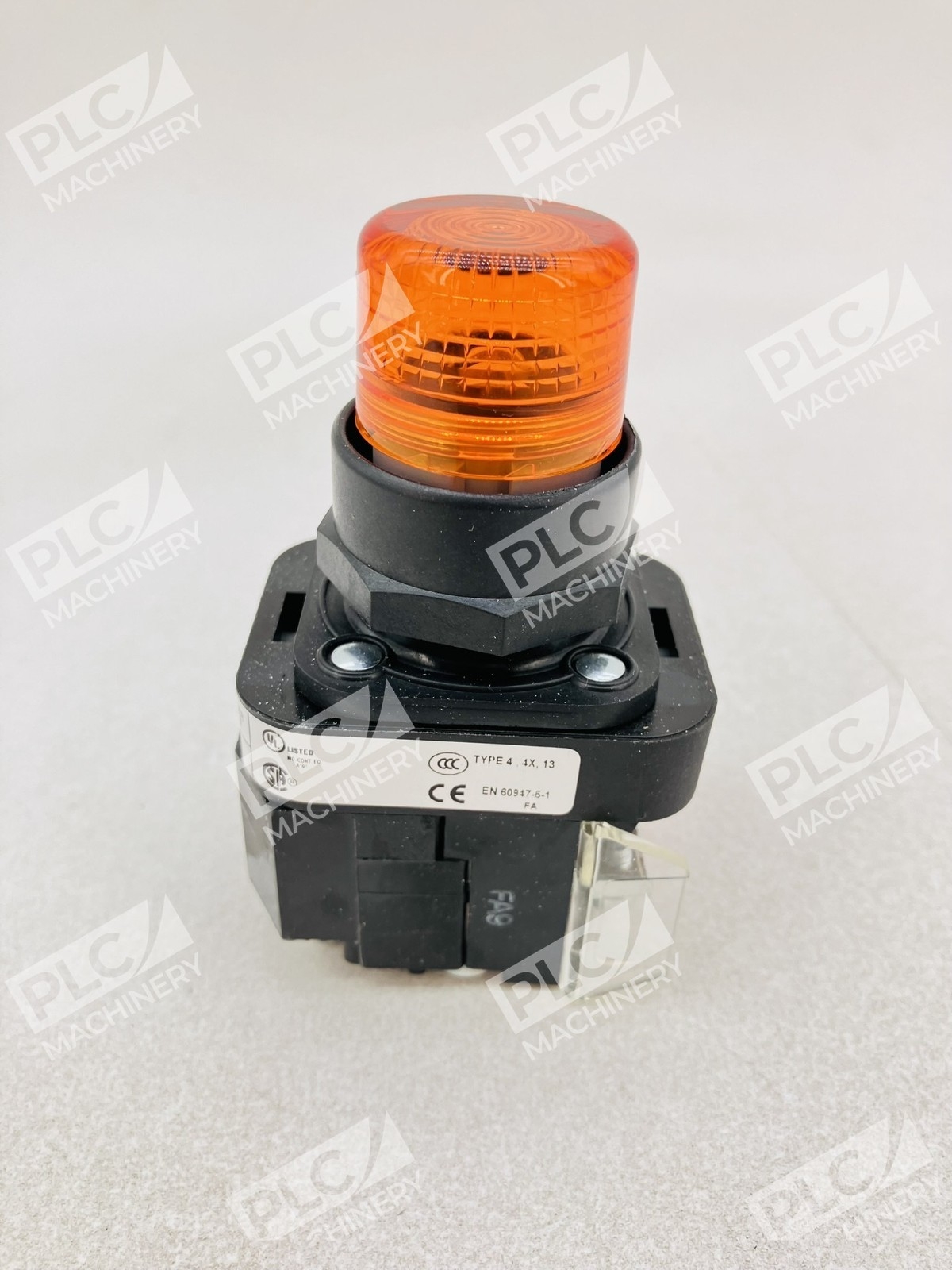

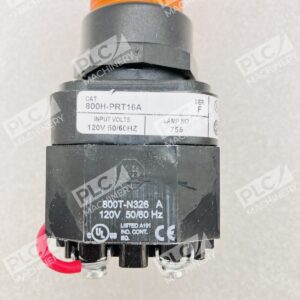

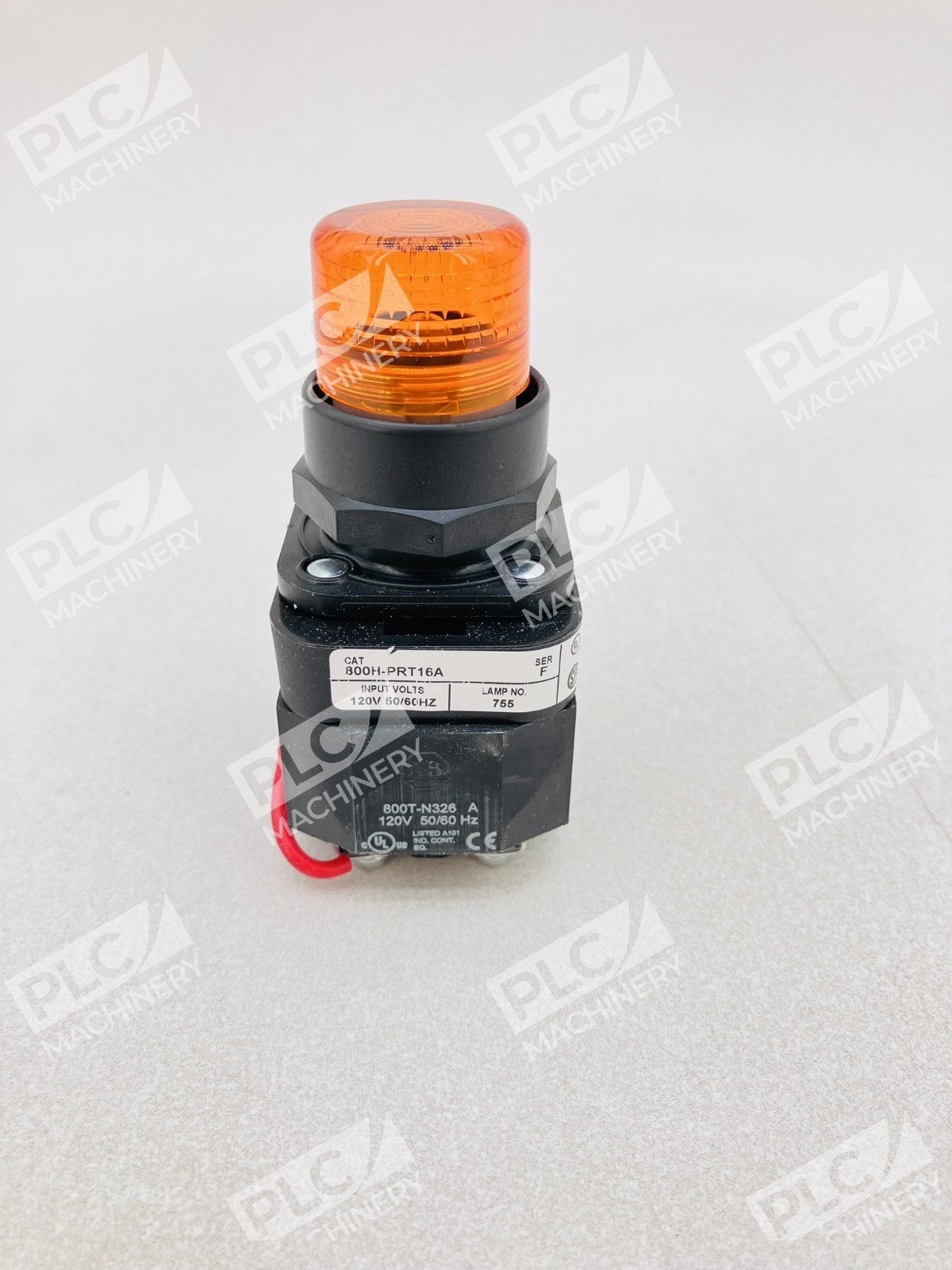

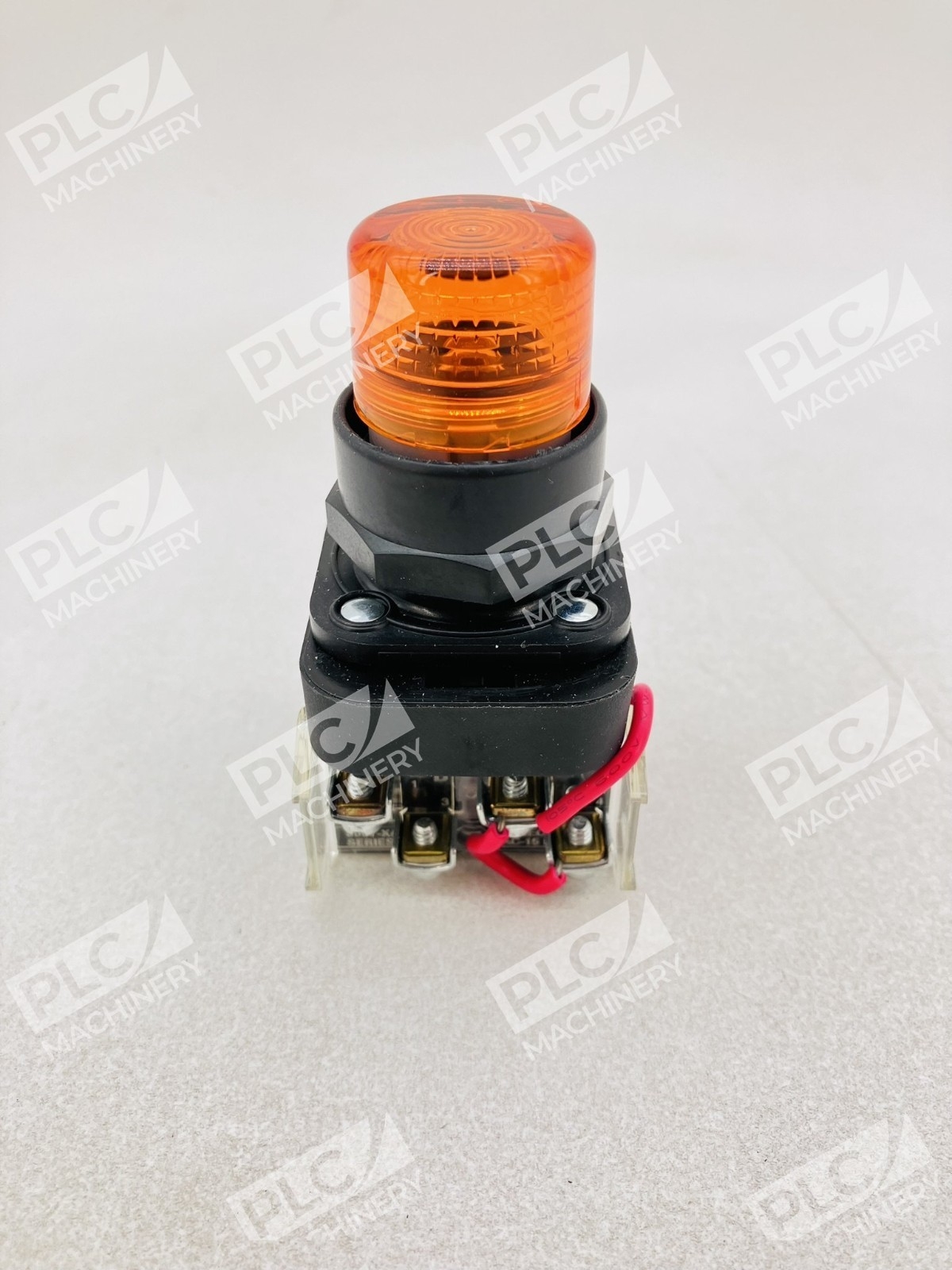

The Allen-Bradley 800H-PRT16A is a 30mm push-to-test pilot light designed for industrial control and automation applications. Built to Bulletin 800H specifications, this pilot light features an amber incandescent lamp powered by an internal transformer, making it ideal for equipment status indication and functional verification in control cabinets, motor starters, and industrial panels.
Key Features
- Push-to-test functionality for quick verification of lamp operation
- 30mm (30.5mm) mounting footprint compatible with standard control enclosures
- Amber incandescent lamp for high visibility in industrial environments
- Integral transformer for 120V AC 50/60 Hz operation
- Type 4/4X/13 construction suitable for watertight and corrosion-resistant applications
- Molded nylon lens cap with optical enhancements for superior illumination
Technical Specifications

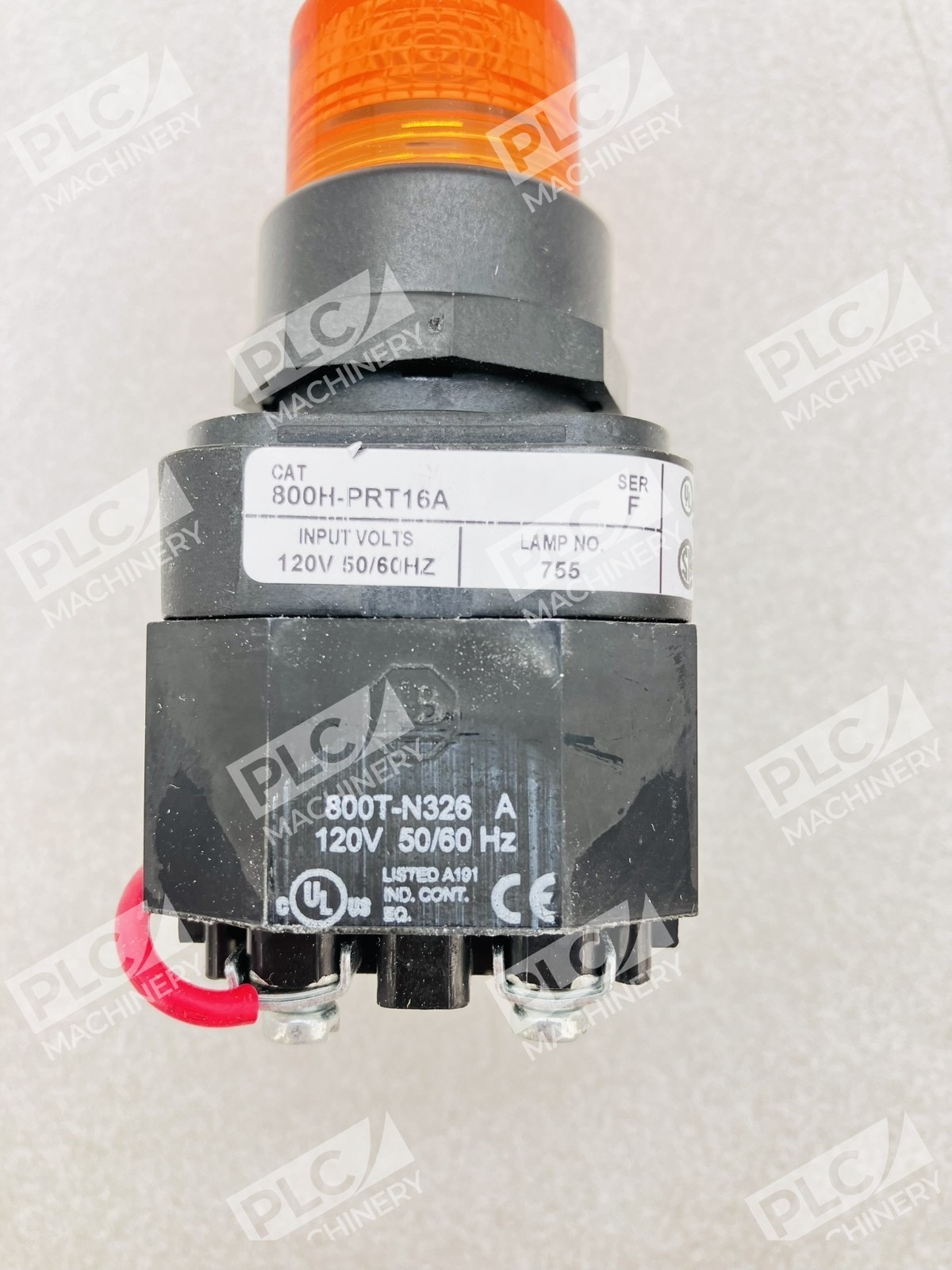

- Model: 800H-PRT16A
- Mounting Hole Diameter: 30.5mm
- Lamp Type: Incandescent
- Lamp Color: Amber
- Input Voltage: 120V AC 50/60 Hz
- Power Supply: Transformer (internal)

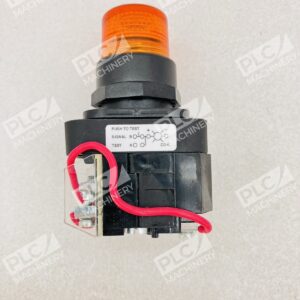

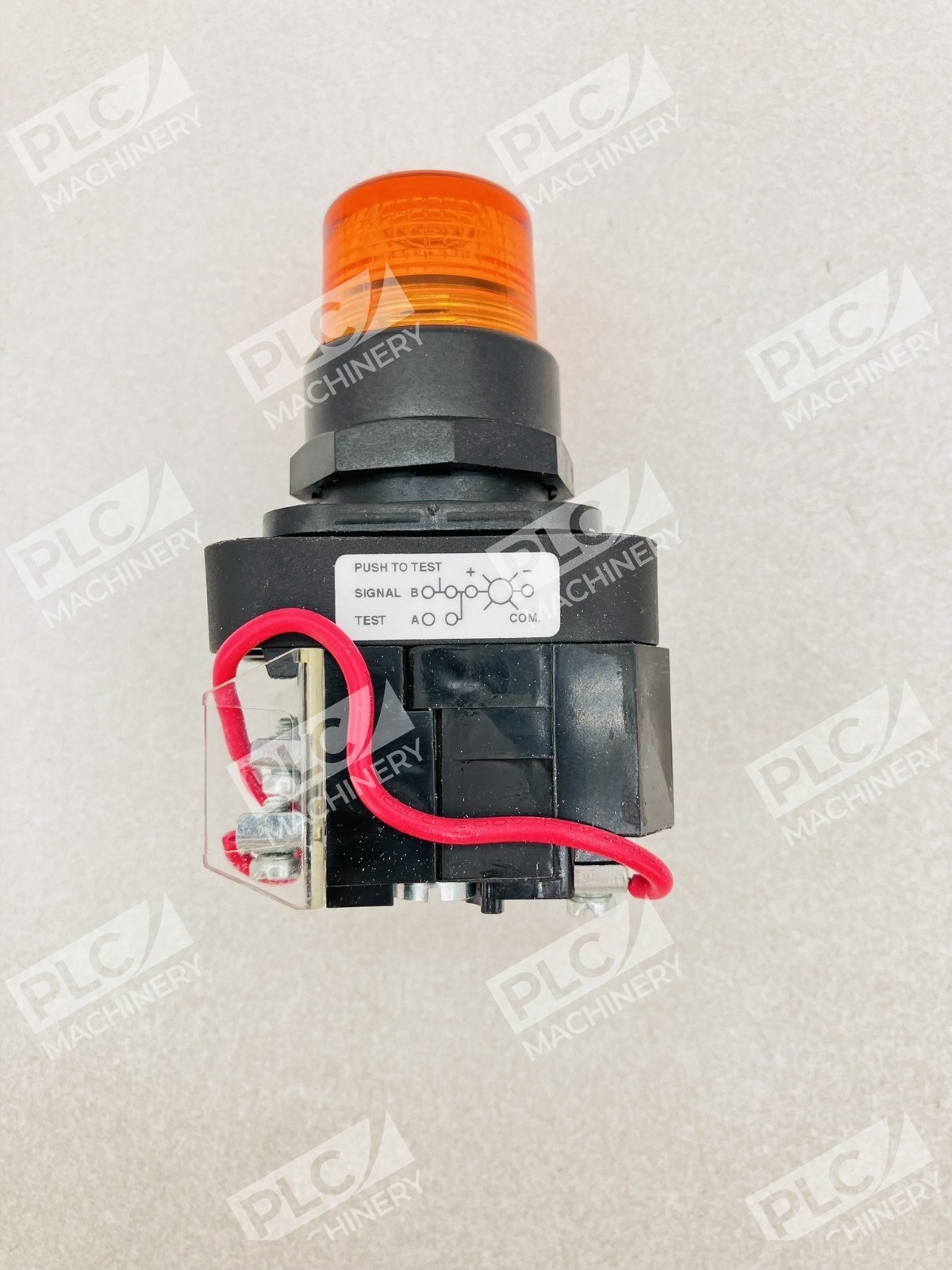

- Test Function: Push-to-test
- Lens Option: No lens guard
- Terminal Guard: No guards on terminals
- Enclosure Rating: Type 4/4X/13 (corrosion-resistant, watertight, oiltight)
- Series: Bulletin 800H Push Buttons

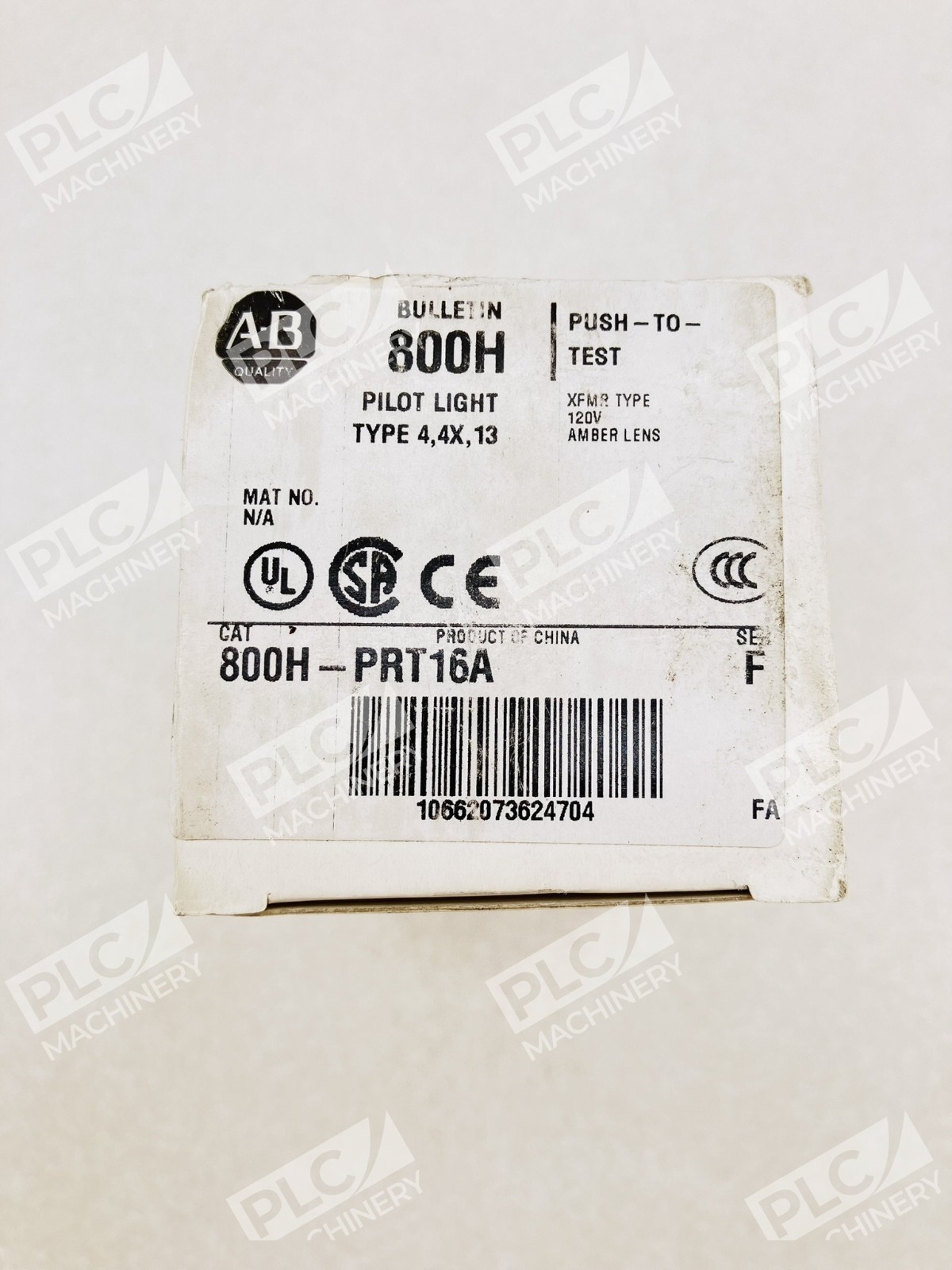

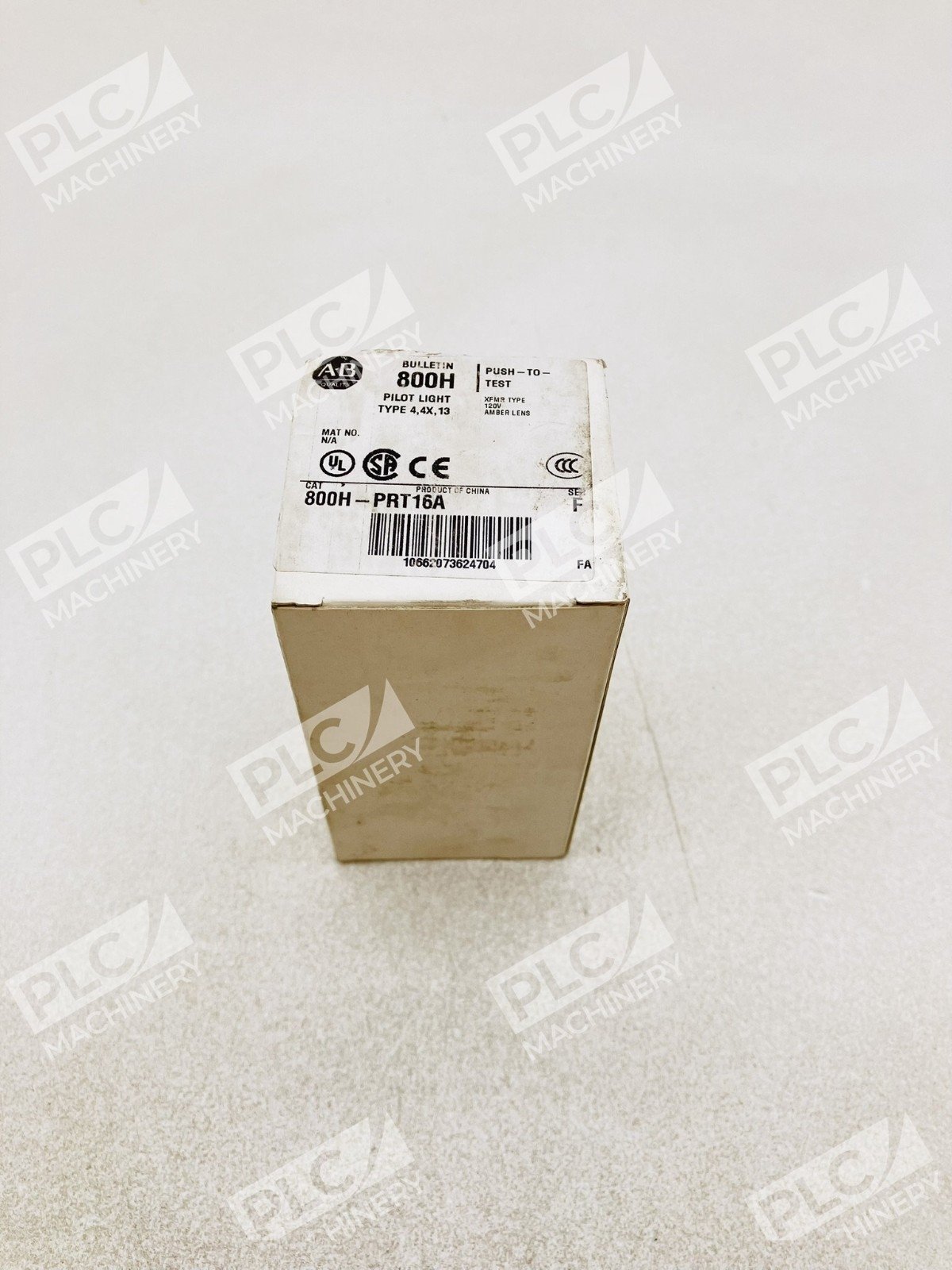

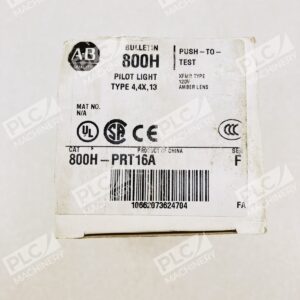

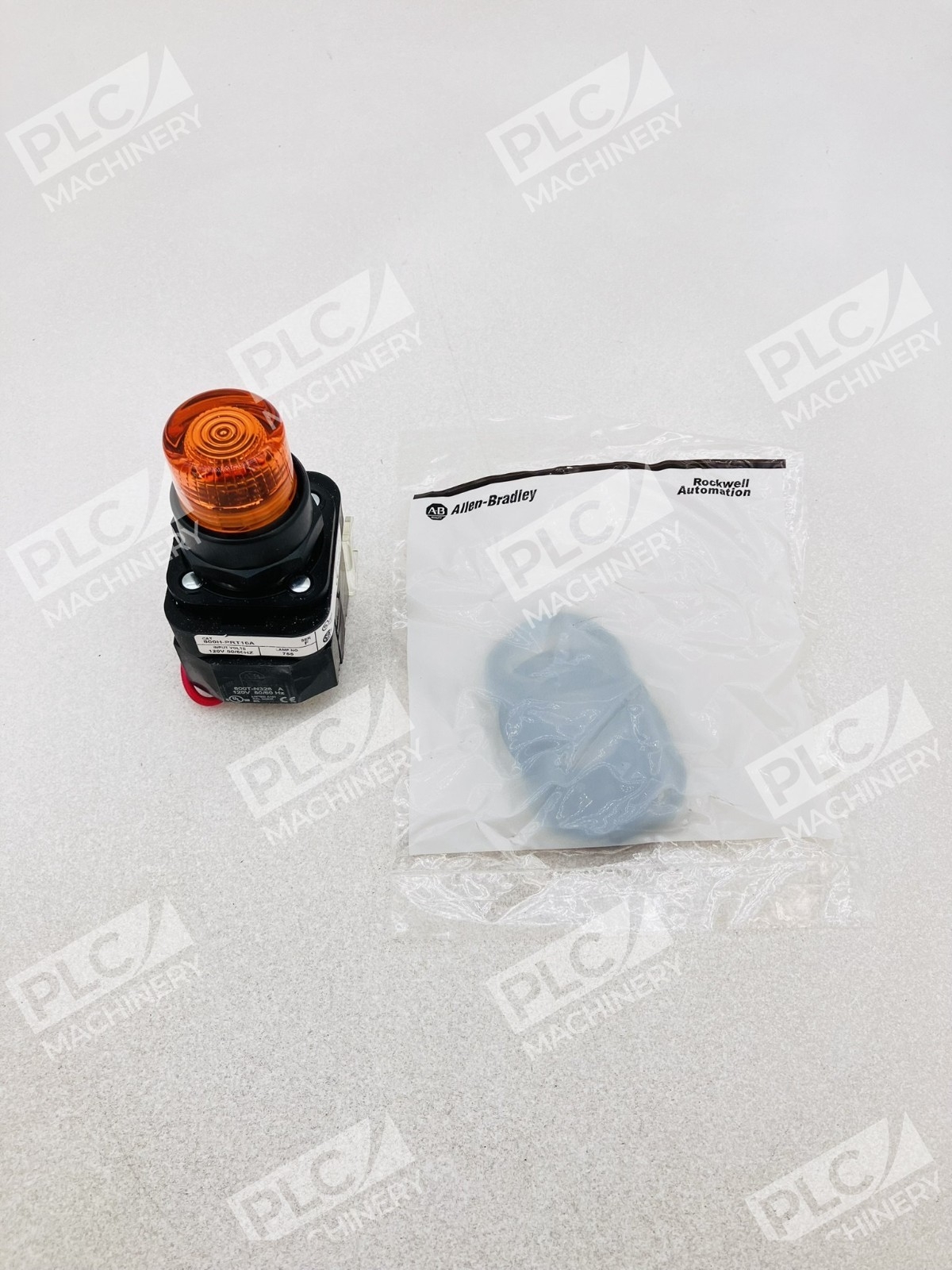

- Condition: New in Box
Typical Applications
The 800H-PRT16A is commonly used in the following environments:
- Motor control centers and starter enclosures
- Electrical distribution panels and switchgear
- Industrial automation control stations
- Equipment status indication on production machinery
- Watertight and corrosion-resistant outdoor control boxes
- Hazardous location panels (Type 4/4X/13 rated)
Compatibility & Replacements
Compatible With
- Bulletin 800H 30mm control station components
- Allen-Bradley 800H enclosures and stations
- Standard 30.5mm modular mounting holes
- 120V AC control systems (50/60 Hz)
- Industrial control panels requiring Type 4/4X/13 rated devices
Replaces / Drop-In Replacement For
- 800H-PR16A (standard pilot light without push-to-test)
- Older model 800T-PT16A (when upgrading to corrosion-resistant housing)
Works With
- Rockwell Automation FactoryTalk View HMI systems
- Studio 5000 and Studio 5000 Logix Designer control environments
- Allen-Bradley CompactLogix, ControlLogix, and SLC 500 processors
- EtherNet/IP and Modbus-compatible control architectures

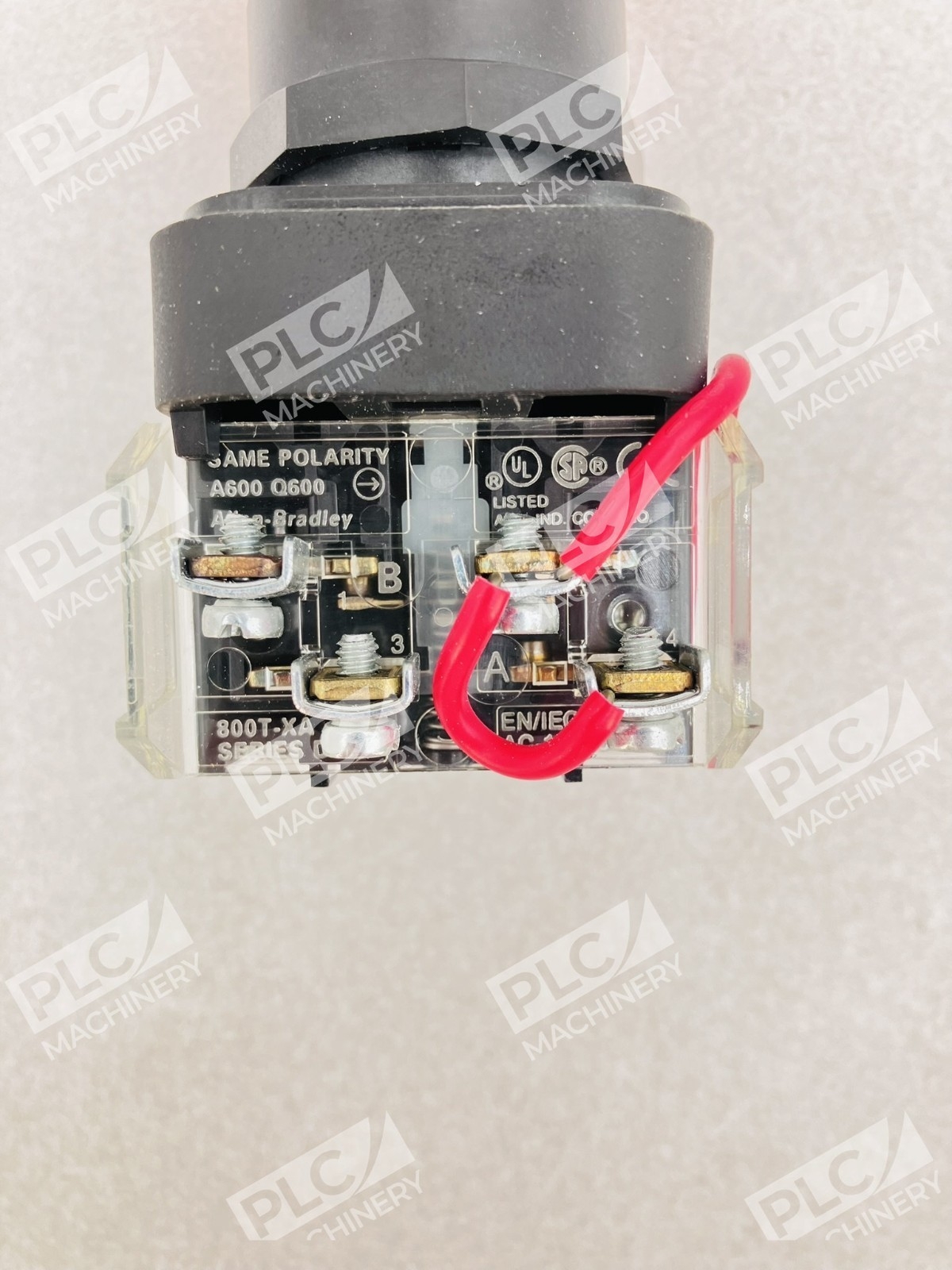

- Standard industrial control wiring and terminals (no guards required)
