Overview

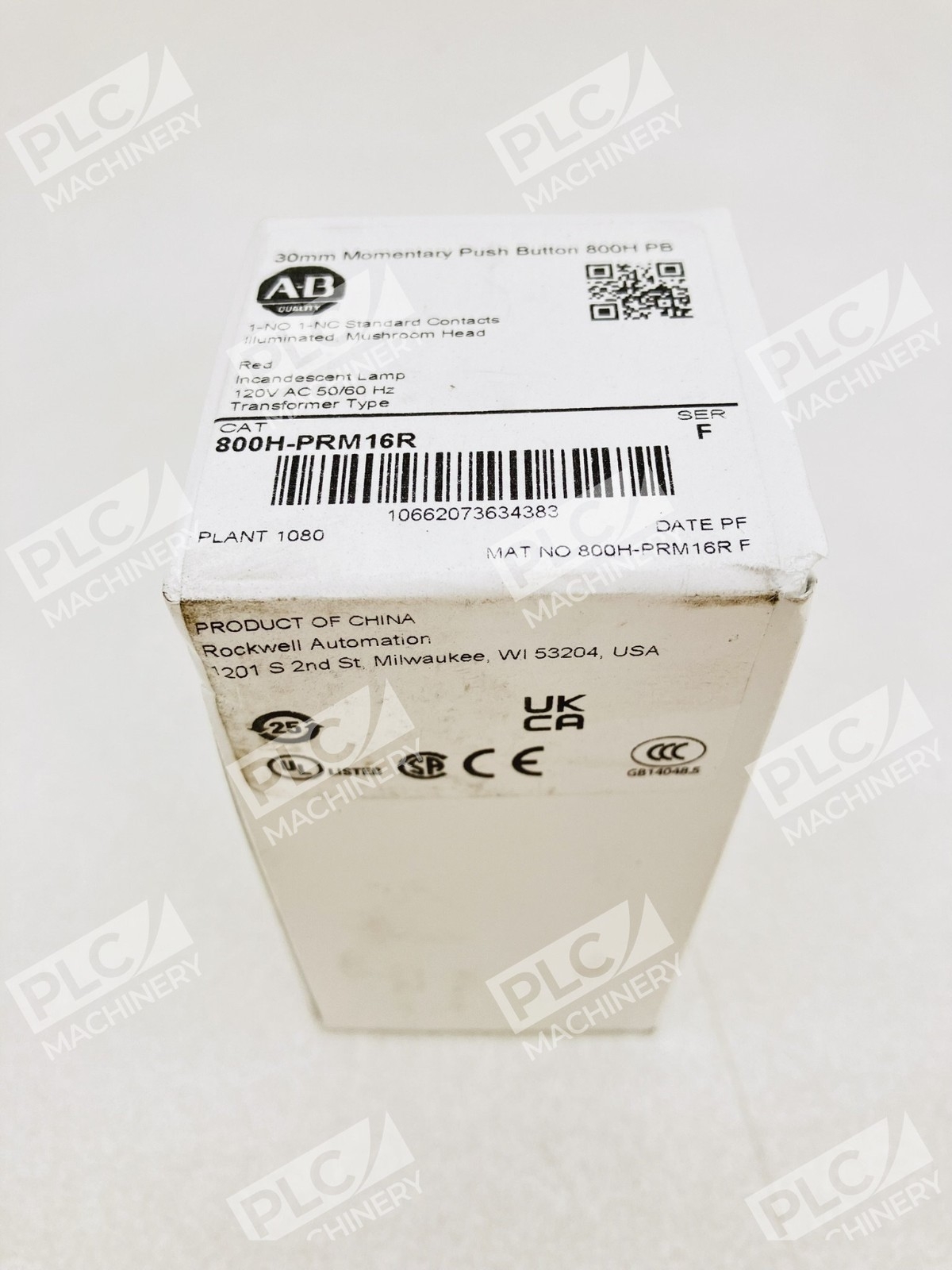

The Allen-Bradley 800H-PRM16R is a 30mm momentary push button switch engineered for demanding industrial automation and control applications. Part of the trusted 800H series, this pushbutton delivers consistent, reliable operation in electrical cabinets, control panels, and machinery interfaces. The extended head design without guard ensures clear operator visibility and positive tactile feedback for critical control operations.
Key Features
- 30mm compact form factor for space-constrained panel layouts
- Momentary contact action—returns to neutral when released
- Red lens with incandescent illumination (120V AC 50/60 Hz)
- Extended head actuator without terminal guards
- 1 NO (Normally Open) + 1 NC (Normally Closed) standard contact configuration
- Certifications: UL, CSA, CE, CUL, KC, MARINE—suitable for most global markets
Technical Specifications
- Size: 30mm
- Action Type: Momentary
- Contact Configuration: 1 NO, 1 NC
- Illumination: Incandescent lamp
- Lamp Voltage: 120V AC 50/60 Hz
- Lens Color: Red
- Head Style: Extended head, without guard
- Terminal Type: No guards on terminals
Typical Applications
- Emergency stop or alert circuits
- Start/stop control in machinery and production lines
- Industrial automation panels and control cabinets
- Machine tool control stations
- Manual operator interfaces requiring illuminated feedback
Compatibility & Replacements
Compatible With
- Allen-Bradley 800H series control stations and enclosures
- Standard 30mm pushbutton openings in industrial control panels
- Low-voltage AC/DC control circuits rated for the push button’s contact capacity
- Panels conforming to Type 4/4X/13 enclosure ratings
Replaces / Drop-In Replacement For
- Other 30mm momentary push buttons with equivalent 1 NO + 1 NC contact ratings
- Verify contact capacity and illumination voltage compatibility with your application before replacement.
Works With
- Allen-Bradley CompactLogix, ControlLogix, MicroLogix, and Micro800 PLCs
- Rockwell Automation Studio 5000 design environment
- Industrial control relay logic and hardwired circuits
- NEMA-rated enclosures and modular control station systems
