Overview
The Allen-Bradley 800H-FRXT6D4 is a 30mm push-pull maintained pushbutton operator from Rockwell Automation’s Bulletin 800H product line. This robust component is engineered for industrial automation and control systems requiring dependable operator interfaces in harsh environments. The 800H-FRXT6D4 combines proven push-pull/twist release technology with a standard mushroom head design and single normally closed (1-NC) contact block for flexible control configurations.
Key Features
- 30mm push-pull device with twist-to-release mechanism for positive engagement
- Maintained contact operation for stable switching control
- Red standard mushroom head operator for high visibility
- 2-position action with 1-NC contact configuration
- NEMA 4/4X/13 rated for washdown and corrosive environments
- Surface mounting design with screw-type terminals
- Certified to CCC, CE, CSA, CUL, KC, MARINE, and UL standards
Technical Specifications
The 800H-FRXT6D4 delivers industrial-grade reliability with the following specifications:
- Device Type: 30mm Push-Pull Pushbutton

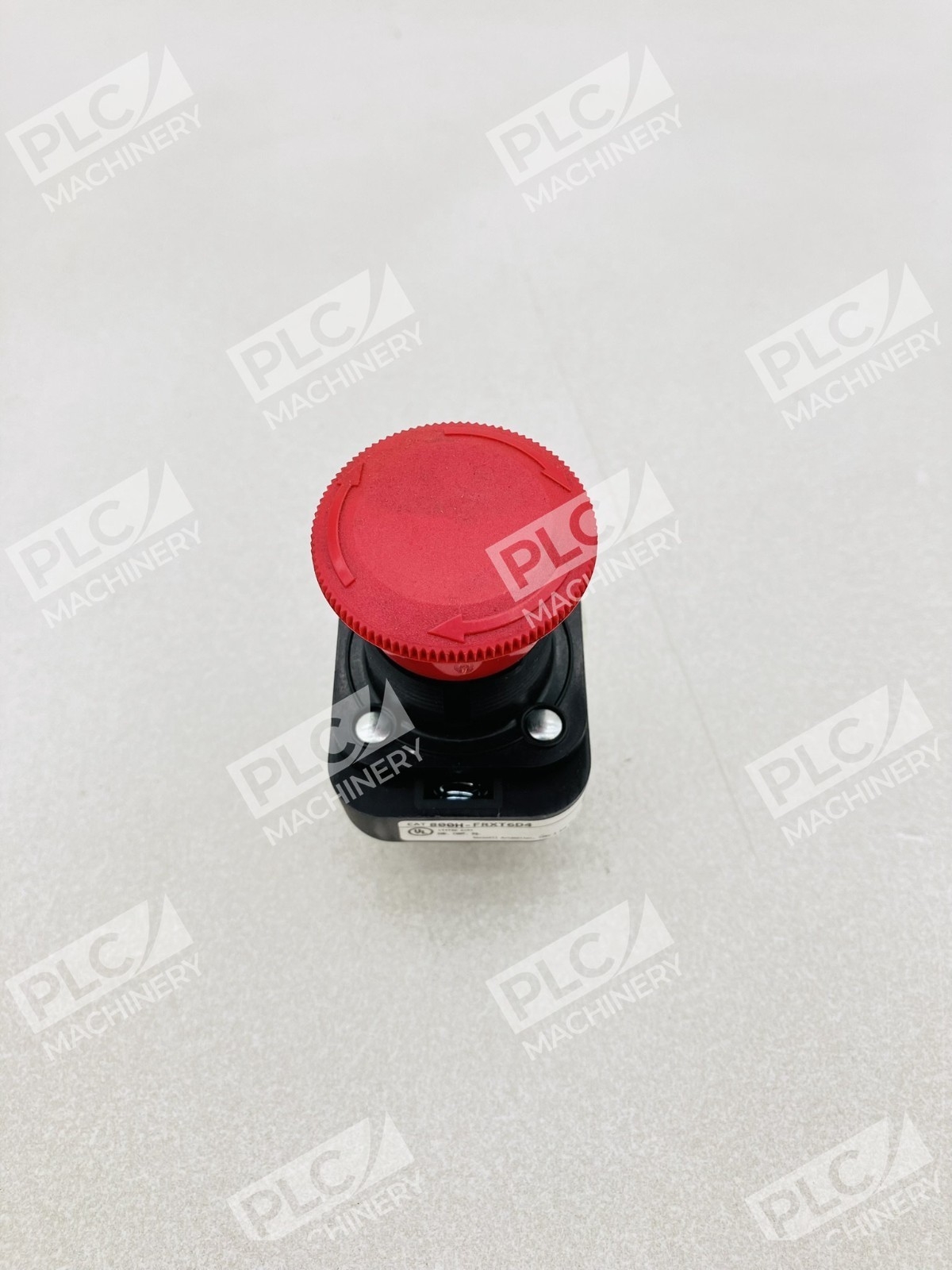

- Operator: Standard Mushroom Head, Red
- Action: Maintained Push-Pull / Twist Release

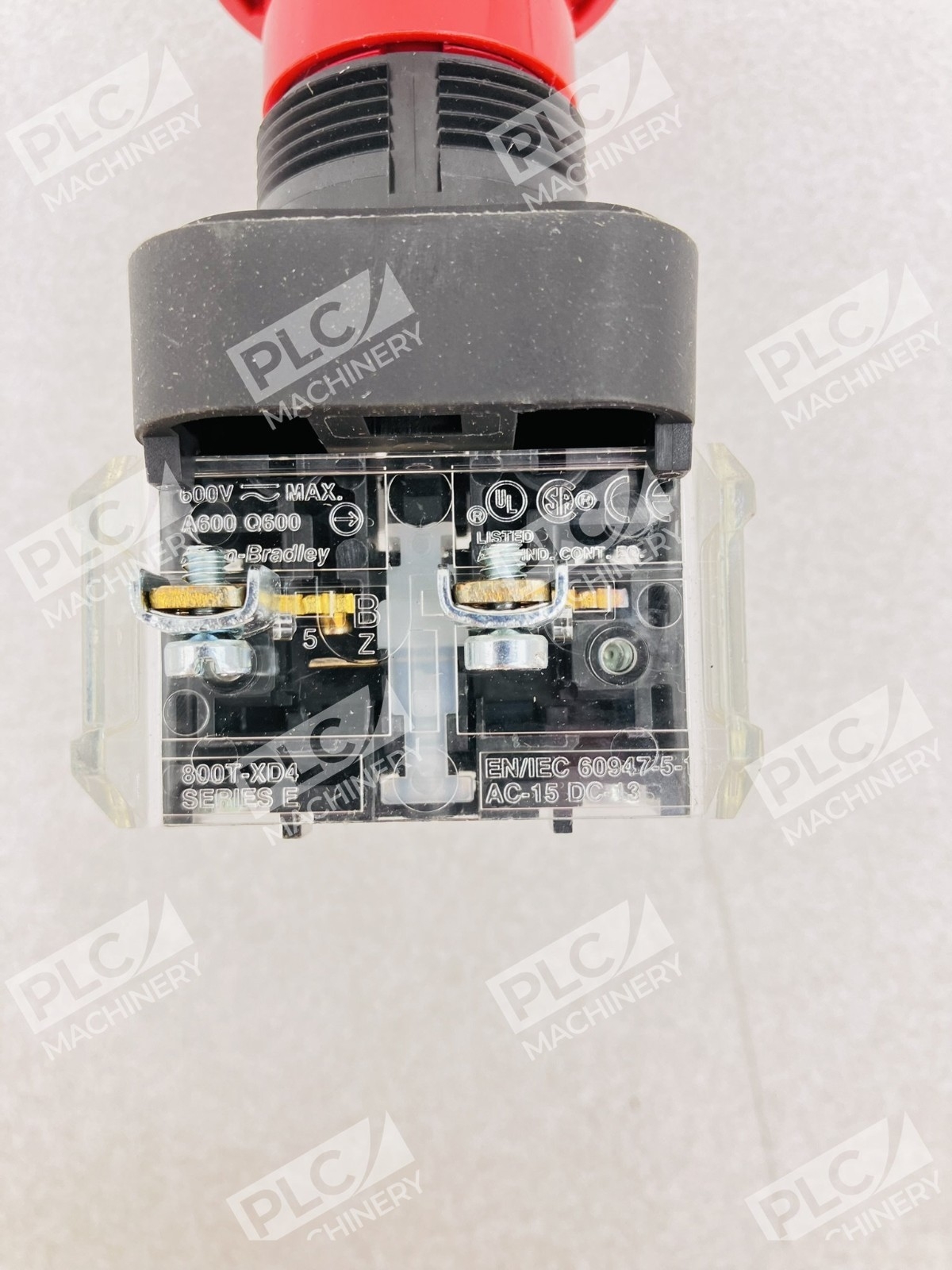

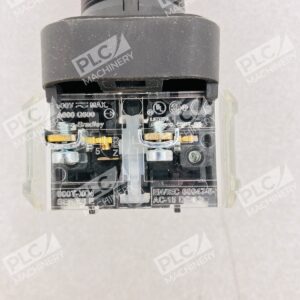

- Contact Block: 1-NC (Normally Closed)
- Positions: 2-Position
- Mounting: Surface (Screw terminals)

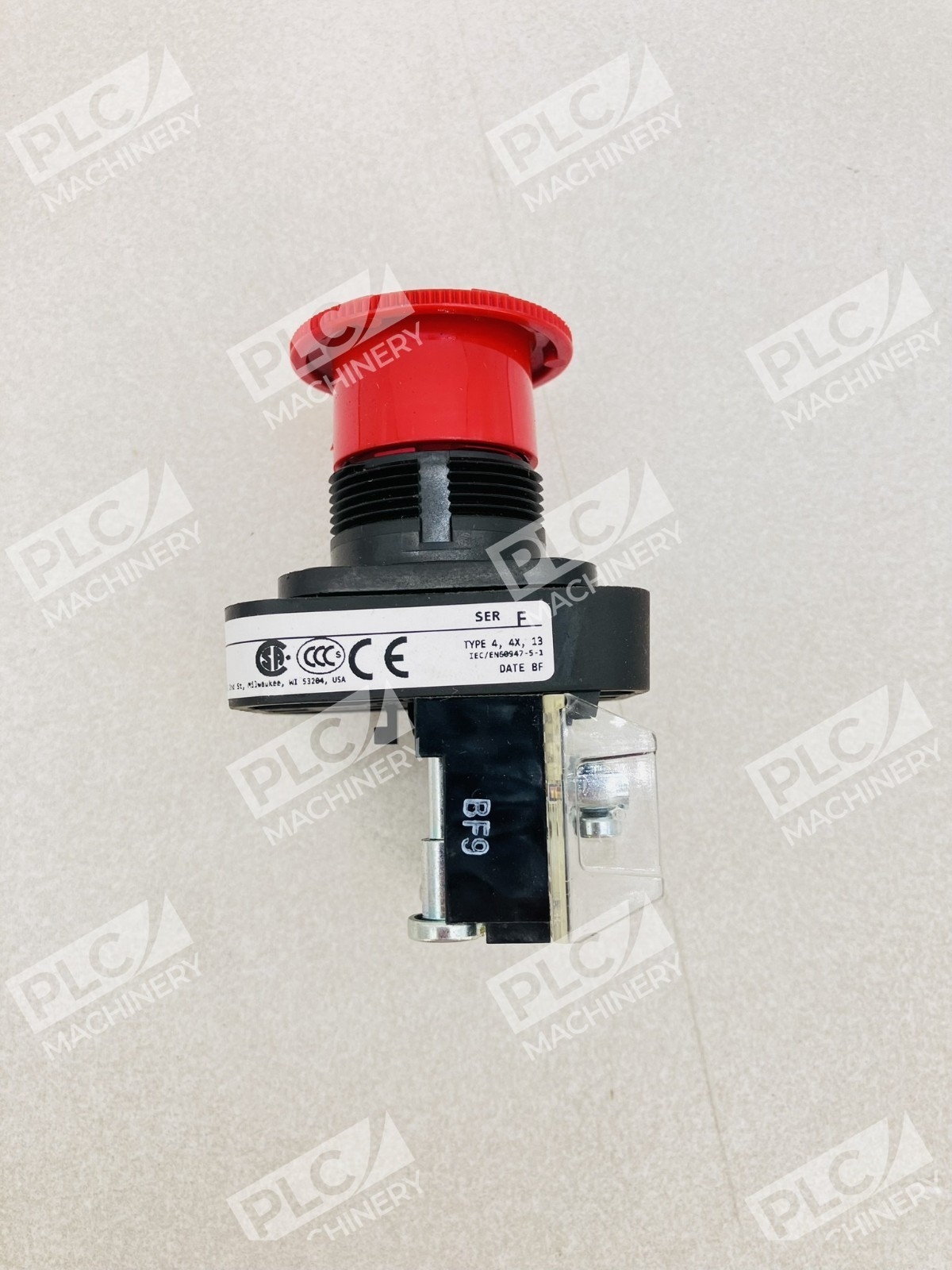

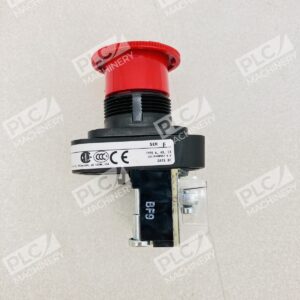

- NEMA Rating: Type 4/4X/13

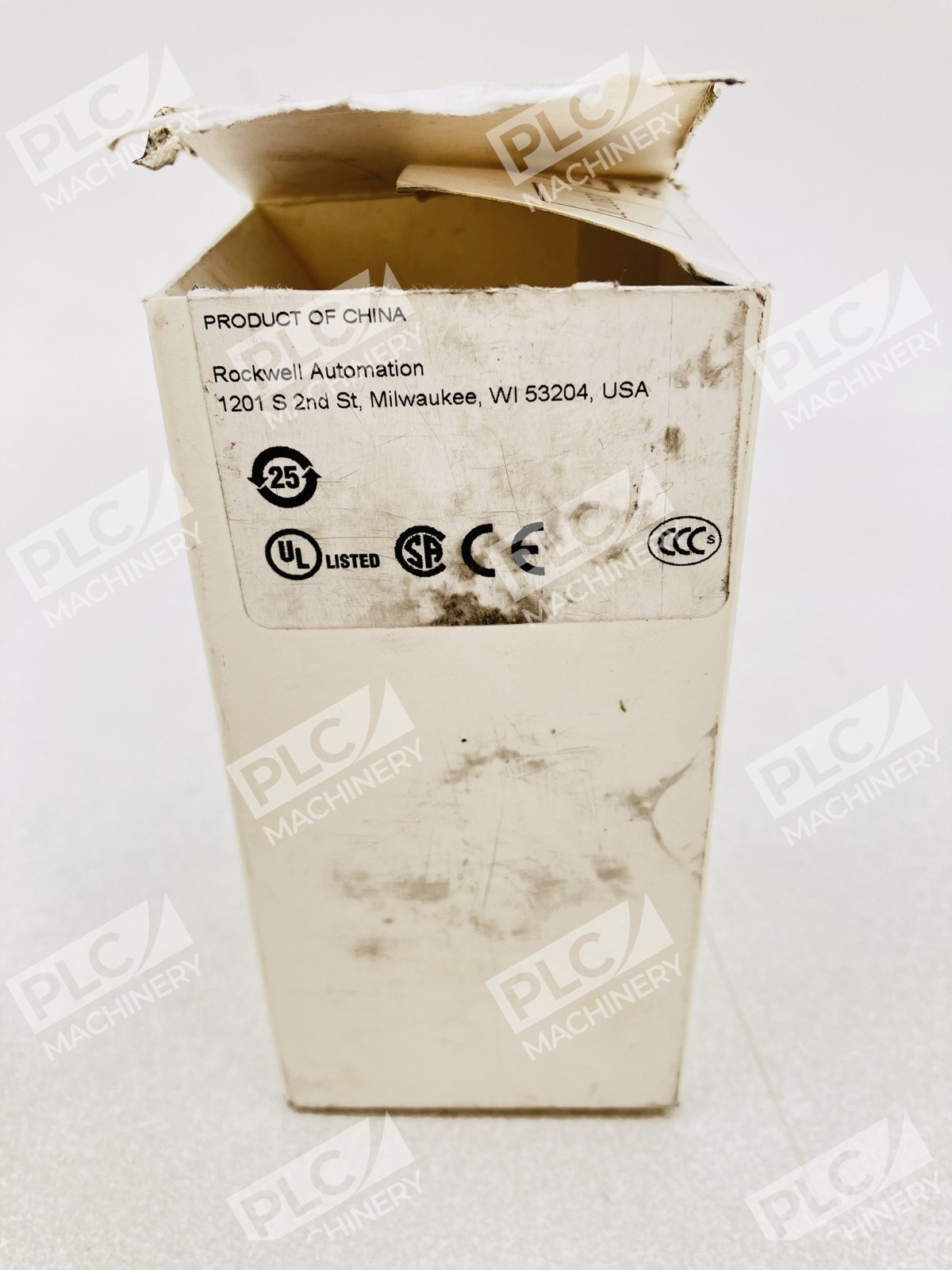

- Certifications: CCC, CE, CSA, CUL, KC, MARINE, UL

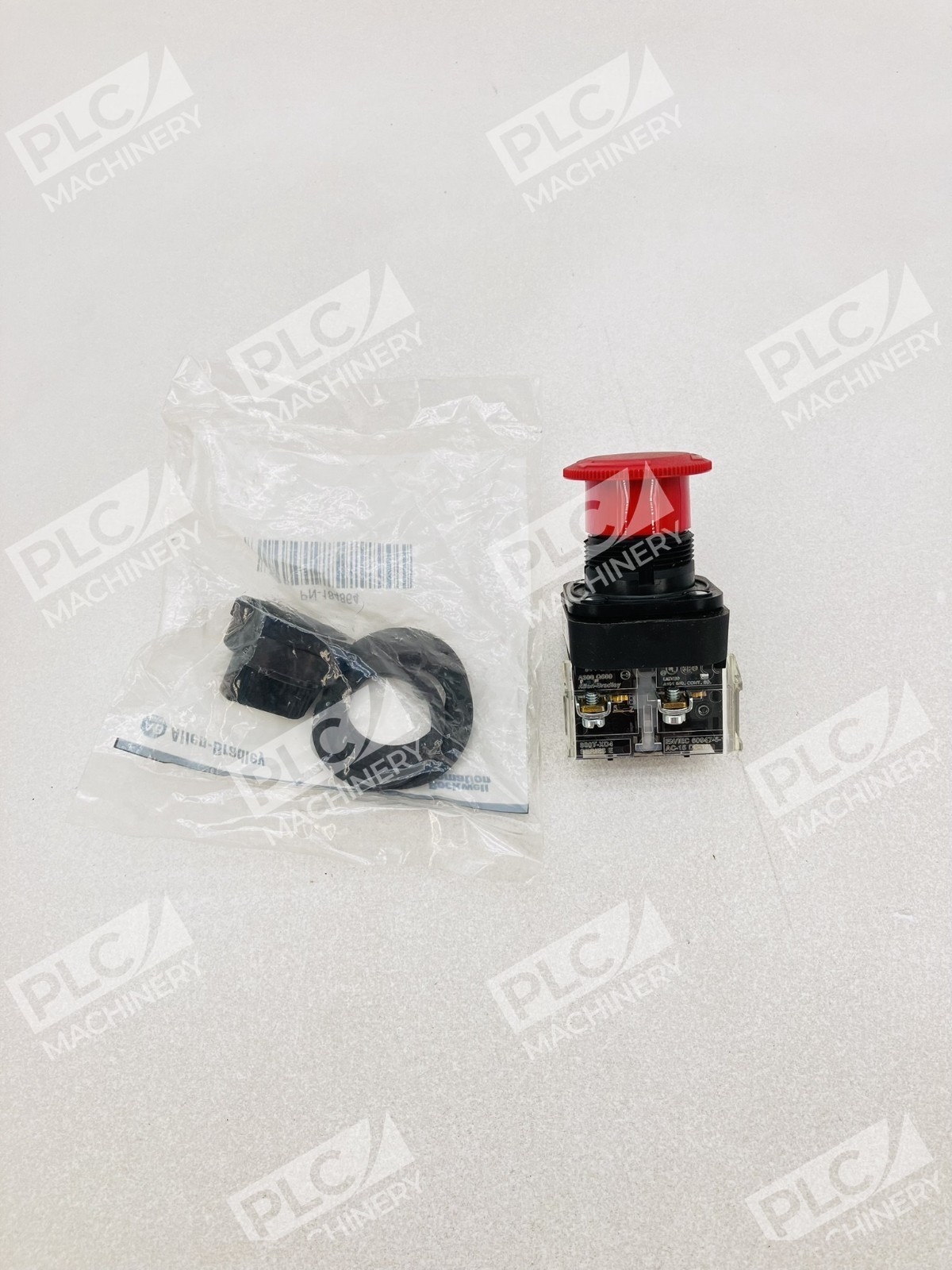

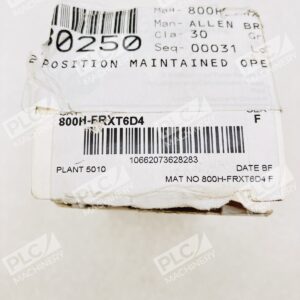

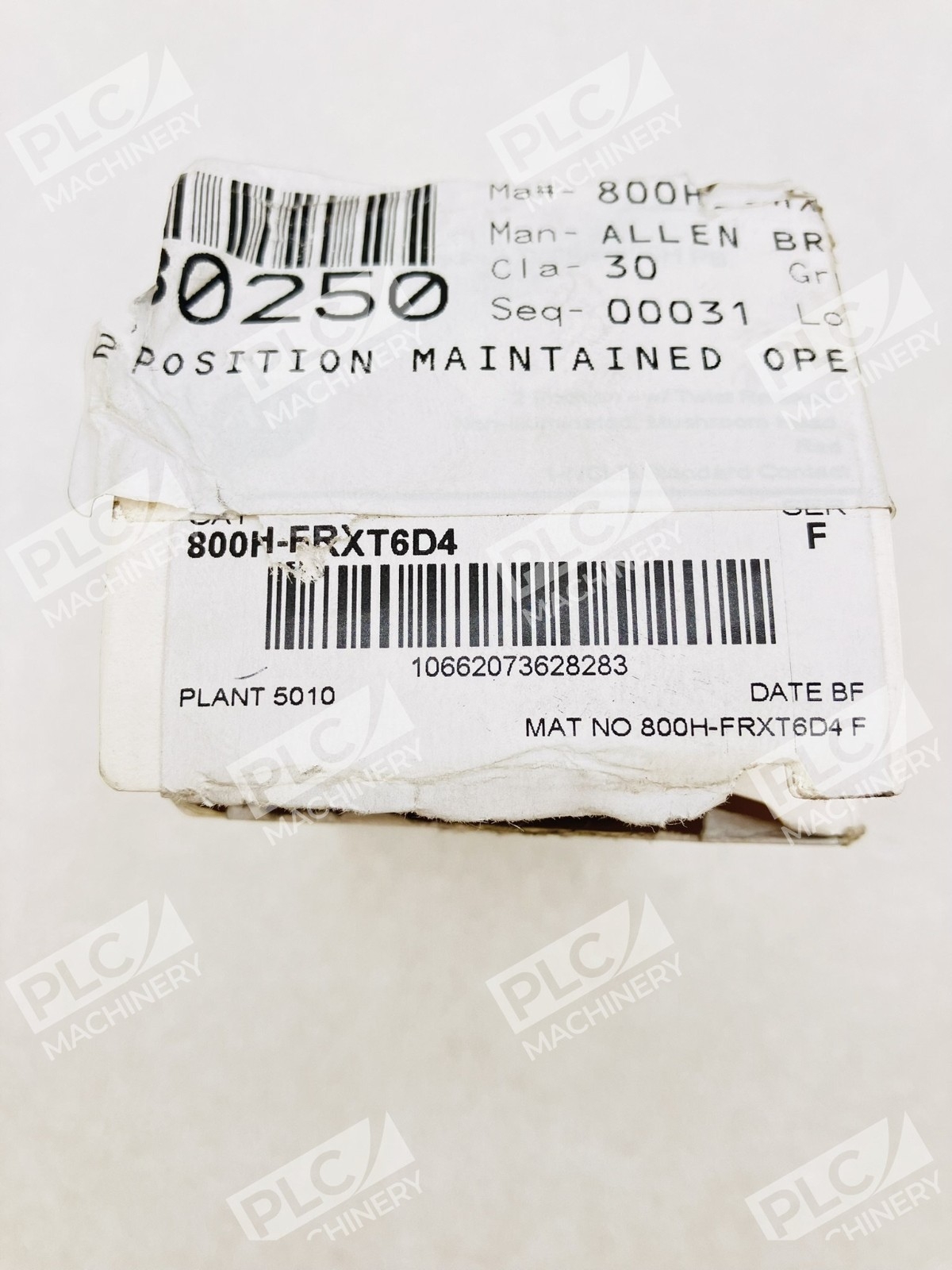

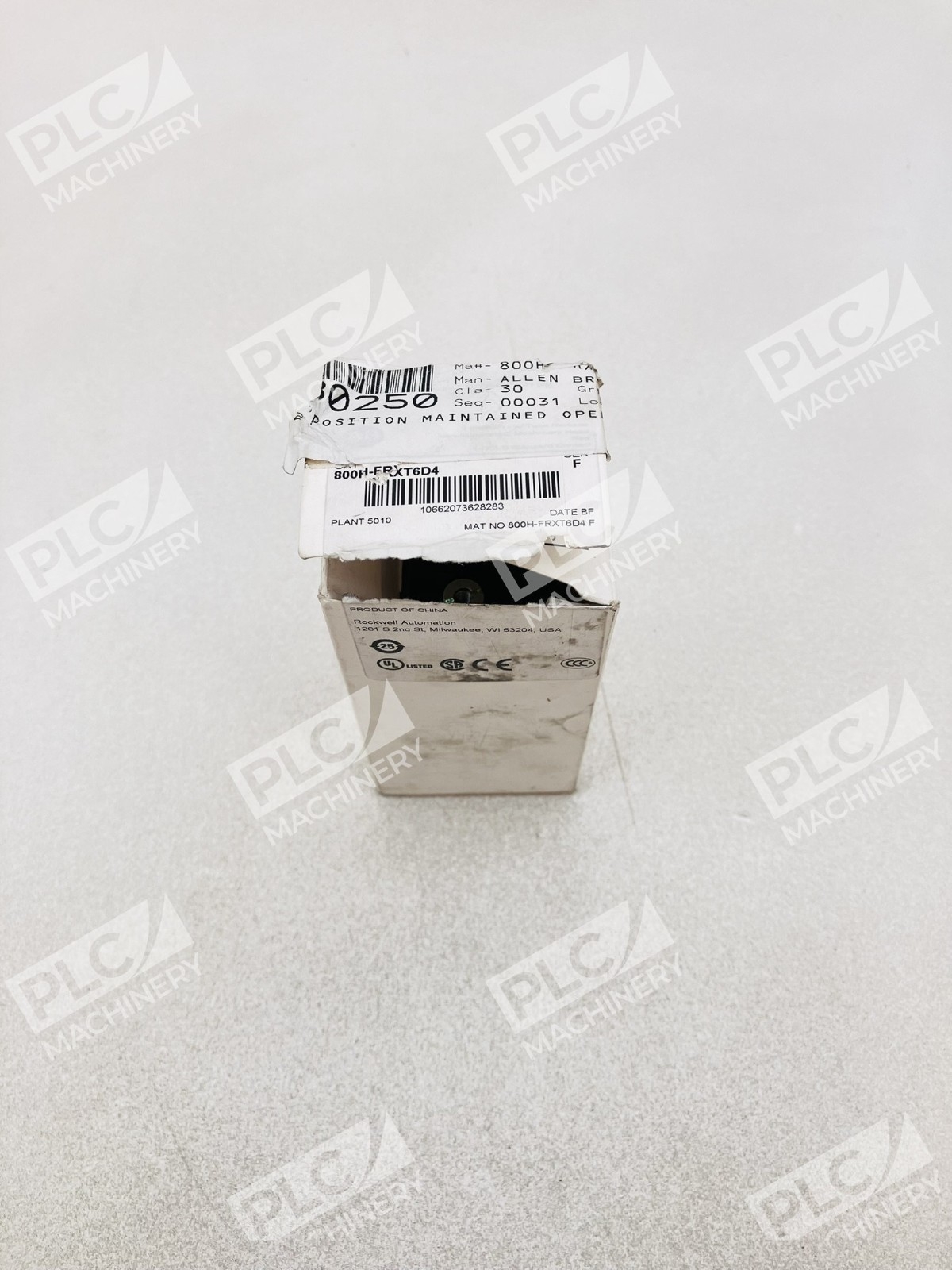

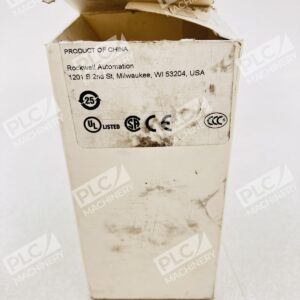

- Condition: New in Box
Typical Applications
The 800H-FRXT6D4 is ideal for a wide range of industrial applications where reliable operator control is critical:
- Machine start/stop control in manufacturing and processing equipment
- Emergency shutdown or safety circuits requiring positive engagement
- Pump and motor control in food, beverage, and pharmaceutical industries
- Washdown and wet environment applications in packaging and water treatment
- Control panels and electrical enclosures requiring NEMA 4/4X/13 compliance
- Legacy system integration and equipment modernization projects
Compatibility & Replacements
Compatible With
- Allen-Bradley control systems and industrial panels
- Standard electrical enclosures with surface-mount provisions
- Contact blocks and auxiliary devices within the Bulletin 800H ecosystem
- Control circuits rated for maintained contact switching
Replaces / Drop-In Replacement For
The 800H-FRXT6D4 is a current production unit. For specific replacement information or to identify units that this pushbutton replaces, verify compatibility with your system integrator before ordering.
Works With
- Allen-Bradley Studio 5000 control systems
- Industrial control relays and auxiliary contact modules
- Standard panel-mount control circuits
- NEMA-rated electrical enclosures and junction boxes
