Overview

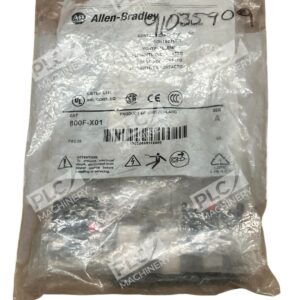

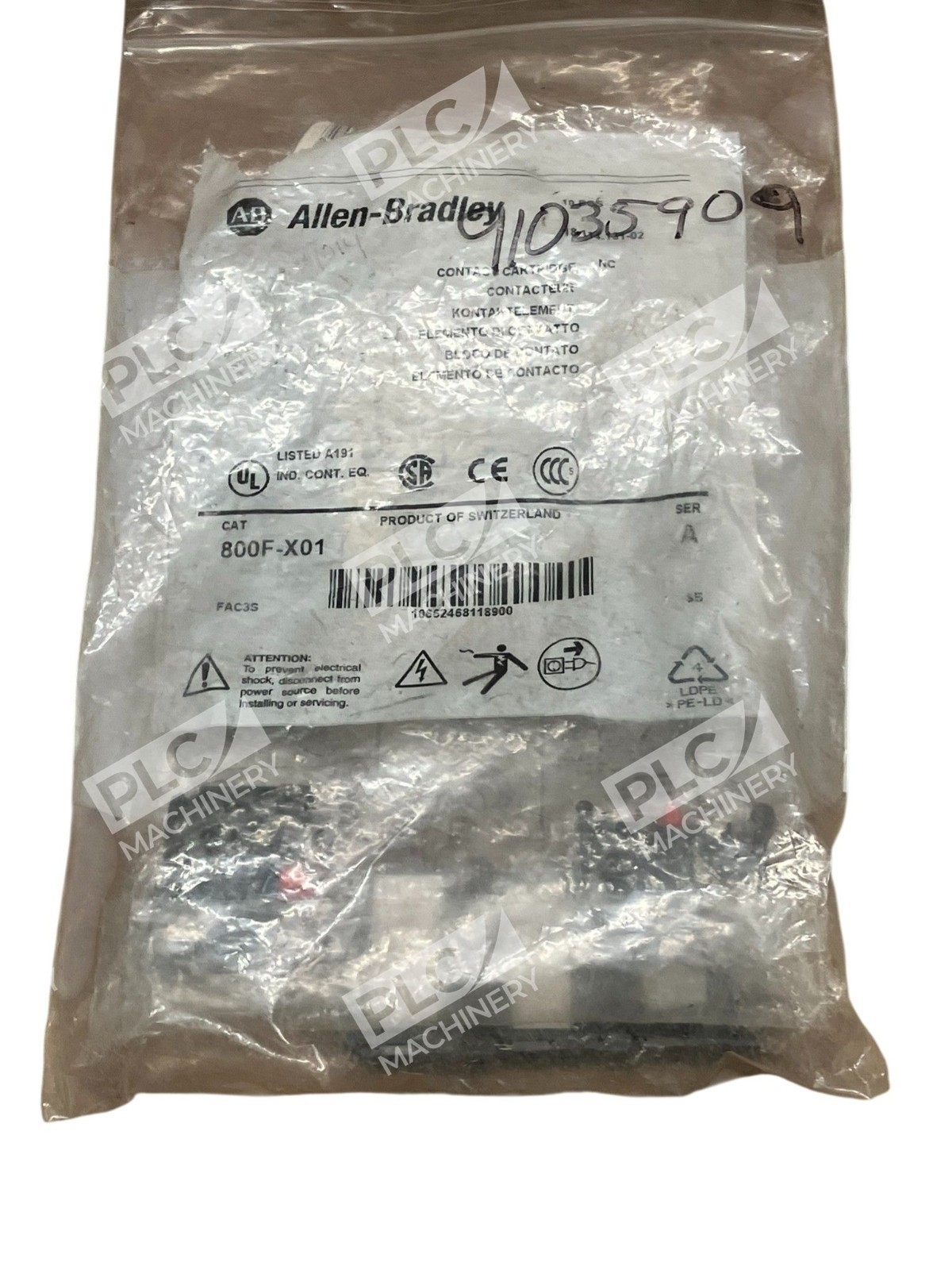

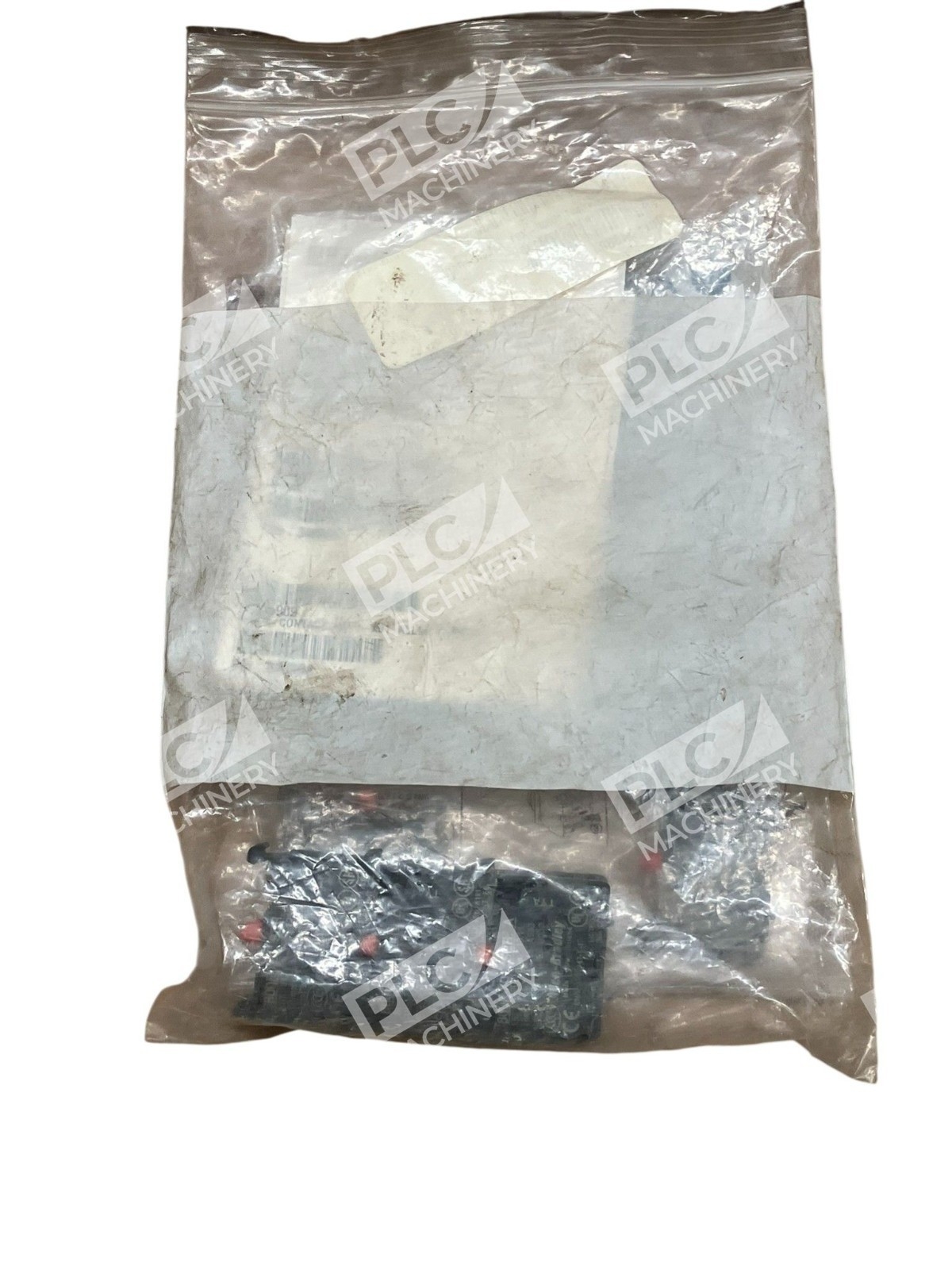

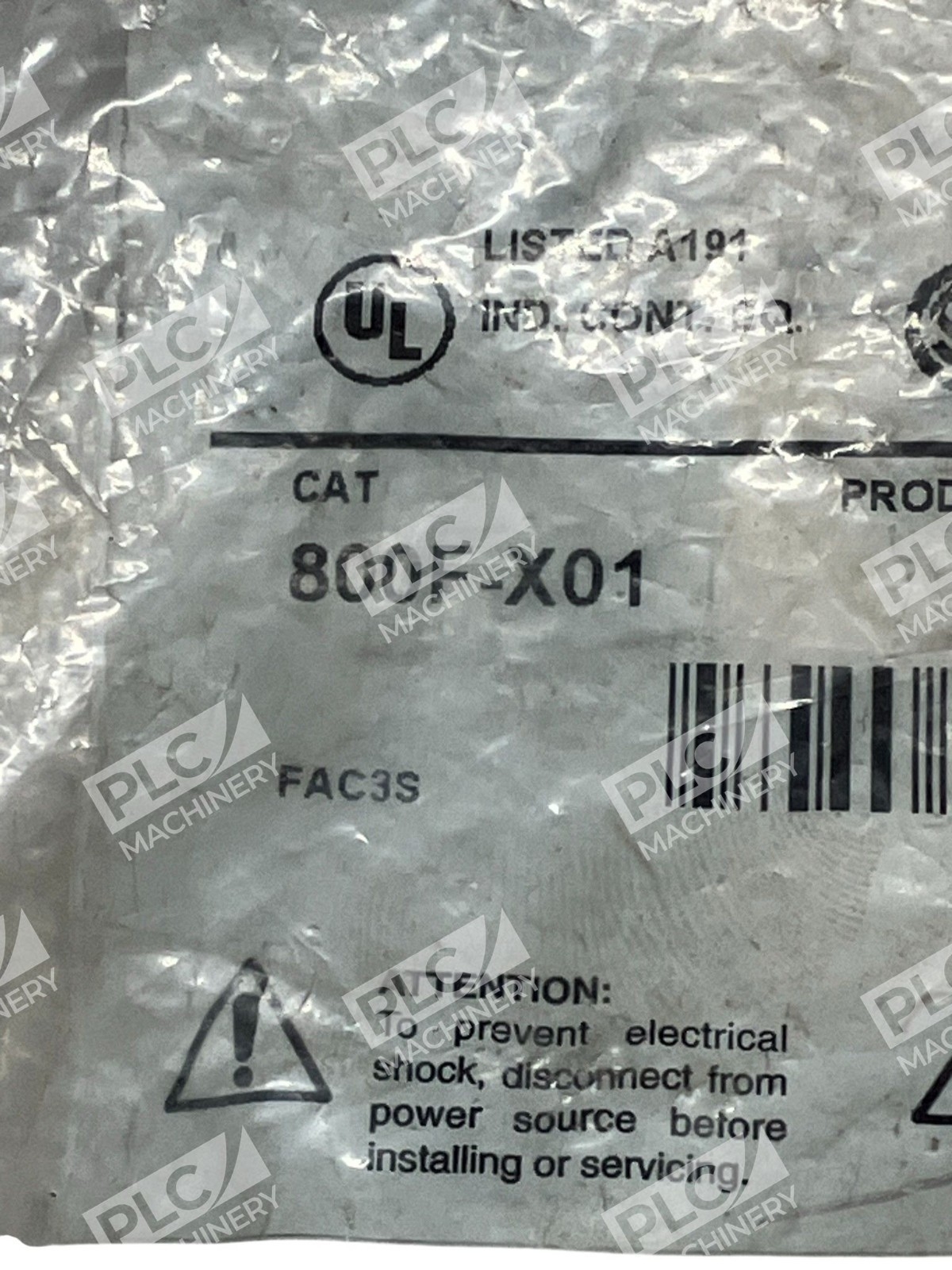

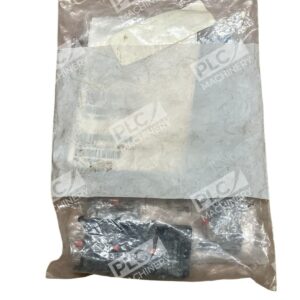

The Allen-Bradley 800F-X01 is a normally-closed contact block engineered for industrial control and automation applications. The Allen-Bradley 800F-X01 delivers reliable switching performance in harsh industrial environments. This 22.5mm contact block integrates seamlessly with the 800F series pushbuttons and provides screw-terminal connectivity for straightforward field wiring.
Key Features
- Contact Configuration: 1 Normally Closed (1NC)
- Termination: Screw terminals with no latch mechanism
- Current Rating: 10 AMP at 690 VAC
- Mounting: Front mount, 22mm size
- Durability: Mechanical life of 10 million operations
- Wire Range: 18–12 AWG (0.75–2.5 mm²)
- Certifications: UL, CSA, CE, CCC
Technical Specifications
- Contact Type: 1 Normally Closed
- Rated Voltage: 690 VAC
- Current Rating (AC-15): A600
- Current Rating (DC-13): Q600
- Block Type: 22.5 MM contact block
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: Up to 95% (non-condensing)
- Shock Resistance: 100g
- Vibration Resistance: 10g
- Tightening Torque: 0.7–0.9 Nm (6–8 in-lb)
Typical Applications
- Integration into control circuits for machinery and equipment
- Automation systems requiring reliable contact switching
- Safety circuits including emergency stop functions
- Process control and monitoring in industrial environments
- Panel-mounted pushbutton control stations
- Motor starter control circuits
Compatibility & Replacements
Compatible With
- 800F series 22.5mm pushbuttons
- Allen-Bradley 800F pushbutton operators
- Standard industrial control relay circuits (AC and DC)
- Motor starters and contactor logic
Replaces / Drop-In Replacement For
- 800F-X01 (direct factory part — this is the current version)
- Verify compatibility with your system integrator before ordering for legacy pushbutton models
Works With
- Screw-terminal wiring systems (18–12 AWG wire)
- Industrial control panels and machinery enclosures
- Standard relay and contactor logic circuits
- AC and DC control voltage systems up to 690VAC
