Overview
Square D 9001BG302 is a Class 9001 Type B standard-duty control station designed to operate with magnetic motor starters. Class 9001 Type B Control Stations are designed to operate in conjunction with Magnetic Motor Starters to govern the starting, stopping or reversing of all types of electric motors. Type BG Stations are constructed of sheet steel.
Key Features

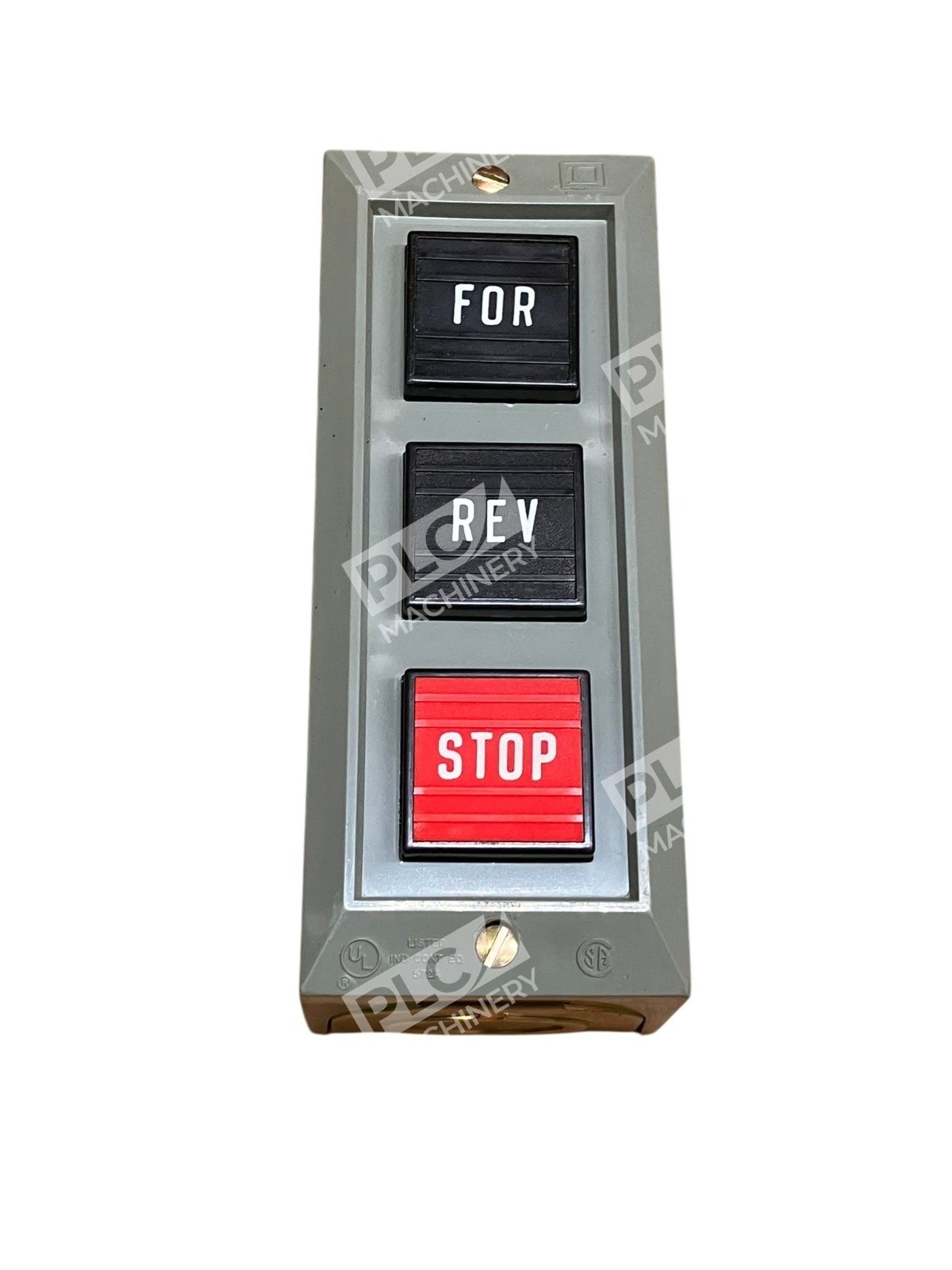

- Three square momentary push buttons with FORWARD (normally open and normally closed contact), REVERSE (normally open and normally closed contact), and STOP (normally closed contact)

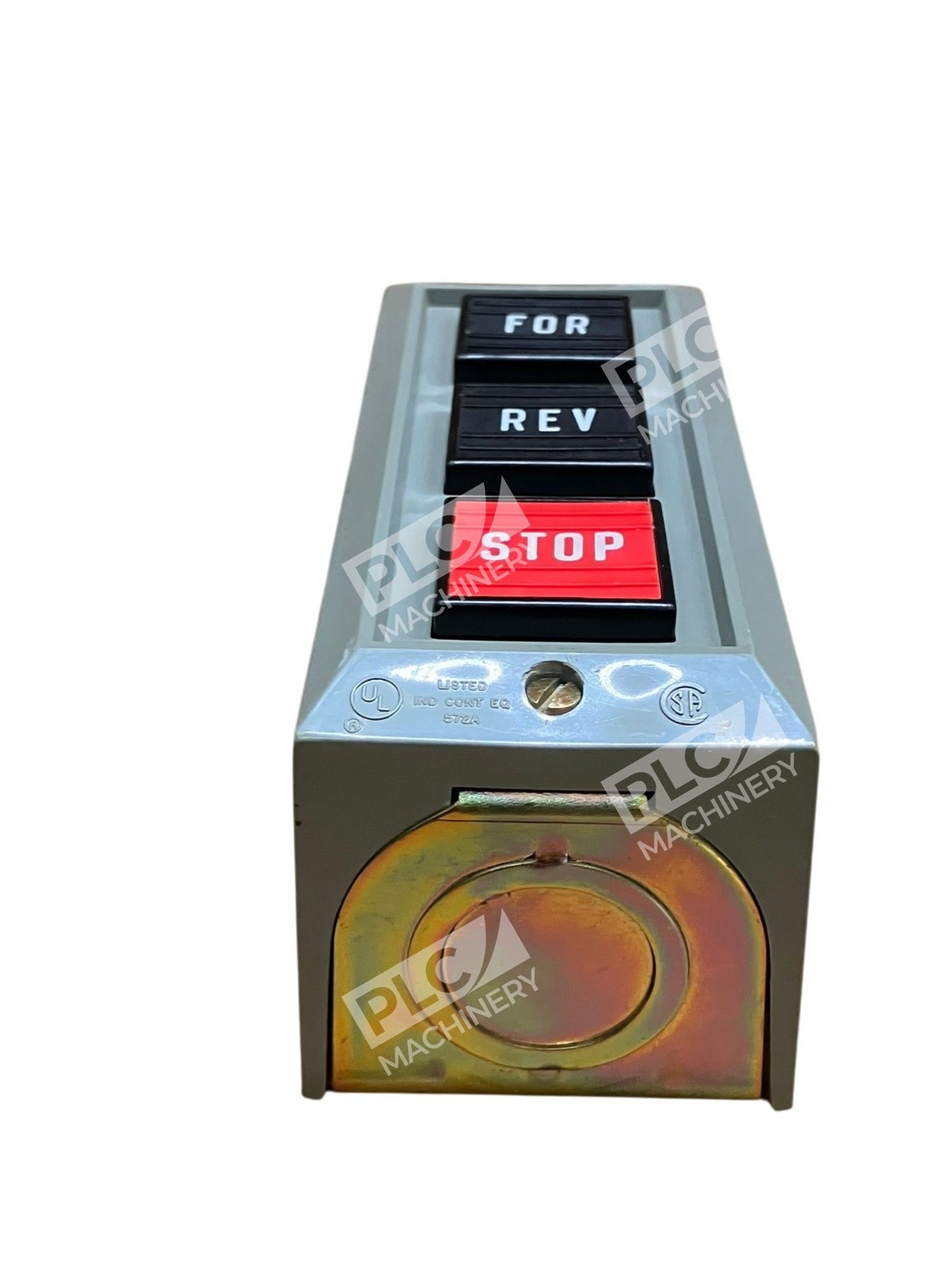

- NEMA 1 general purpose control station is surface mounted
- Classic screw clamp connections are used to connected to control circuits

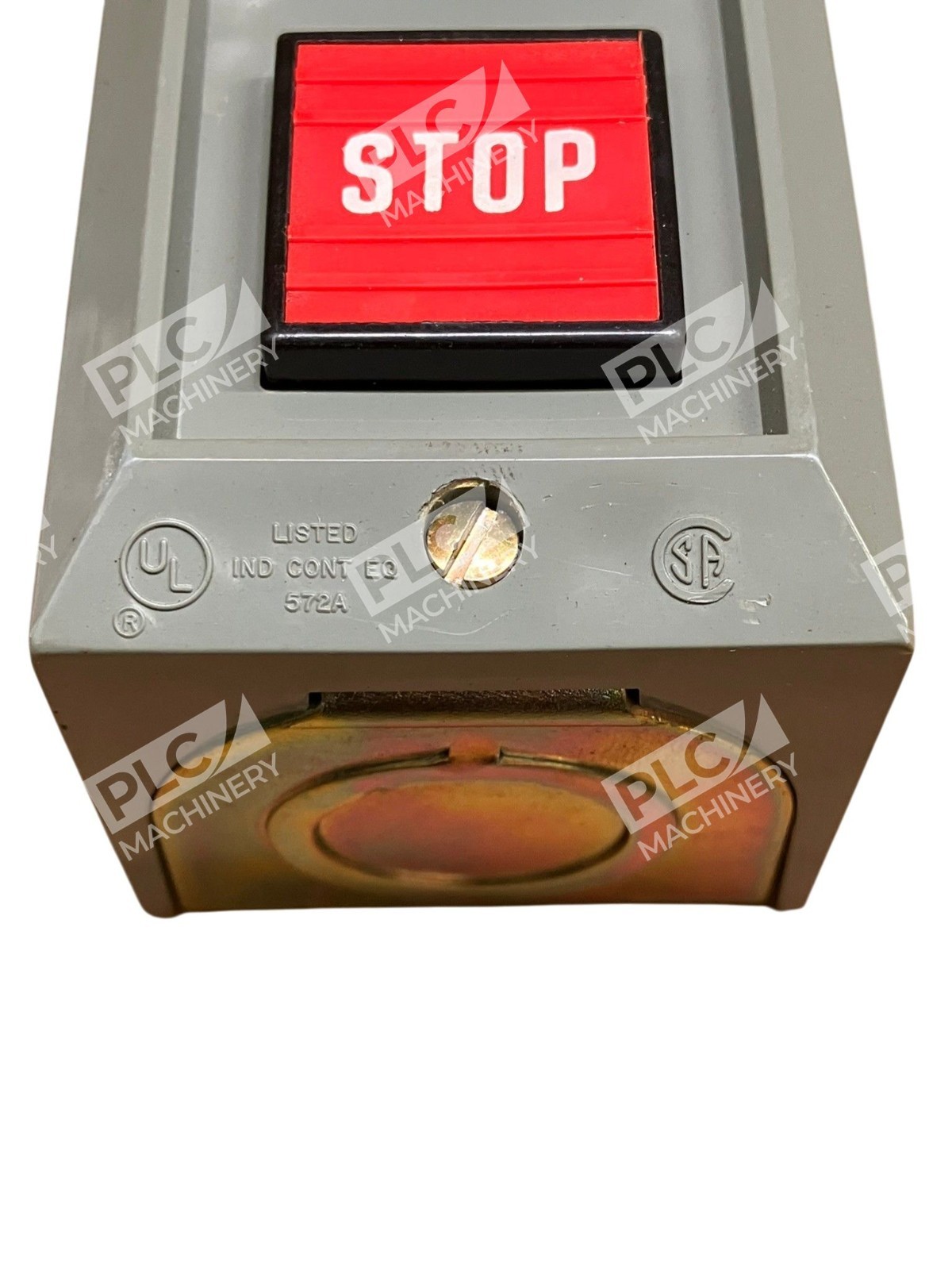

- Control station is UL Listed and CSA certified
- Push button contacts are standard duty rated with a B600 rating (360 VA break rating for inductive load with 35% power factor or 5A resistive)
- Control Circuit Rated — Not for Direct Motor Control
Technical Specifications
- Maximum Voltage: 600 VAC/DC
- Contact Rating: 1.2A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V and 6 A @ 120 V
- Contact Configuration: 2NO/3NC (2 normally open, 3 normally closed)
- Operators: Three extended square momentary operators with Forward/Reverse/Stop legend
- Enclosure Material: Sheet steel
- Mounting: Surface mounting
- Termination: Screw Clamp
- Conduit Entry: 1/2 inch
- Ratings: Meets UL CSA CE standards
Typical Applications
The Square D 9001BG302 is commonly deployed in:
- Three-phase motor reversing applications
- Conveyor and pump control circuits
- Machine tool starting/stopping circuits
- General industrial automation control circuits
- Standard duty control environments (NEMA 1 general purpose)
Compatibility & Replacements
Compatible With
- Square D / Schneider Electric magnetic motor starters
- Class 9001 Type B control circuit systems
- NEMA 1 general purpose enclosure systems
- IEC motor control circuits
- Standard 120–600V control signal applications
Replaces / Drop-In Replacement For
The 9001BG302 is a specific 3-button Forward/Reverse/Stop configuration. Verify compatibility with your system integrator before ordering alternative models in the 9001 series.
Works With
- Square D / Schneider Electric magnetic motor starters (Class 8436, 8910, 8911, 8920)
- Siemens SIRIUS motor starters (via compatible relay logic)
- ABB motor starters (via compatible relay logic)
- Standard screw-terminal control circuits
- 24 VDC to 600 VAC control signal ranges
