Overview

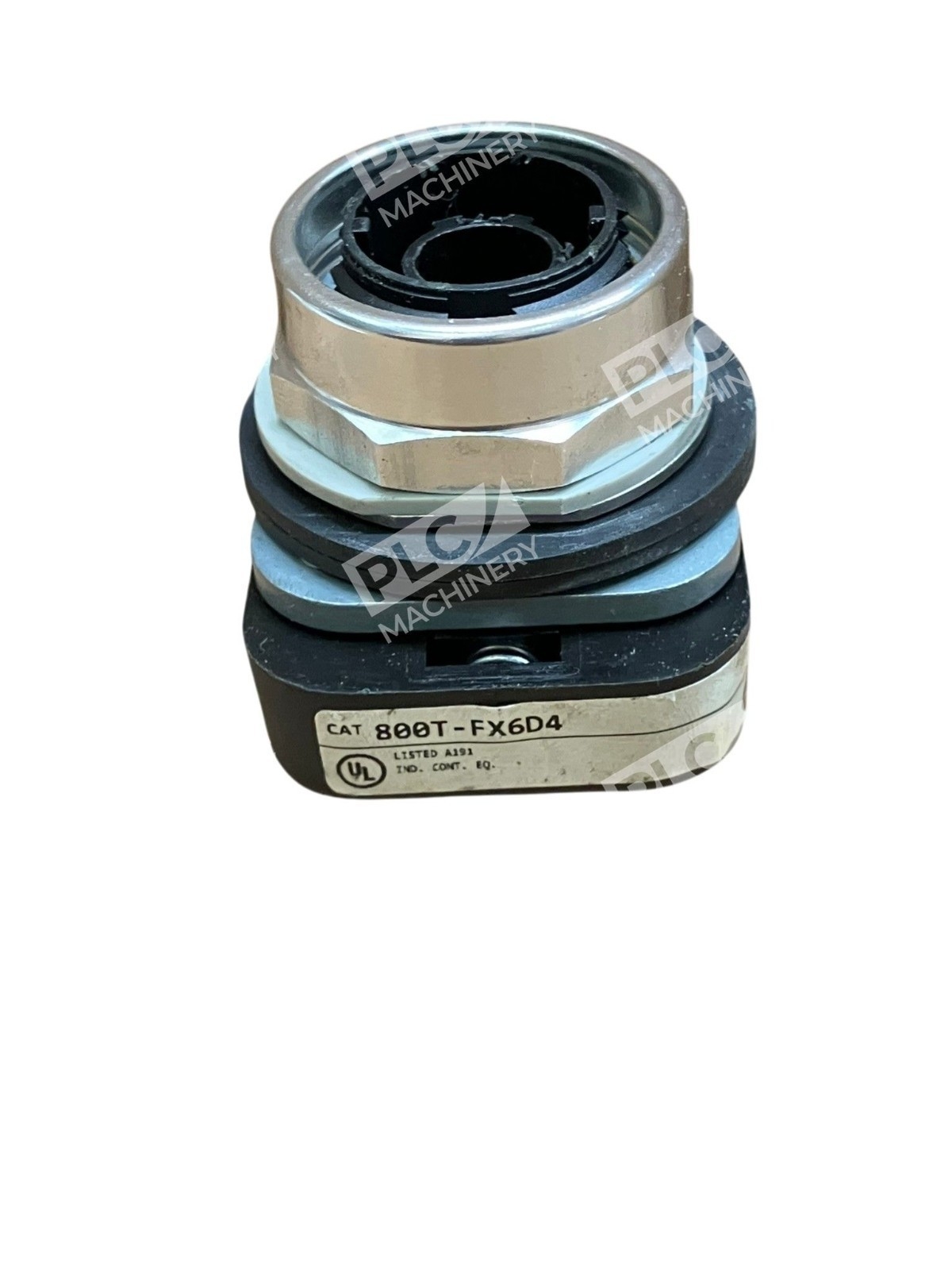

The Allen-Bradley 800T-FX6D4 is a 30.5mm push-pull pushbutton from Rockwell Automation’s Bulletin 800T series. This red, two-position, 30 mm push-pull device is a maintained mushroom head push button. The 800T and 800H 30.5mm product lines are designed and constructed to perform in the most demanding industrial environments. Available as a core (operator head only), this unit is ideal for OEM integration and retrofit applications requiring a standard-duty E-stop or emergency shutdown interface.
Key Features
- Two-position maintained action — Push to activate, pull to release; maintains contact state without additional inputs
- Mushroom head design — 40mm standard size plastic mushroom actuator for clear operator interface and emergency shutdown applications
- One normally closed (NC) contact — Single NC contact configuration for simple on/off control logic
- Push-pull mechanism — Secure engagement and tactile feedback for reliable actuation
- Industrial-grade construction — Button caps made from thermoplastic polyester resin deliver excellent resistance to corrosive agents and ensure color identification is never lost.
- Surface mounting — Screw terminal connection for standard operator enclosure installations
Technical Specifications
See the detailed specs table below for electrical ratings, contact configuration, certifications, and mechanical tolerances.
Typical Applications
- Emergency stop (E-stop) and hold-to-run controls in industrial machinery
- Process line shutdown and safety interlocks
- OEM control cabinet integration and retrofit panel upgrades
- Manufacturing automation and assembly line operator interfaces
- Heavy-duty industrial environments requiring sealed, corrosion-resistant controls
Compatibility & Replacements
Compatible With
- Allen-Bradley and Rockwell Automation control systems and motor starters
- Industrial control relays, PLCs, and safety logic controllers
- Standard NEMA 4/13 and IP67 rated operator enclosures
- Any 24 V AC/DC or 120 V AC control circuit rated for 10 A resistive load
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. Original equipment specifications should be confirmed against the 800T-FX6D4 nameplate and technical documentation.
Works With
- Allen-Bradley contactors, starters, and relay modules
- Siemens, Schneider, and other third-party industrial control devices accepting standard pushbutton inputs
- 24 V AC/DC and 120 V AC control circuits
- NEMA 4, 4X, 12, 13 and IP67 rated operator enclosures and panels
