Overview

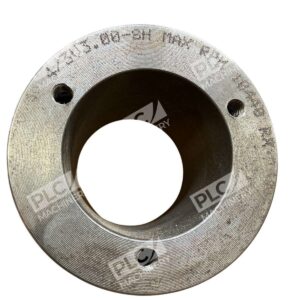

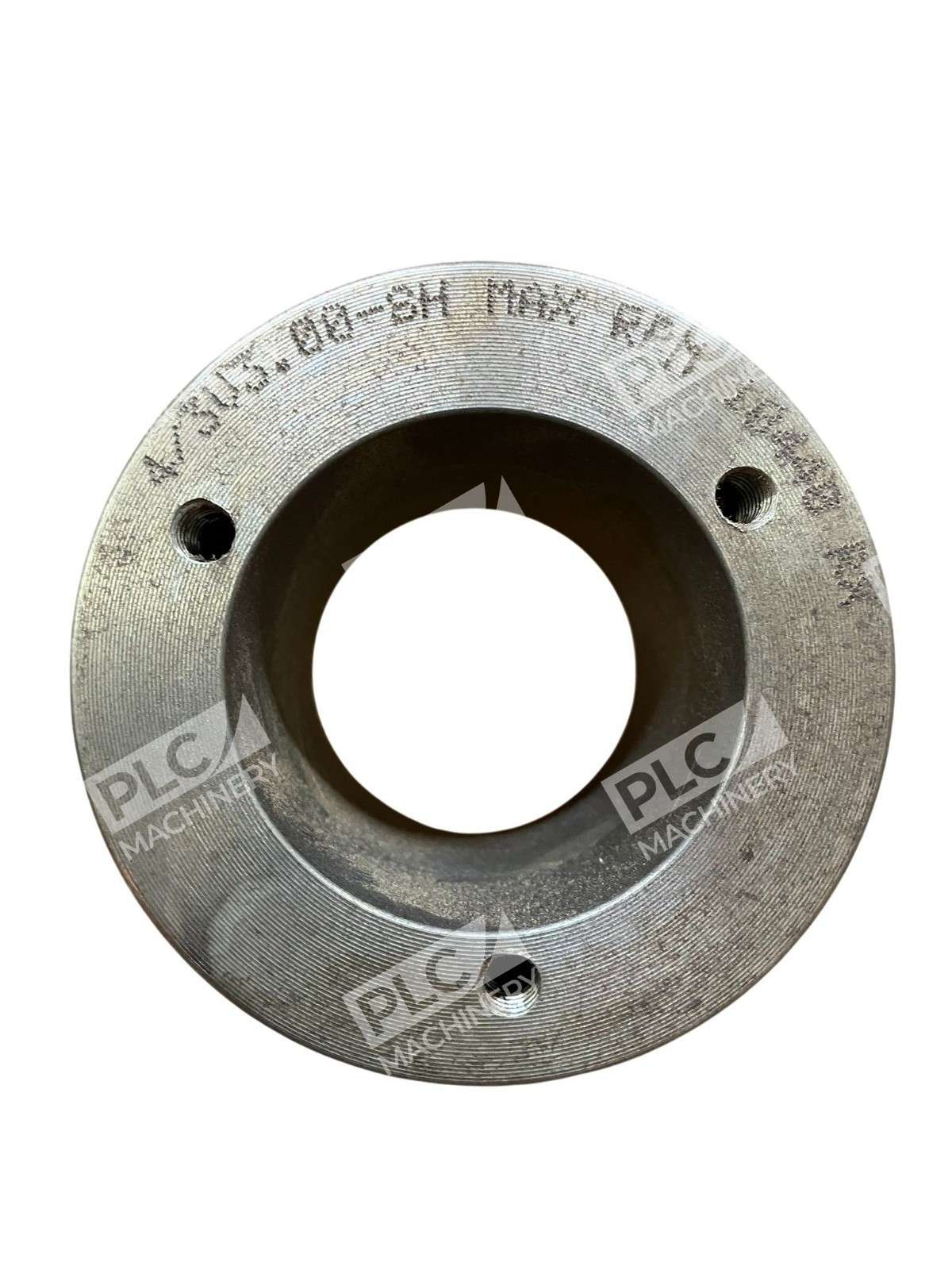

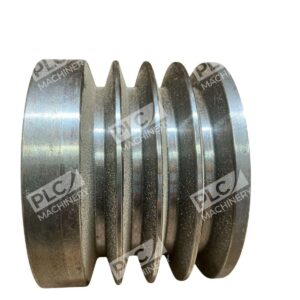

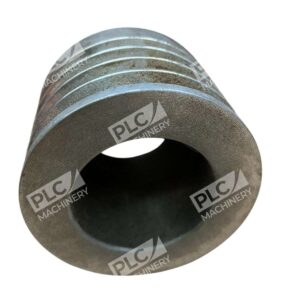

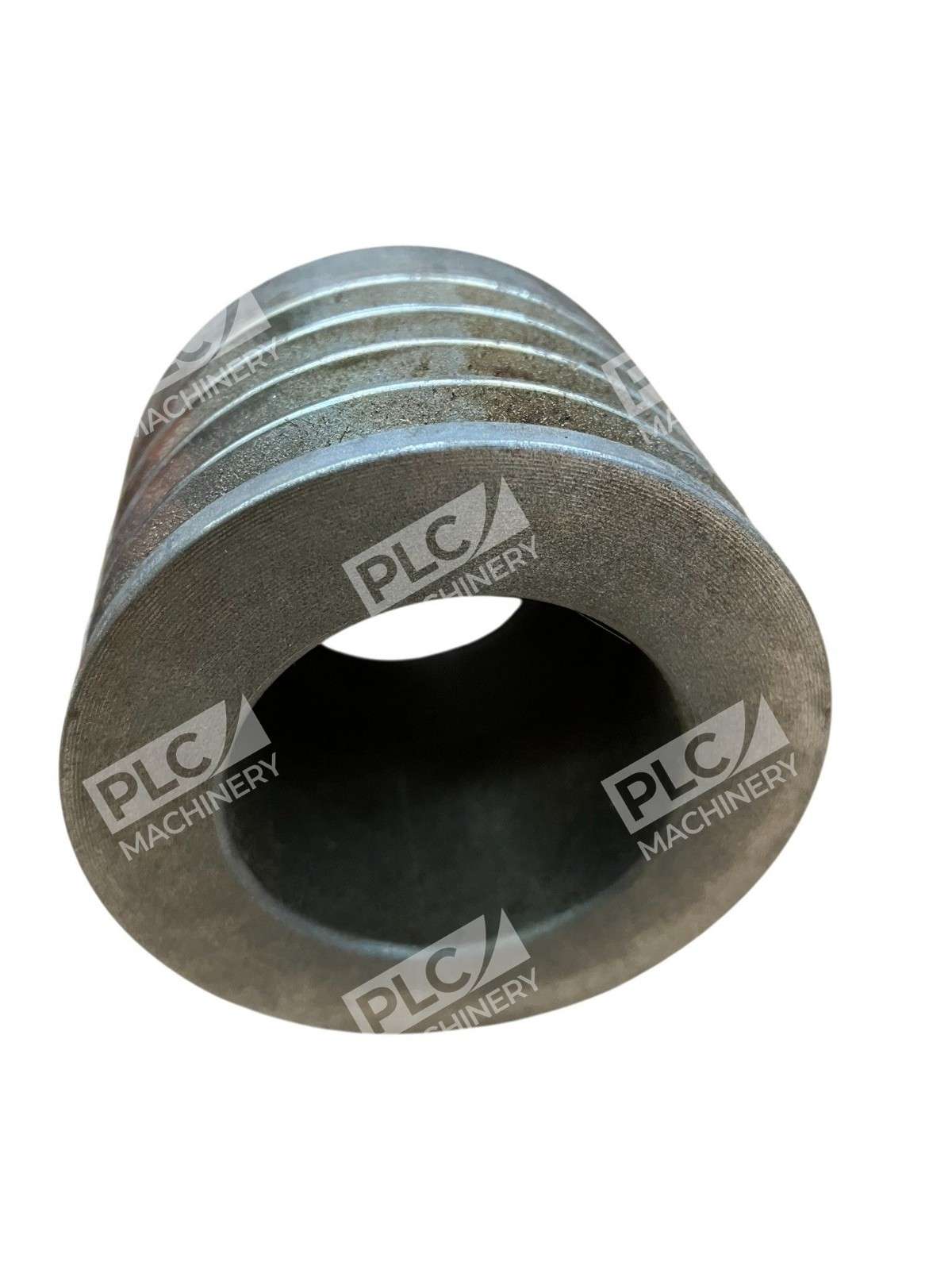

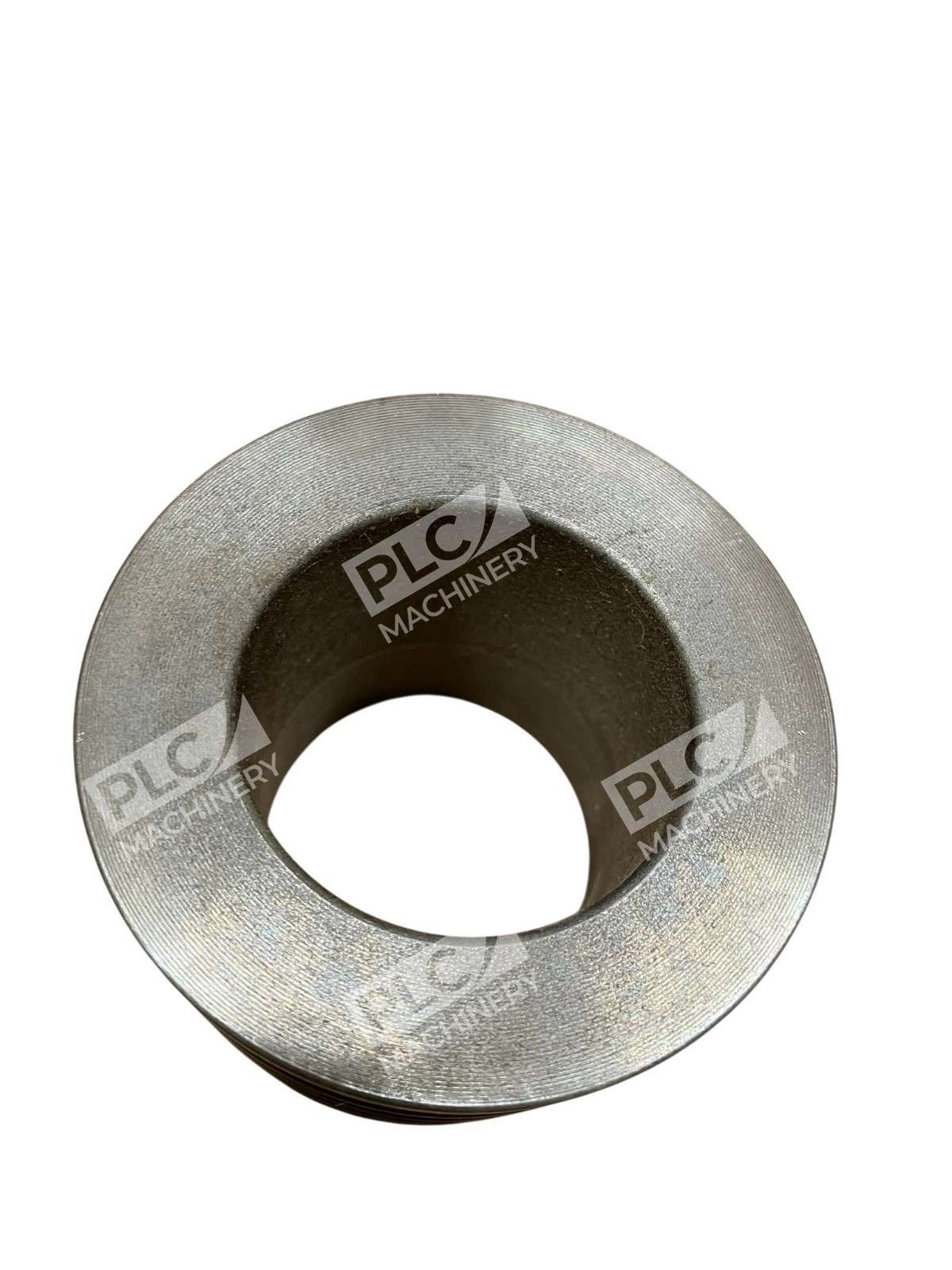

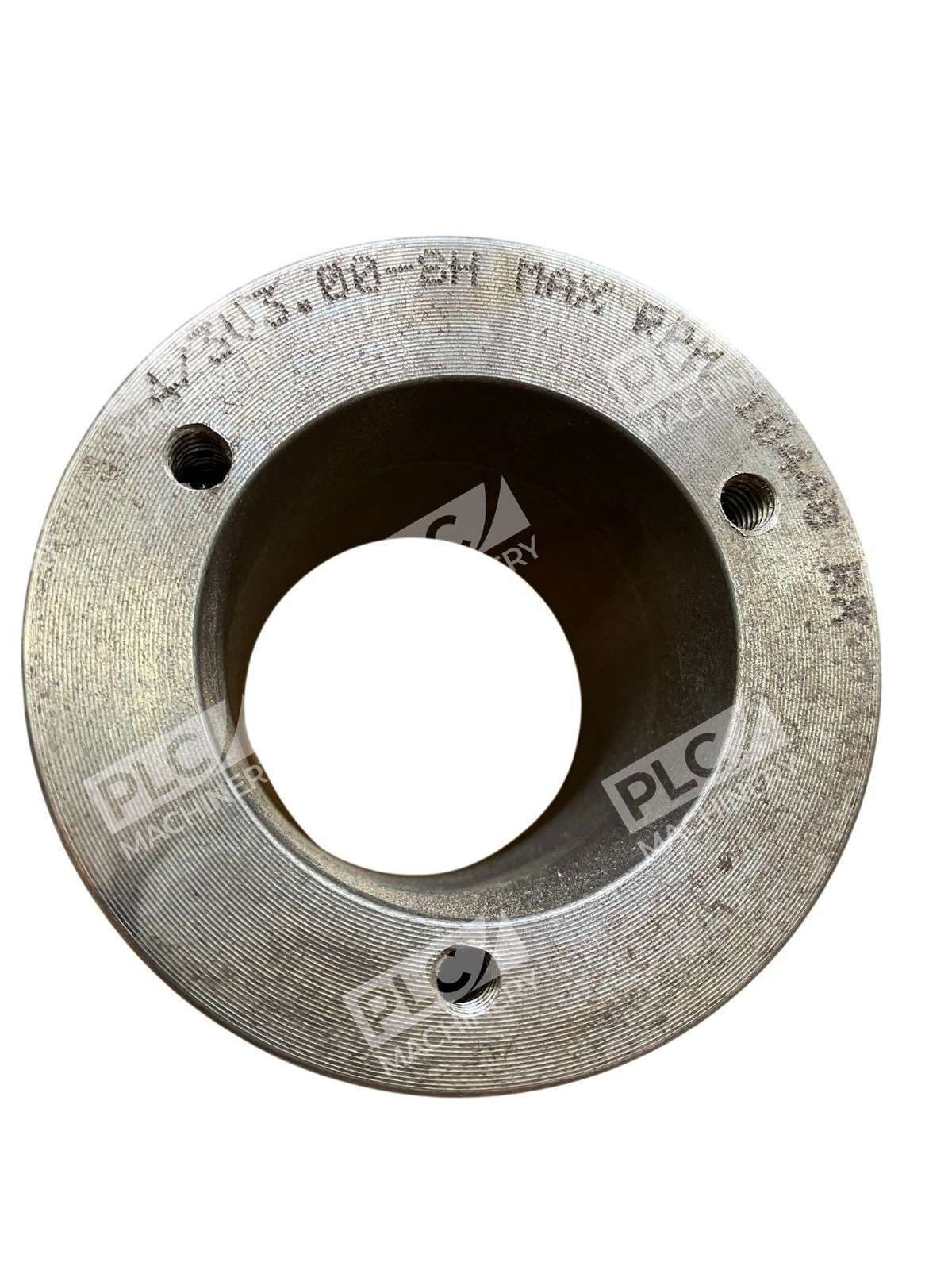

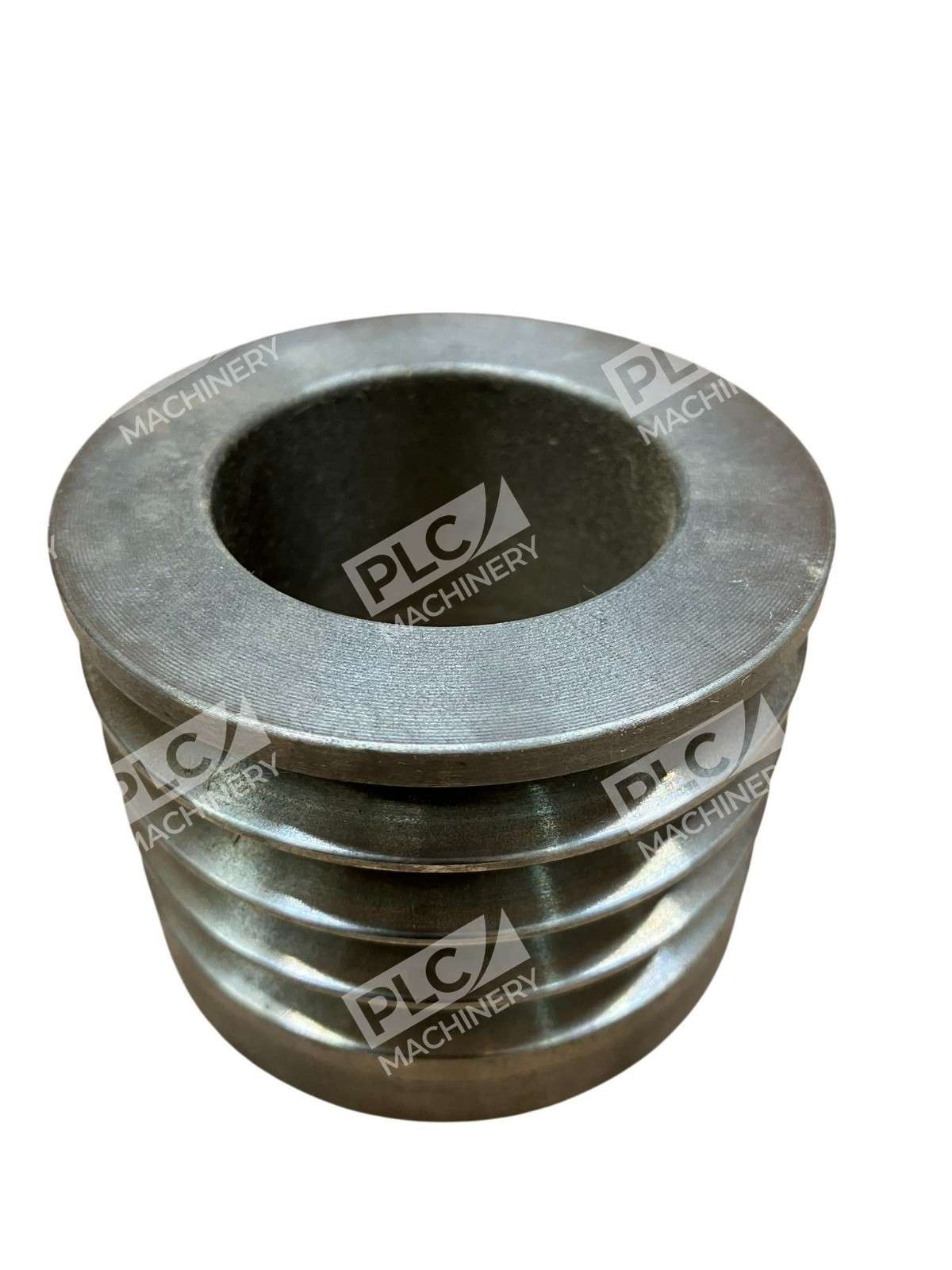

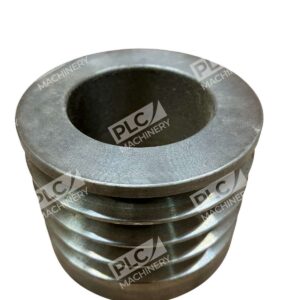

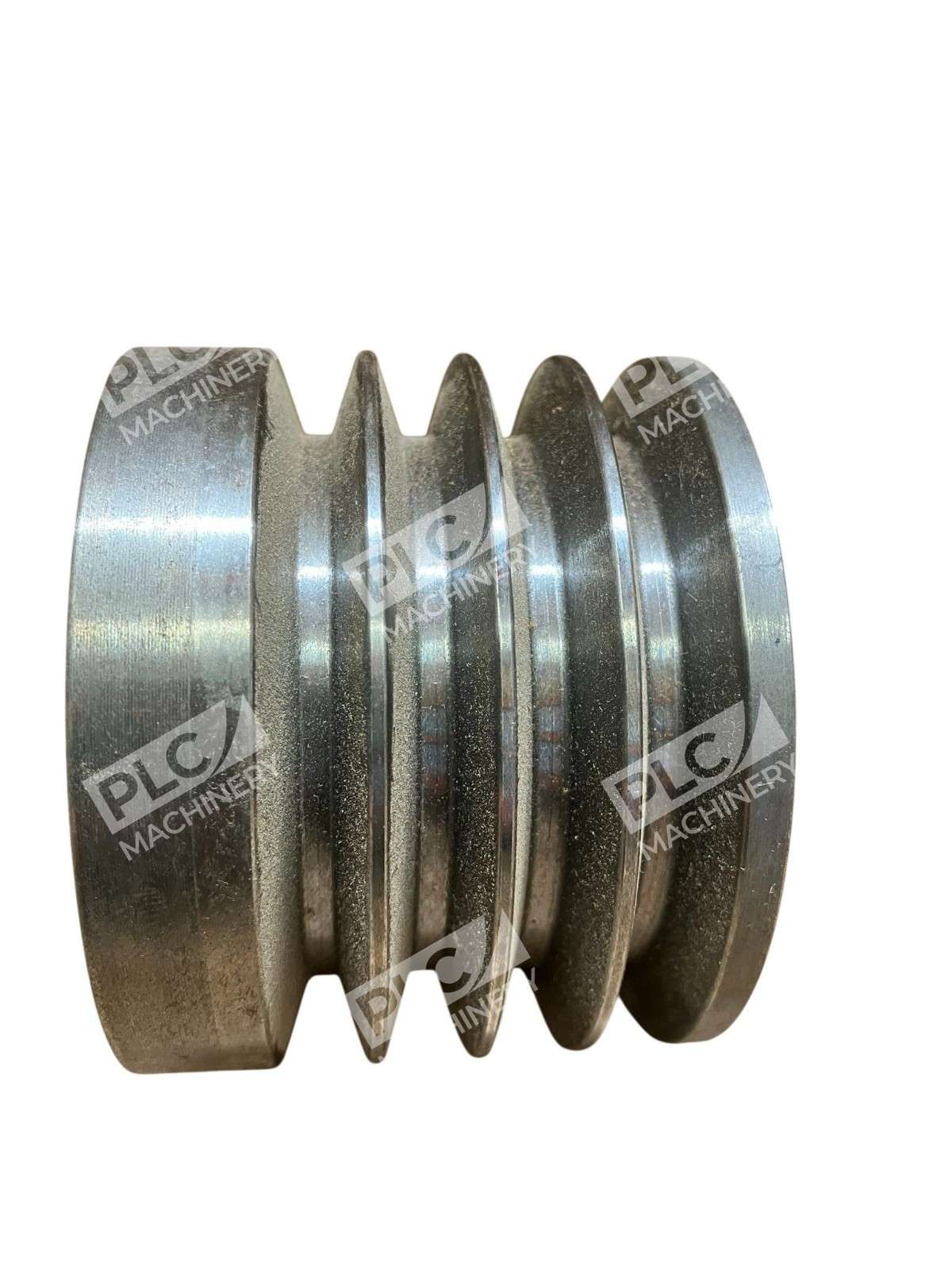

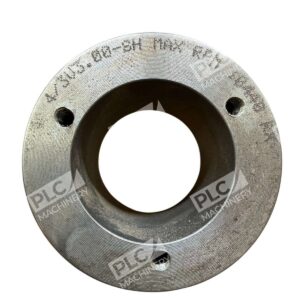

The Dodge 455169 4/3V3.00-SH is a Quick Disconnect (QD) sheave engineered for efficient power transmission in industrial and commercial belt drive systems. This sheave accommodates 3V-cross section V-belts and features four grooves optimized for load distribution and extended belt life. Manufactured from gray iron with precision machining, the Dodge 455169 meets or exceeds RMA/MPTA industry standards for smooth operation and durability.
Key Features
- Quick Disconnect design for rapid shaft mounting and removal
- Four-groove configuration for 3V-cross section V-belts
- Cast gray iron construction with corrosion-resistant finish
- ISO 9002 quality standards with precision machining
- Static balanced for rim speeds up to 6500 FPM
- Suitable for industrial machinery, fans, compressors, and conveyor systems
Technical Specifications
- Model Number: 455169
- Belt Type: 3V-Cross Section V-Belt
- Groove Configuration: 4 Grooves
- Outer Diameter (OD): 3.00 inches
- Bushing Type: SH (Quick Disconnect)
- Material: Gray Iron, Cast
- Maximum Rim Speed: 6500 FPM (static balance)
- Manufacturing Standard: ISO 9002
- Industry Compliance: RMA/MPTA Standards
Typical Applications
The Dodge 455169 sheave is widely deployed in:
- Industrial motors and machinery
- HVAC systems and air handling units
- Conveyor systems and material handling equipment
- Centrifugal compressors and fans
- Manufacturing and process equipment requiring reliable belt drive power transmission
Compatibility & Replacements
Compatible With
- 3V-cross section V-belts
- Dodge industrial drive systems
- Standard taper-lock and quick-disconnect shaft mounting systems
- Equipment requiring 3.00 inch OD pulley sizing
Replaces / Drop-In Replacement For
The Dodge 455169 is a direct replacement for other 4/3V3.00-SH Quick Disconnect sheaves requiring identical groove configuration and outer diameter specifications. Verify with your system documentation or contact our technical support to confirm exact interchangeability with legacy equipment.
Works With
- Dodge mechanical power transmission solutions
- Standard industrial V-belt drive components
- Shaft-mounted bearing systems
- Quick-disconnect bushing assemblies
