Overview

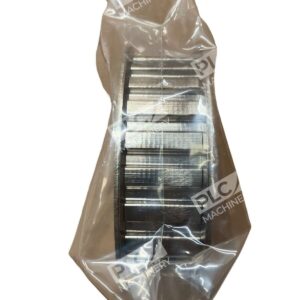

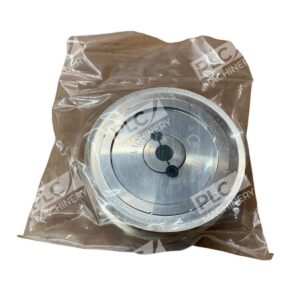

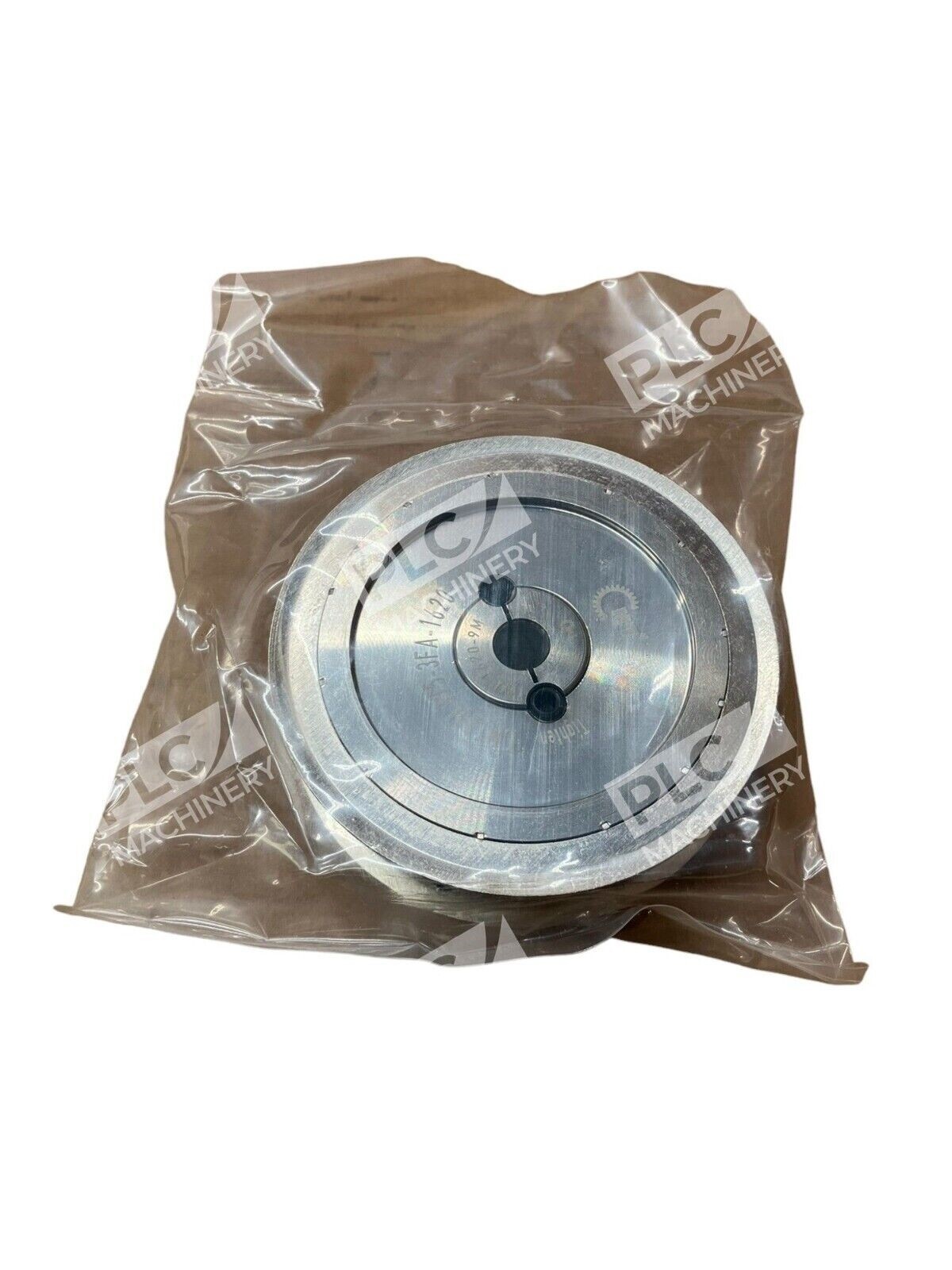

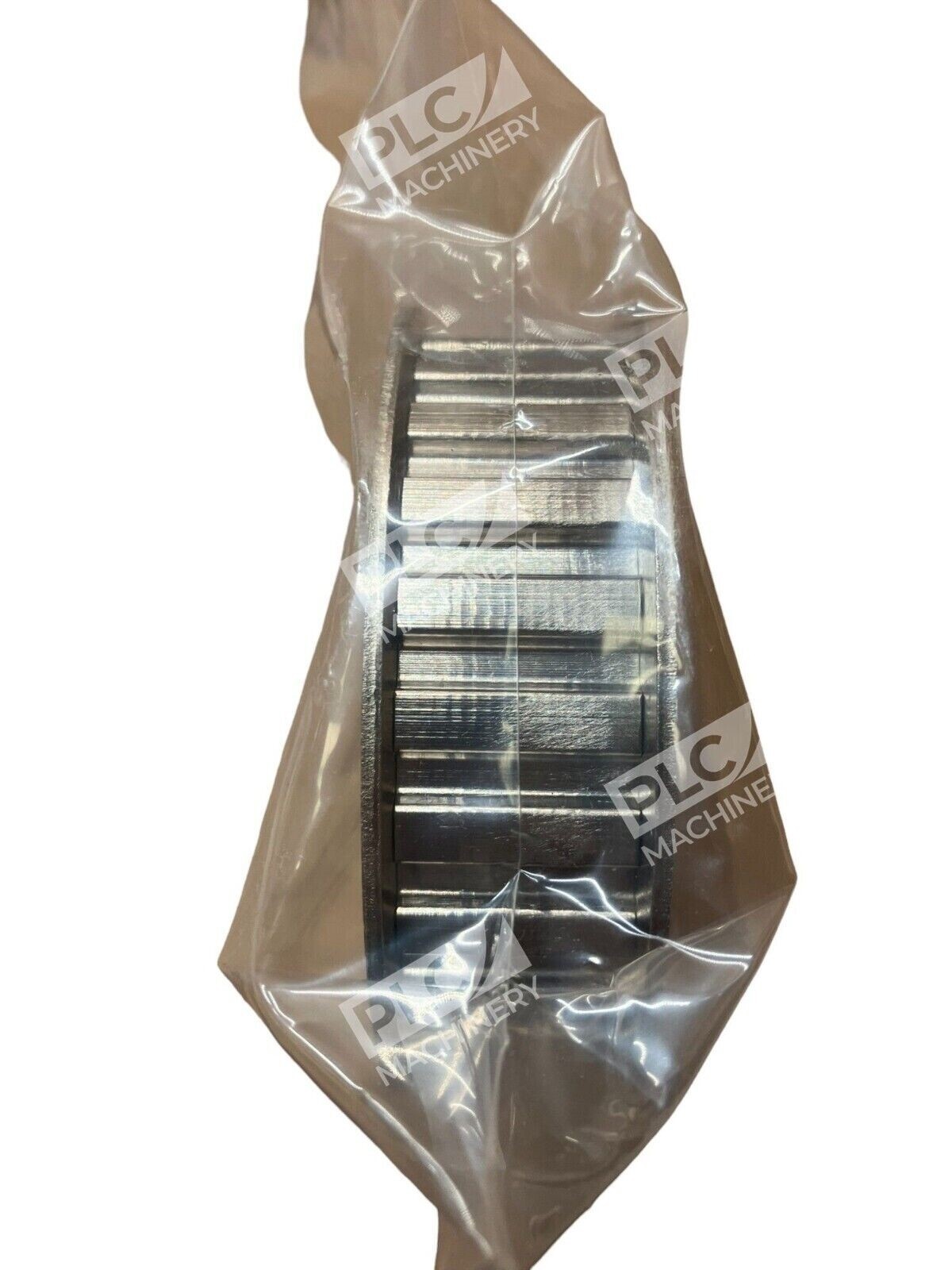

The CMT26L075-3FA1620.9 is a synchronous timing pulley engineered for demanding industrial drive applications. This pulley delivers precision synchronization and repeatable power transmission performance across manufacturing, automation, and motion control systems. Built to OEM specifications, it integrates seamlessly with standard timing belts and is supplied in new condition.
Key Features
- Synchronous design eliminates slip and ensures positive power transmission
- Compact 3-3/8″ outer diameter fits tight mounting spaces
- 3/8″ bore accommodates standard shaft sizes
- Compatible with CMT1620-9M timing belt bushing for quick assembly
- New condition ensures immediate deployment in critical drive systems
- Flanged profile (3FA designation) provides axial stability on multi-pulley drives
Technical Specifications

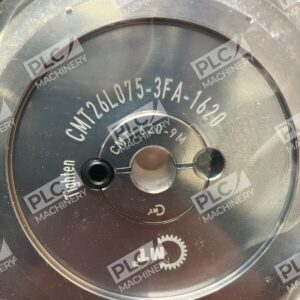

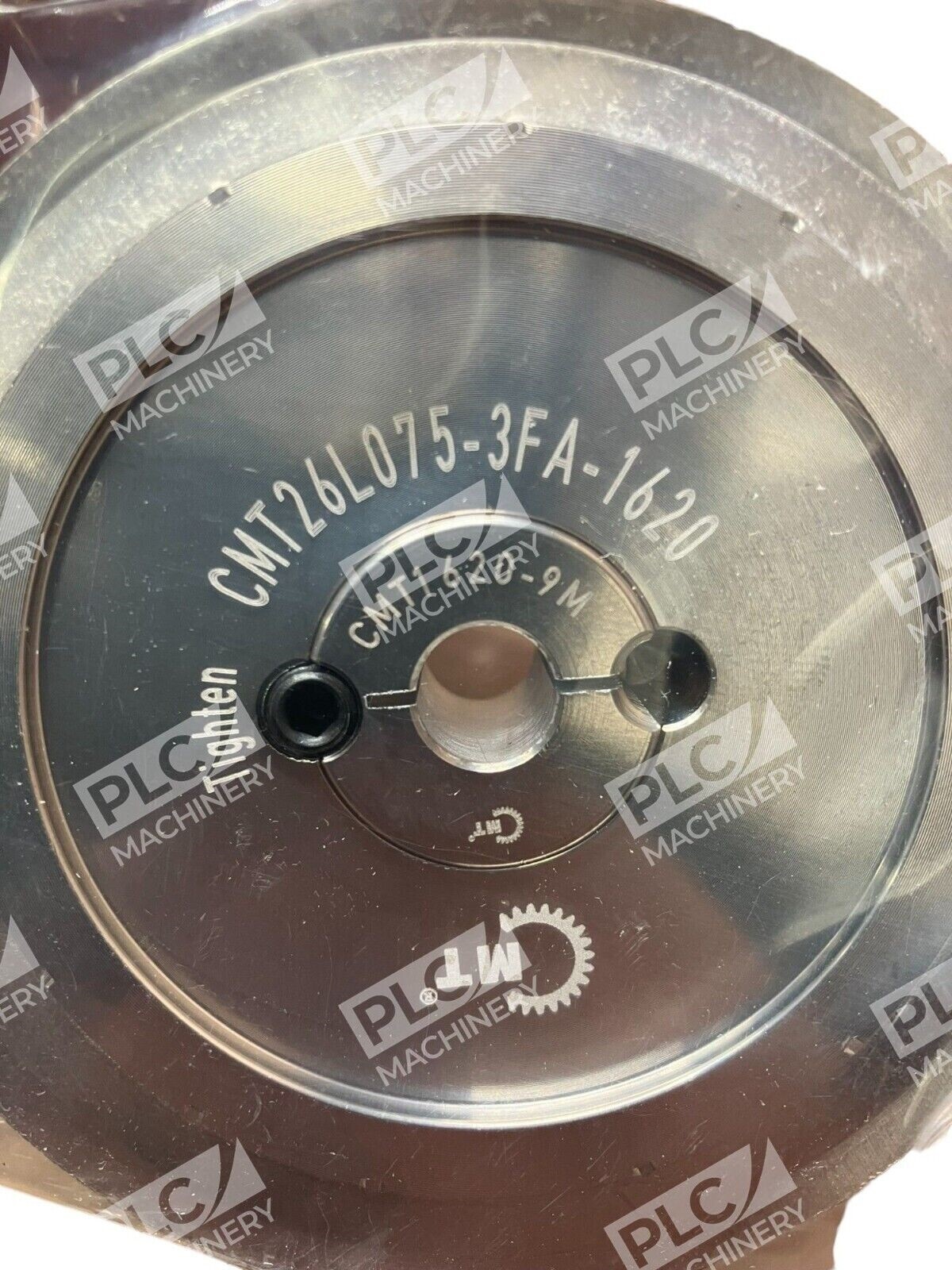

- Part Number: CMT26L075-3FA1620.9
- Bore Diameter: 3/8″ (9.53 mm)
- Outer Diameter: 3-3/8″ (85.73 mm)
- Width: 15/16″ (23.81 mm)
- Pulley Type: Synchronous timing (flanged)
- Pitch: 26L (metric equivalent XL or similar)
- Material: Cast iron or steel construction
- Bushing Compatibility: CMT1620-9M
- Condition: New in box
Typical Applications
- Automated machinery and conveyor systems
- Precision manufacturing equipment requiring synchronized motion
- Industrial motor-to-load drive trains
- Multi-axis CNC and motion control platforms
- OEM machine tool replacements and retrofits
- Robotics and assembly line automation
Compatibility & Replacements
Compatible With
- 26L (XL) timing belts and synchronous belt drive systems
- Standard 3/8″ shaft applications
- CMT1620-9M quick-disconnect bushings and hubs
- Industrial motor coupling assemblies
- Multi-pulley drive trains requiring axial constraint
Replaces / Drop-In Replacement For
The CMT26L075-3FA1620.9 is an OEM-specification component for Custom Machine & Tool timing drive systems. Verify specific equipment compatibility with your system integrator or OEM documentation before ordering to ensure proper fit and performance.
Works With
- 26L synchronous timing belts (HTD, XL pitch profile)
- Industrial timing belt drives (single and multi-axis)
- Standard stepper and servo motor couplings
- CMT machine tool platform drive systems
- Generic synchronous drive retrofits (verify bore and pitch compatibility)
