Overview

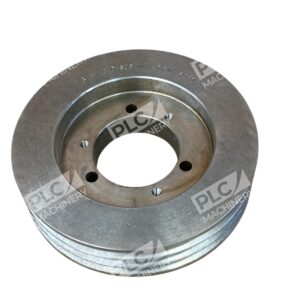

The Dodge 3-3V6.00-SDS Quick Disconnect Sheave 455158 is a Type D1 fixed-pitch sheave engineered for 3V narrow-wedge belt drive systems. Manufactured from high-quality gray iron with a corrosion-resistant finish, this sheave features a quick-disconnect (QD) SDS bushing interface that simplifies installation, alignment, and future maintenance. The compact 6-inch OD design accommodates taper-lock bores from 7/16″ to 2″, making it suitable for a wide range of motor and shaft configurations.
Key Features
- Quick Disconnect SDS Bushing — Enables tool-free shaft separation and rapid bearing/motor changes
- 3-Groove Design — Optimized for high-capacity 3V narrow-wedge V-belt drives
- Type D1 Block Construction — Compact, lightweight profile suitable for smaller sheaves and confined spaces
- Cast Iron with Corrosion-Resistant Finish — Delivers long service life in industrial, agricultural, and HVAC applications
- Static Balance Standard — Rated for operation up to 6500 FPM rim speed; dynamic balance available for high-speed applications
- Taper-Lock Bore (7/16″ to 2″) — Precise centering and secure shaft fit without keyways
Technical Specifications
- Part Number: 455158
- Model: 3-3V6.00-SDS
- Sheave Type: Type D1, Fixed Pitch
- Number of Grooves: 3
- Belt Section: 3V Narrow-Wedge
- Outside Diameter (OD): 6.00 inches
- Pitch Diameter: 5.95 inches
- Face Width: 1.5 inches
- Bore Type: Taper-Lock
- Bore Range: 7/16″ to 2″
- Bushing Type: SDS Quick Disconnect
- Material: Gray Iron
- Finish: Corrosion-Resistant
- Balance: Static (Standard); Dynamic available upon request
- Maximum Rim Speed: 6500 FPM (static balance)

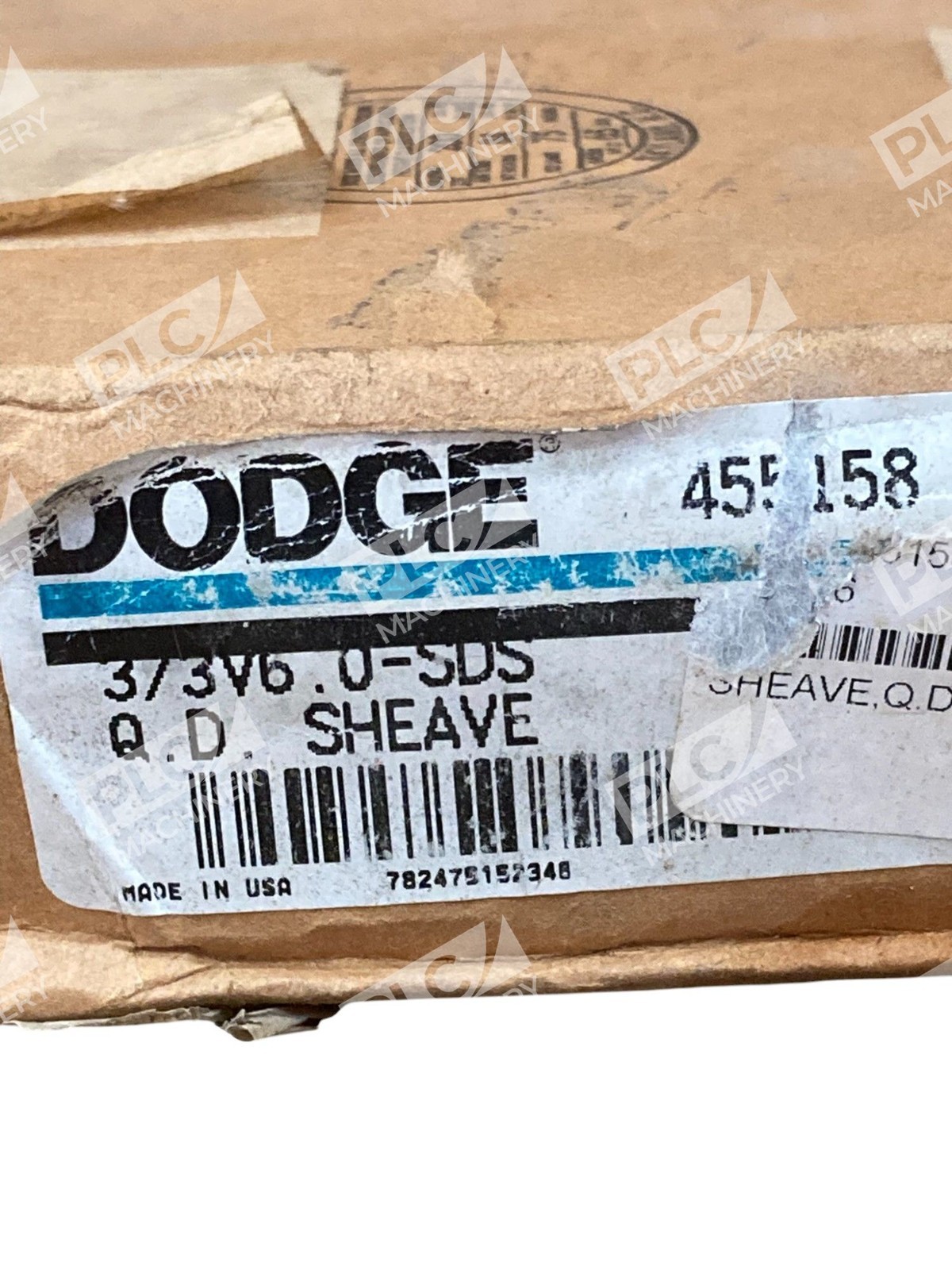

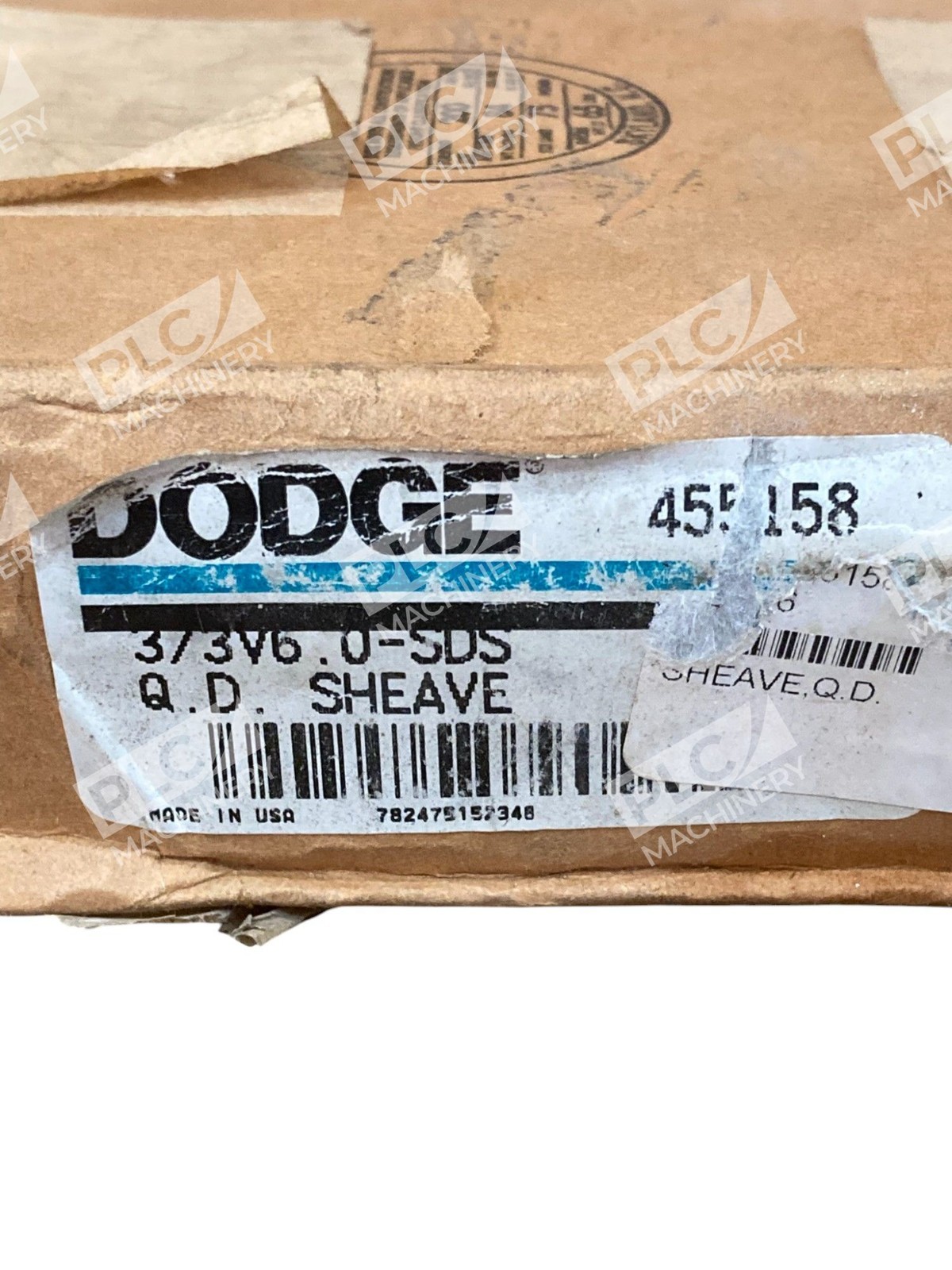

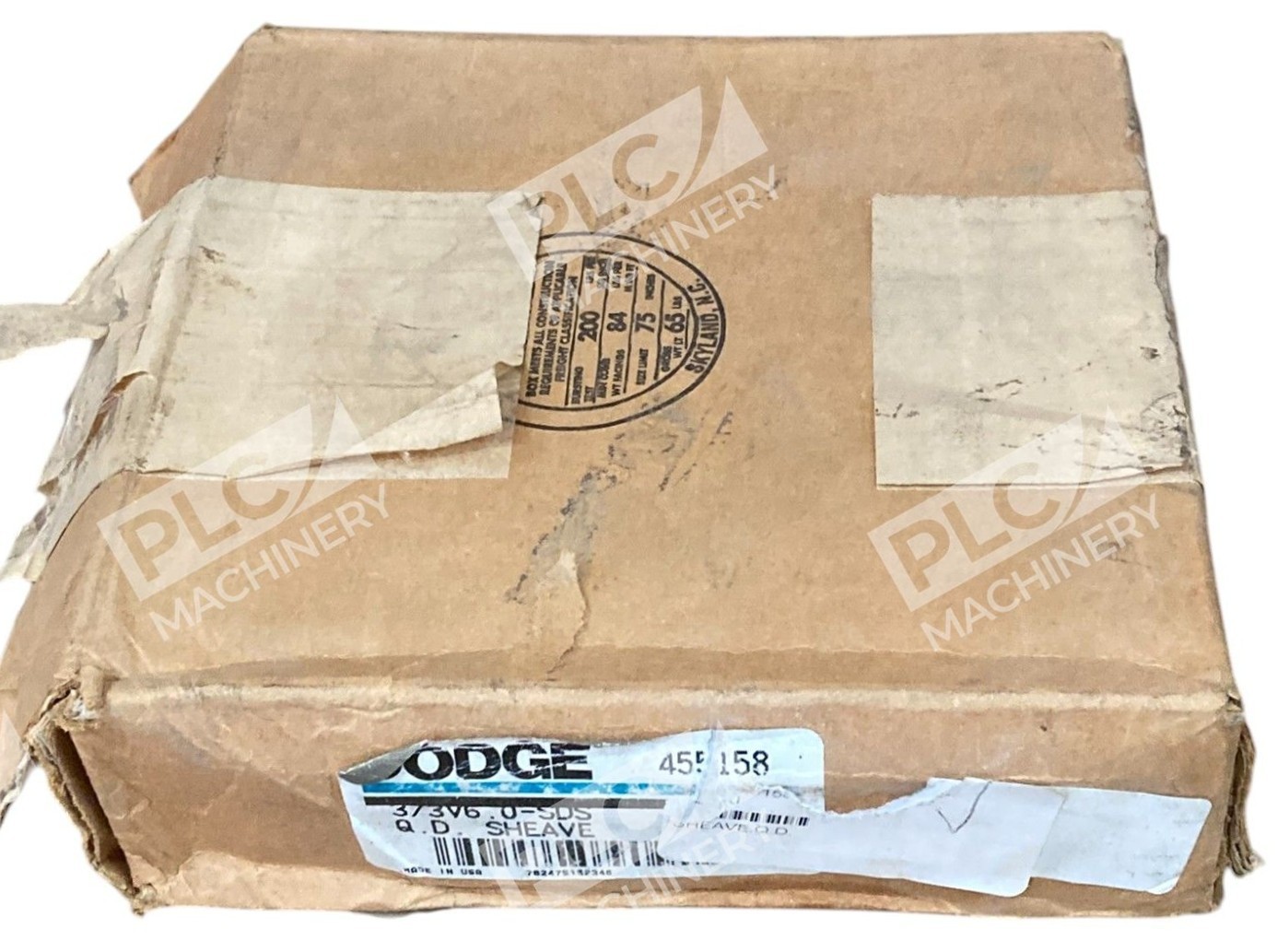

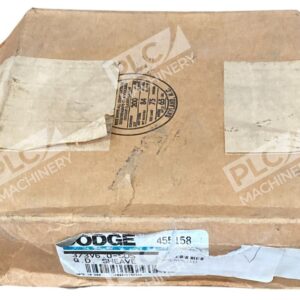

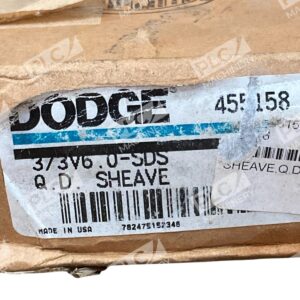

- Condition: New in Box
Typical Applications
The Dodge 3-3V6.00-SDS Quick Disconnect Sheave is widely used in conveyor systems, agricultural equipment, HVAC units, small compressors, blower drives, and general industrial power transmission where 3V belt drives require frequent access or maintenance. The quick-disconnect bushing interface is especially valuable in situations where motor or bearing replacement requires rapid disassembly without tools or shaft drift hazards. Suitable for operation up to 1750 RPM on larger-diameter motors or proportionally higher on smaller shafts, this sheave integrates seamlessly into existing belt drive assemblies.
Compatibility & Replacements
Compatible With
- 3V Narrow-Wedge V-Belt Drive Systems
- SDS Quick-Disconnect Bushings (sold separately)
- Motors with Taper-Lock shafts (7/16″ to 2″ bore)
- Industrial belt drive assemblies rated up to 6500 FPM
- Conveyor, blower, and compressor drive trains
Replaces / Drop-In Replacement For
- Dodge 455158 (equivalent model)
- Similar 3-groove, 6″ OD 3V sheaves from competing manufacturers (verify bore compatibility)
Works With
- SDS Quick-Disconnect bushings and hubs
- Continental, Martin, and TB Woods equivalent sheaves (3V6.0 standard pitch diameter)
- Standard V-belt drives using 3V cross-section belts
- Dodge pillow blocks and bearing housings
