Overview
The Dodge 118306 taper lock sheave is a precision-engineered pulley component for industrial power transmission systems. This two-groove sheave accommodates both A and B cross-section V-belts and features a taper lock bore design that provides superior torque transmission compared to quick-disconnect systems while reducing overhung load on associated equipment.
Key Features
- Taper-Lock Bore Design: Pound-for-pound torque capacity exceeds QD systems while reducing overhung load
- Dual-Groove Configuration: Two grooves with 3.78/4.16 inch pitch diameter accommodates multiple belt sizes
- Premium Cast Iron Construction: High-quality gray iron with corrosion-resistant finish
- ISO 9002 Certified Manufacturing: Manufactured in plants certified to ISO 9002 quality standards
- Extended Belt Life: Precision machining meets or exceeds RMA/MPTA industry standards for smooth operation
- Versatile Application Range: Suitable for standard and harsh duty applications at rim speeds up to 6500 FPM
Technical Specifications
- Outside Diameter (OD): 4.15 inches
- Bore Diameter Range: 1/2 to 1-11/16 inches taper-lock bore
- Number of Grooves: 2 grooves
- Pitch Diameter: 3.78/4.16 inches
- Face Width: 1-3/4 inches
- Bushing Type: 1610 taper-lock bushing
- Belt Compatibility: A and B cross-section V-belts
- Material: Cast iron
- Weight: 2.740 lbs
- Maximum Rim Speed: 6500 feet per minute for static balance
Typical Applications
The Dodge 118306 sheave is used in industrial machinery requiring reliable, high-torque power transmission. Typical applications include:
- Conveyor systems and material handling equipment
- Manufacturing machinery and production lines
- Agricultural equipment and irrigation systems
- HVAC and ventilation systems
- General industrial drive applications in both standard and harsh operating environments
Compatibility & Replacements
Compatible With
- 1610 taper-lock bushing systems
- A cross-section V-belts (4L belt profile)
- B cross-section V-belts (5L belt profile)
- Standard industrial motor shafts and drive assemblies
- Dodge power transmission component ecosystems
Replaces / Drop-In Replacement For

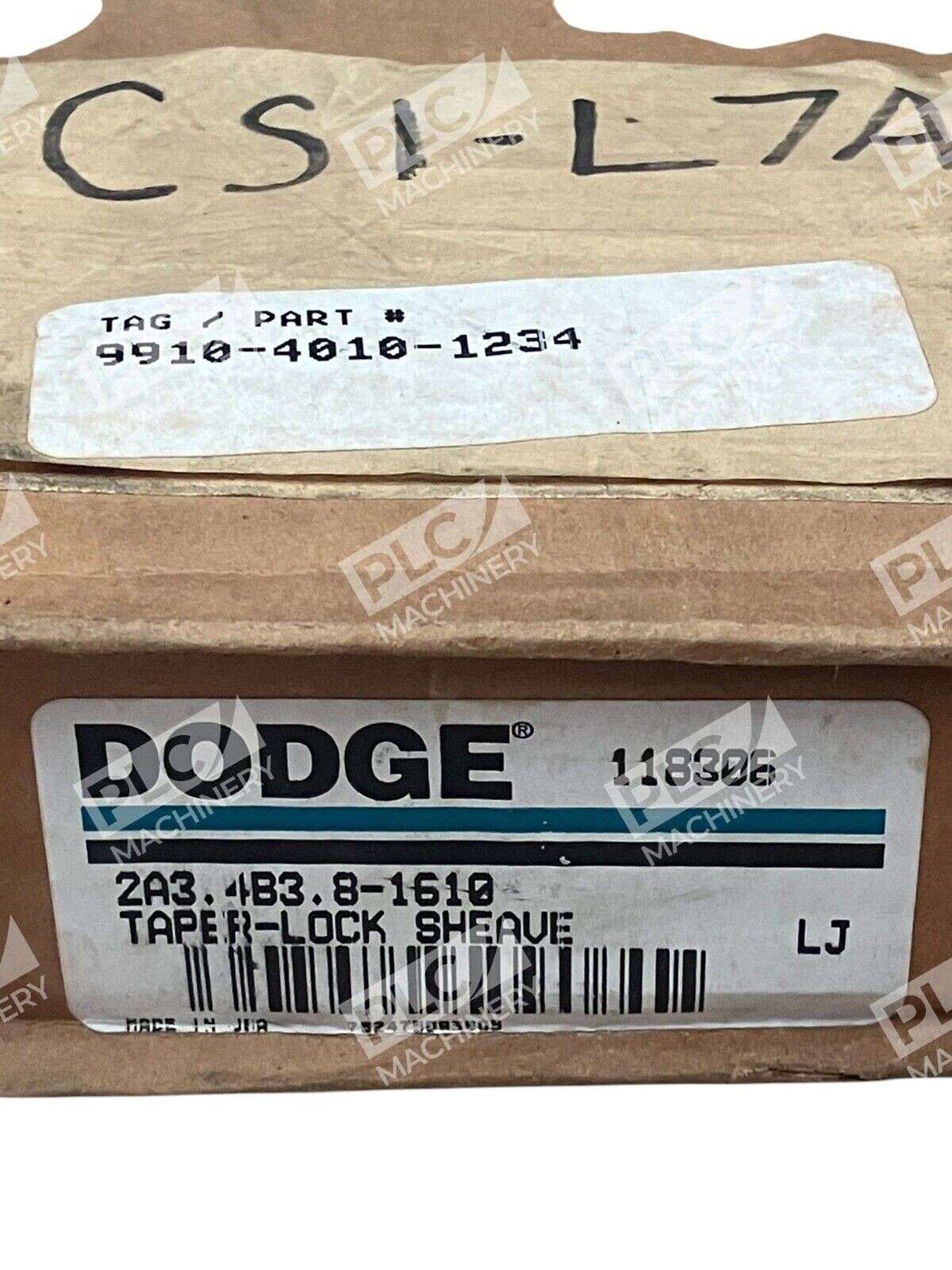

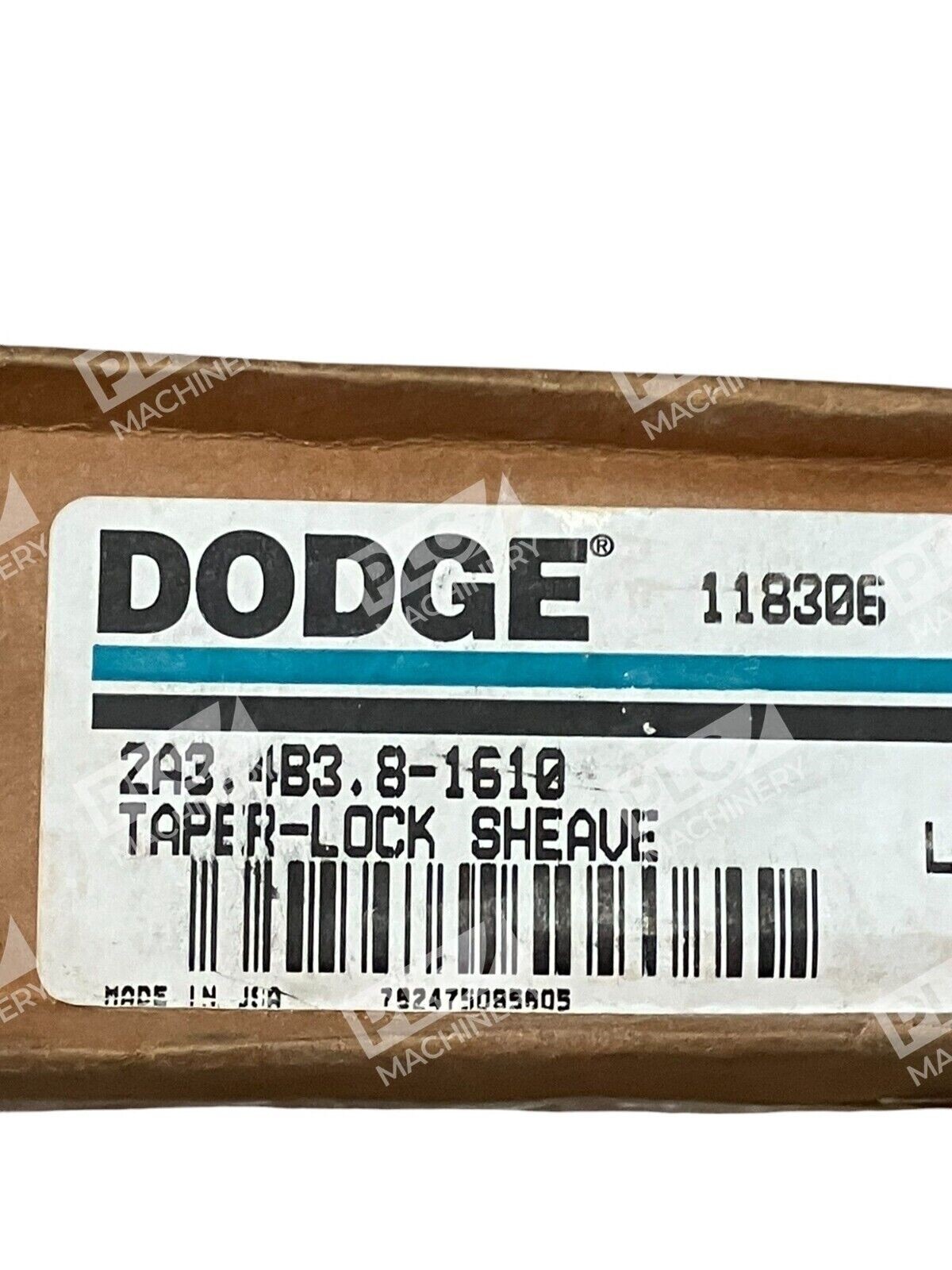

The Dodge 118306 model 2A3.4B3.8-1610 is a direct replacement for original equipment requiring this exact specification. Verify compatibility with your system integrator before ordering to ensure bore diameter and bushing type match your installation requirements.
Works With
- 1610 taper-lock bushings (required for installation)
- A and B section V-belt drives
- Mounted bearing assemblies and pillow blocks
- Dodge sheave systems and power transmission components
- General industrial power transmission applications
