Overview

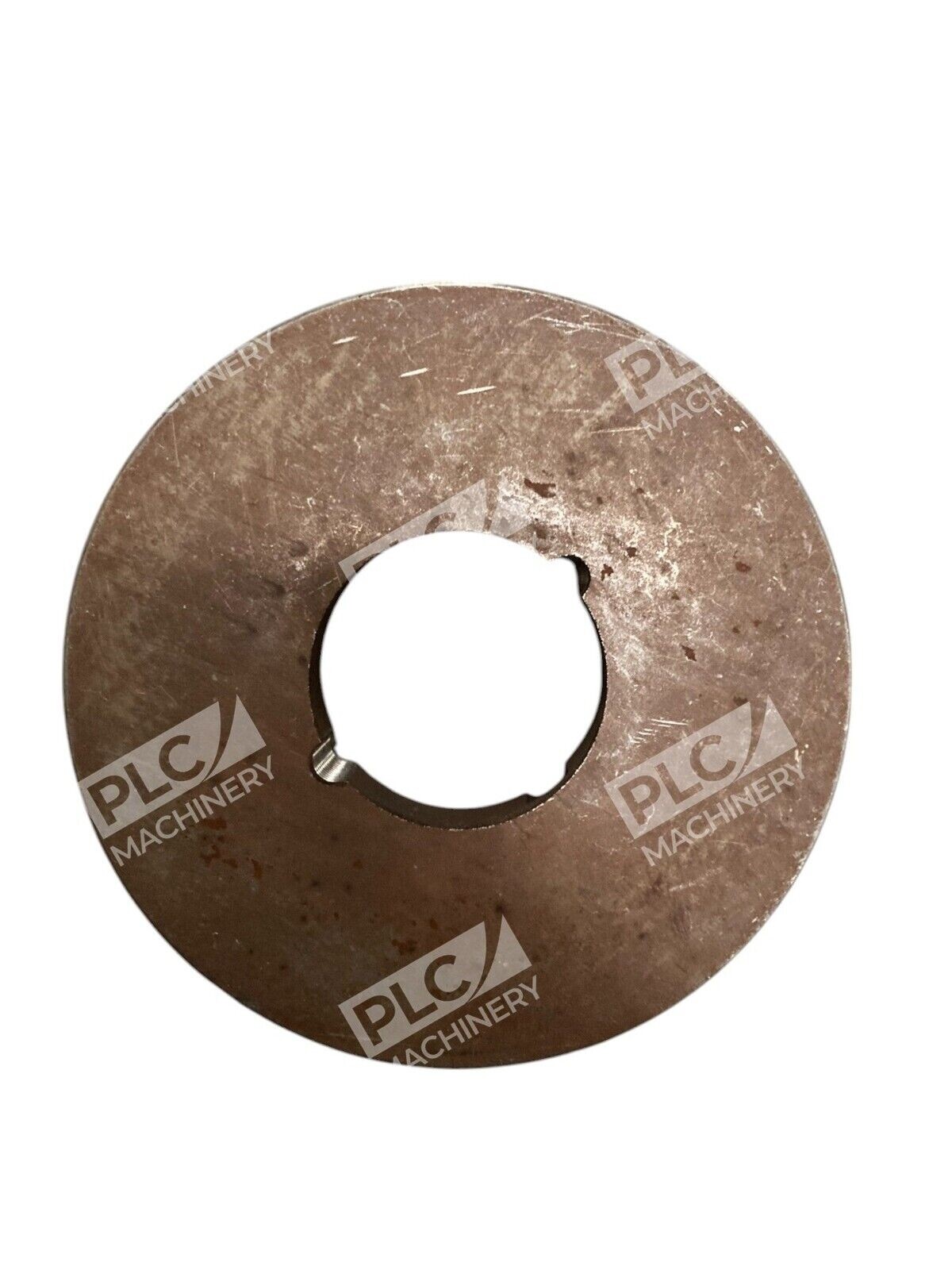

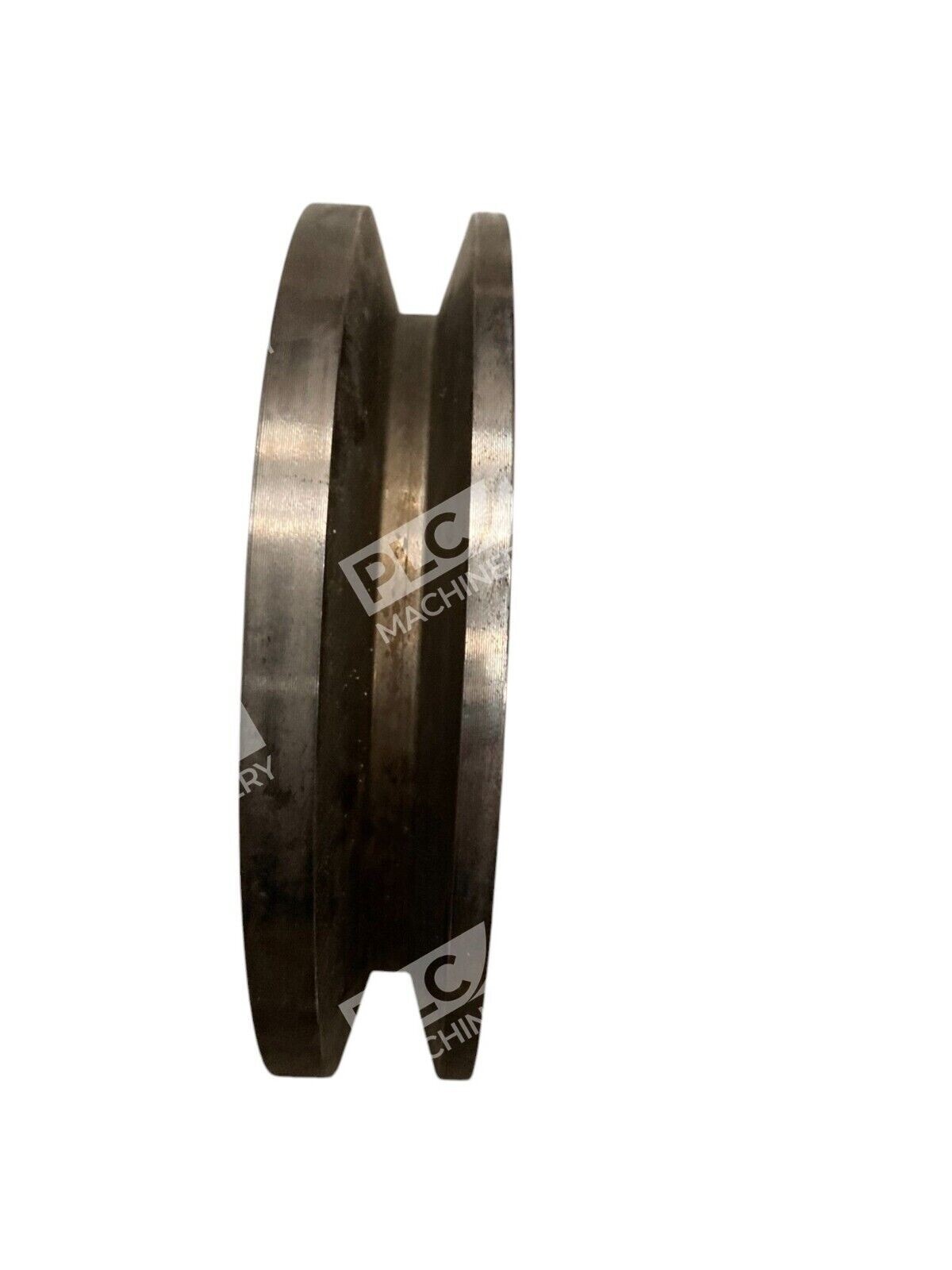

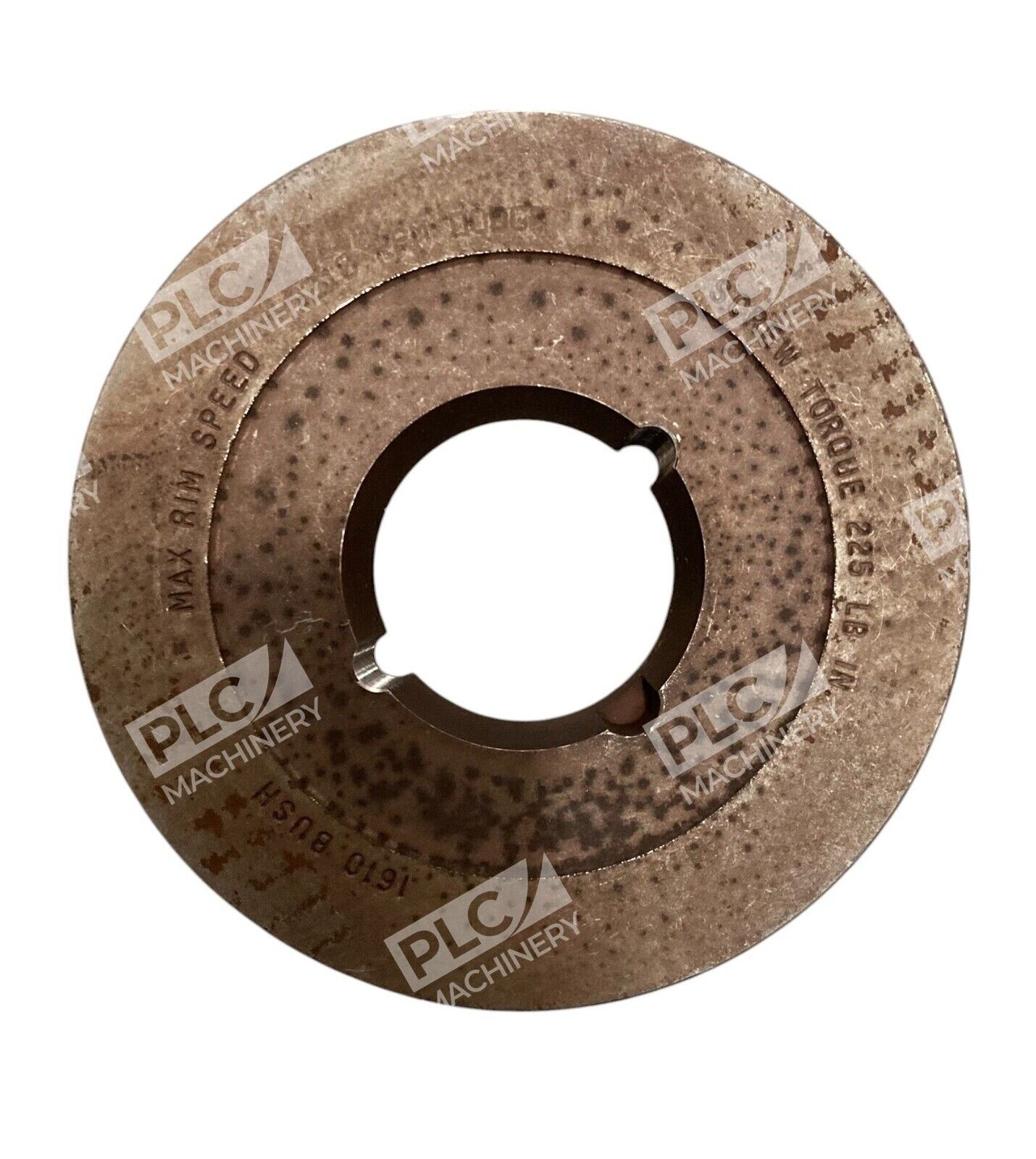

The Dodge 118199 1A4.8b5.2-1620 T-L is a single groove sheave engineered for mechanical power transmission in industrial automation and motion control systems. This Dodge 118199 features a Taper-Lock bore for secure mounting and is manufactured from high-quality cast iron with precision-machined grooves to match A-B cross-section V-belt dimensions.
Key Features
- Single groove design for A-B cross-section V-belts
- Taper-Lock (T-L) bore for quick, tool-free mounting on tapered bushings
- Precision-machined construction ensures extended belt life and reduced slippage
- Cast iron construction with corrosion-resistant finish
- Suitable for rim speeds up to 6500 FPM in standard static-balanced configuration
Technical Specifications
Specific dimensional and performance data for model 118199 should be verified against the original Dodge product documentation or with your system integrator, as the 1A4.8b5.2-1620 nomenclature indicates bore size, pitch diameter, and bushing type configuration.
Typical Applications
- Industrial motor-driven conveyors and material handling equipment
- HVAC and ventilation fan drives
- Pump and blower drive systems
- Machine tool speed-reduction applications
- General industrial mechanical power transmission
Compatibility & Replacements
Compatible With
- A-B cross-section V-belt systems
- Standard Taper-Lock bushings (1620 series as indicated in model number)
- Industrial motor shafts with bore diameters specified in Taper-Lock bushing range
- Dodge pulley replacement programs
Replaces / Drop-In Replacement For
The Dodge 118199 is a direct replacement for original equipment Dodge 118199 sheaves in power transmission systems. Verify compatibility with your system integrator before ordering to confirm bore size and bushing type match your installation.
Works With
- Standard industrial V-belt drive systems
- Dodge mechanical power transmission components
- ABB/Dodge PT component HVAC and mechanical drive packages
