Overview

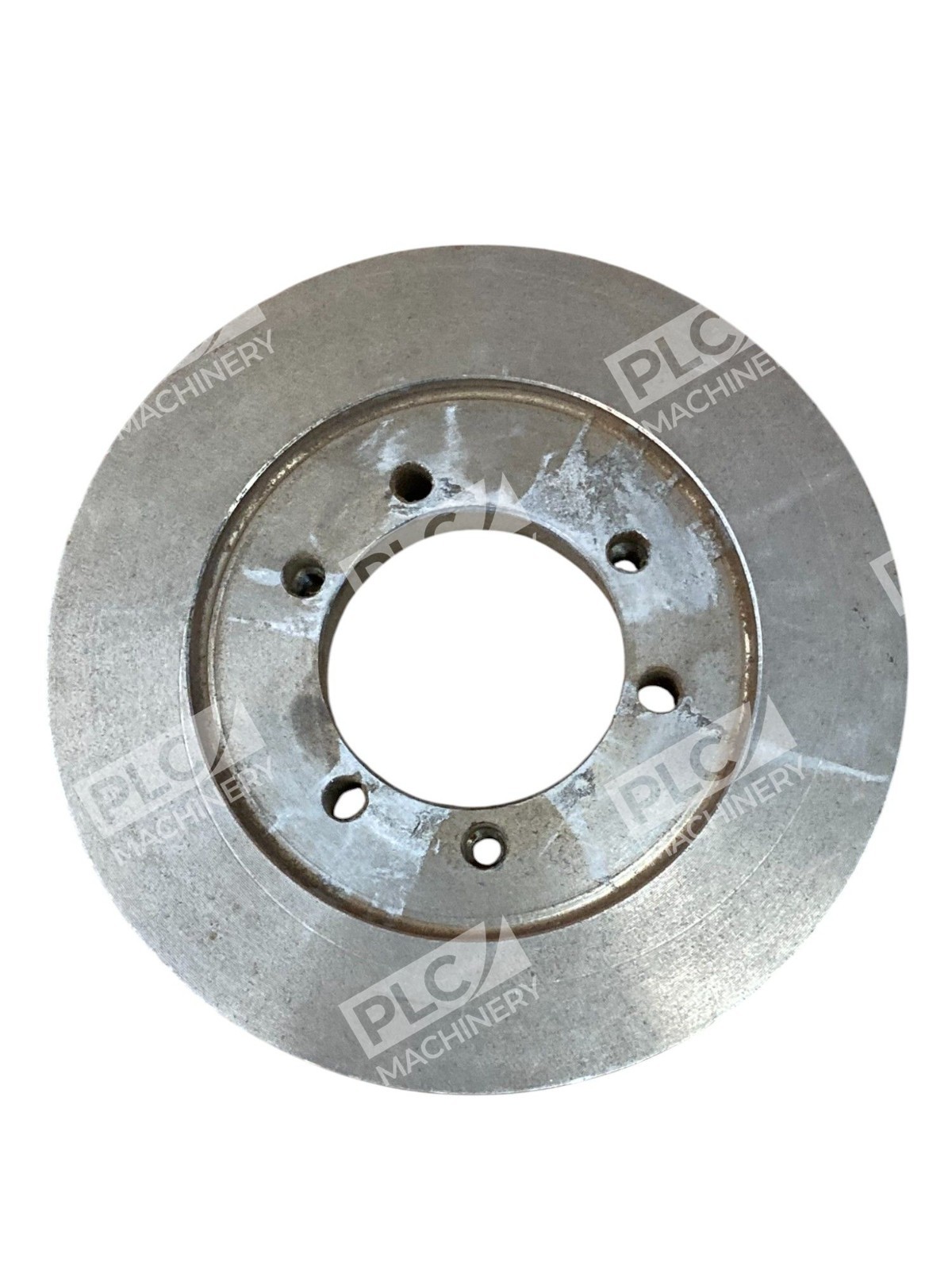

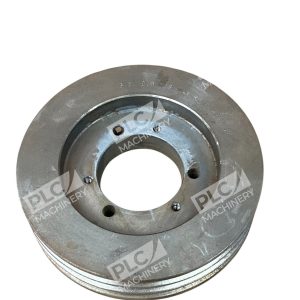

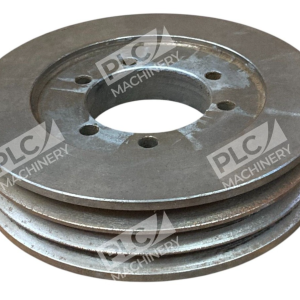

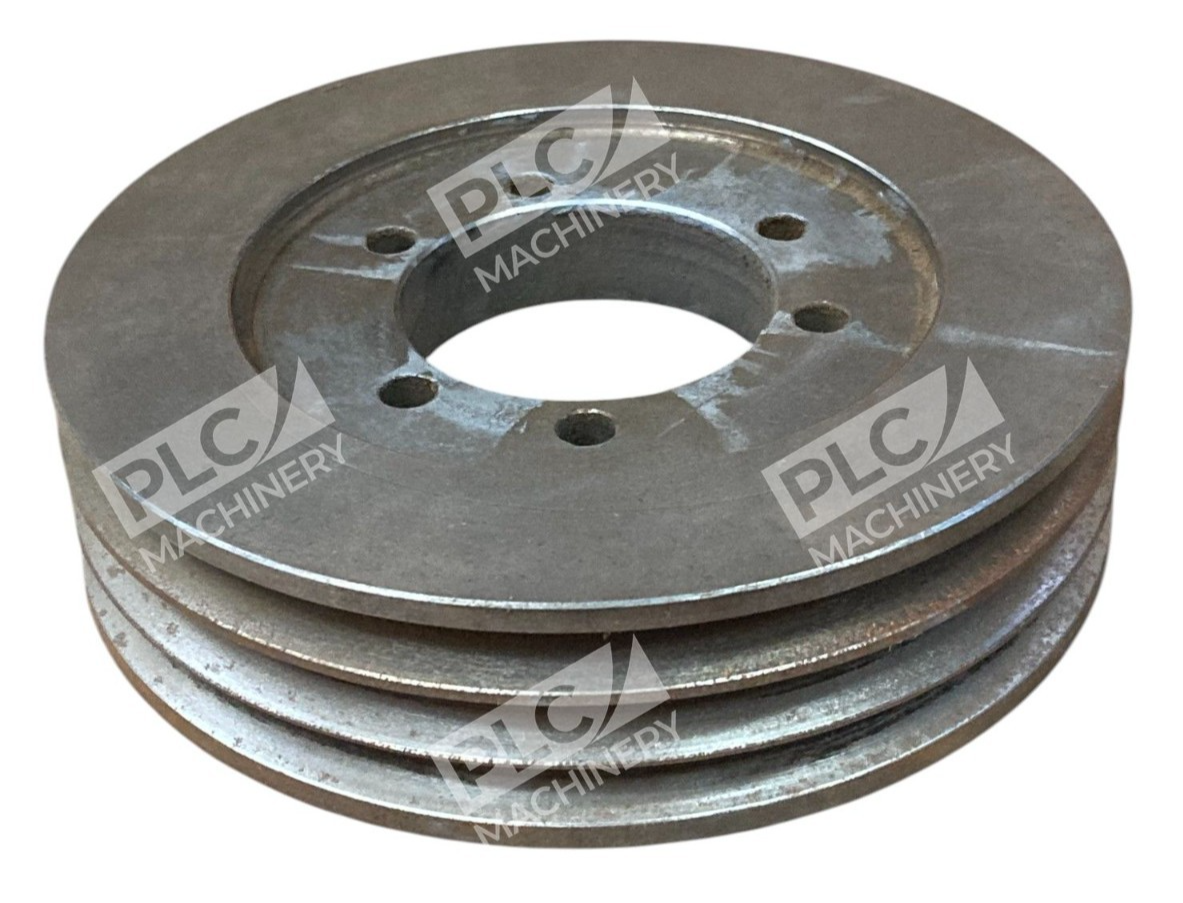

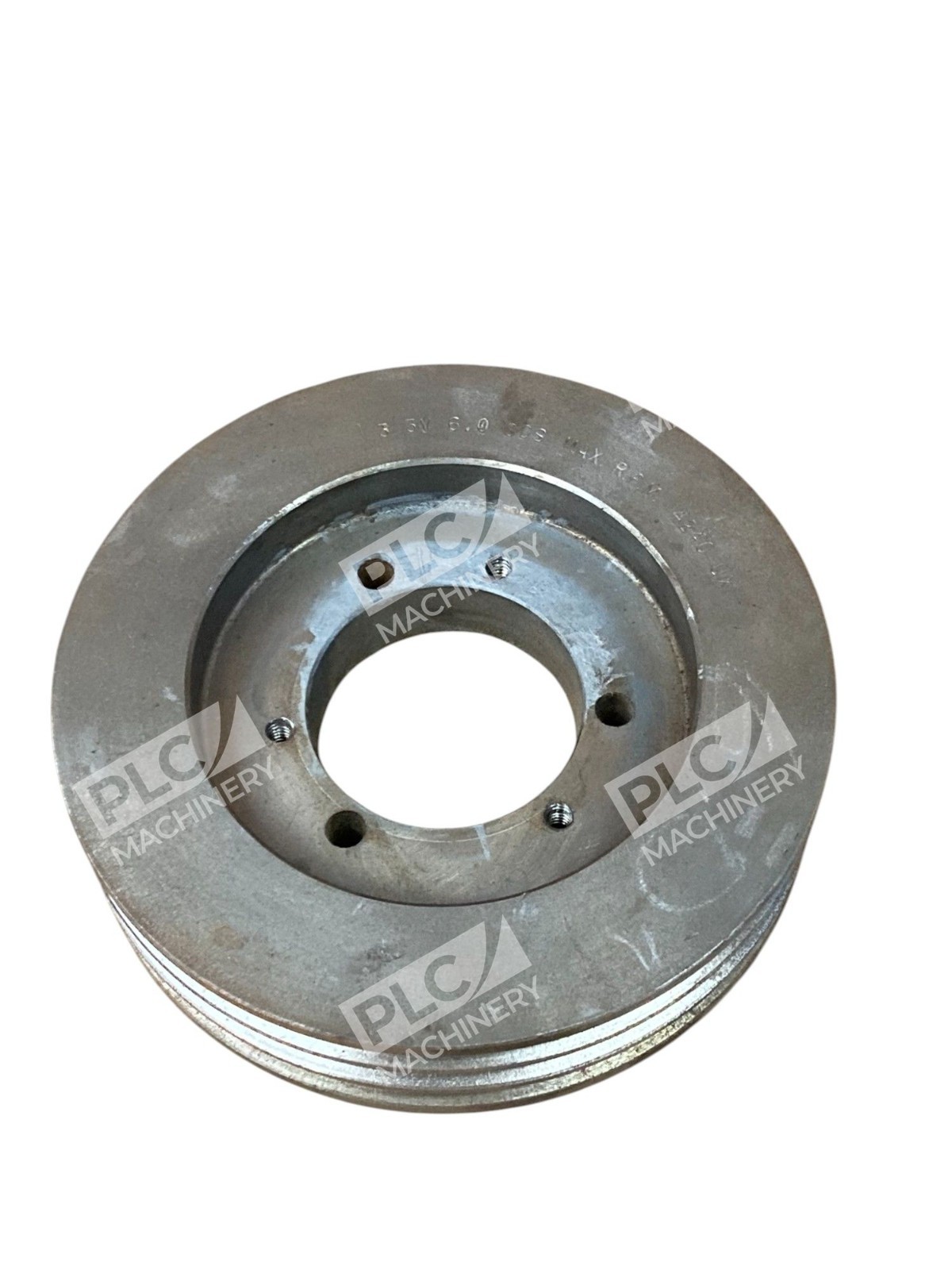

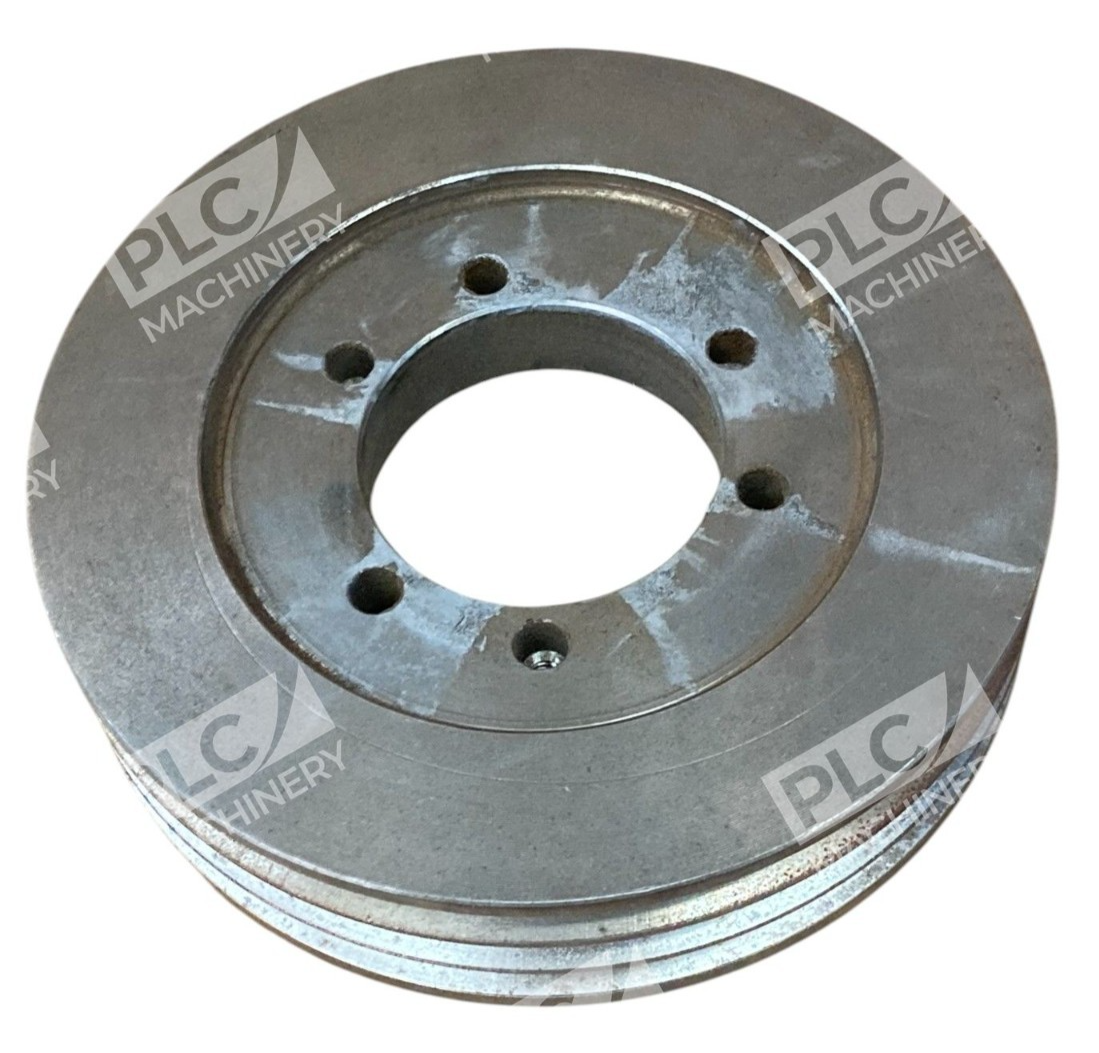

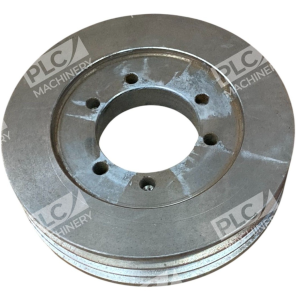

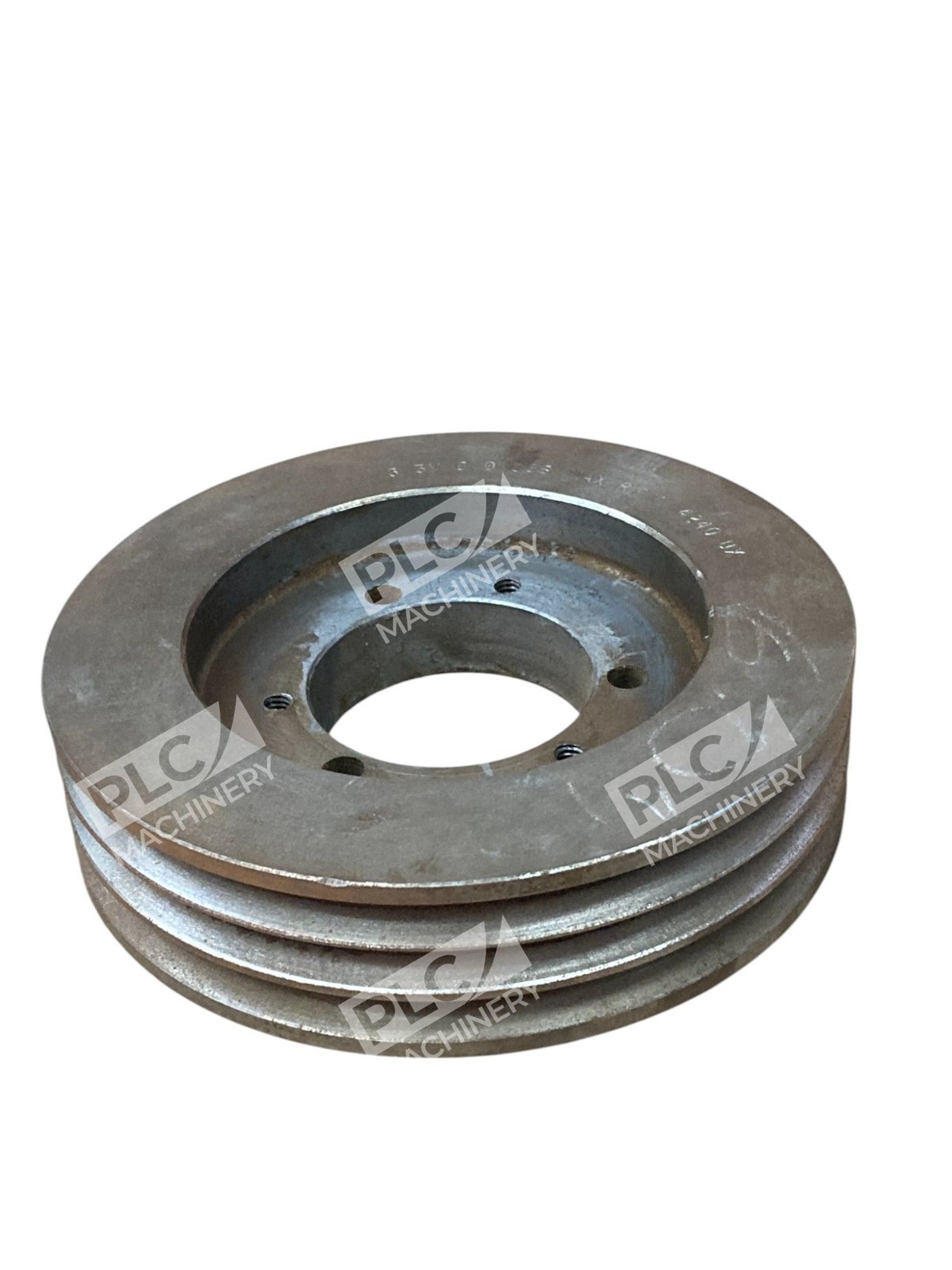

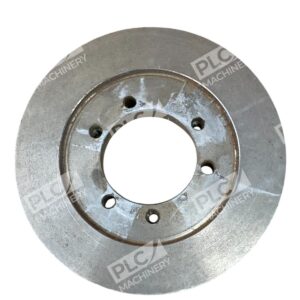

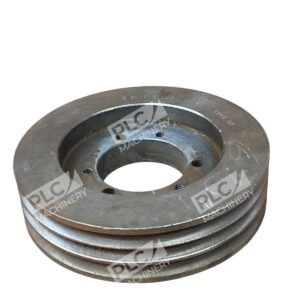

The Dodge 455158 is a heavy-duty 3-groove 3V section sheave manufactured to ISO 9002 quality standards. This 6.0″ OD model features a Type D1 taper-lock bore with SDS quick-disconnect bushing, compatible with shaft diameters from 7/16″ to 2″. Cast iron construction provides the durability needed for continuous-duty industrial power transmission applications.
Key Features
- 3-groove 3V belt section design for Hi-Cap wedge V-belt compatibility
- 6.0″ outside diameter with 5.95″ pitch diameter
- SDS quick-disconnect bushing for fast shaft installation and removal
- Cast iron gray construction for standard rim speeds up to 6500 feet per minute
- 1-1/2″ face width for proper belt alignment
- Type D1 taper-lock bore system
- Manufactured to RMA/MPTA joint industry standards for extended belt life
Technical Specifications

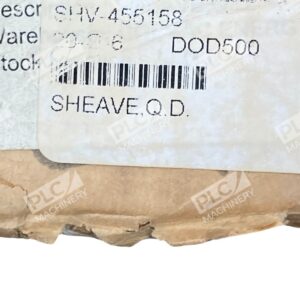

- Manufacturer Part Number: 455158

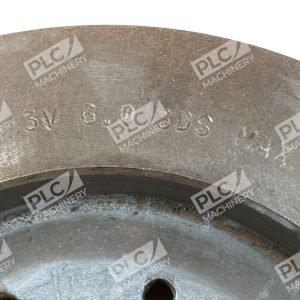

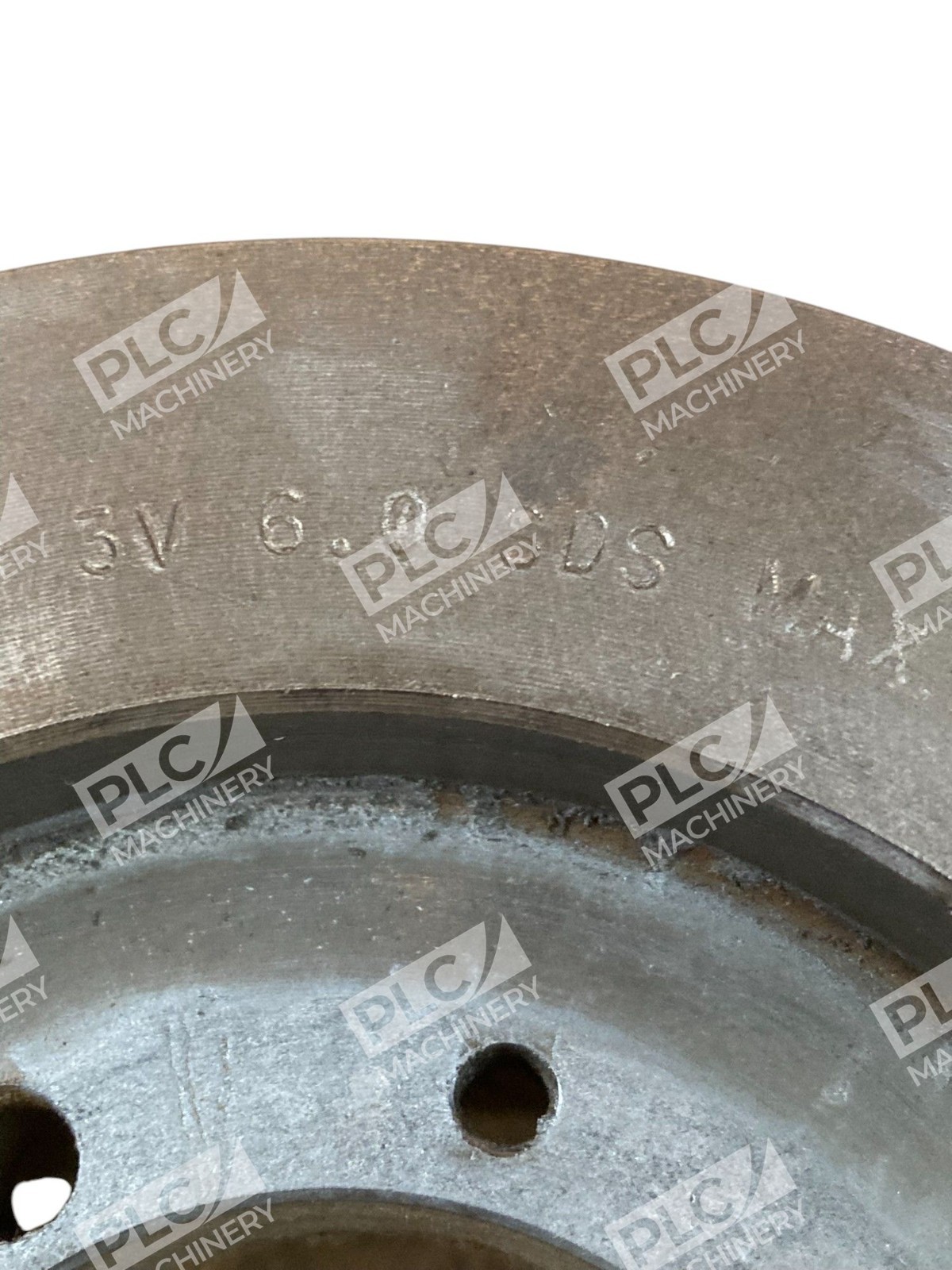

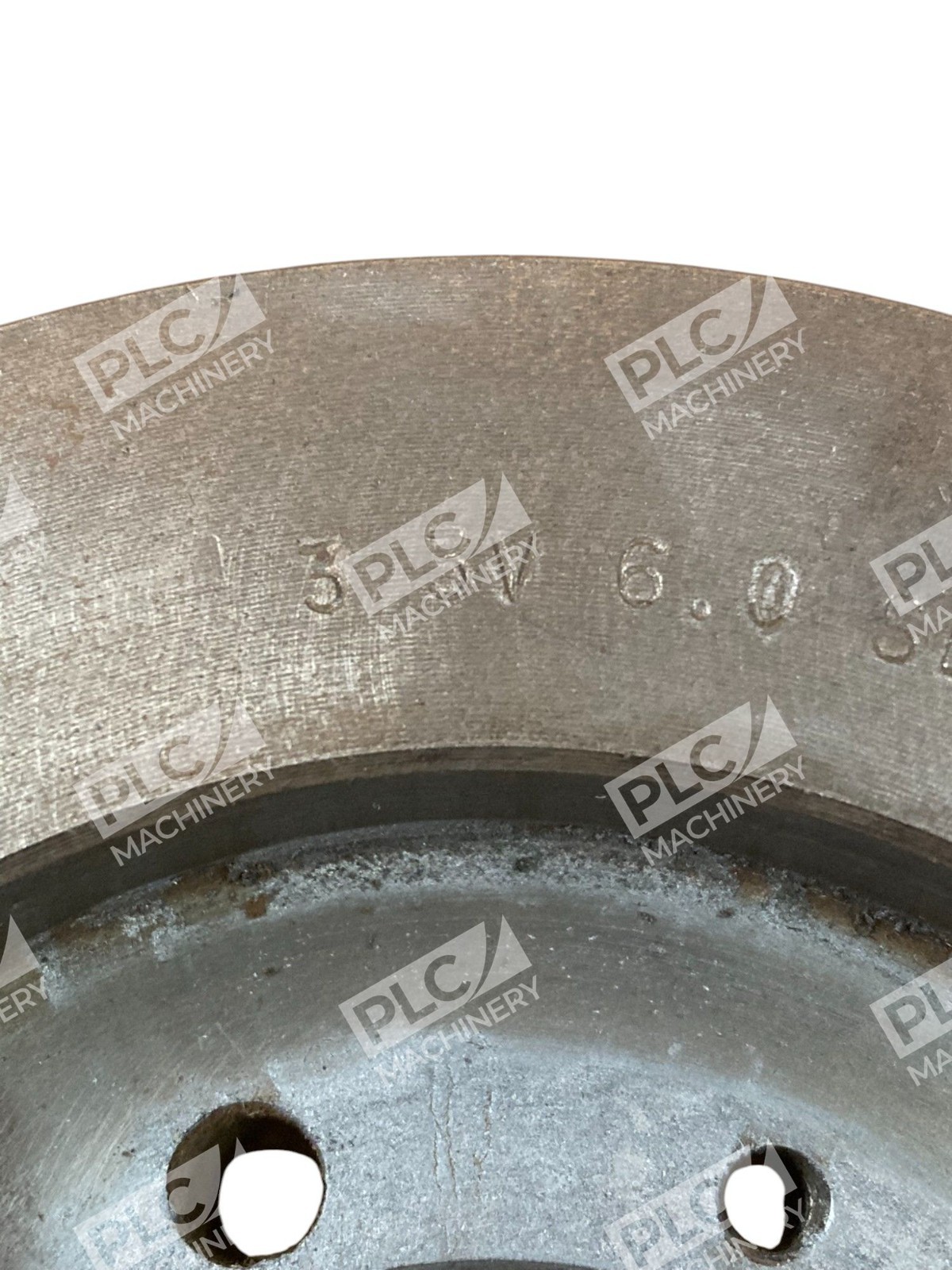

- Sheave Configuration: 3-3V6.0-SDS
- Outside Diameter: 6.0 inches
- Pitch Diameter: 5.95 inches
- Number of Grooves: 3
- Belt Section: 3V (0.375″ top width)
- Face Width: 1.5 inches
- Bore Type: Taper-Lock (Type D1)
- Bore Range: 7/16″ to 2.0″ shaft diameter
- Bushing Type: SDS Quick-Disconnect
- Construction Material: Gray Cast Iron

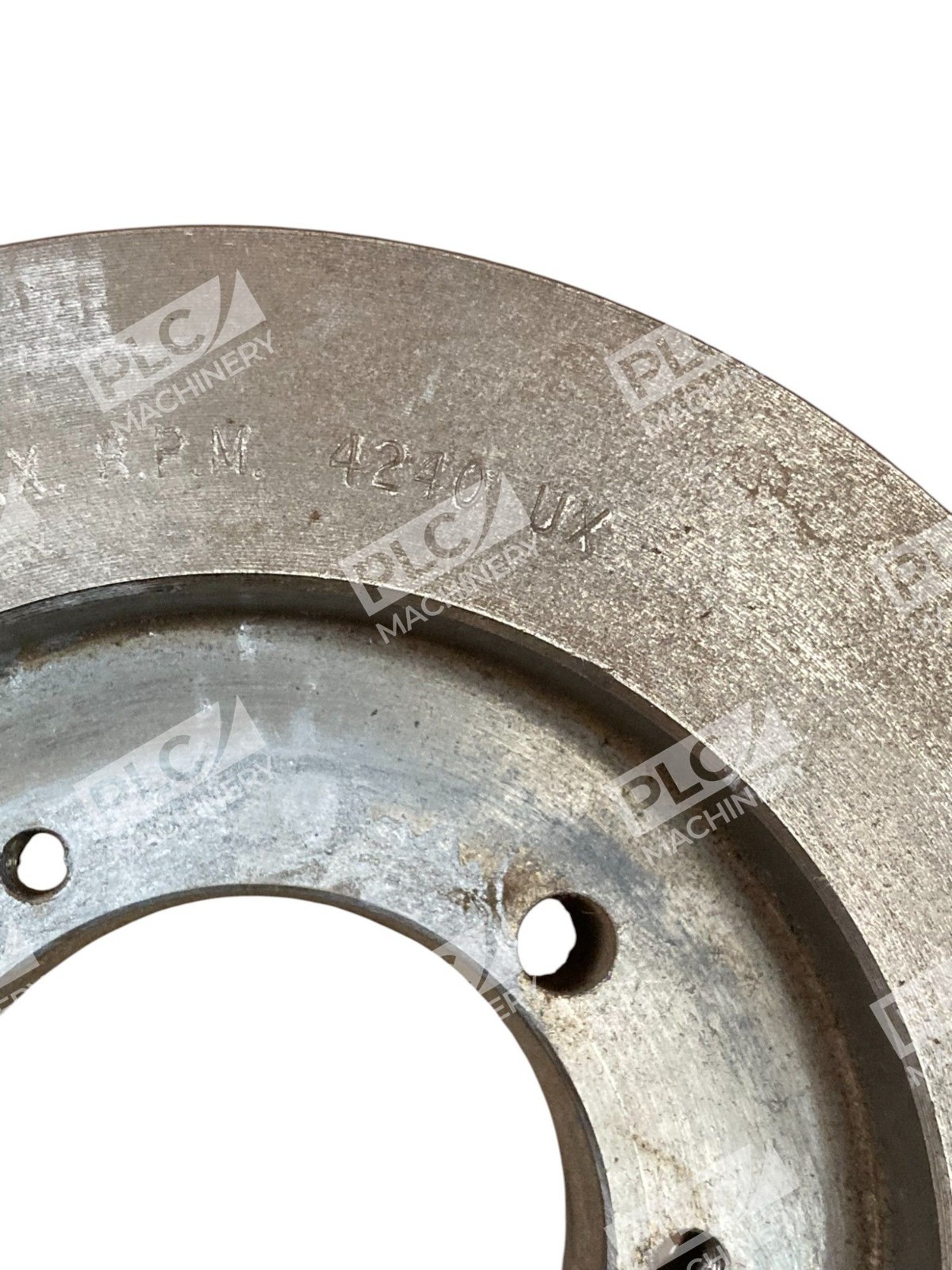

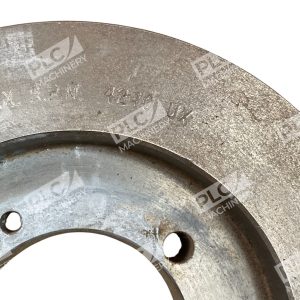

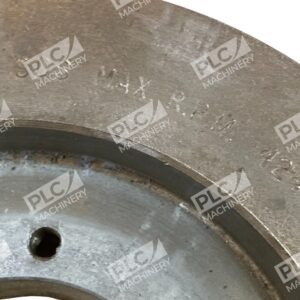

- Maximum Rim Speed: 6500 feet per minute (stock construction)
- Quality Standard: ISO 9002, RMA/MPTA certified
Typical Applications
The Dodge 455158 sheave is ideal for:
- Industrial motor-driven conveyor systems
- Pump and compressor drive applications
- Machine tool belt drive systems
- Agricultural equipment power transmission
- HVAC blower and fan drives
- General purpose V-belt drive systems operating at standard speeds
Compatibility & Replacements
Compatible With
- 3V cross-section Hi-Cap wedge V-belts
- Standard taper-lock bushing systems (SDS quick-disconnect)
- Belt drive motors from 1/4 HP to 5 HP typical range
- Industrial power transmission equipment using 3V belt sections
Replaces / Drop-In Replacement For
- TB Woods 3V603 sheave (equivalent 6.0″ OD, 3 groove 3V configuration)
- Martin 3 3V 600 SDS QD bushed sheave (alternative equivalent)
- Other OEM 3-groove 3V 6.0″ sheaves with compatible taper-lock bores
Works With
- 3V Hi-Cap wedge belts from all major manufacturers (Gates, Bando, Browning, Continental)
- SDS quick-disconnect bushings and standard taper-lock bushings
- AC and DC motors with standard shaft sizing
- Variable frequency drives (VFDs) for speed control applications
