Overview

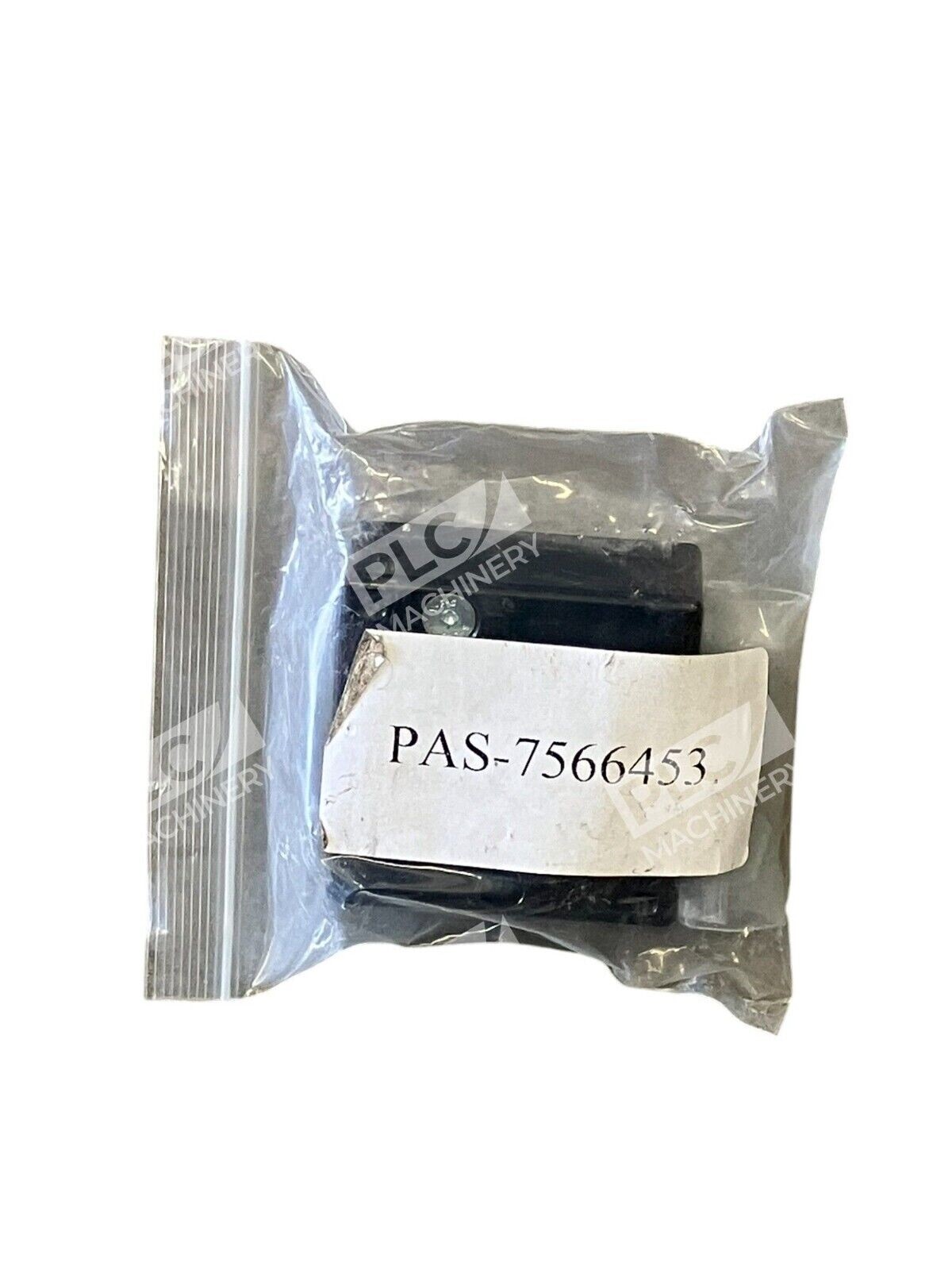

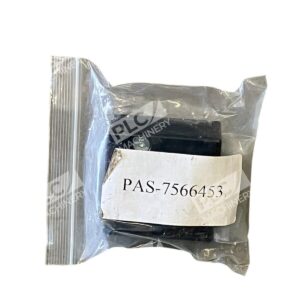

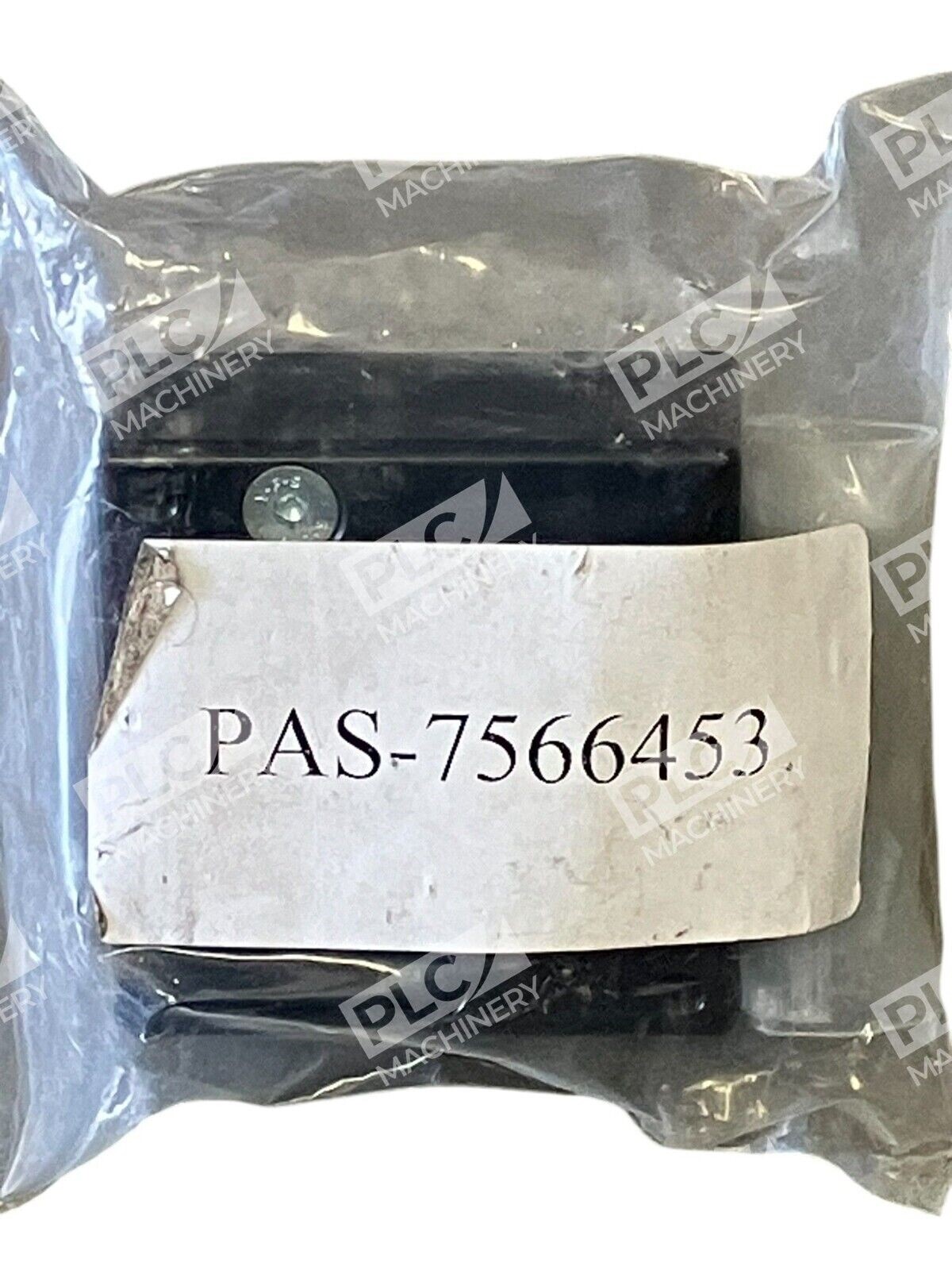

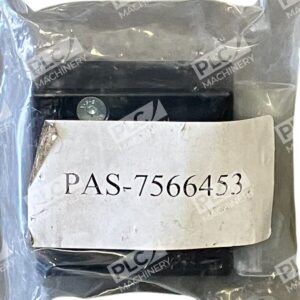

The Macron Dynamics PAS-7566453 is a genuine drive pulley assembly engineered for high-performance linear motion control. As part of Macron’s comprehensive belt-driven actuator ecosystem, this component delivers precision, durability, and zero-backlash belt-to-pulley engagement in demanding automation environments. The PAS-7566453 combines one-piece machined construction with stress-proof shaft design to ensure reliable operation across continuous-duty applications.
Key Features
- One-piece machined stress-proof shafted pulley design for maximum durability and backlash-free operation
- Corrosion-resistant aluminum and stainless steel construction for washdown and industrial environments
- Zero-backlash belt-to-pulley interface for precision motion repeatability
- Compatible with Macron MSA series belt-driven linear actuators
- Engineered for high-speed and heavy-load capacity applications
Technical Specifications
Verify the following specifications with your system integrator or contact Macron Dynamics directly for detailed dimensional and performance data:
- Part Number: PAS-7566453
- Product Type: Drive Pulley Assembly
- Manufacturer: Macron Dynamics, Inc.
- Design: One-piece machined, stress-proof shafted
- Material Construction: Corrosion-resistant aluminum and stainless steel
- Application: Belt-driven linear actuators (MSA series)
Typical Applications
Macron Dynamics drive pulleys are used in:
- Material handling and conveyor systems
- Automated assembly and pick-and-place robotics
- Cartesian gantry and multi-axis positioning systems
- Industrial packaging and automation equipment
- Machine tool positioning and feed mechanisms
Compatibility & Replacements
Compatible With
- Macron Dynamics MSA series belt-driven linear actuators (MSA-14S, MSA-14N, MSA-14D, MSA-14H, MSA-14L, MSA-14X, MSA-R20 and related models)
- Macron belt-driven automation systems
- Linear motion control and robotics platforms utilizing Macron actuators
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This drive pulley assembly is engineered as a direct replacement for the original equipment pulley in compatible Macron Dynamics linear actuator systems. Contact Macron Dynamics or an authorized distributor for specific replacement model cross-references.
Works With
- Macron Dynamics belt and tension assemblies
- Standard timing belt systems (confirm belt pitch and profile with manufacturer)
- Macron T-slot mounting and frame components
- Linear actuator motor mounting and gearbox adapters
