Overview

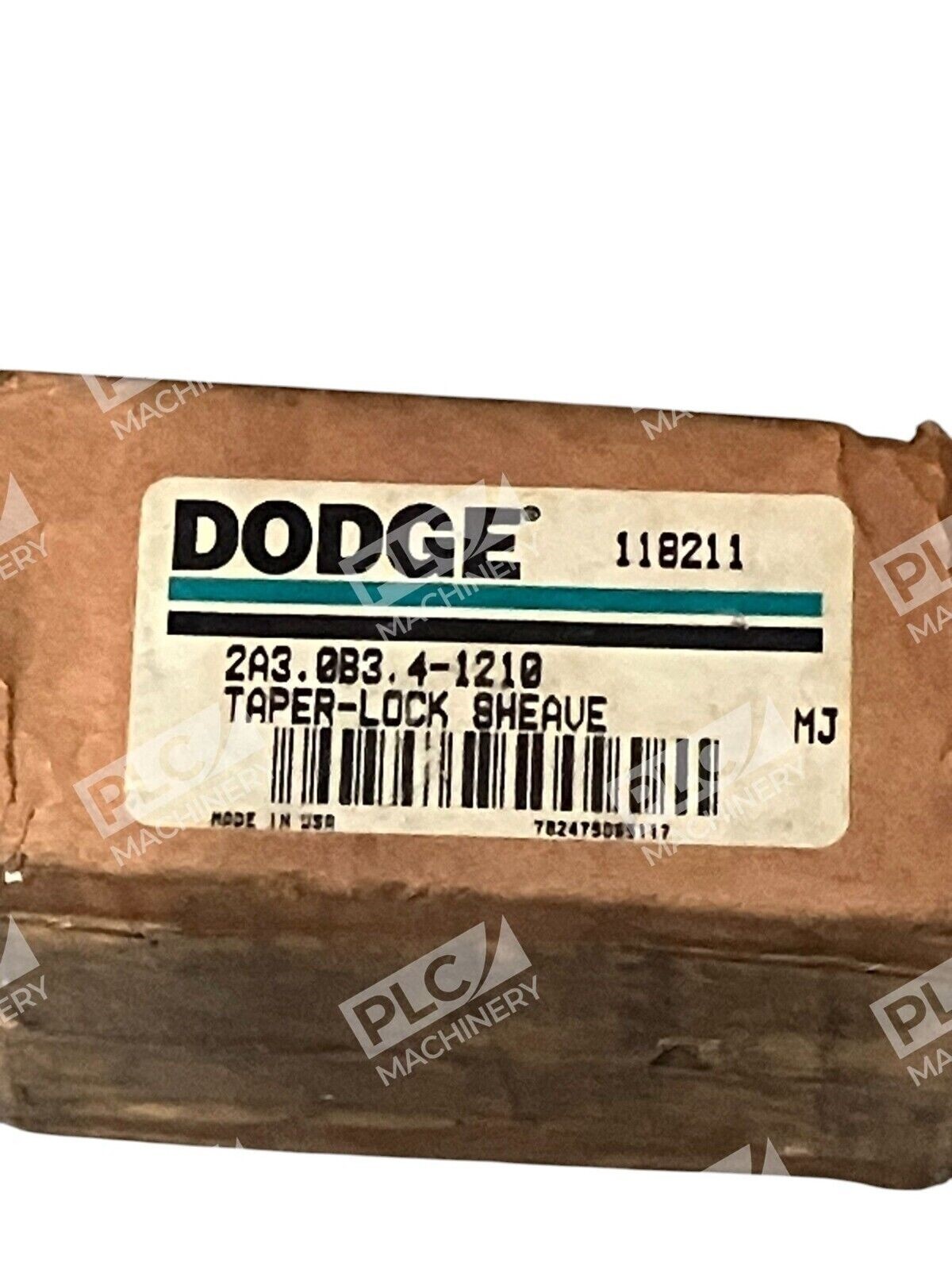

The Dodge 118211 is a precision-engineered taper-lock sheave designed for mechanical power transmission applications. This Type A1 sheave accommodates A and B cross-section V-belts and features a versatile 1/2″ to 1-1/4″ bore range via the 1210 taper-lock bushing, making it suitable for multiple shaft diameters without requiring different pulleys.
Key Features
- Taper-Lock Bushing System: Slide the sheave taper bore into position over the mating tapered bushing surface and align unthreaded holes with threaded bushing holes for quick installation and removal
- Cast Iron Construction: Manufactured in plants certified to ISO 9002 quality standards, ensuring durability and precision
- Dual Belt Compatibility: Accepts both A and B cross-section V-belts in a single sheave body
- No Lubrication Required: Do not lubricate the bushing taper, hub taper, bushing bore or the shaft, and do not use lubricants — maintenance-free operation
- ISO 9002 Certified Manufacturing: Manufactured under strict quality control assurances with precision machining to exceed extended belt life requirements
Technical Specifications
- Bore Type: Taper-Lock (1210 bushing required)
- Bore Range: 1/2″ to 1-1/4″ adjustable
- Belt Compatibility: A and B Cross-Section V-Belts
- Material: Cast Iron
- Bushing Series: 1210 Taper-Lock
- Quality Certification: ISO 9002
Typical Applications
Dodge 118211 taper-lock sheaves are widely used in:
- Industrial motor-driven conveyors and material handling systems
- Machine tool drives and spindle applications
- Fan and blower systems requiring variable-speed operation
- Pump and compressor drive systems
- Manufacturing equipment with standard V-belt drive configurations
Compatibility & Replacements
Compatible With
- Standard A and B cross-section V-belts
- Shafts sized 1/2″ to 1-1/4″ diameter (with 1210 bushing)
- Industrial motor drives with variable-speed belt transmission
- Standard V-belt drive assemblies in manufacturing and processing equipment
Replaces / Drop-In Replacement For
The Dodge 118211 is a specific Type A1 sheave configuration. Direct replacement compatibility depends on exact bore, groove count, and pitch diameter requirements. Verify dimensions with your system integrator or equipment manufacturer before ordering to ensure proper fit and belt alignment.
Works With
- Dodge 1210 Taper-Lock bushings (required for installation)
- Standard V-belt drive systems (A and B section)
- Any shaft size within 1/2″ to 1-1/4″ bore range when paired with appropriate 1210 bushing
- Industrial conveyor, pump, fan, and motor-driven applications
