Overview

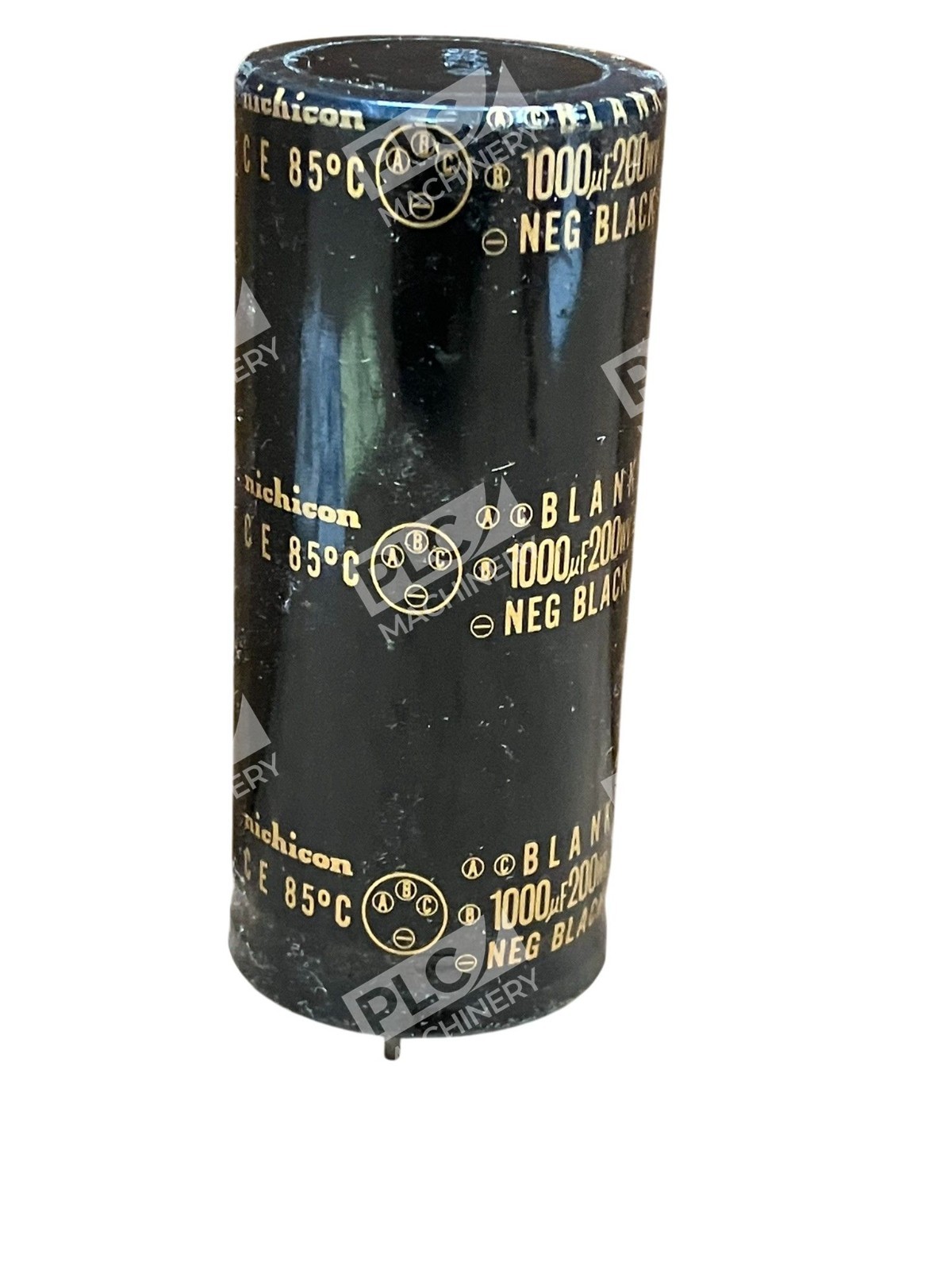

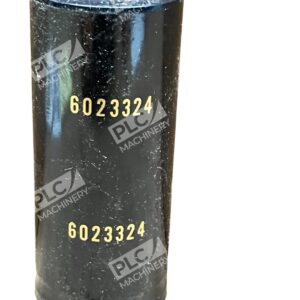

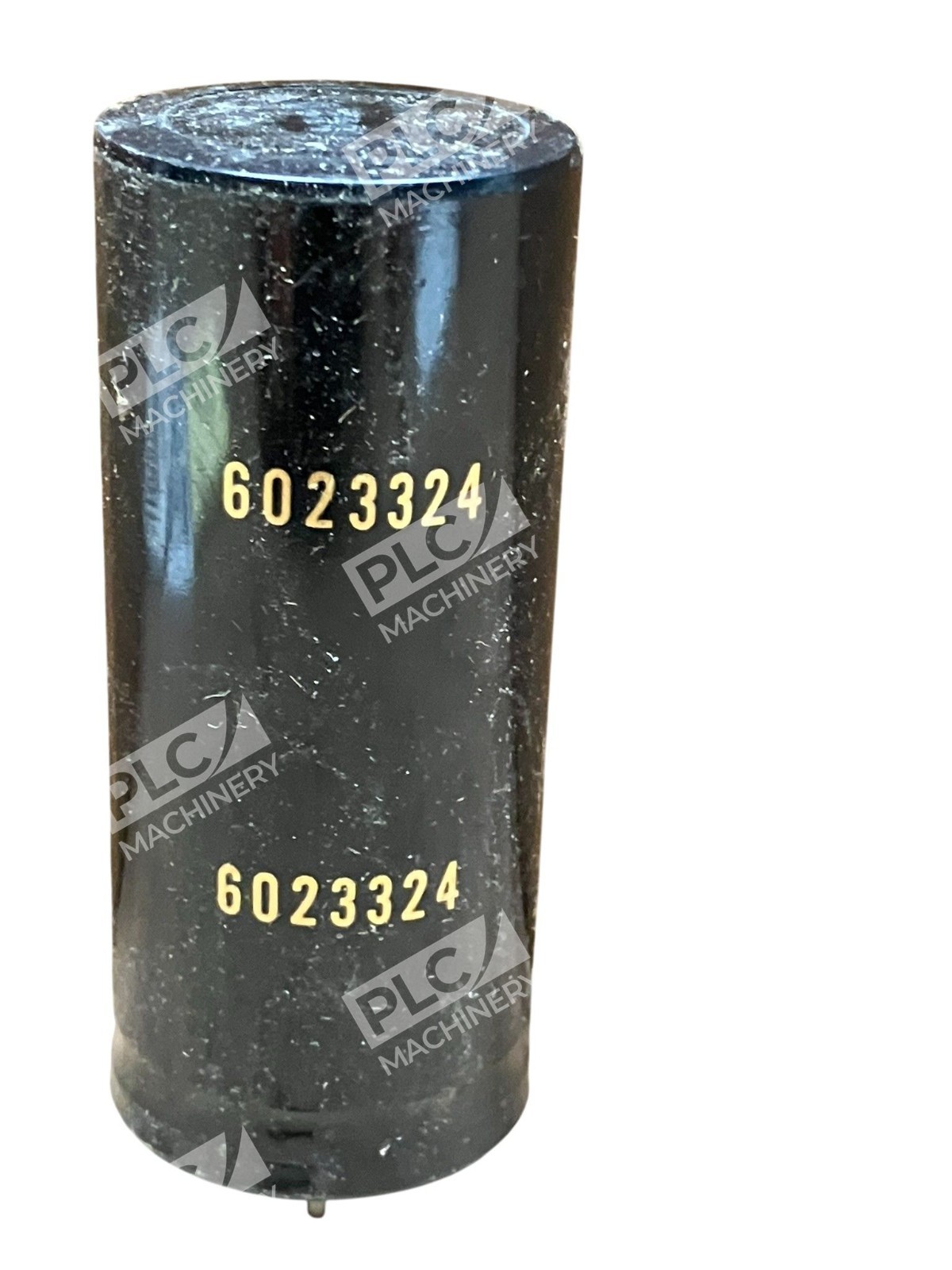

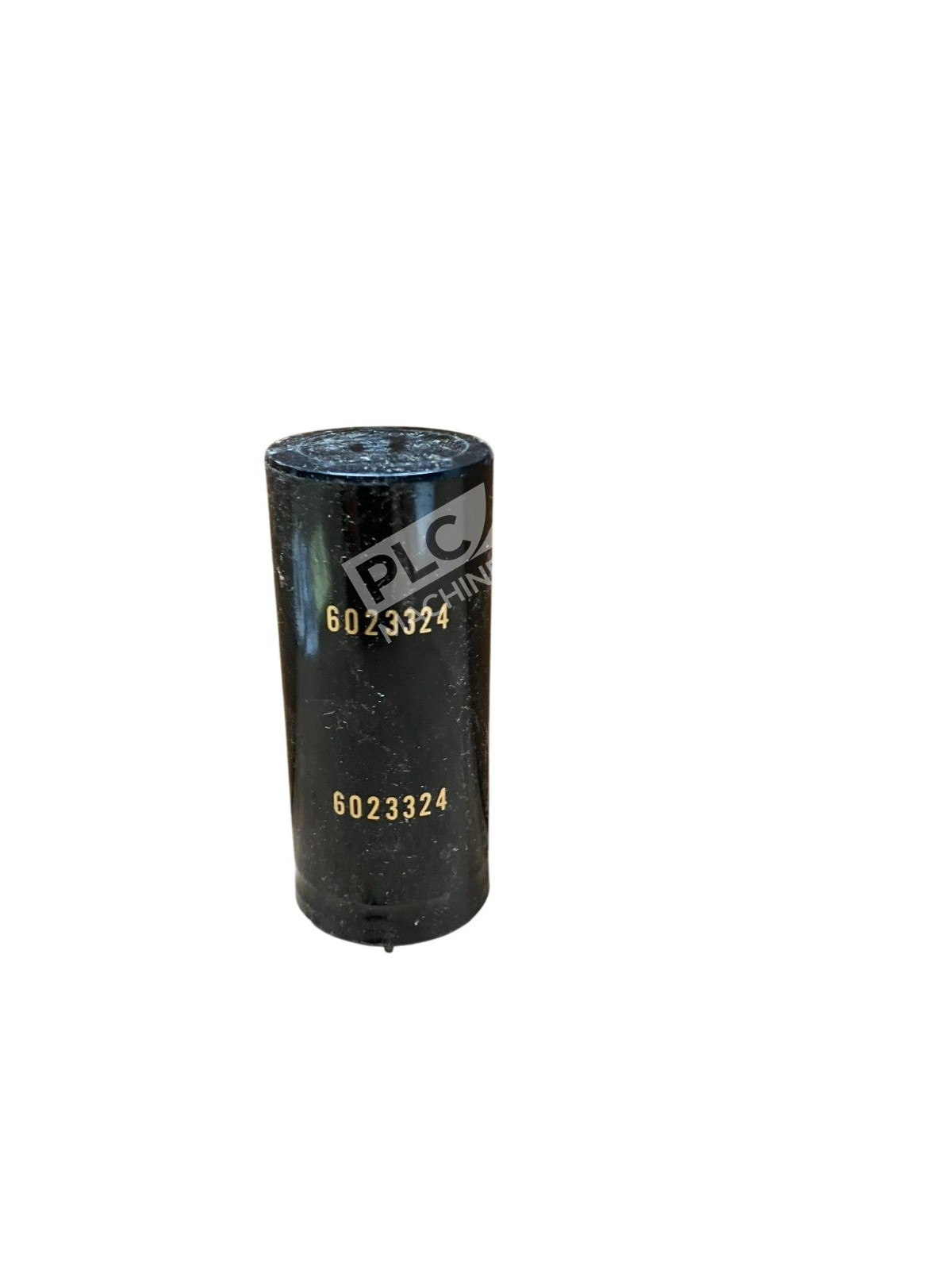

The Nichicon 6023324 is a 1000µF aluminum electrolytic capacitor with a 200V voltage rating and 85°C maximum operating temperature. This radial-lead capacitor is engineered for reliable performance in industrial equipment, switching power supplies, audio amplifiers, and voltage regulation circuits. Nichicon’s long heritage in capacitor manufacturing ensures consistent electrical performance and durability across temperature extremes typical in field equipment.
Key Features
- High capacitance (1000µF) for substantial energy storage
- Rated for 200V DC operation—suitable for industrial and consumer power systems
- 85°C temperature rating supports warm-environment installations
- Aluminum electrolytic construction provides proven reliability
- Standard radial-lead form factor for through-hole PCB mounting
- RoHS-compliant construction meets modern environmental standards
Technical Specifications
- Capacitance: 1000µF ±20% (standard tolerance)
- Voltage Rating: 200V DC
- Operating Temperature Range: –40°C to +85°C
- Capacitor Type: Aluminum Electrolytic
- Polarity: Polarized (negative black stripe)
- Lead Style: Radial
- Series: Nichicon standard industrial/general-purpose line
Typical Applications
The Nichicon 6023324 is commonly deployed in:
- Industrial switching power supplies and DC-DC converters
- Uninterruptible power supply (UPS) battery backup circuits
- Audio amplifier and hi-fi equipment voltage smoothing
- Lighting ballast and driver circuits
- HVAC and machinery control boards requiring bulk energy storage
- Telecommunications and networking equipment power conditioning
Compatibility & Replacements
Compatible With
- Industrial control systems and legacy equipment requiring 200V bulk capacitance
- PCBs with standard 0.1″ (2.54 mm) pitch radial-lead footprints
- Any circuit board or chassis accepting through-hole aluminum electrolytic capacitors at 200V rating
- Applications previously using 1000µF 200V Nichicon units
Replaces / Drop-In Replacement For
The Nichicon 6023324 serves as a direct replacement for equivalent-rated Nichicon 1000µF 200V 85°C capacitors in legacy systems. Verify compatibility with your system integrator or equipment documentation before ordering, as exact model cross-references may vary by production batch.
Works With
- Standard through-hole PCB assembly equipment and manual insertion processes
- Industrial repair and refurbishment workflows
- Retrofit applications restoring high-voltage power supply circuits
- Compatible with any design using standard aluminum electrolytic capacitors
