Overview

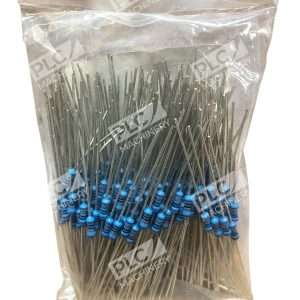

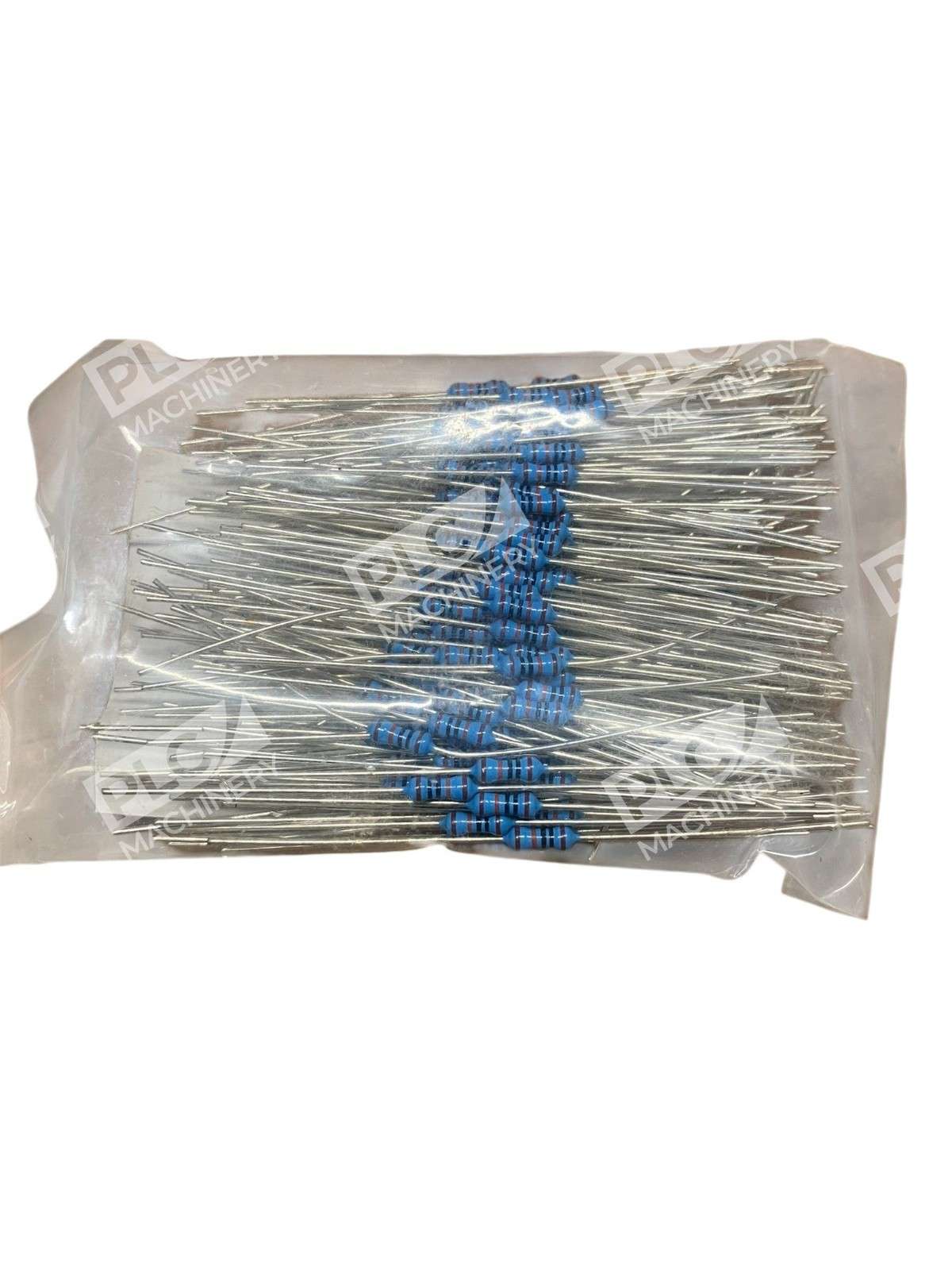

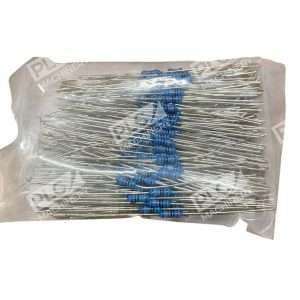

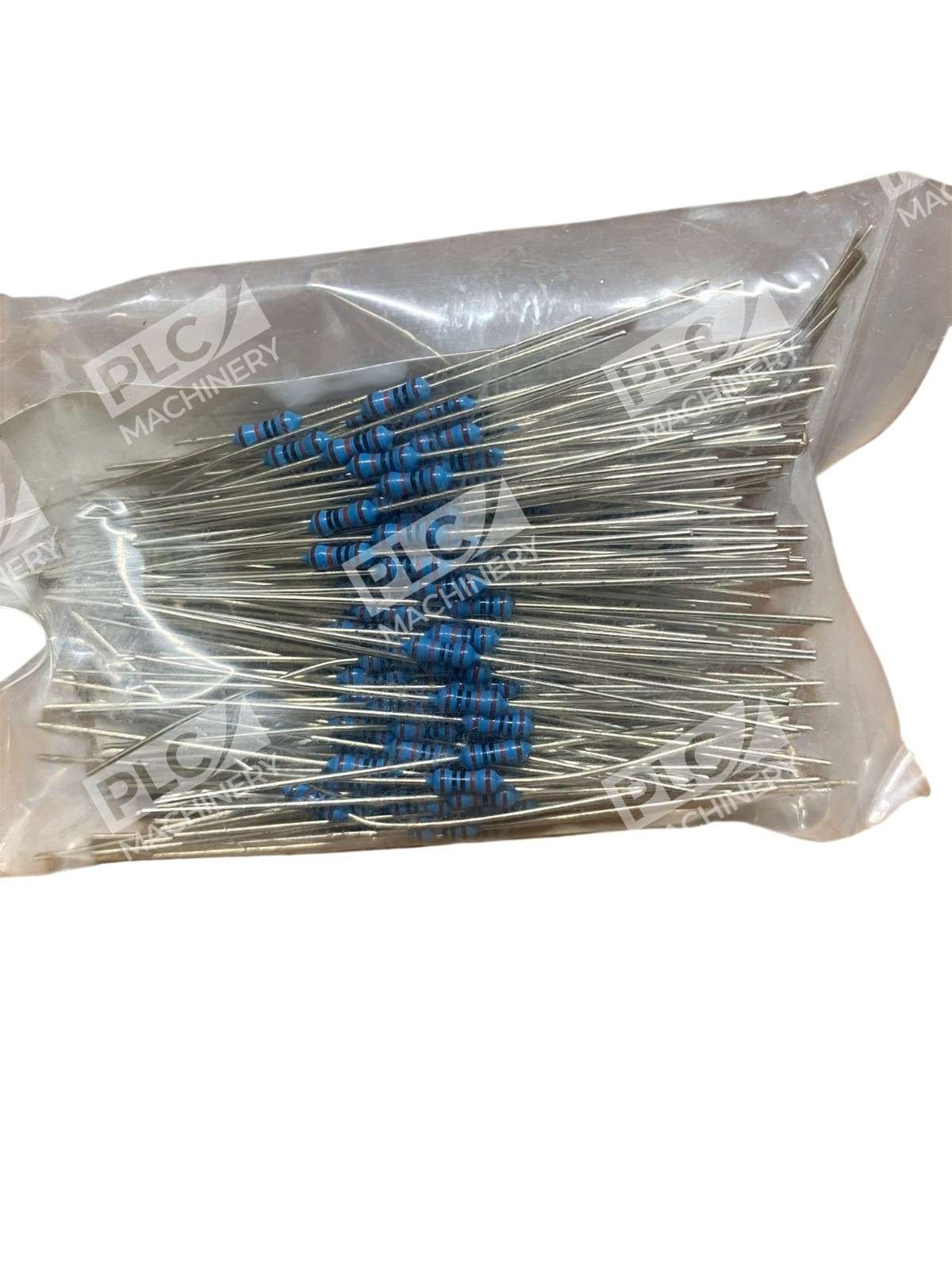

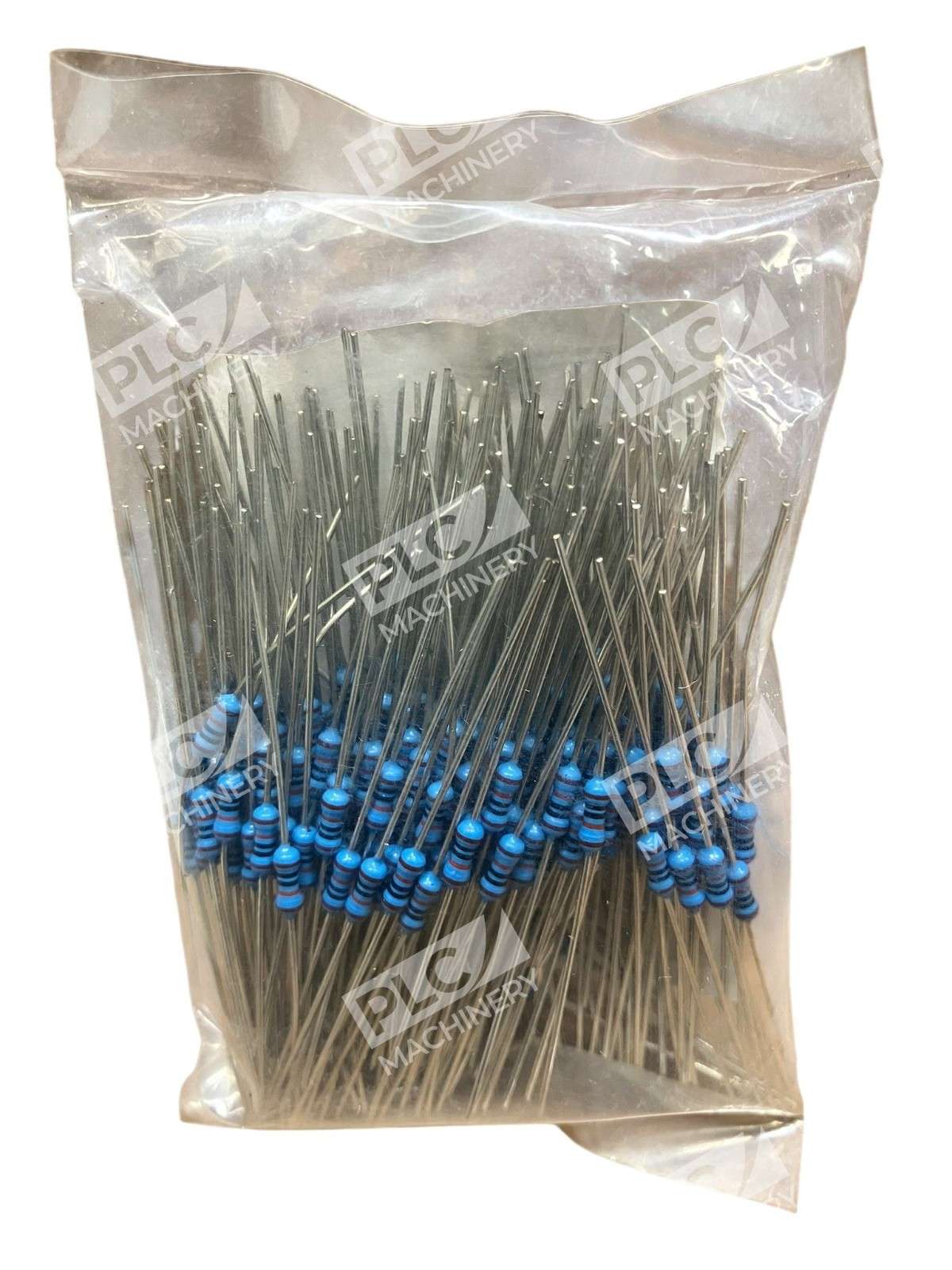

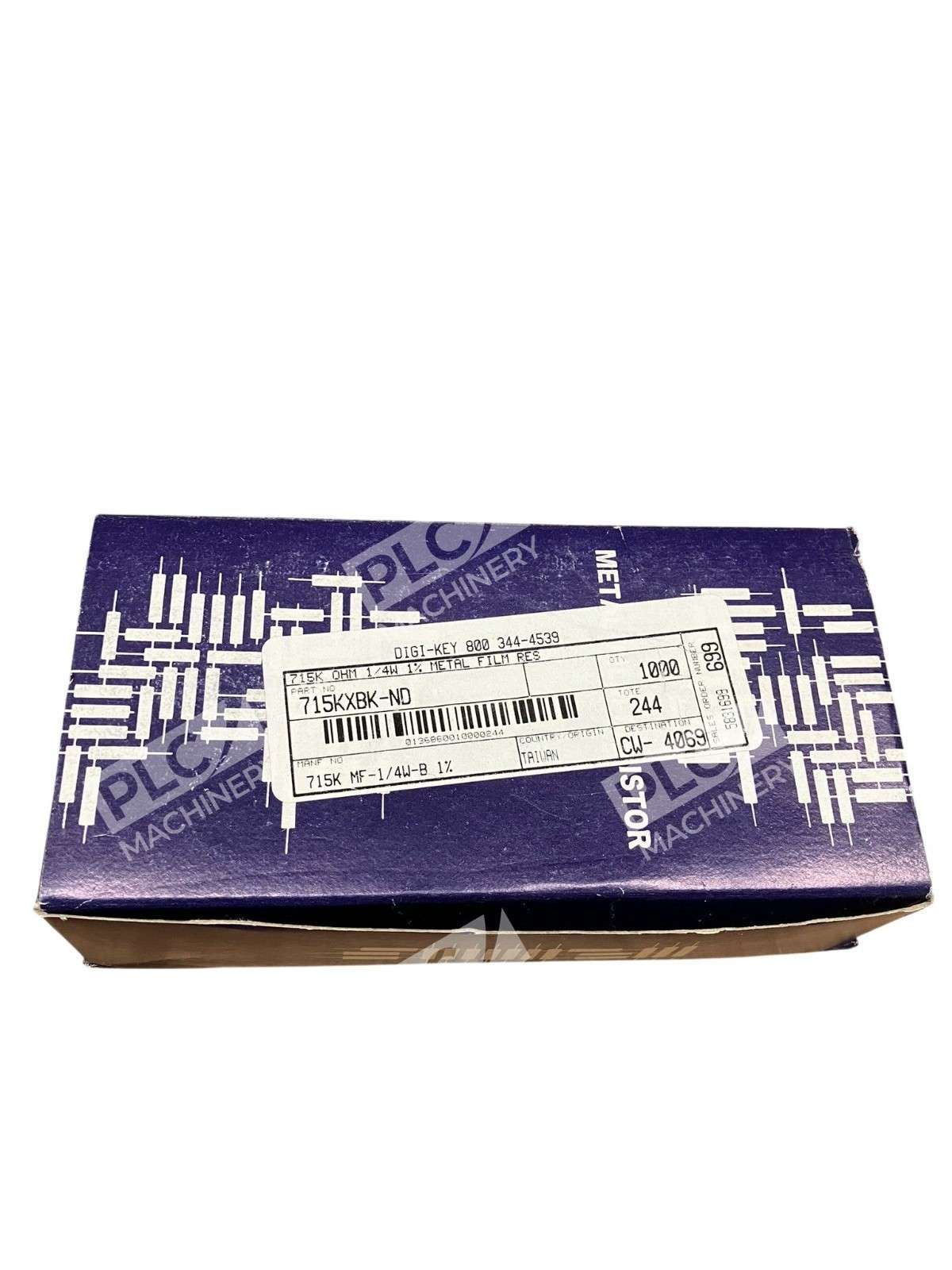

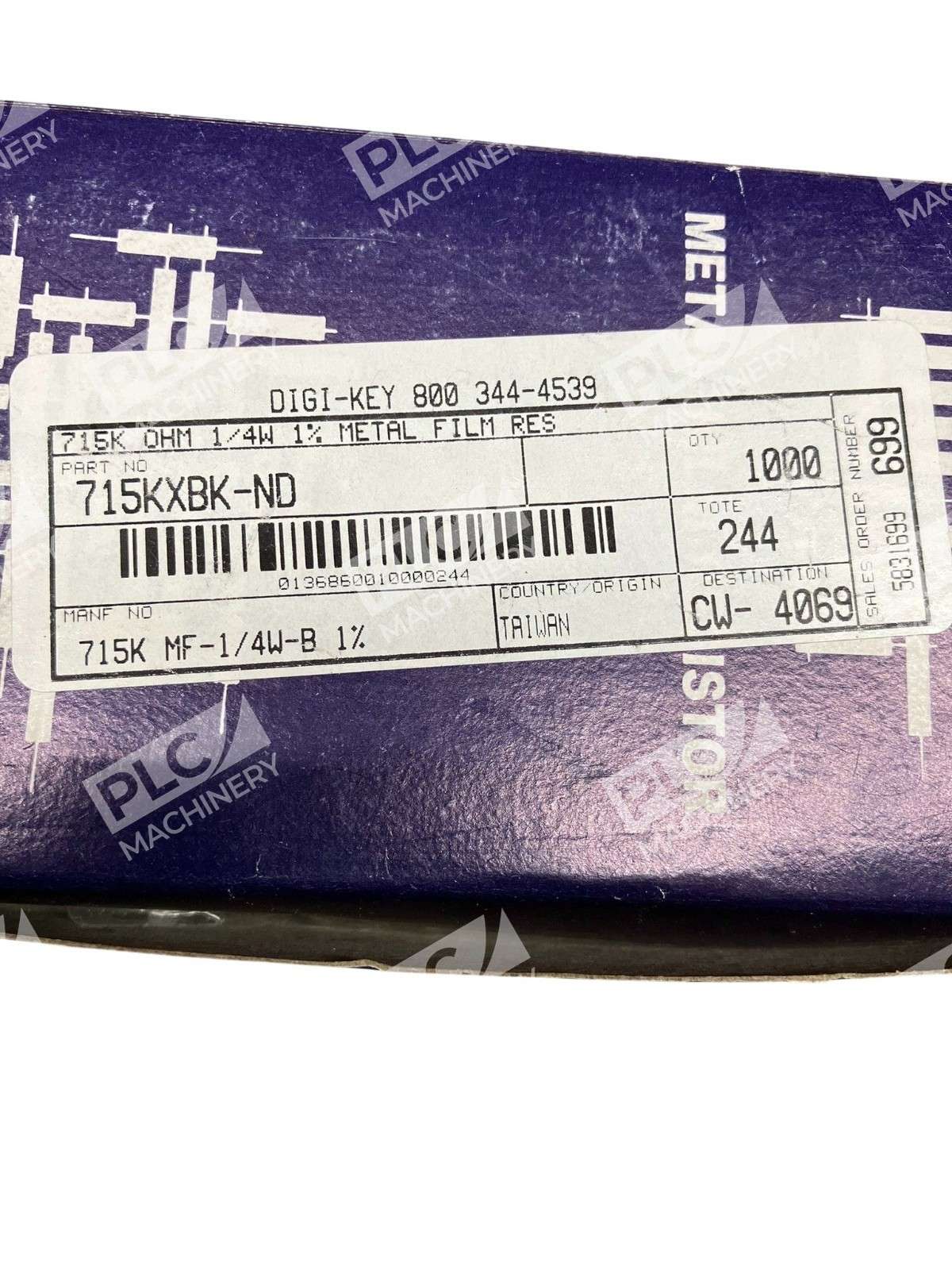

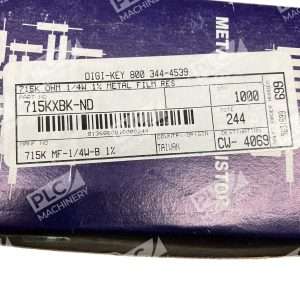

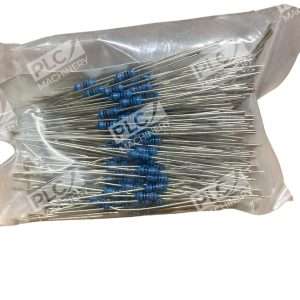

The Yageo 715K metal film resistor is a precision axial-lead component designed for general-purpose electronics, test equipment, and industrial applications. With a 715kΩ resistance value and ±1% tolerance, it delivers the accuracy required for analog circuits and signal conditioning. This box contains 600 units, making it an economical choice for prototyping shops, maintenance departments, and electronics manufacturers.
Key Features
- Resistance value: 715kΩ
- Power rating: 1/4W (0.25W)
- Tolerance: ±1%
- Lead type: Axial, tinned copper
- Quantity: 600 units per box
- RoHS compliant
- Long shelf life and stable performance
Technical Specifications
- Resistance: 715kΩ ±1%
- Power dissipation: 0.25W
- Operating temperature range: typically −55°C to +155°C
- Voltage rating: 350V maximum (typical for 1/4W metal film)
- Frequency range: DC to GHz
- Temperature coefficient: ±100 ppm/°C (typical)
- Noise level: <−30 dB
- Lead spacing: approximately 10mm
- Outer diameter: approximately 2.4mm
Typical Applications
- Analog filter networks and tone controls
- Voltage dividers and bias networks
- Signal conditioning and measurement circuits
- Audio amplifier coupling and biasing
- Test and lab equipment
- Legacy equipment repair and restoration
- Educational prototyping and breadboards
Compatibility & Replacements
Compatible With
- Breadboards and solderless test boards
- PCB-mounted applications with standard 2.54mm lead spacing
- Analog circuits requiring precision resistors
- Signal conditioning and filter designs
- Any circuit calling for a 1/4W, 715kΩ ±1% resistor
Replaces / Drop-In Replacement For
- Generic 715kΩ 1/4W film resistors from other manufacturers
- Yageo MFR series 715kΩ variants
- Equivalent axial metal film resistors in the 700kΩ–720kΩ range (within tolerance)
Works With
- Standard soldering equipment and hand tools
- PCB assembly processes
- RoHS-compliant manufacturing workflows
- Any analog or mixed-signal design using standard component tolerances
