Overview

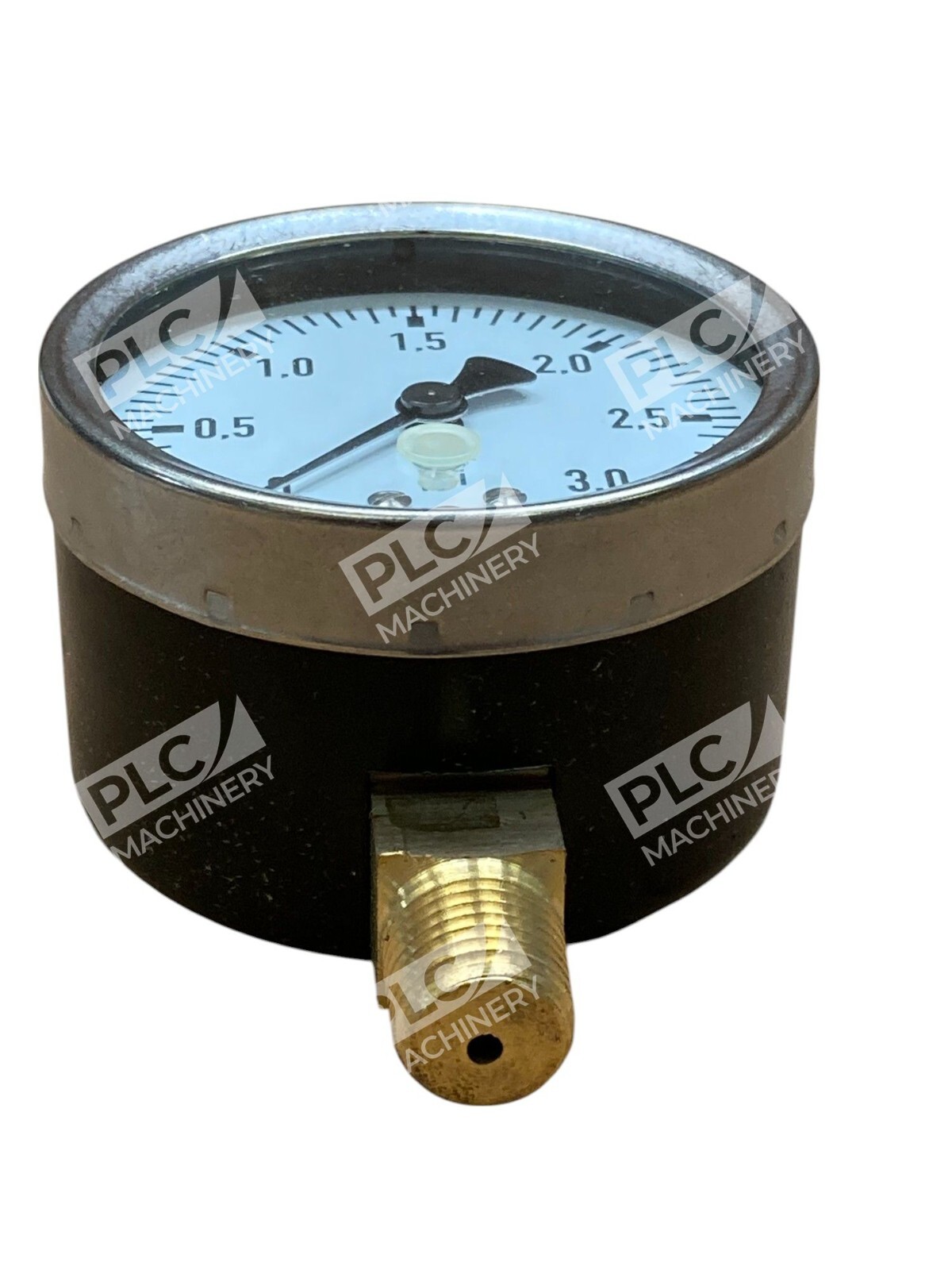

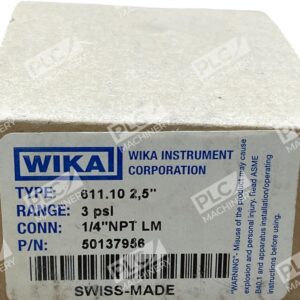

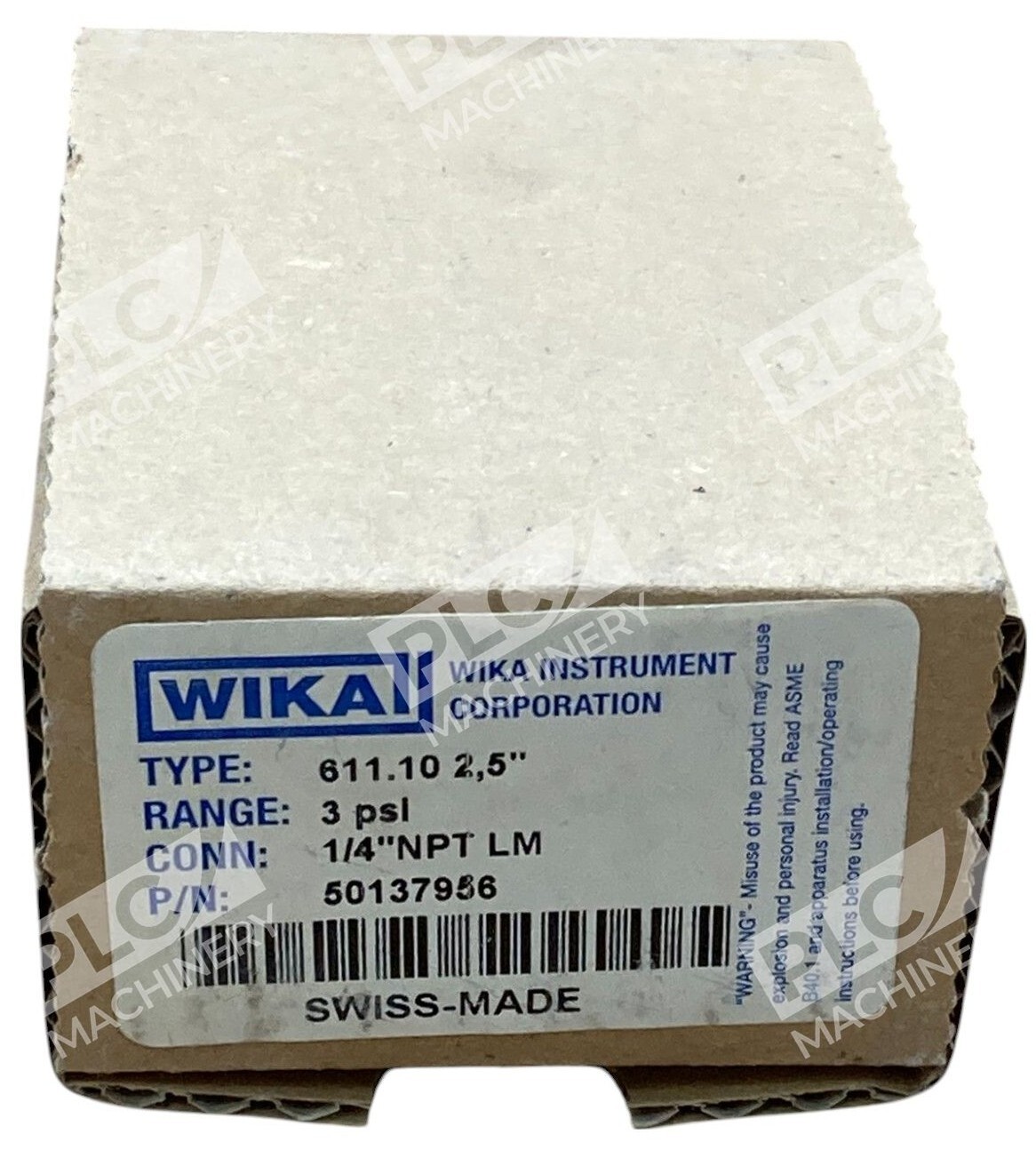

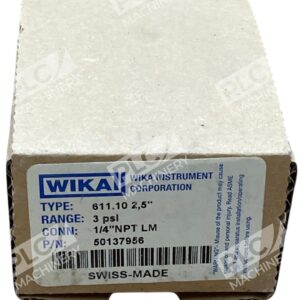

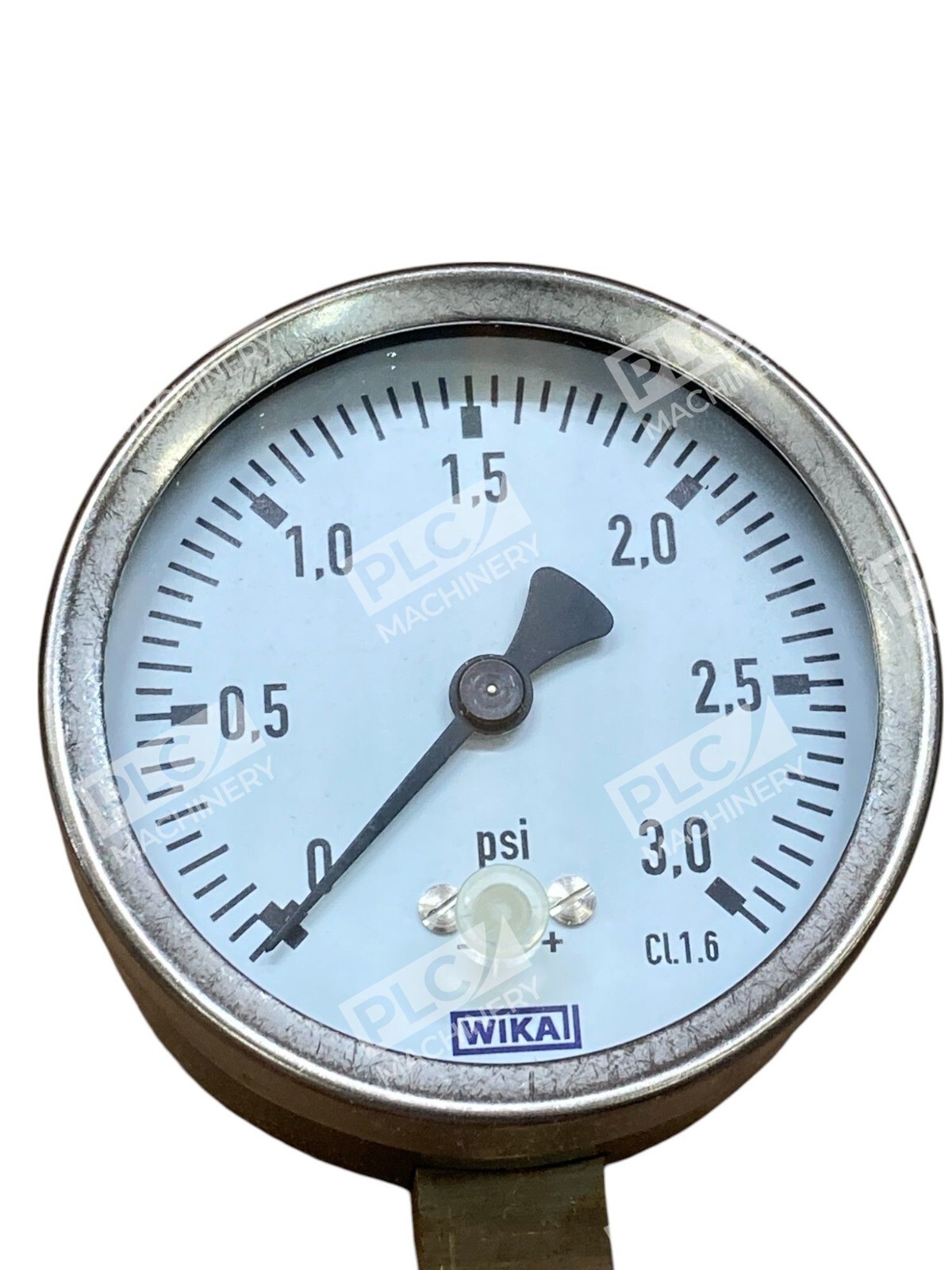

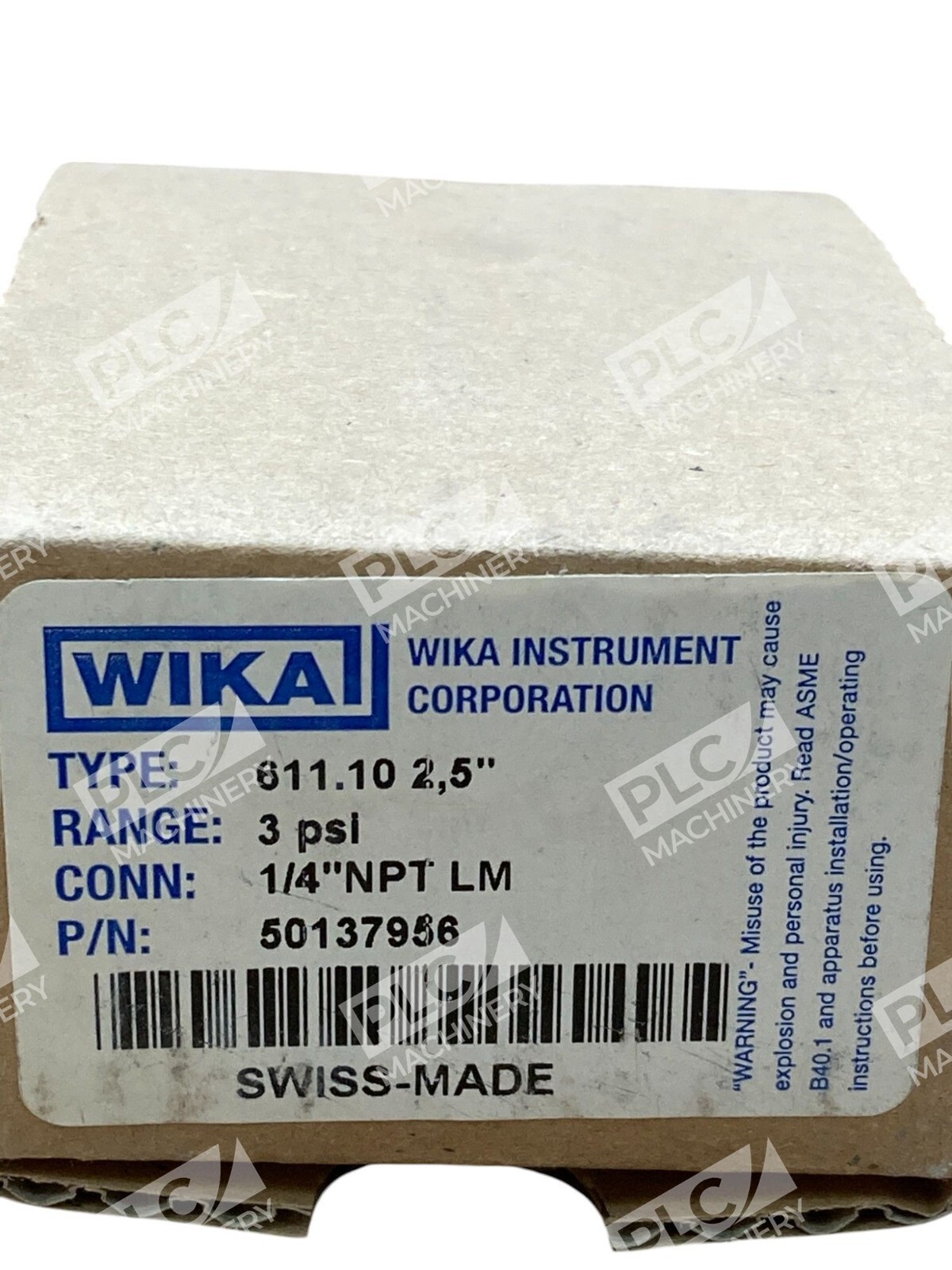

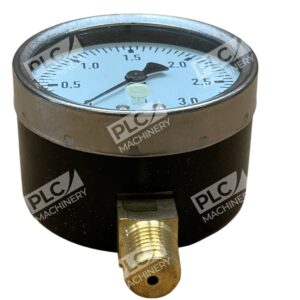

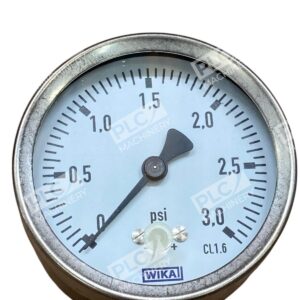

The WIKA 50137956 pressure gauge is part of the 611.10 series of low pressure capsule gauges. This 2.5″ dial model measures pressure ranges from 0-3 PSI with exceptional sensitivity and accuracy, making it ideal for applications requiring precise low-pressure monitoring in industrial systems.
Key Features
- Capsule Element Design: WIKA type 6X1.10 low pressure gauges are extremely sensitive and highly accurate
- Wide Measurement Range: The capsule element pressure system is designed to measure pressure and vacuum of gaseous media from as low as 10″ H2O to 275″ H2O (10 psi)
- Precise Movement: The finely polished nickel-silver pinion gear and shaft of the movement ensure repeatable accuracy
- 2.5″ dial face for clear visibility
- Center-back 1/4″ NPT connection
- Dry gauge design suitable for clean gaseous media
Technical Specifications
See spec table below for detailed dimensions, materials, and operating parameters.
Typical Applications
- Pneumatic system monitoring and control
- Hydraulic circuit low-pressure indication
- Pump discharge pressure measurement
- Plumbing and water system pressure indication
- HVAC and refrigeration systems
- Air compressor outlet monitoring
Compatibility & Replacements
Compatible With
- Standard pneumatic and hydraulic systems with gaseous media
- Industrial automation and process control applications
- OEM equipment requiring low-pressure feedback
- Panel-mount installations with 1/4″ NPT thread ports
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering alternative WIKA 611.10 models with different ranges or connections. The WIKA 50137956 is specifically configured for 0-3 PSI service.
Works With
- Pneumatic regulators and flow control equipment
- Hydraulic manifold blocks and subplates
- Pressure switches and transducers in monitoring circuits
- Standard 1/4″ NPT threaded ports and adapters
