Overview

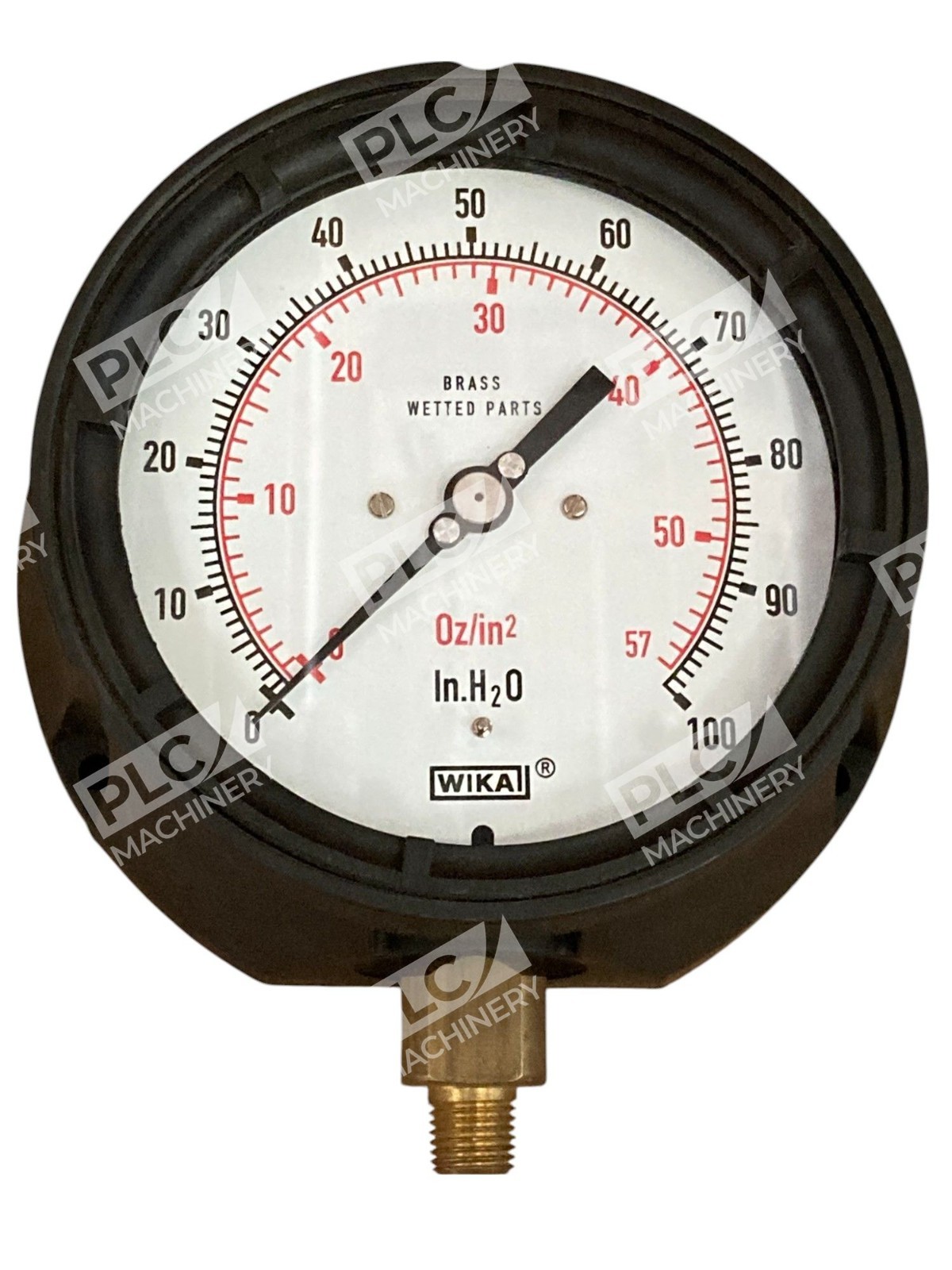

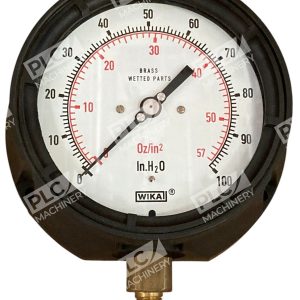

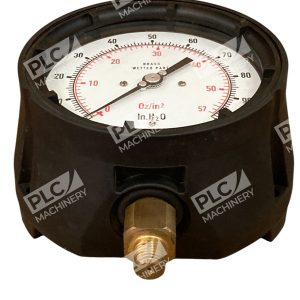

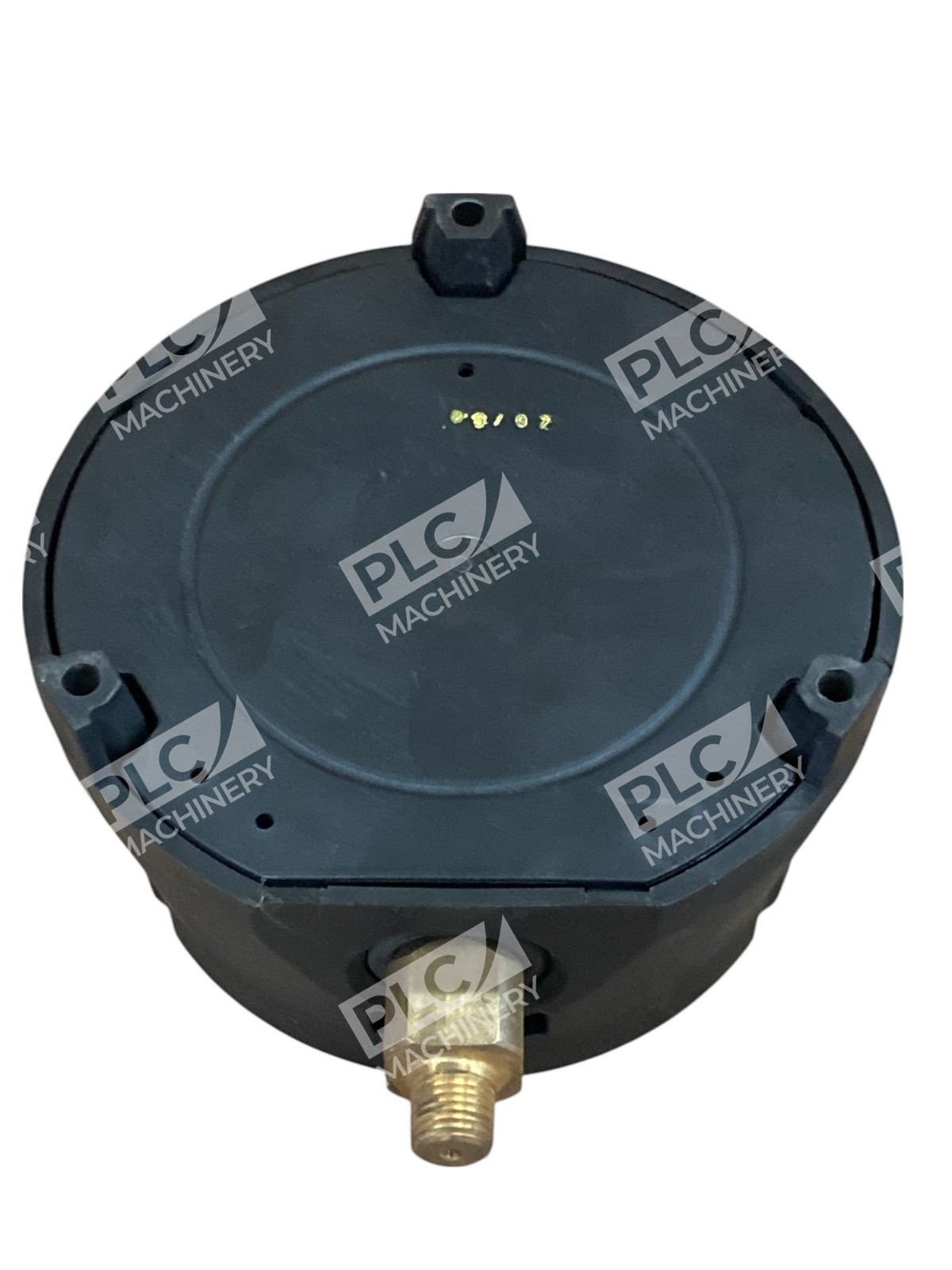

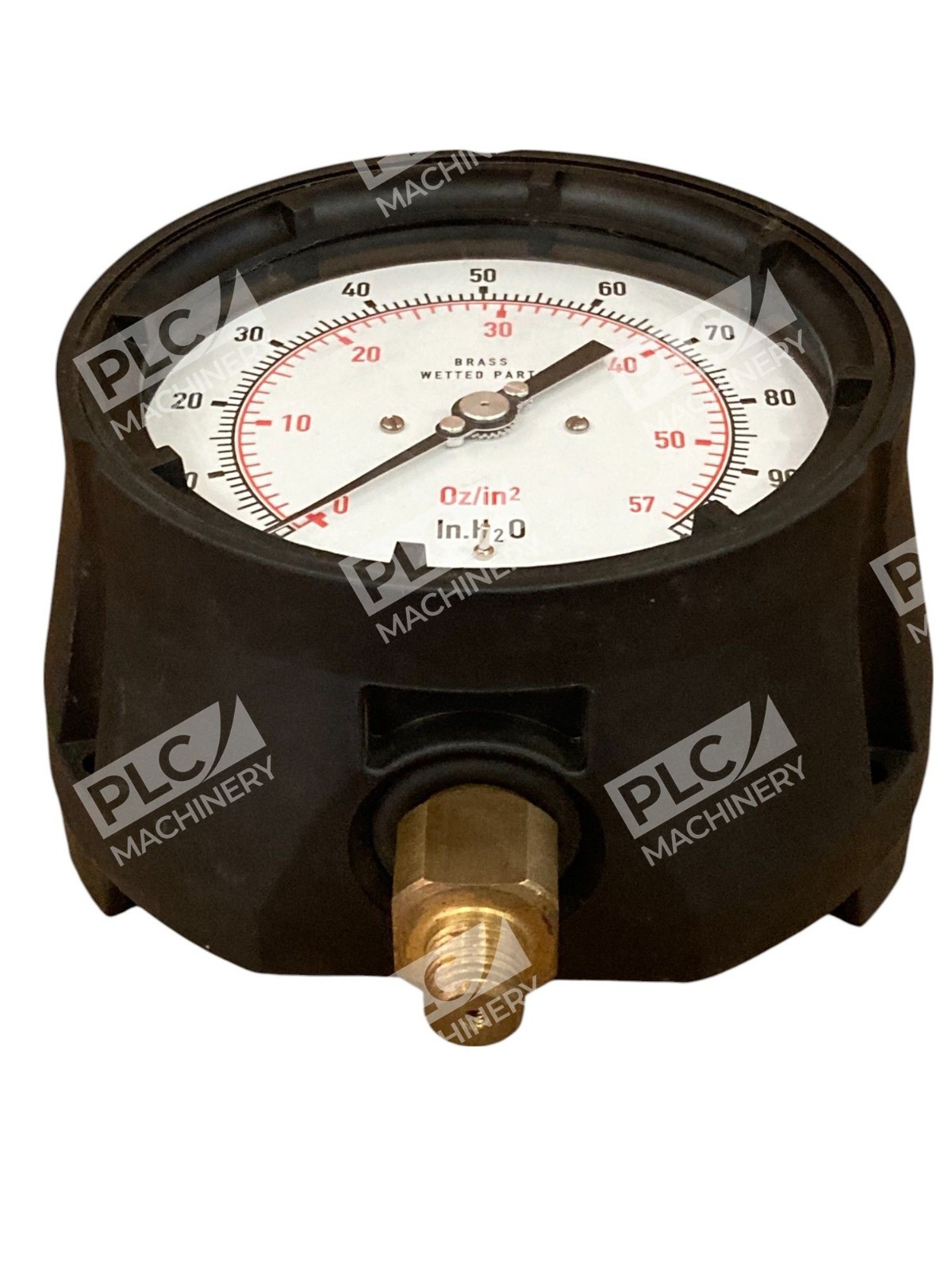

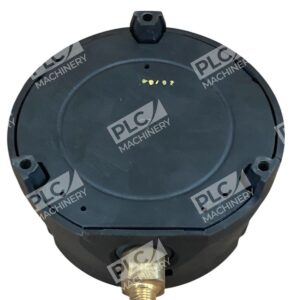

The Wika 0-100 InH2O pressure gauge is a precision instrument designed for low-pressure measurement applications. Built with brass wetted parts, this gauge delivers consistent and reliable readings across the full range of 0–100 inches of water column (InH2O). It meets industry accuracy standards and is widely used in HVAC, process control, and monitoring applications where precise low-pressure data is critical for system performance and safety.
Key Features
- Brass wetted parts resist corrosion and ensure long service life in low-pressure environments
- Measuring range: 0–100 InH2O (inches of water column)
- Suitable for gaseous and liquid media in non-aggressive applications
- Complies with ASME B40.100 accuracy standards
- Compact dial design for easy readability in tight installations
- Cost-effective replacement for legacy gauge systems
Technical Specifications
| Measuring Range | 0–100 InH2O (inches of water) |
| Wetted Parts Material | Brass (copper alloy) |
| Pressure Connection | 1/4″ NPT (industry standard) |
| Accuracy Class | 2.5% ASME B40.100 Grade A |
| Case Material | ABS Plastic or Stainless Steel |
| Operating Temperature Range | –4°F to +140°F (–20°C to +60°C) |
| Mounting | Bottom or lower radial connection |
| Manufacturer | WIKA Instrumentation |
Typical Applications
- HVAC system pressure monitoring and filter differential measurement
- Pump discharge and intake pressure control
- Water and air pressure measurement in building automation
- Low-pressure process monitoring in food, beverage, and light industrial settings
- Gas pressure measurement in laboratory and compressed air systems
Compatibility & Replacements
Compatible With
- HVAC control systems and building management systems (BMS)
- Compressed air distribution networks
- Pump monitoring and control systems
- Process instrumentation and data acquisition systems
- Water treatment and circulation systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This gauge is compatible with standard 1/4″ NPT low-pressure gauge connections and replaces similar Wika low-pressure dial gauges in the 0–100 InH2O range.
Works With
- Standard pneumatic and hydraulic test equipment
- Building automation systems (BAS) with analog gauge interfaces
- Portable pressure test kits
- Industrial control panels with local gauge displays
