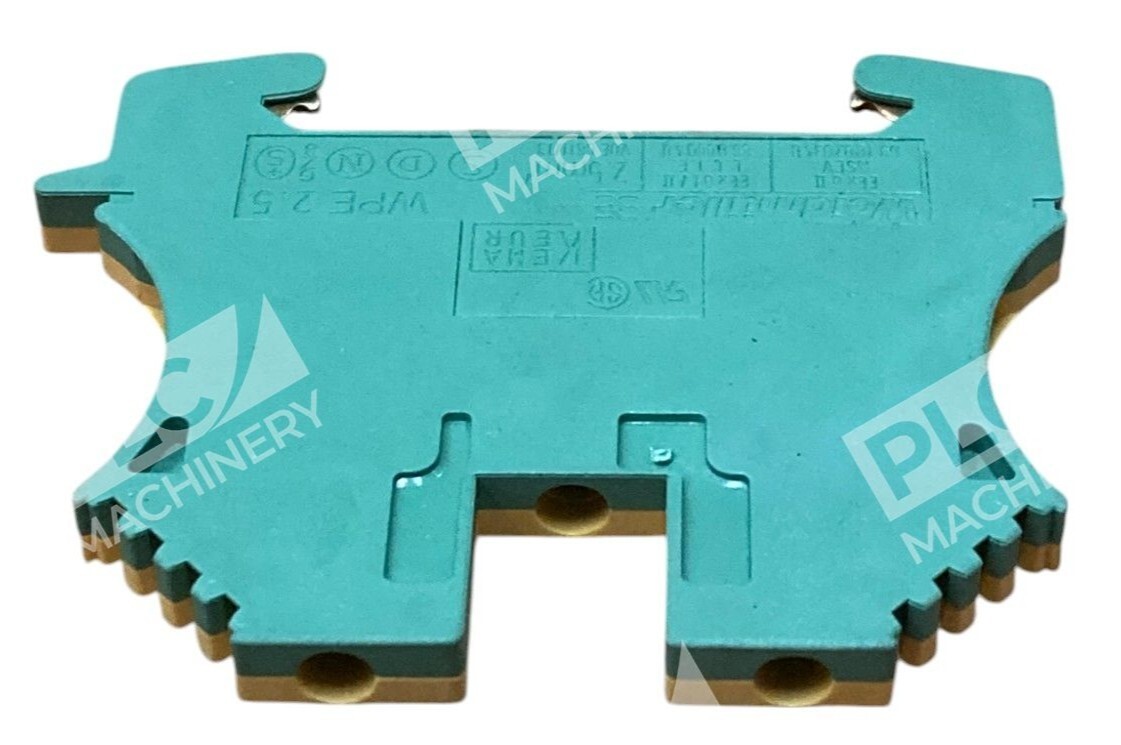

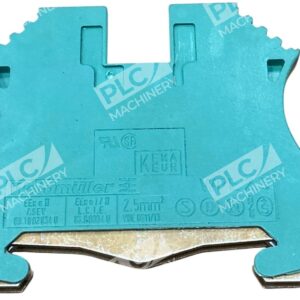

Weidmuller Ground Terminal Block Single Level WPE2.5 (Bag of 10)

Overview

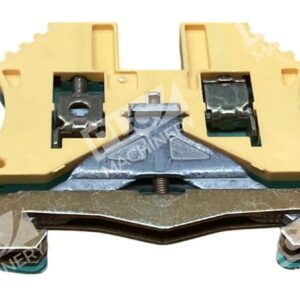

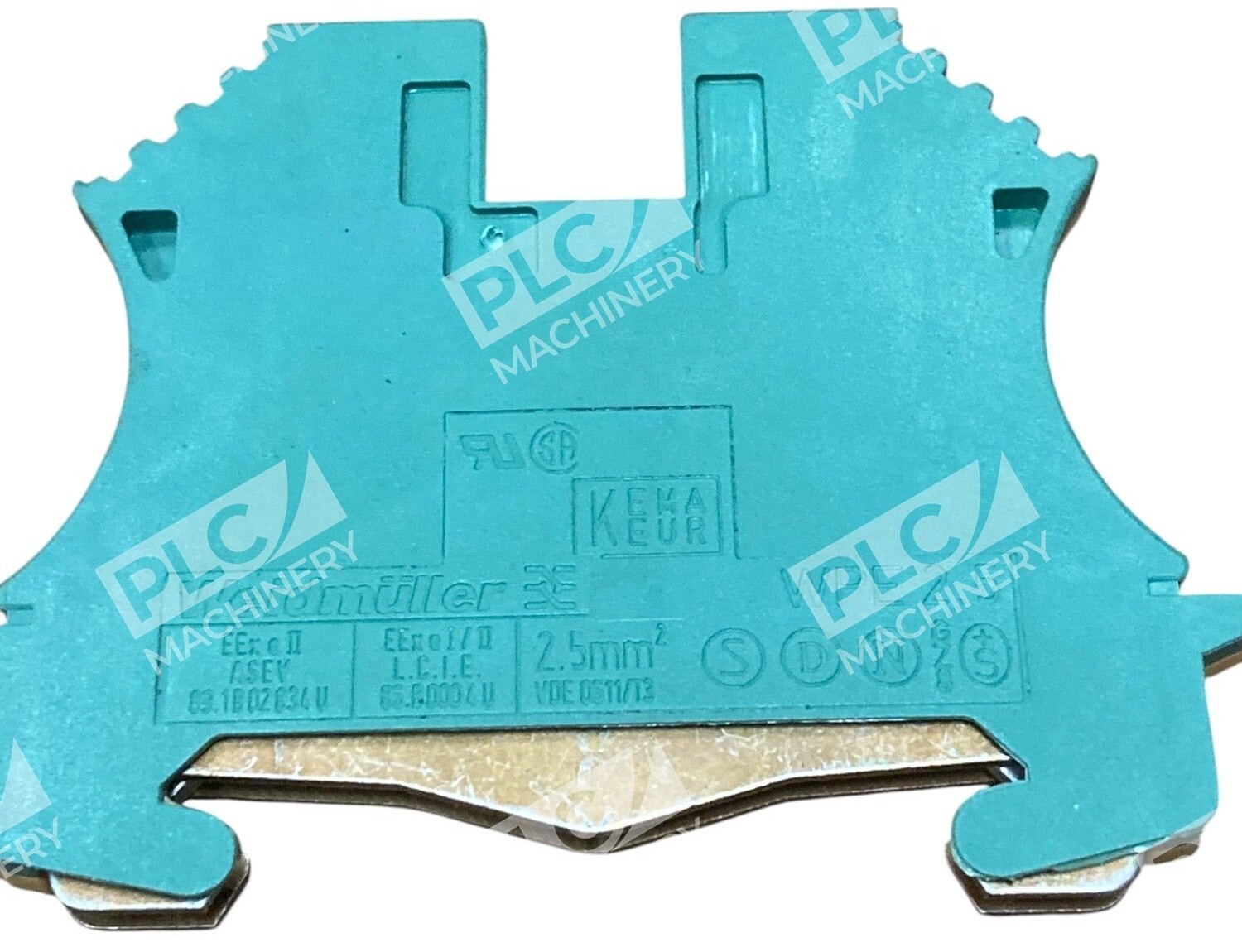

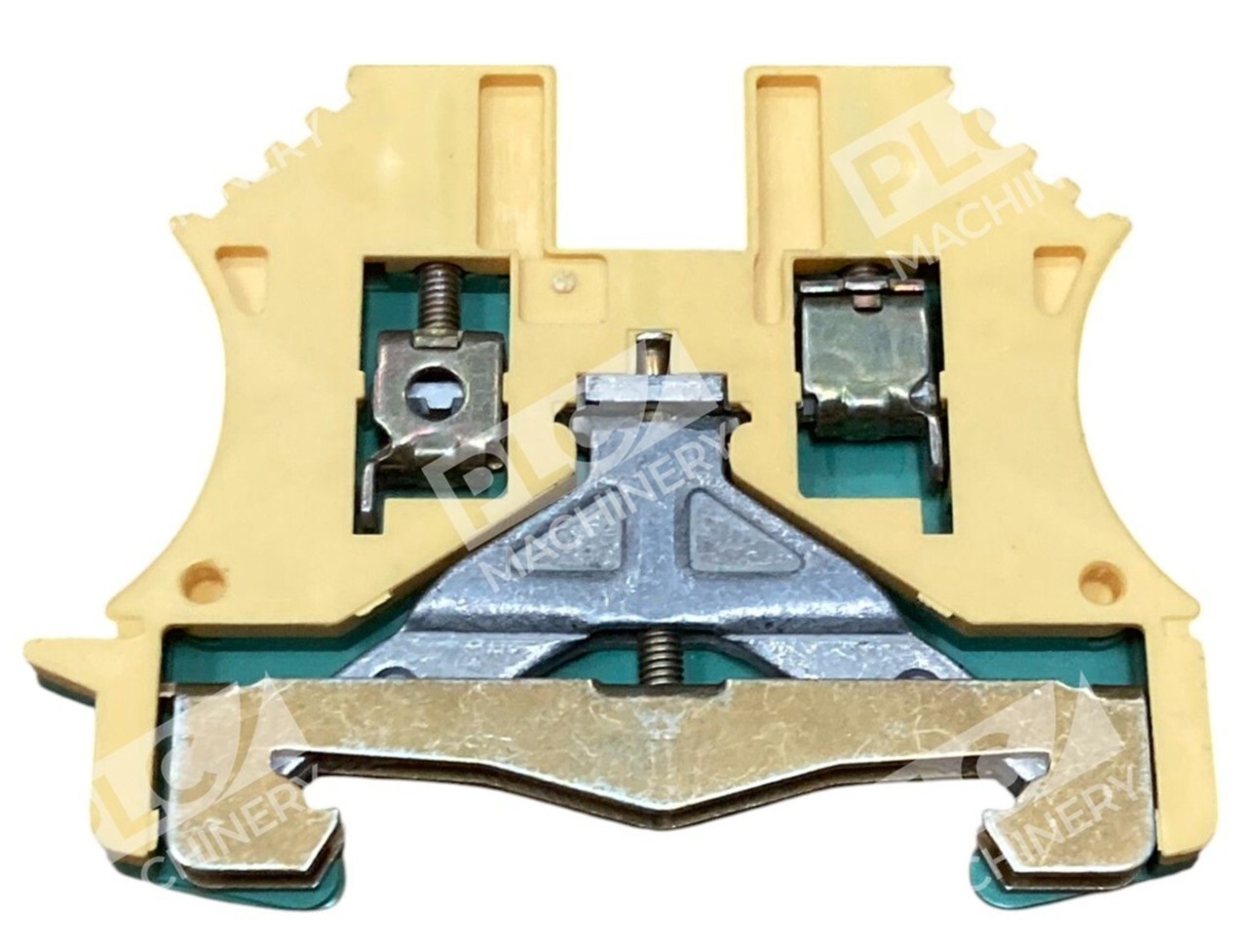

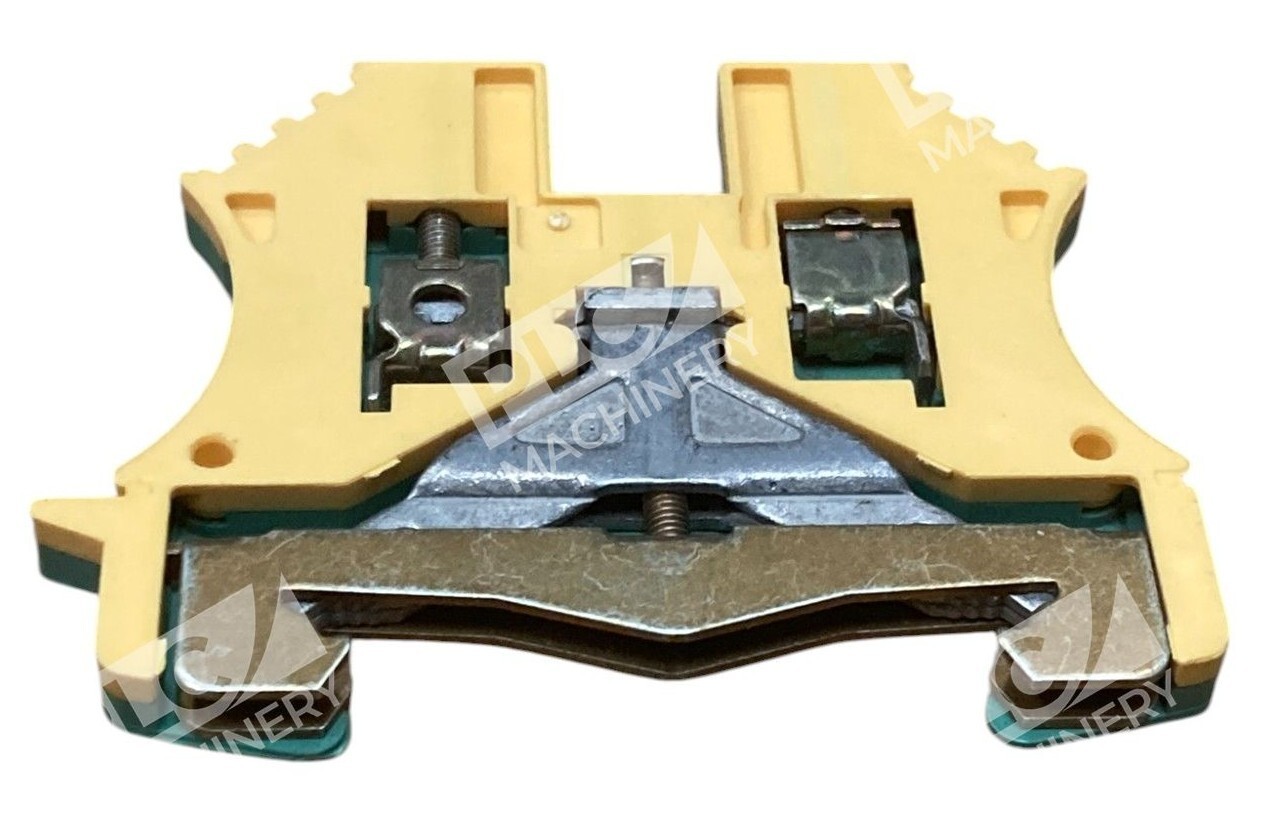

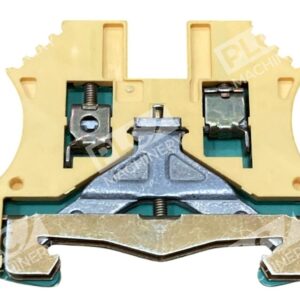

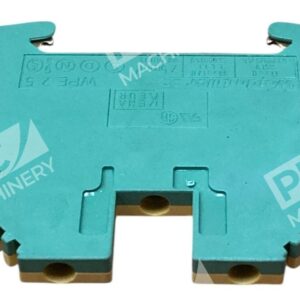

The Weidmüller WPE 2.5 ground terminal block is a modular protective earth (PE) terminal designed for control panels, machinery enclosures, and industrial DIN rail installations. The 1010000000 is a Modular PE Terminal Block with screw connection and 2.5mm² wire cross section area. It features an M2.5 clamping screw and 10mm stripping length, with green and yellow color, screw mounting with TS 35 mount rail. This set includes 10 units for convenient stock on hand.

Key Features

• Accepts 26 AWG minimum to 12 AWG maximum wire size
• Single-level grounded design, yellow and green color, opened on the right side, screw connection for DIN rail mounting
• Screw-mounted connection ensures wires are firmly clamped into position
• 2.5 mm² wire cross-section rated
• Hardened steel withstands mechanical forces, tin-coated copper construction
• Complies with industrial safety standards; RoHS compliant

Technical Specifications

• Wire Cross-Section: 2.5 mm²
• Wire Size Range: 26–12 AWG
• Clamping Screw: M2.5
• Stripping Length: 10 mm
• Terminal Type: Screw Connection
• Mounting: DIN Rail (TS 35)
• Color: Yellow/Green (Earth/Ground)
• Positions: Single-Level, 2-way connection
• Material: Tin-coated copper, hardened steel

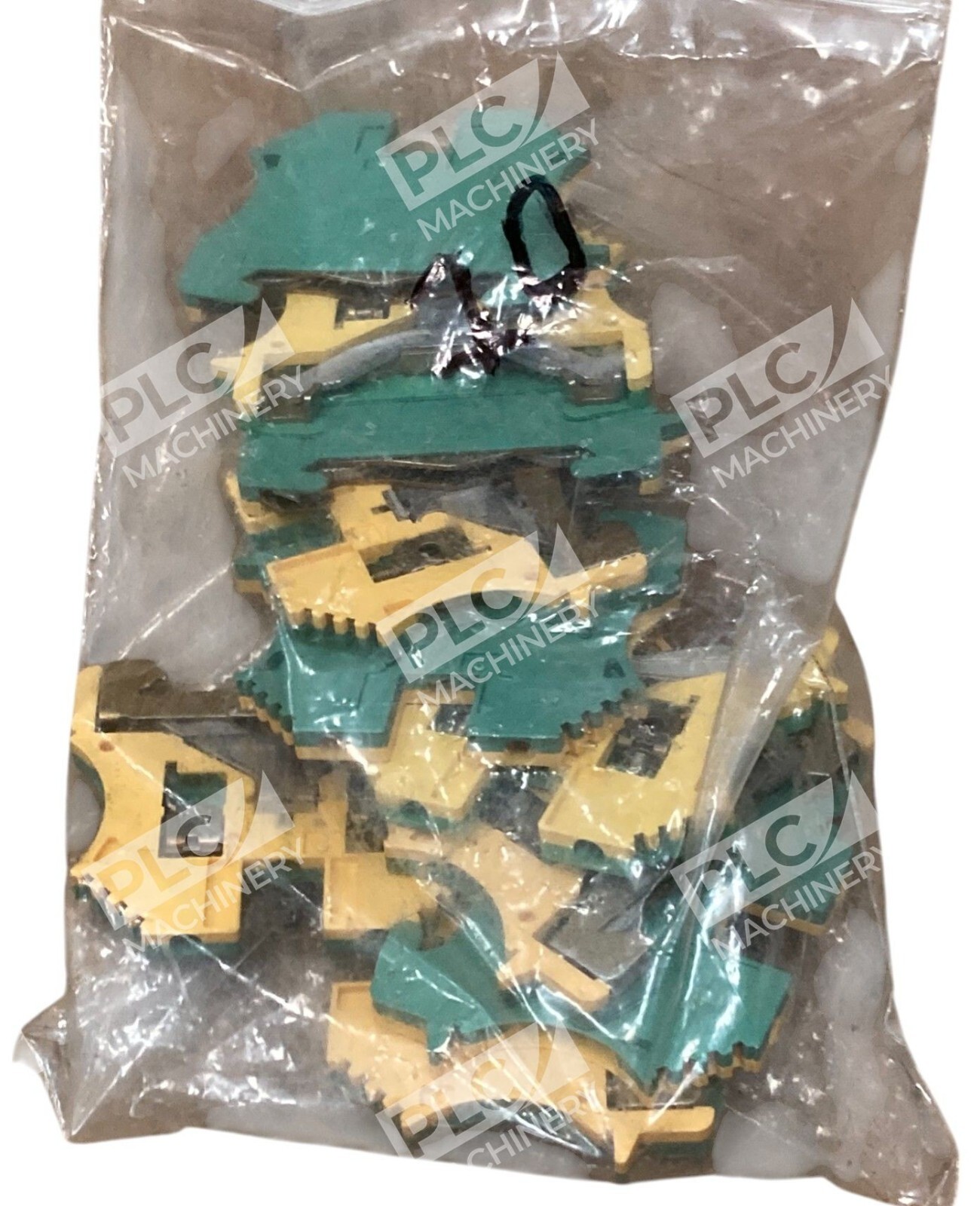

• Package: Bag of 10 units

Typical Applications

The Weidmüller WPE 2.5 ground terminal block is ideal for:

• Grounding conductor distribution in control panels and electrical enclosures
• Industrial machinery and equipment earth continuity
• Rail-mounted grounding systems in cabinet assemblies
• Protective earth (PE) conductor consolidation
• Machine tool control systems and factory automation
• Retrofit and maintenance applications requiring reliable ground connectivity

Compatibility & Replacements

Compatible With

• DIN rail systems (TS 35 standard mounting)
• Weidmüller W-series modular terminal block ecosystems
• Standard industrial control panel enclosures
• Protective earth (PE) conductor networks in control systems

Replaces / Drop-In Replacement For

The Weidmüller WPE 2.5 (1010000000) is the standard single-level ground terminal block in the WPE 2.5 series. Verify compatibility with your specific system integrator before ordering if replacing legacy equipment.

Works With

• Weidmüller end plates (1050000000)
• Weidmüller marking tags and identification systems (1609801044, 1609860000, 0517960000)
• Standard DIN rail-mounted bus bar and conductor systems
• Industrial grounding and protective earth applications per international electrical codes
