Overview
The Tork W120 timing motor is a synchronous AC motor engineered for use in Tork mechanical time switch assemblies, including 7300 and 8000 series equipment. Operating at 120V, 60Hz, this motor provides precise timing control for industrial and commercial applications requiring repeating duty cycles or variable switching intervals.
Key Features
- Heavy-duty synchronous, self-starting motor design for reliable operation
- 120V, 60Hz AC power supply compatibility
- Direct replacement and drop-in compatible with Tork time switch mechanisms
- Low power consumption for energy-efficient operation
- Precision timing control with minimal drift
Technical Specifications
- Input Voltage: 120V AC
- Frequency: 60Hz
- Motor Type: Synchronous

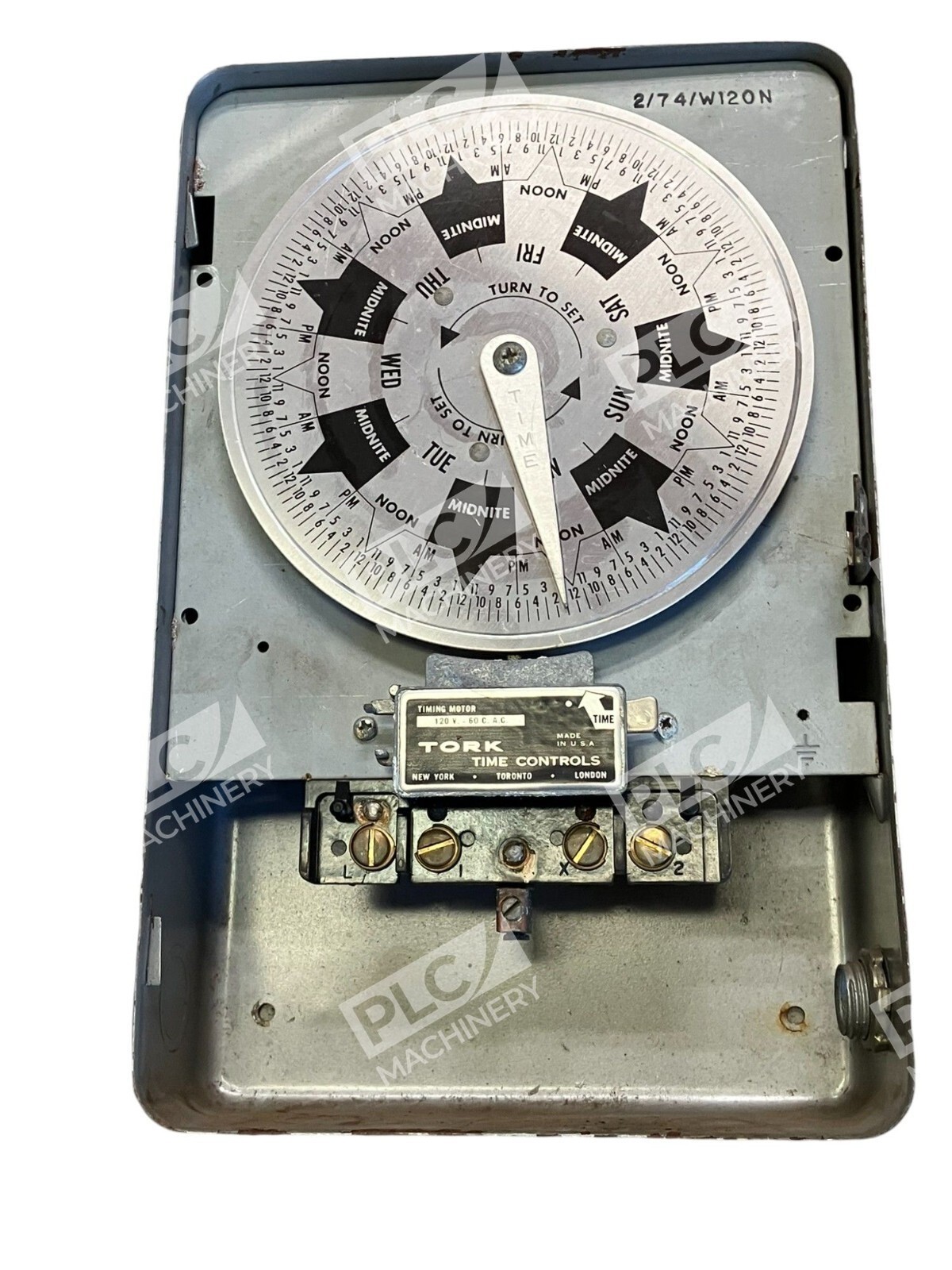

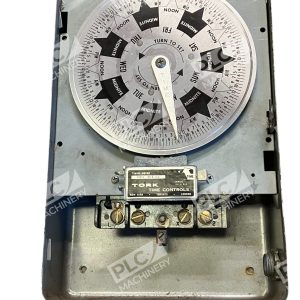

- Part Number: 2/74/W120N

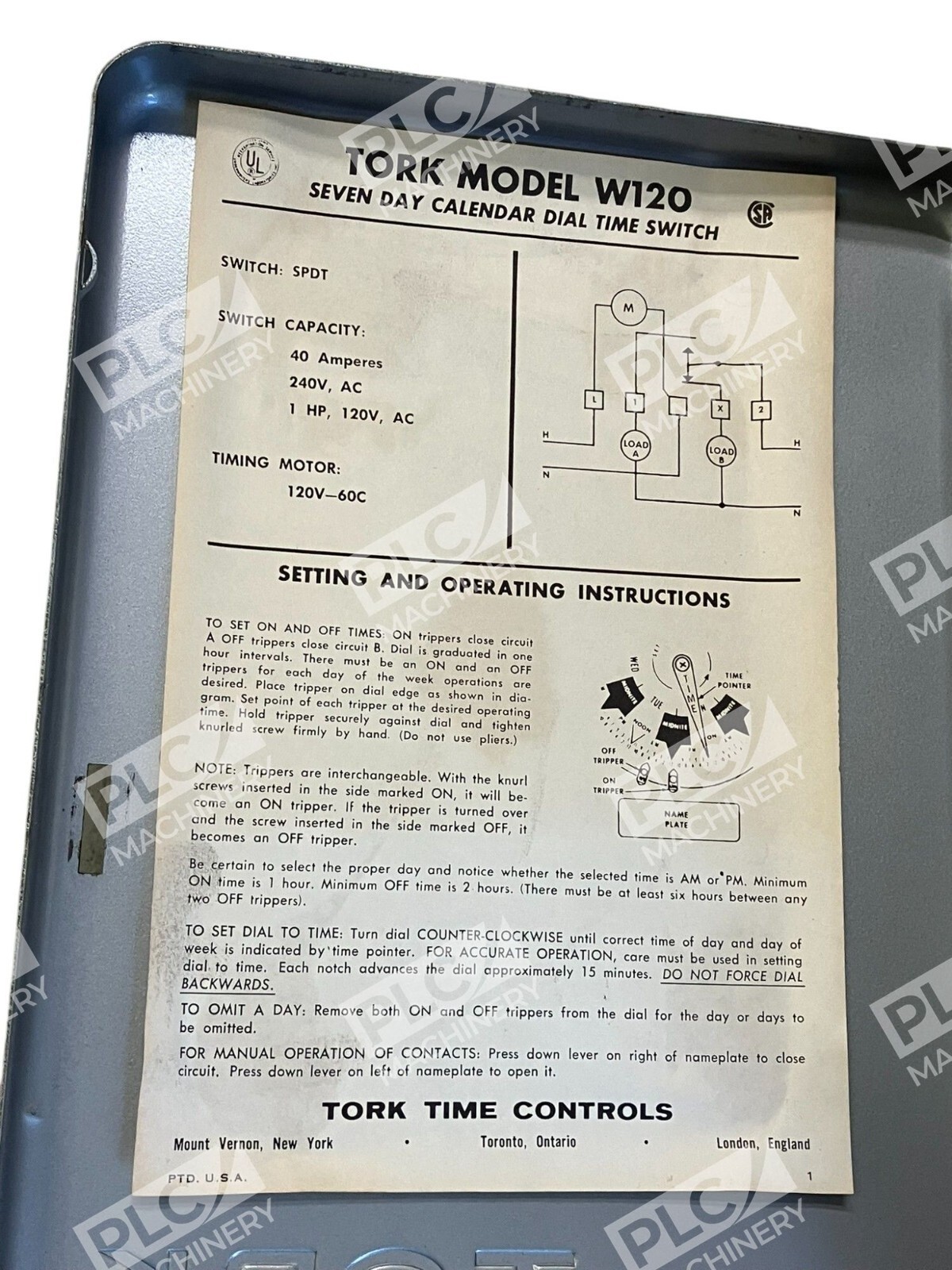

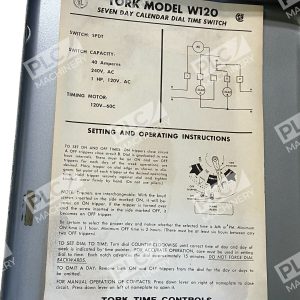

- Model: W120
- Mounting: Screw-in assembly to time switch dial mechanism
- Operating Principle: Self-starting synchronous timing motor
Typical Applications
- HVAC system timing and fan control
- Duty-cycle switching for ventilation and equipment operation
- Irrigation system timer operation
- Industrial process control and timing
- Repeating variable cycle switching operations
Compatibility & Replacements
Compatible With
- Tork 7300 Series mechanical time switches
- Tork 8000 Series duty-cycle and repeating variable cycle time switches
- Tork 7302 series equipment
- Mechanical time switch dial assemblies requiring 120V synchronous motors
Replaces / Drop-In Replacement For
- Original Tork W120 motors in existing time switch assemblies
- Verify compatibility with your specific time switch model before installation
Works With
- Tork mechanical timing dial control mechanisms
- 120V AC electrical circuits and control systems
- Industrial and commercial HVAC timing applications
- Duty-cycle and repeating cycle timing control configurations
