Overview

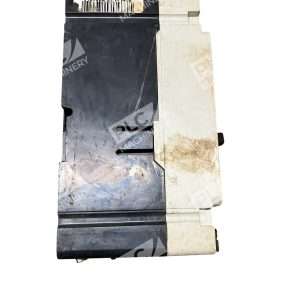

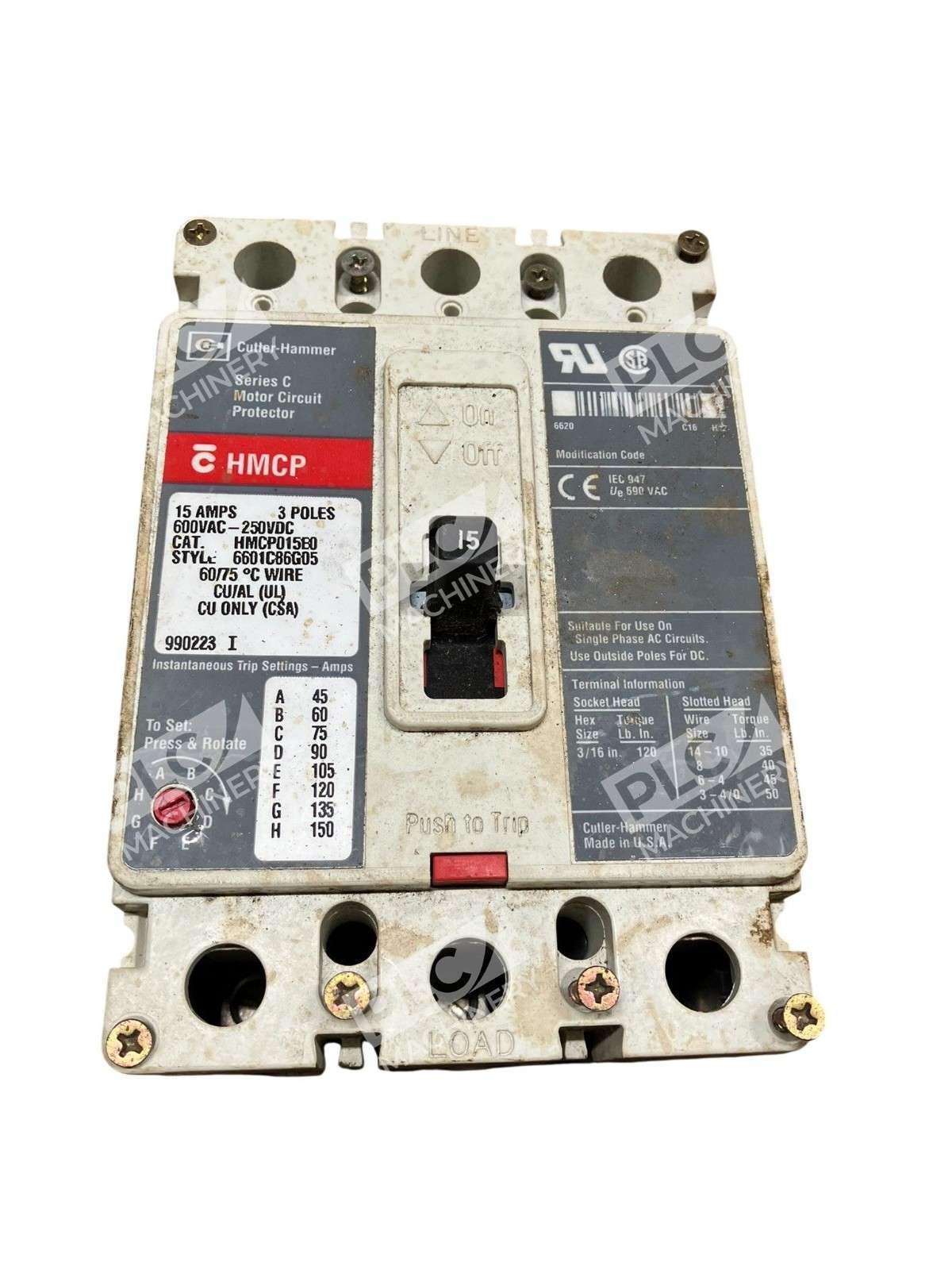

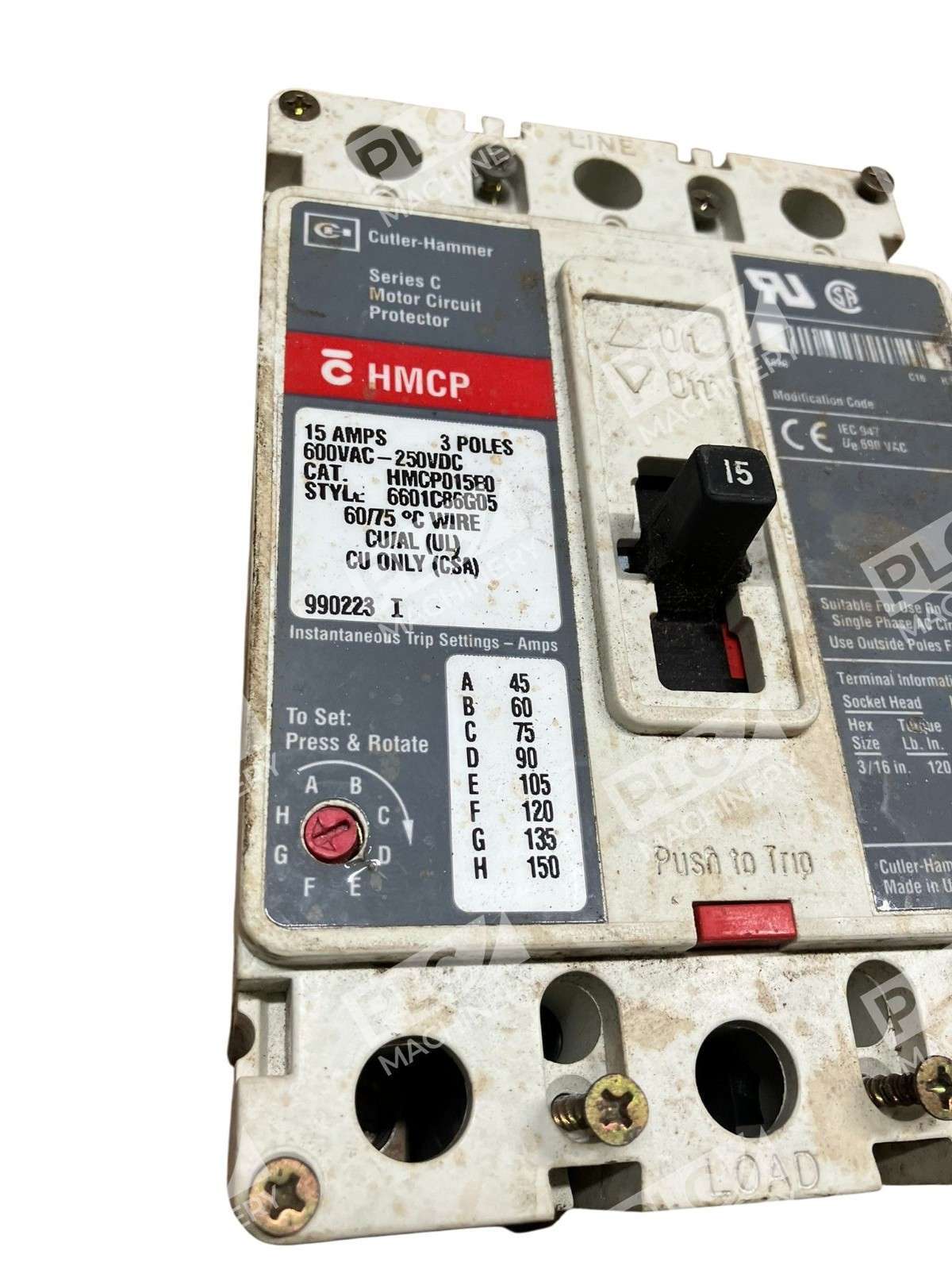

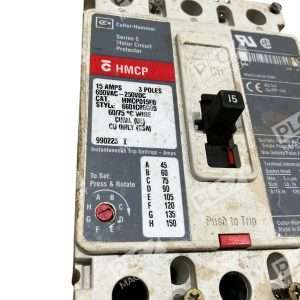

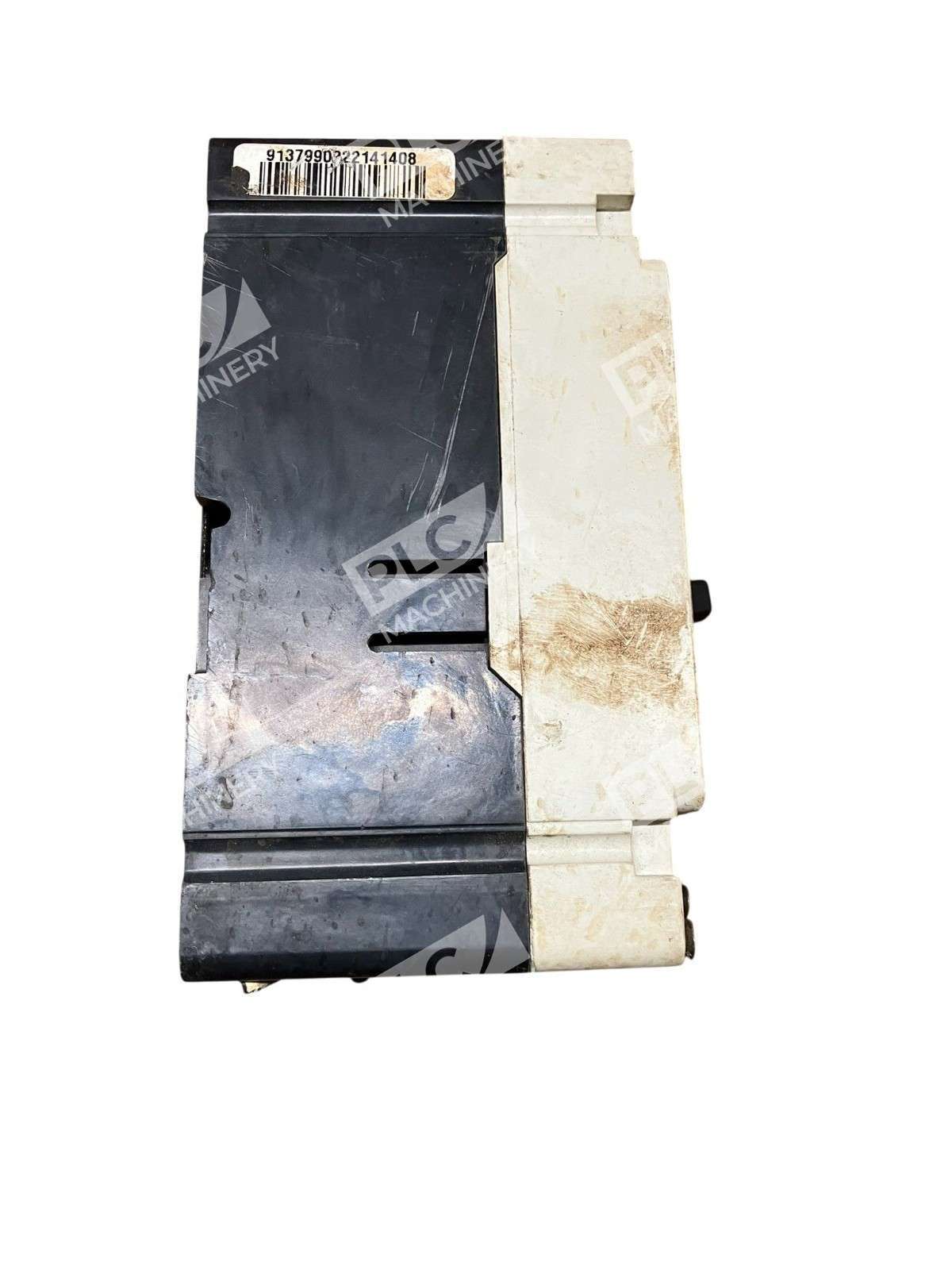

The Cutler-Hammer HMCP015B0 is a Series C molded-case motor circuit protector engineered for industrial motor control and short-circuit protection. Part of Eaton’s established HMCP family, this 3-pole unit delivers instantaneous magnetic-only trip response at 15A rated current and operates up to 600VAC or 250VDC. The HMCP015B0 is commonly integrated into combination starters and motor control centers where precise short-circuit coordination is required alongside external overload relays.
Key Features
- 3-Pole Configuration: Supports 3-phase motor control applications.
- Instantaneous Magnetic Trip: Provides immediate response to short-circuit events without thermal delay.
- Adjustable Trip Range: Magnetic setting range of 45–150 amps for coordination with external overload devices.
- Molded Case Design: Compact, durable construction suitable for unit mounting in NEMA-rated enclosures.
- Dual Voltage Rating: Rated for 600VAC or 250VDC maximum.
- NEMA Size 0 Compatibility: Integrates seamlessly with Eaton NEMA Size 0 motor starters and control components.
Technical Specifications
- Amperage Rating: 15A
- Poles: 3
- Voltage: 600VAC / 250VDC
- Trip Type: Magnetic, Instantaneous-Only
- Trip Range: 45–150A (adjustable)
- Frame Size: F Frame, Series C
- Motor Full Load Current Range: 3.4–12.6A
- Breaking Capacity: 65 kA @ 480V (typical for Series C)
- Mounting: Unit-mounted for combination starters

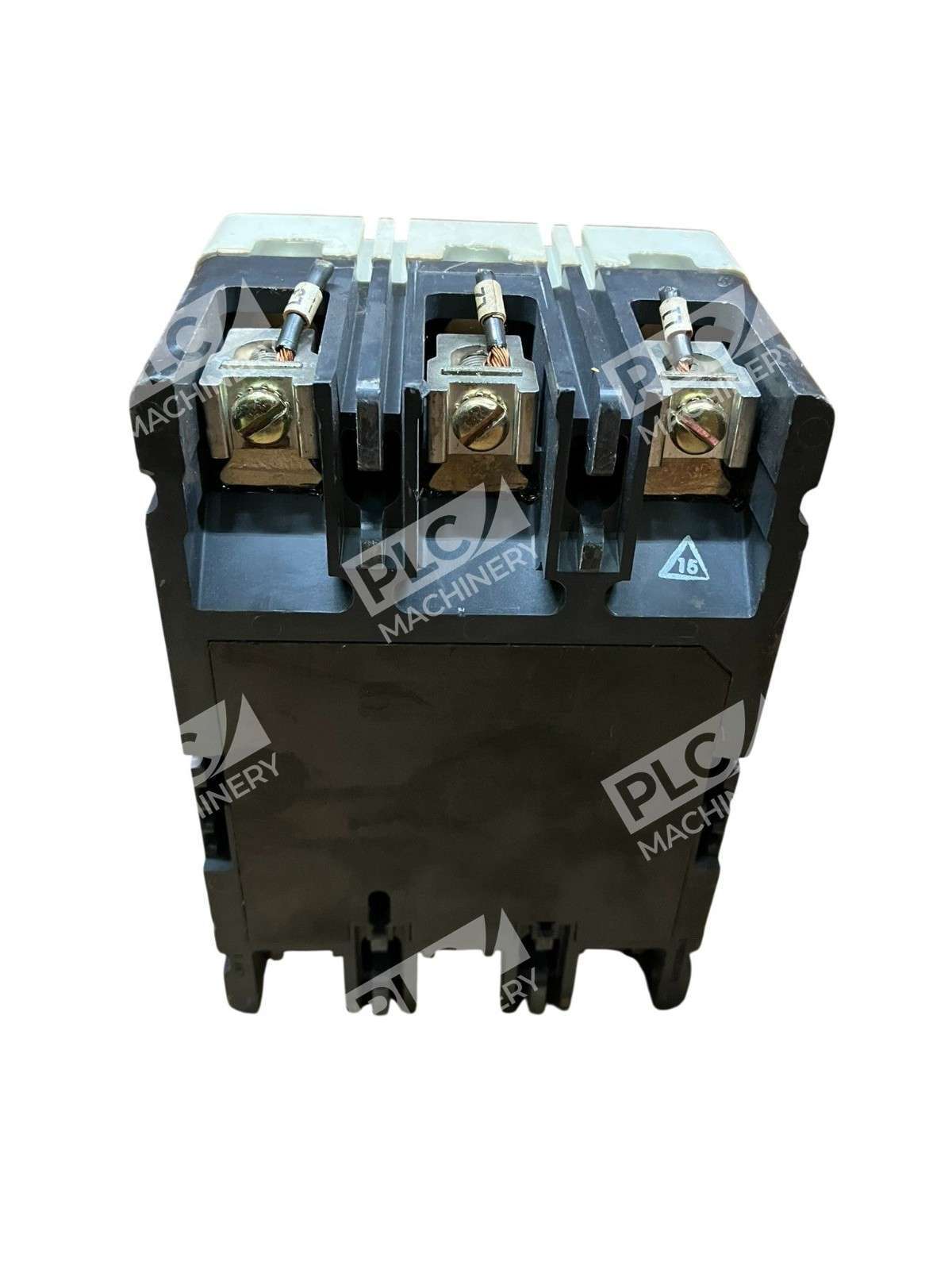

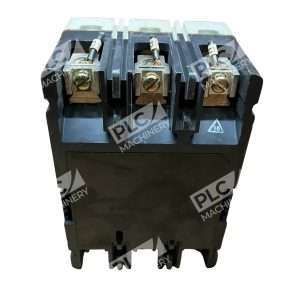

- Terminals: Standard lug configuration
- Certifications: UL 489, CE compliant
Typical Applications
- Motor circuit protection in industrial manufacturing and process control.
- Short-circuit backup for overload relays in combination motor starters.
- Heavy-duty machinery and pump motor control circuits.
- HVAC systems and compressor motor protection.
- Automated production lines and conveyor systems.
- Any 3-phase motor load requiring precision coordination with external overload sensing.
Compatibility & Replacements
Compatible With
- Eaton / Cutler-Hammer NEMA Size 0 motor starters
- Series C motor control centers and combination starters
- 3-phase motor circuits rated 3.4–12.6 A full load
- Motor control circuits up to 600VAC or 250VDC
- External magnetic overload relays and trip coordination devices
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator before ordering. Original equipment documentation should be consulted to confirm direct interchangeability with your installed base.
Works With
- Eaton motor control centers (MCC) and enclosed starters
- NEMA-rated motor control combination enclosures
- Industrial electrical systems with external overload protection
- 3-phase AC power distribution in 50/60 Hz industrial systems
