Overview

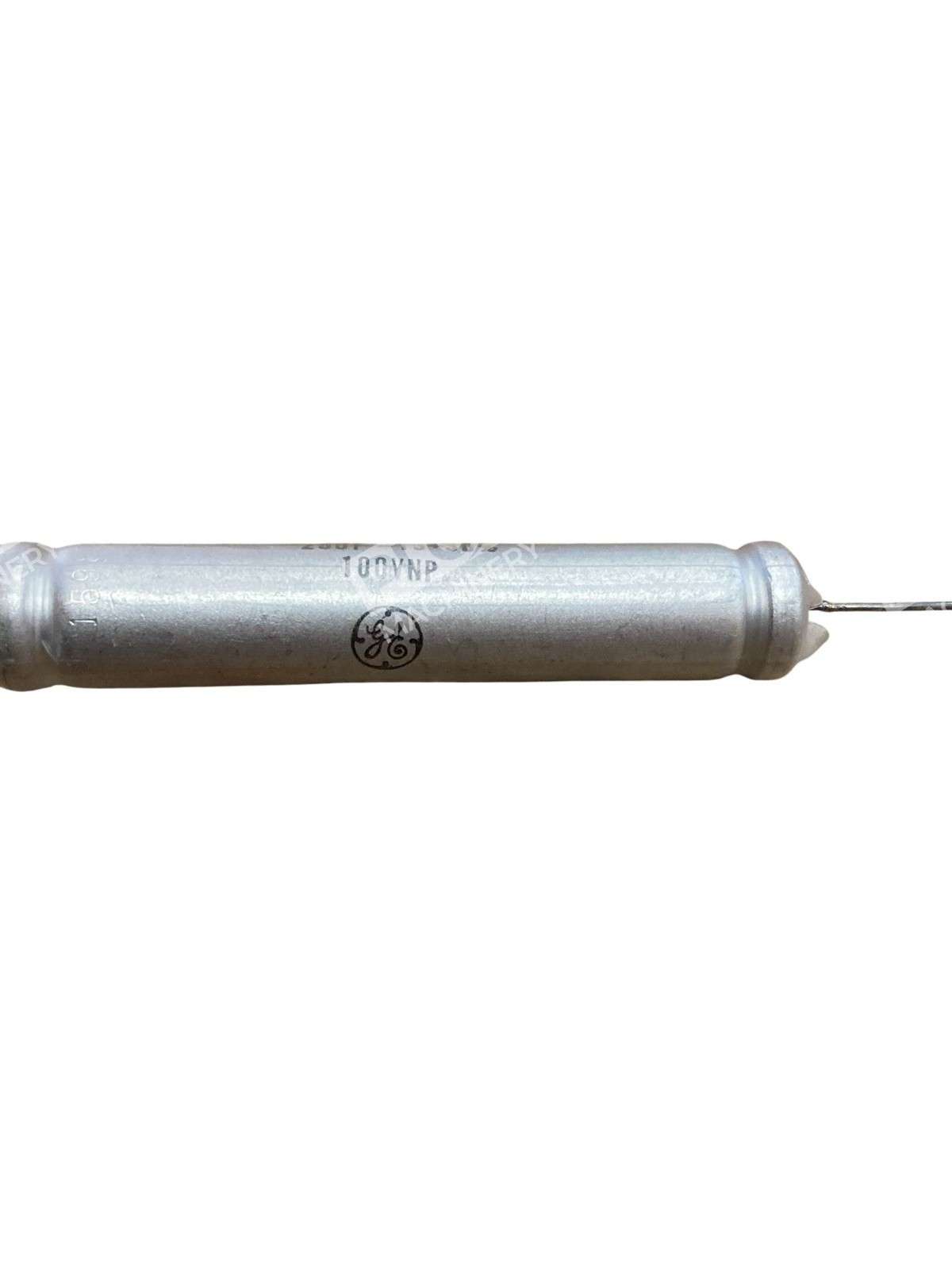

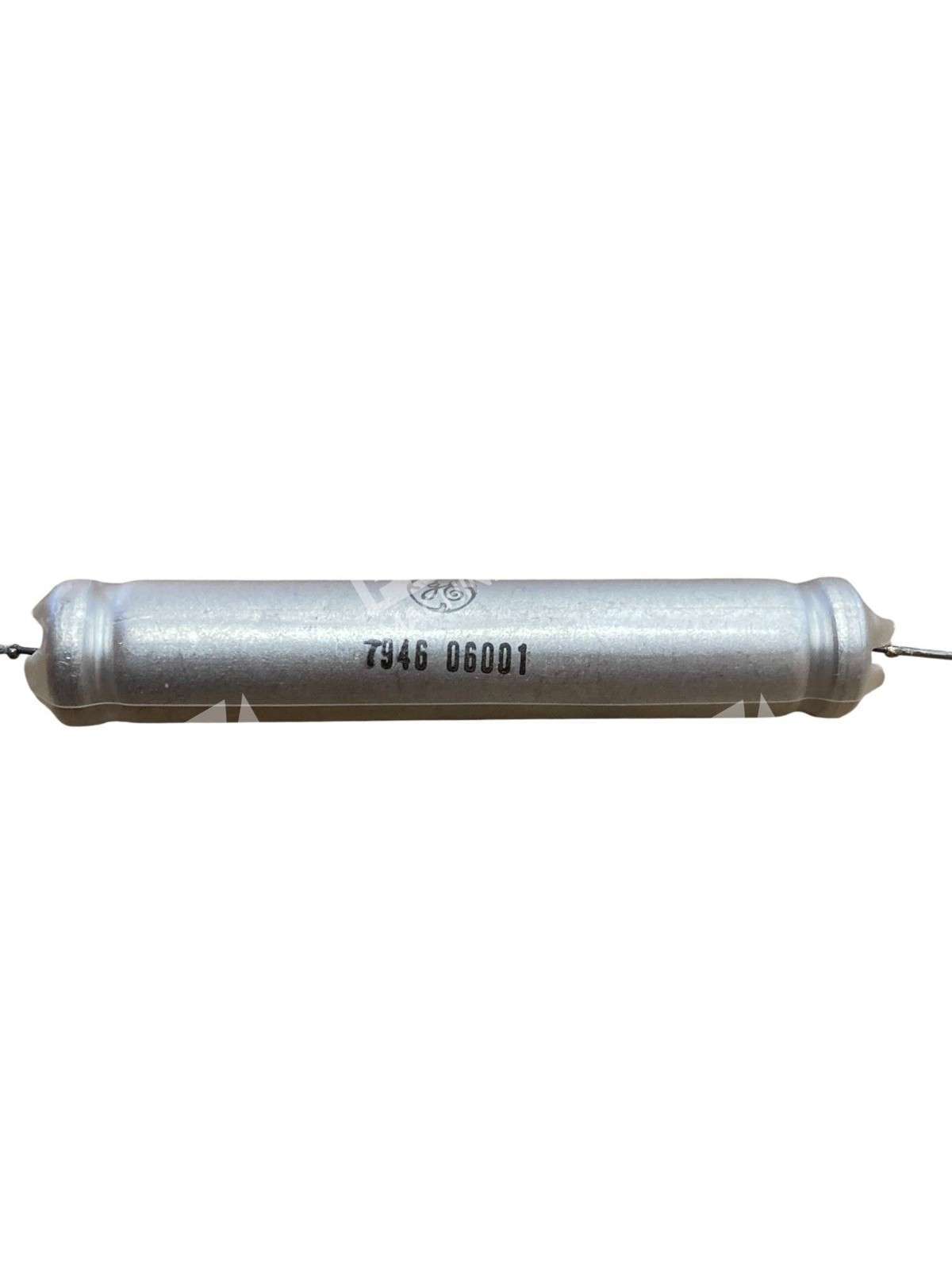

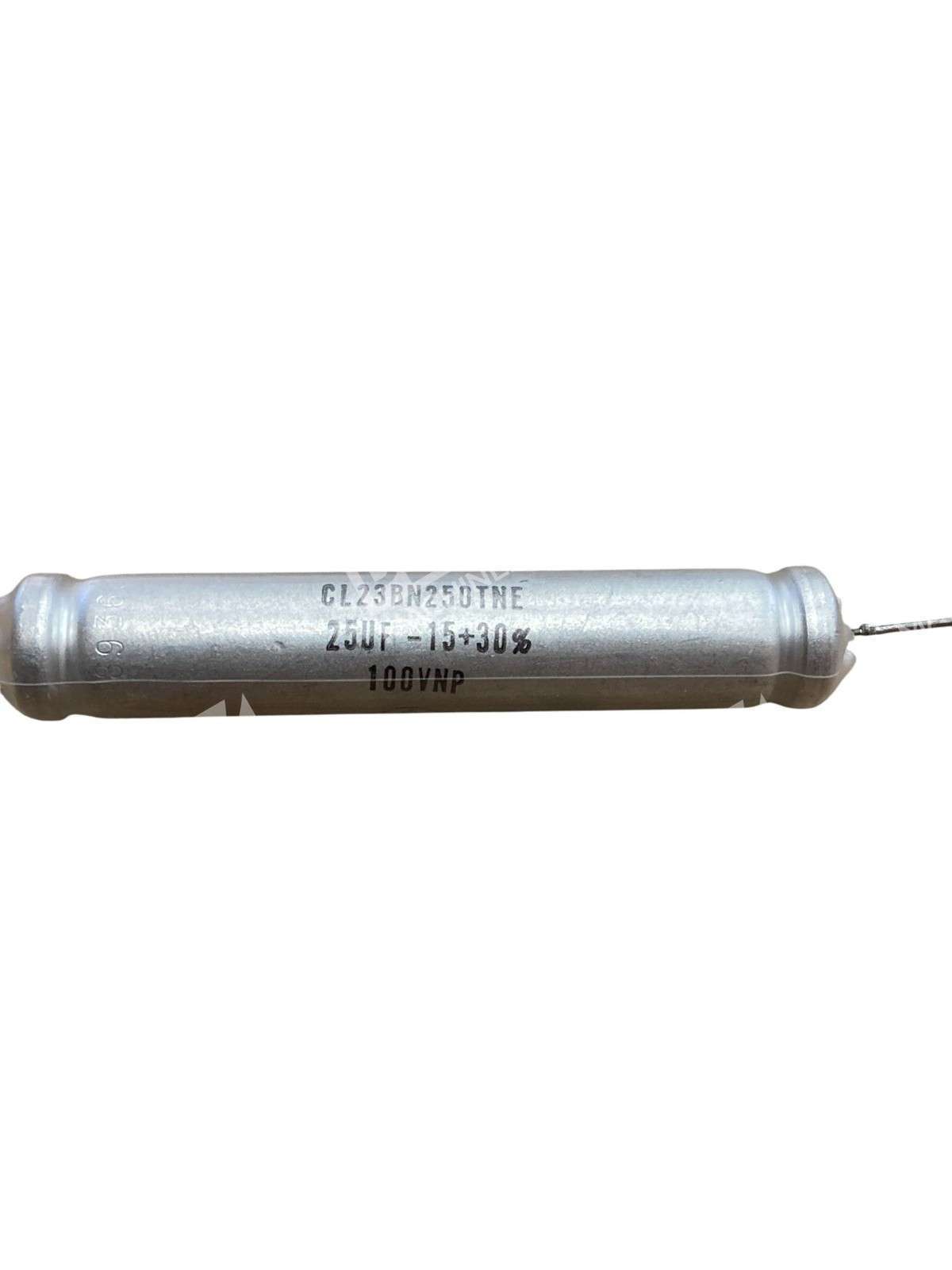

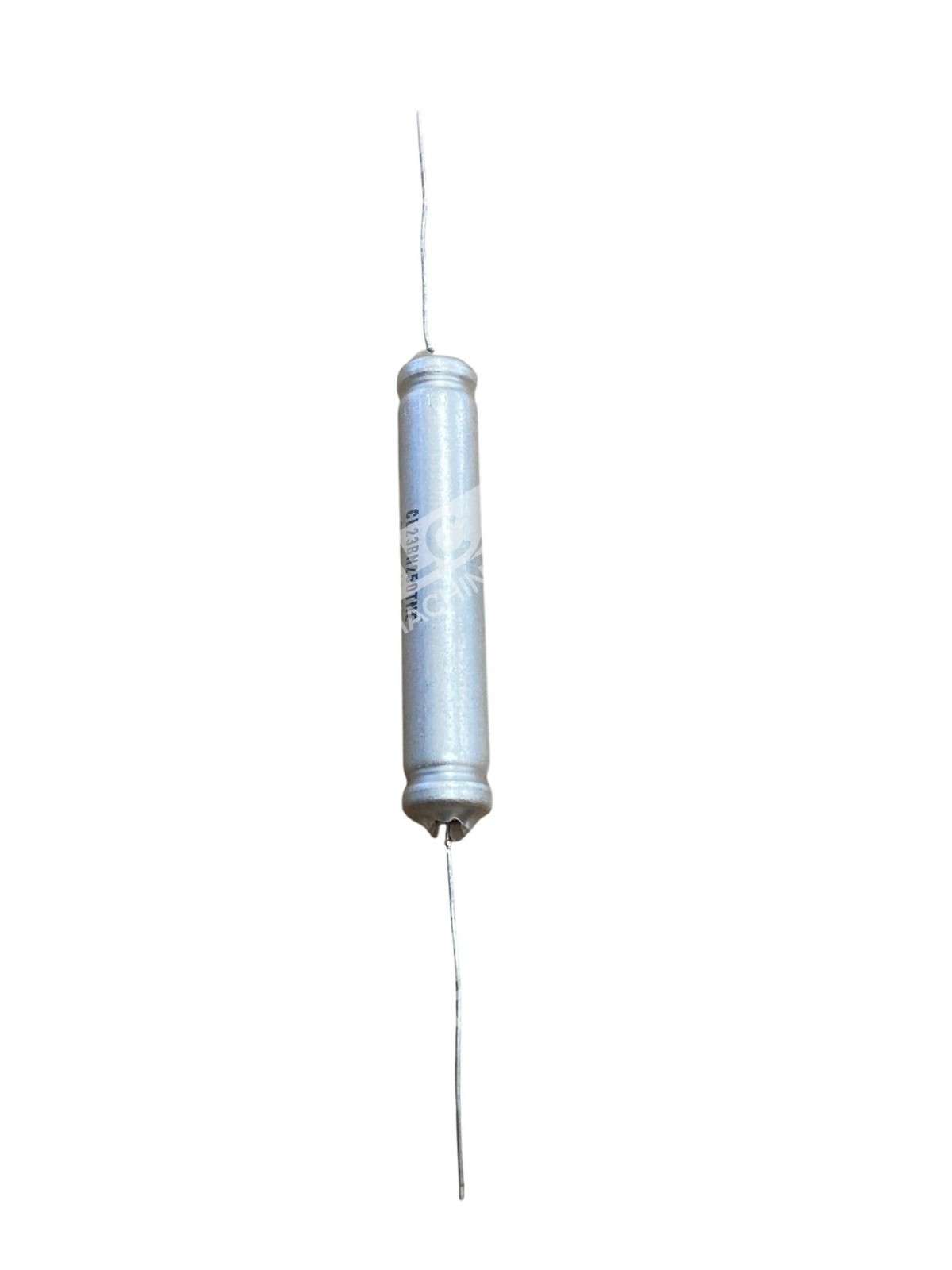

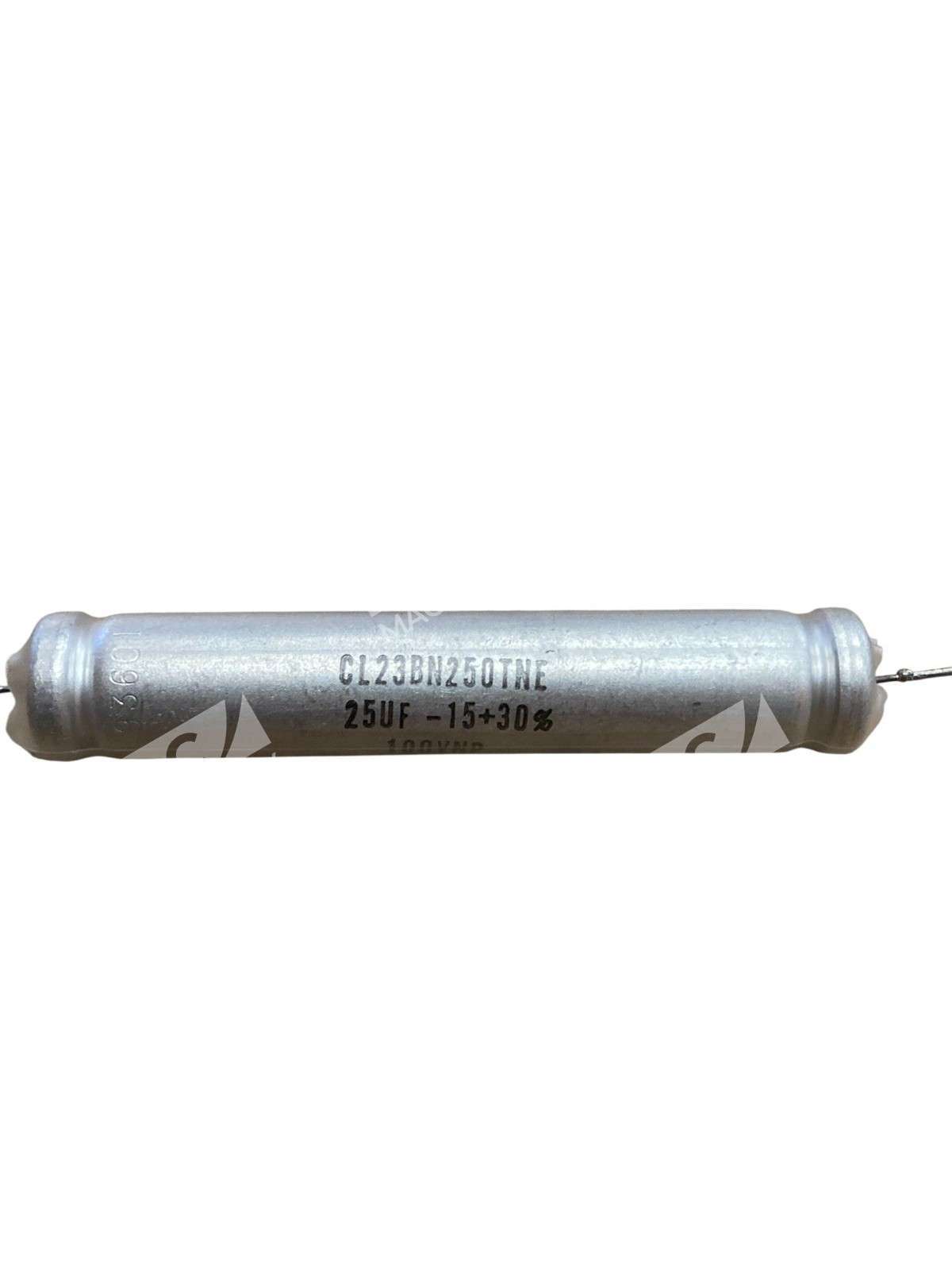

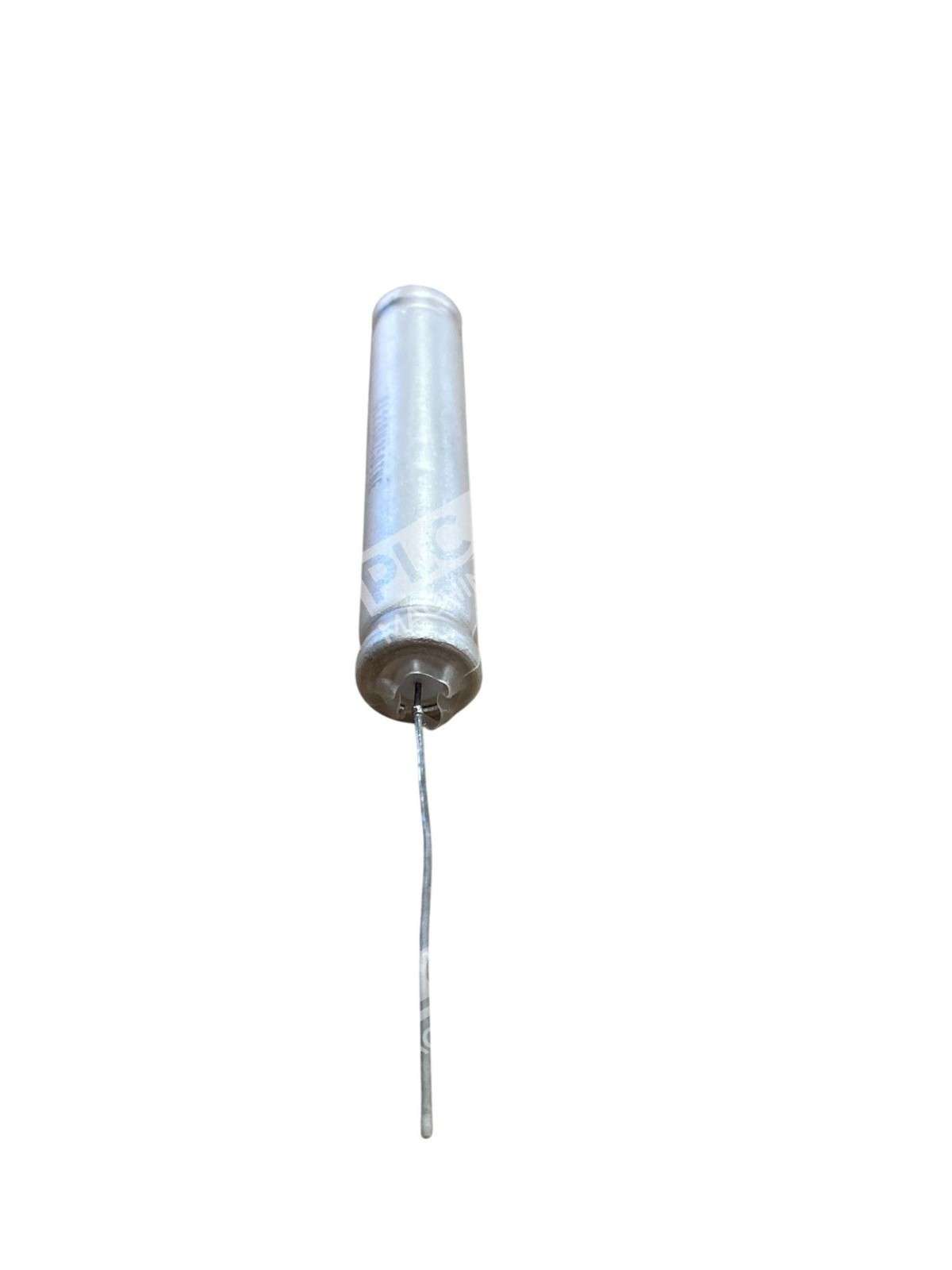

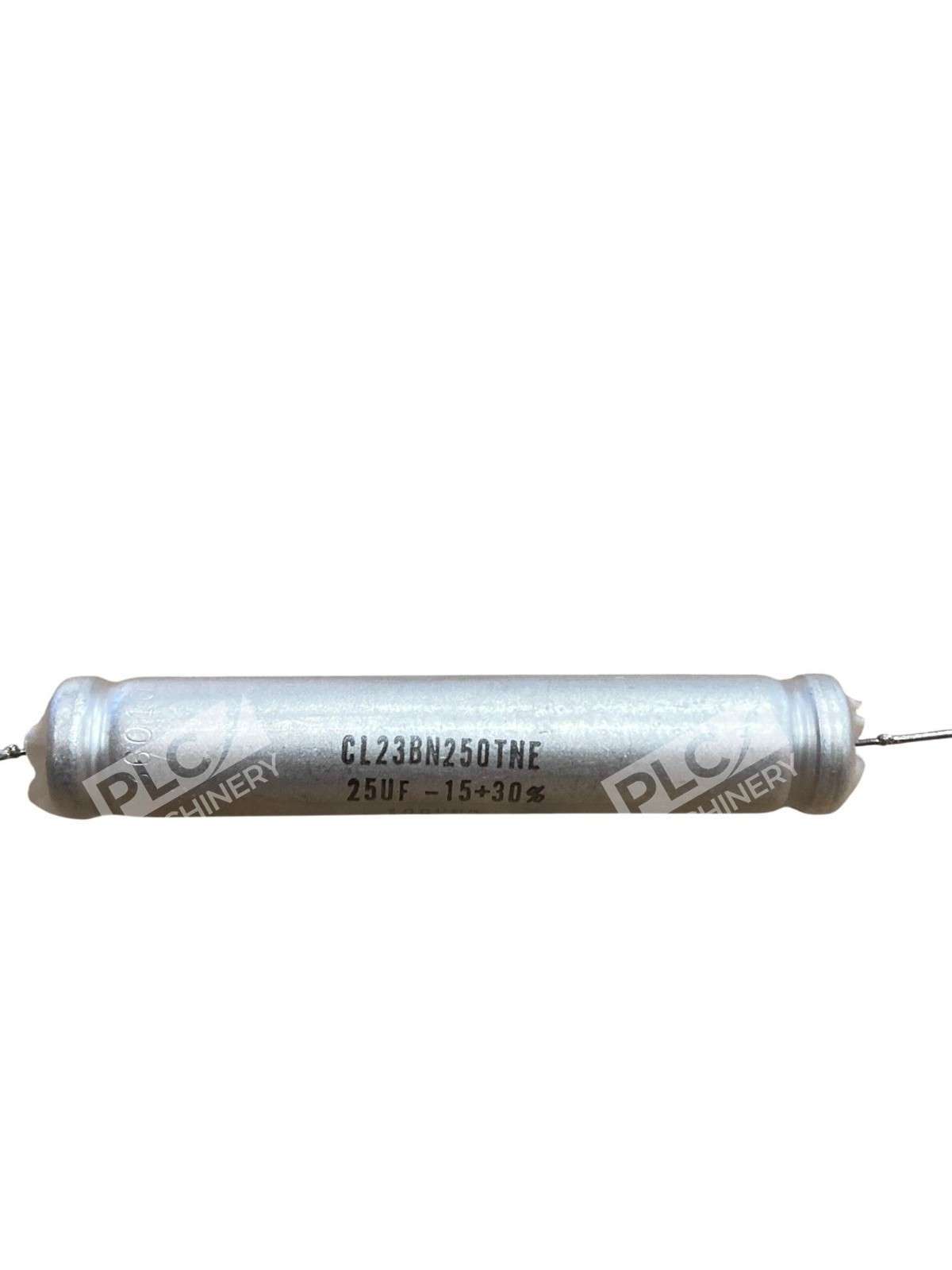

The G.E. CL23BN250TNE is a tantalum foil axial capacitor rated at 25µF with a maximum operating voltage of 100V. Designed for motor run applications, this unit provides stable capacitance performance across industrial and commercial systems. The tantalum foil construction ensures reliable, long-term operation in temperature-controlled environments.
Key Features
- Capacitance: 25µF (microfarads) — stable and precise for motor starting and running circuits
- Maximum Voltage: 100V (nominal power) — appropriate for low-voltage motor control systems
- Axial Lead Configuration — standard mounting for PCB and terminal-block installations
- Tantalum Foil Dielectric — provides excellent voltage stability and low leakage current
- Motor Run Rated — optimized for continuous duty in motor run circuits
Technical Specifications
- Capacitance: 25µF ±10% or as specified
- Voltage Rating: 100V nominal
- Case Style: Axial (leaded)
- Dielectric Material: Tantalum foil
- Application: Motor run, industrial control
- Lead Type: Axial leads (tinned or equivalent)
Typical Applications
- AC motor starting and run circuits in industrial equipment
- Low-voltage control systems and relay circuits
- Power factor correction in single-phase motor applications
- Energy storage in timing and delay circuits
- Vibration dampening in motor terminal circuits
Compatibility & Replacements
Compatible With
- Single-phase AC motors operating at 100V or lower nominal voltage
- General-purpose industrial control systems and switchgear
- Legacy motor run capacitor circuits rated for tantalum foil construction
- Equipment manufactured to IEC and UL motor capacitor standards
Replaces / Drop-In Replacement For
- Original equipment manufacturer (OEM) G.E. CL23BN250TNE units in legacy systems
- Verify compatibility with your system integrator or equipment manufacturer before ordering, as motor run capacitors must match exact voltage and capacitance ratings
Works With
- Standard three-phase and single-phase industrial motor control circuits
- Manual and automatic motor starter systems
- Soft-start and variable-frequency drive (VFD) input filtering (verify voltage tolerance)
- HVAC and pump motor run circuits
