Overview

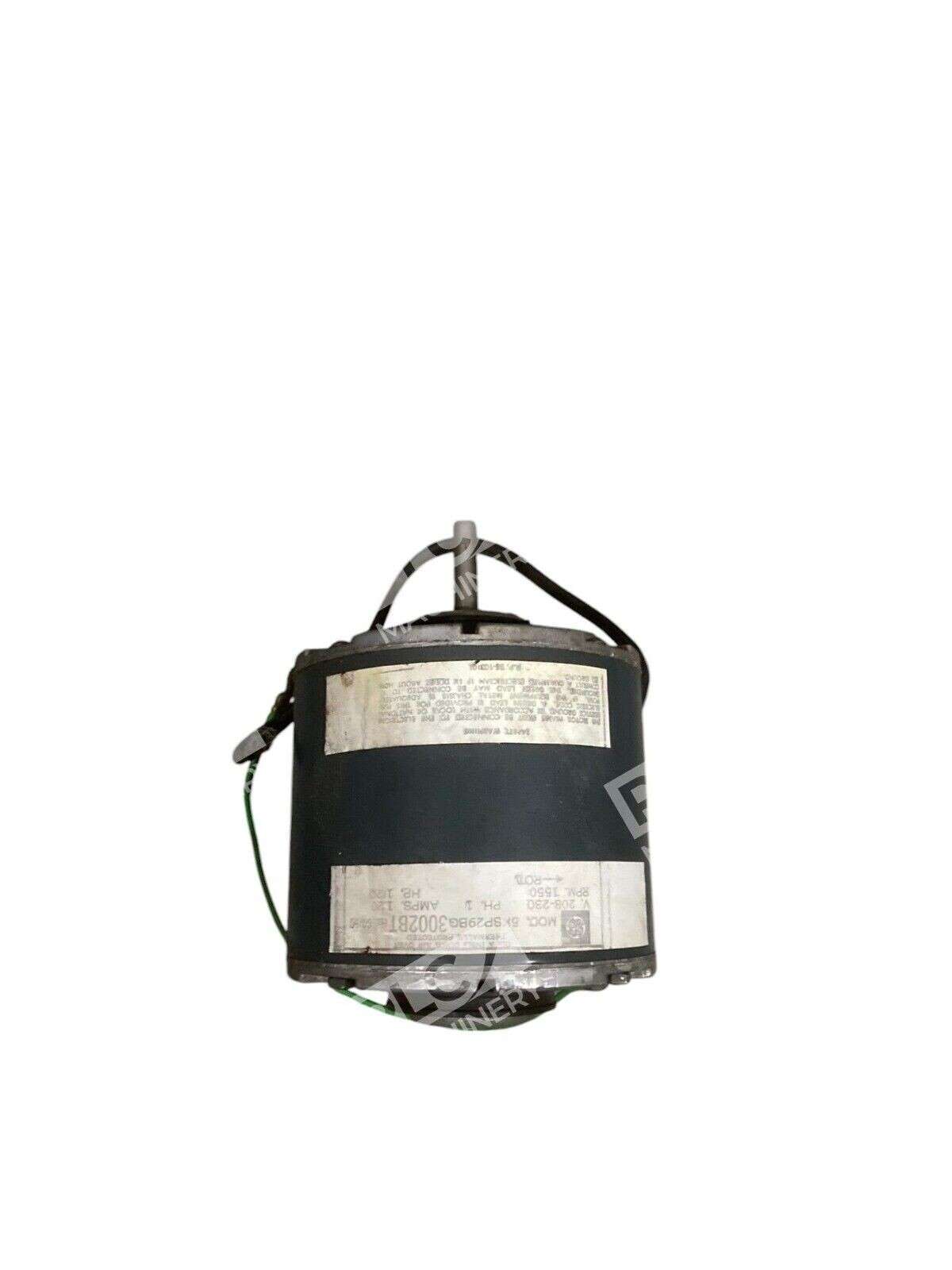

The General Electric 5KSP29BG3002BT is a proven single-phase AC motor engineered for reliable operation in general-purpose industrial applications. Rated at 1/20 horsepower with a base speed of 1550 RPM, this non-reversible motor operates on standard 208-230V single-phase AC power, making it compatible with typical plant electrical systems. The compact design and proven GE engineering provide dependable performance for fans, blowers, pumps, and similar constant-speed applications.
Key Features
- Single-phase AC motor—straightforward installation and control
- 1550 RPM rated speed for consistent performance
- 1.2 amp nominal current draw
- 1 1/2 inch shaft diameter for standard coupling arrangements
- Thermal overload protection built-in
- Class A insulation for reliable long-term operation
Technical Specifications
- Horsepower: 1/20 HP
- Voltage: 208-230V, single-phase
- Current: 1.2 A nominal
- Speed: 1550 RPM
- Frequency: 60 Hz (50 Hz available)
- Shaft Diameter: 1 1/2 inches
- Insulation Class: Class A
- Protection: Thermally protected
- Motor Type: Non-reversible, constant-speed
Typical Applications
This 1/20 HP motor is widely used in industrial and commercial equipment requiring low-speed, constant-torque drives. Common applications include:
- Ventilation and circulation fans
- Small blower units
- Circulation pumps
- Auxiliary drive systems in manufacturing equipment
- HVAC fan motors
Compatibility & Replacements
Compatible With
- Standard 208-230V single-phase AC power supplies
- Capacitor-start or capacitor-run circuits (as required)
- Band-mount, rigid-base, and resilient-mount frames
- Direct-coupled and belt-driven load applications
- Industrial automation systems requiring constant-speed motor drives
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. GE 5KSP29 series motors may interchange with equivalent wattage and speed ratings from Leeson, Marathon, Century, and other manufacturers in the same frame class.
Works With
- Standard single-phase AC power distribution systems
- Motor starter switches and soft-start controllers
- Variable frequency drives (where specified)
- Thermal overload relays and motor protection circuits
- Standard mechanical coupling, belt, and pulley systems
