Overview

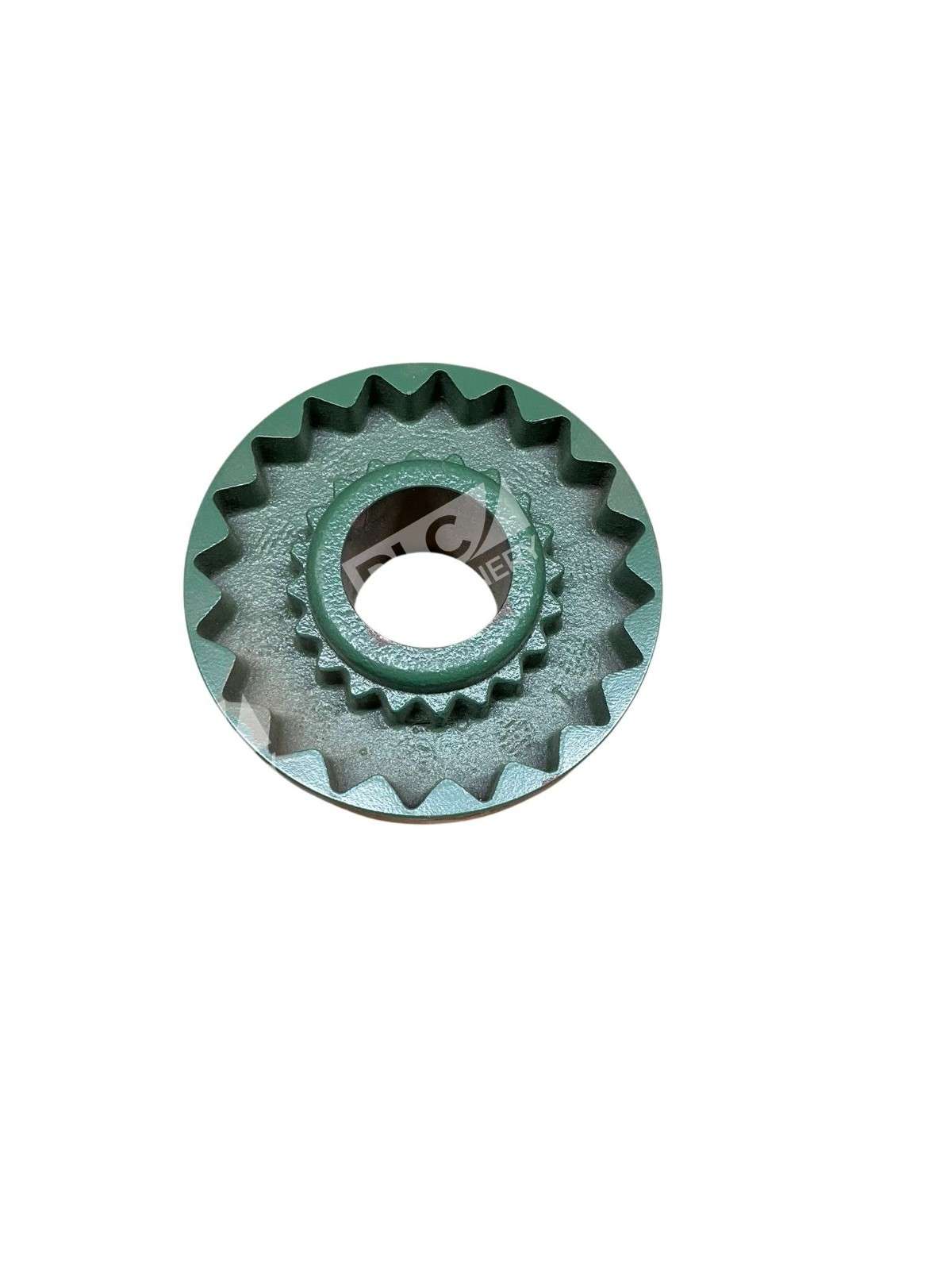

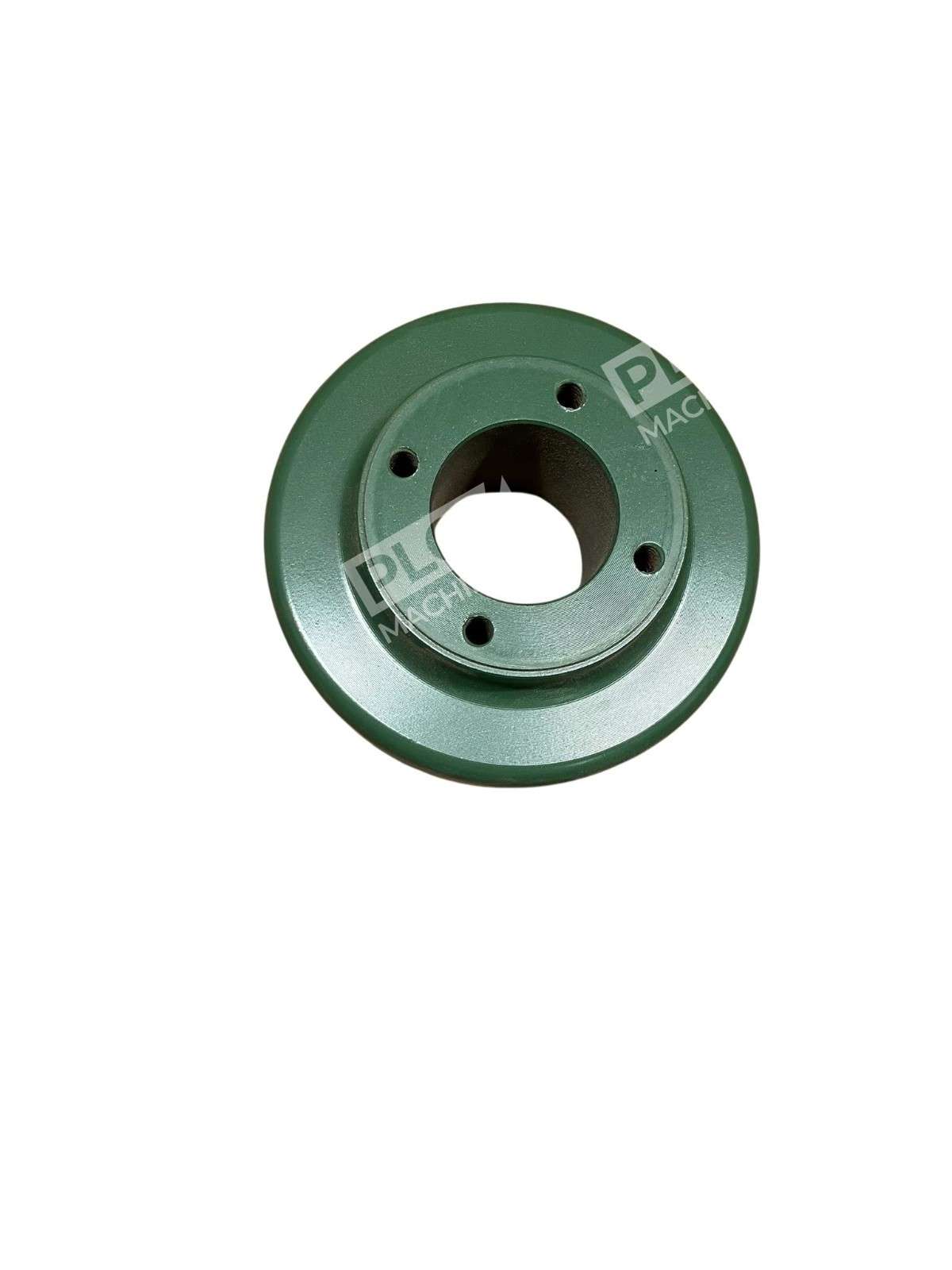

The TB Wood’s 6SC35 is a Sure-Flex Plus Type SC spacer flange engineered for flexible shaft coupling assemblies. This bore-to-size coupling component features cast iron construction for durability and high-speed applications up to 6,000 RPM. The 6SC35 spacer flange bridges two coupling halves, allowing misalignment tolerance while maintaining torque transmission for motors, gearboxes, and driven equipment in industrial automation systems.
Key Features
- Sure-Flex Plus technology for smooth, vibration-damping power transmission
- Type SC spacer flange design (3.5-inch spacer configuration)
- Cast iron hub material for strength and longevity
- Bore-to-size bore type for machine-finished application-specific boring
- Rated 6,000 RPM maximum speed and 585 in-lb maximum torque
- 4-inch outside diameter, 2.5-inch hub diameter, compact footprint
Technical Specifications
| Part Number | 6SC35 |
| Manufacturer | TB Wood’s (Altra Industrial Motion) |
| Flange Type | Type SC Spacer |
| Coupling Size | 6 (06) |
| Bore Type | Bore-to-Size |
| Bore Diameter | 1-3/8 in |
| Hub Diameter | 2-1/2 in |
| Hub Length / Through Bore | 1-5/8 in |
| Outside Diameter | 4 in |
| Maximum Speed | 6,000 RPM |
| Maximum Torque | 585 in-lb |
| Material | Cast Iron |
| Weight | 2.0 lb |
| Country of Origin | Mexico |
Typical Applications
- General purpose electric motor drive couplings
- Gearbox input/output shaft connections
- Pump and fan motor assemblies
- Industrial automation and motion control systems
- Flexible sleeve coupling assemblies requiring misalignment accommodation
- Low to moderate speed, moderate torque power transmission
Compatibility & Replacements
Compatible With
- Sure-Flex Plus rubber sleeves (EPDM and Neoprene) for size 6 couplings
- Sure-Flex Plus Hytrel sleeves for size 6 couplings
- Standard industrial motor flanges and shaft coupling assemblies
- Type SC spacer coupling configurations
Replaces / Drop-In Replacement For
- Original equipment 6SC35 spacer flanges
- Legacy Sure-Flex (non-Plus) 6SC35 units with same bore and flange specifications
- Direct replacement in existing Sure-Flex Plus 6SC coupling assemblies
Works With
- TB Wood’s Sure-Flex Plus coupling selection software (ecatalog.TBWoods.com)
- Standard mechanical power transmission assembly methods
- Industrial maintenance and replacement workflows
- Multi-hub flexible coupling installations requiring spacer flanges
