Overview

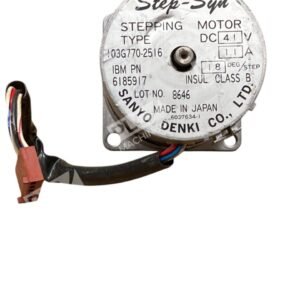

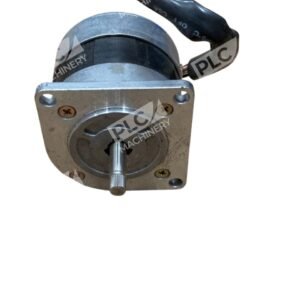

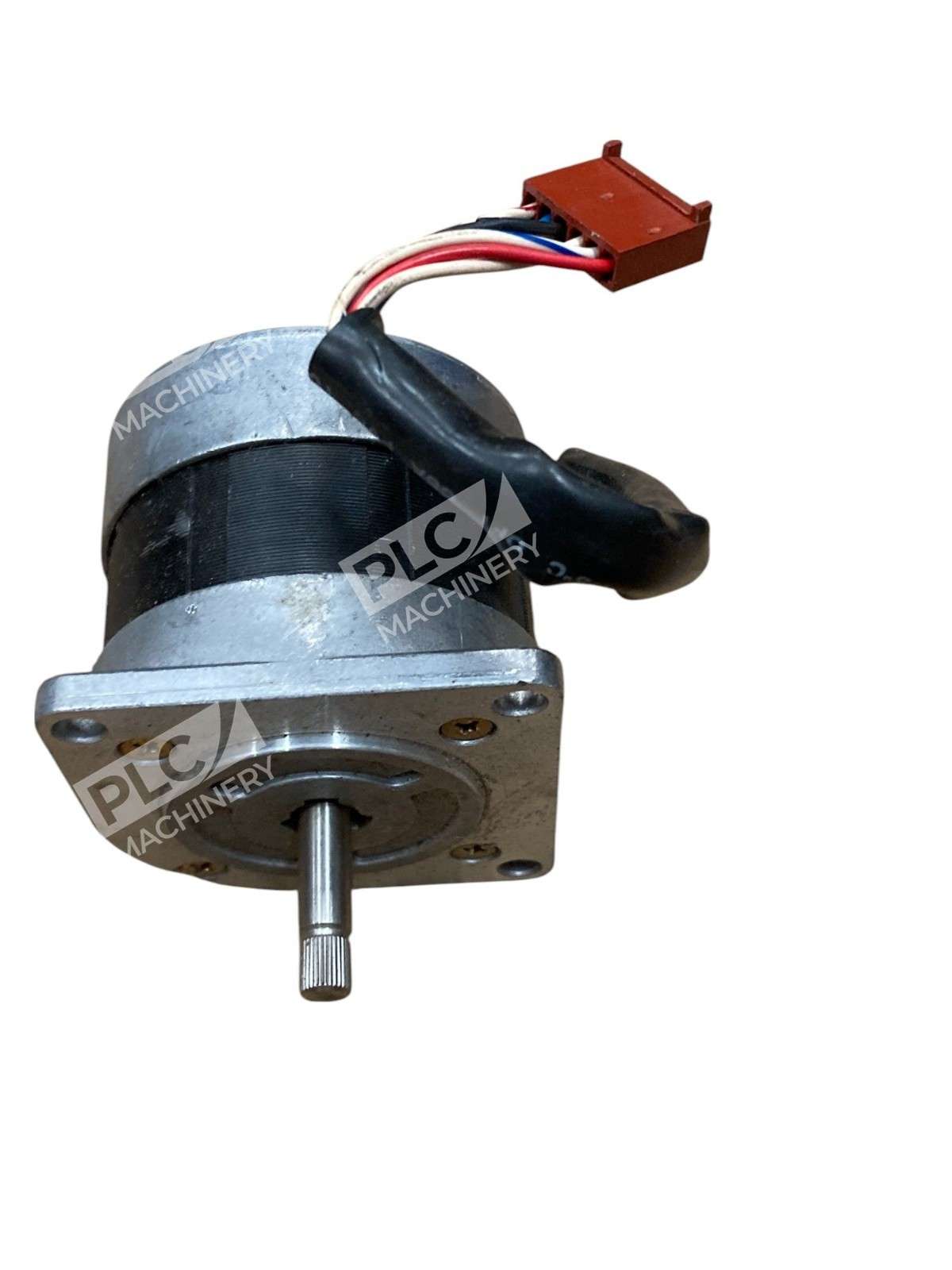

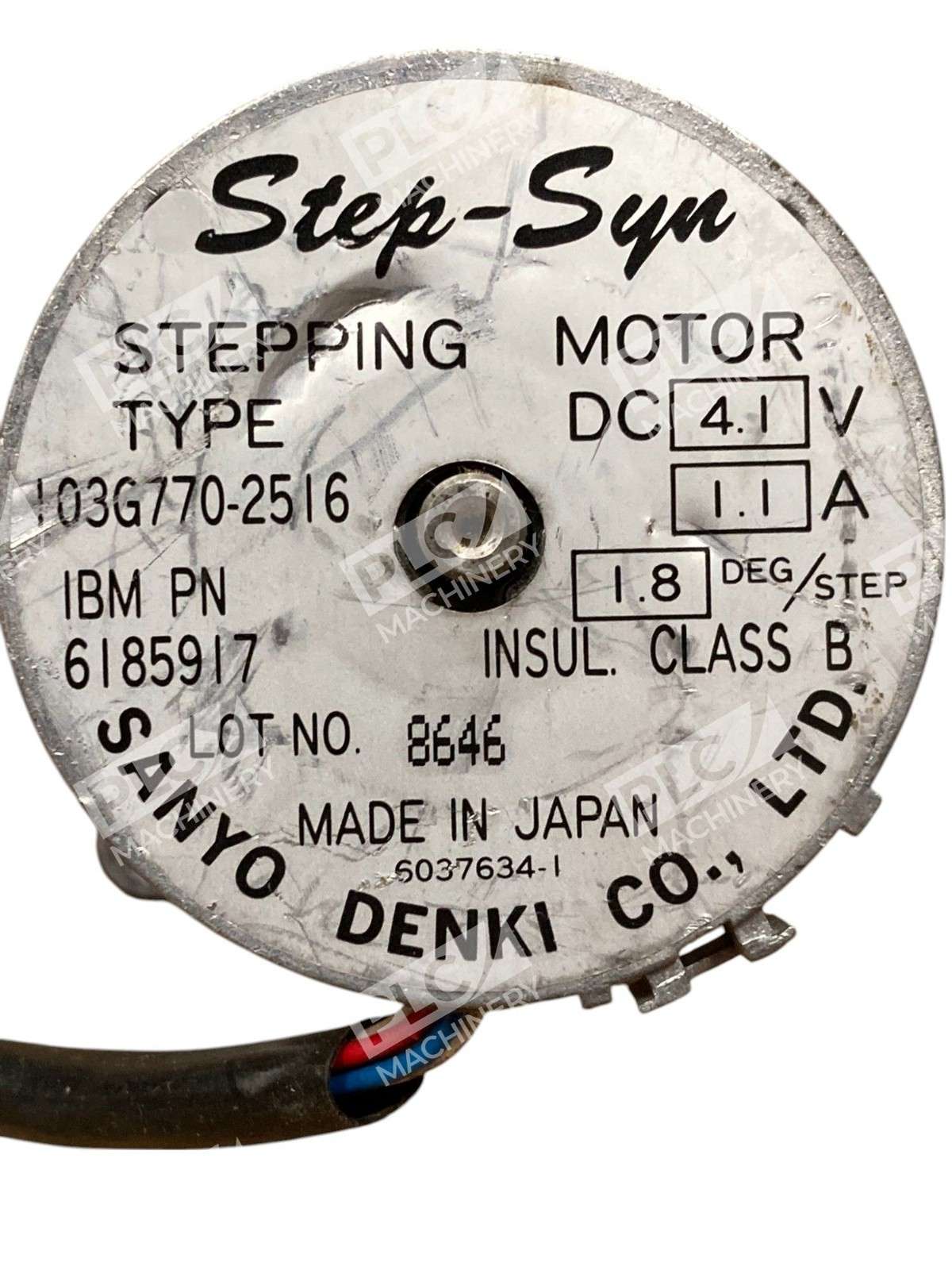

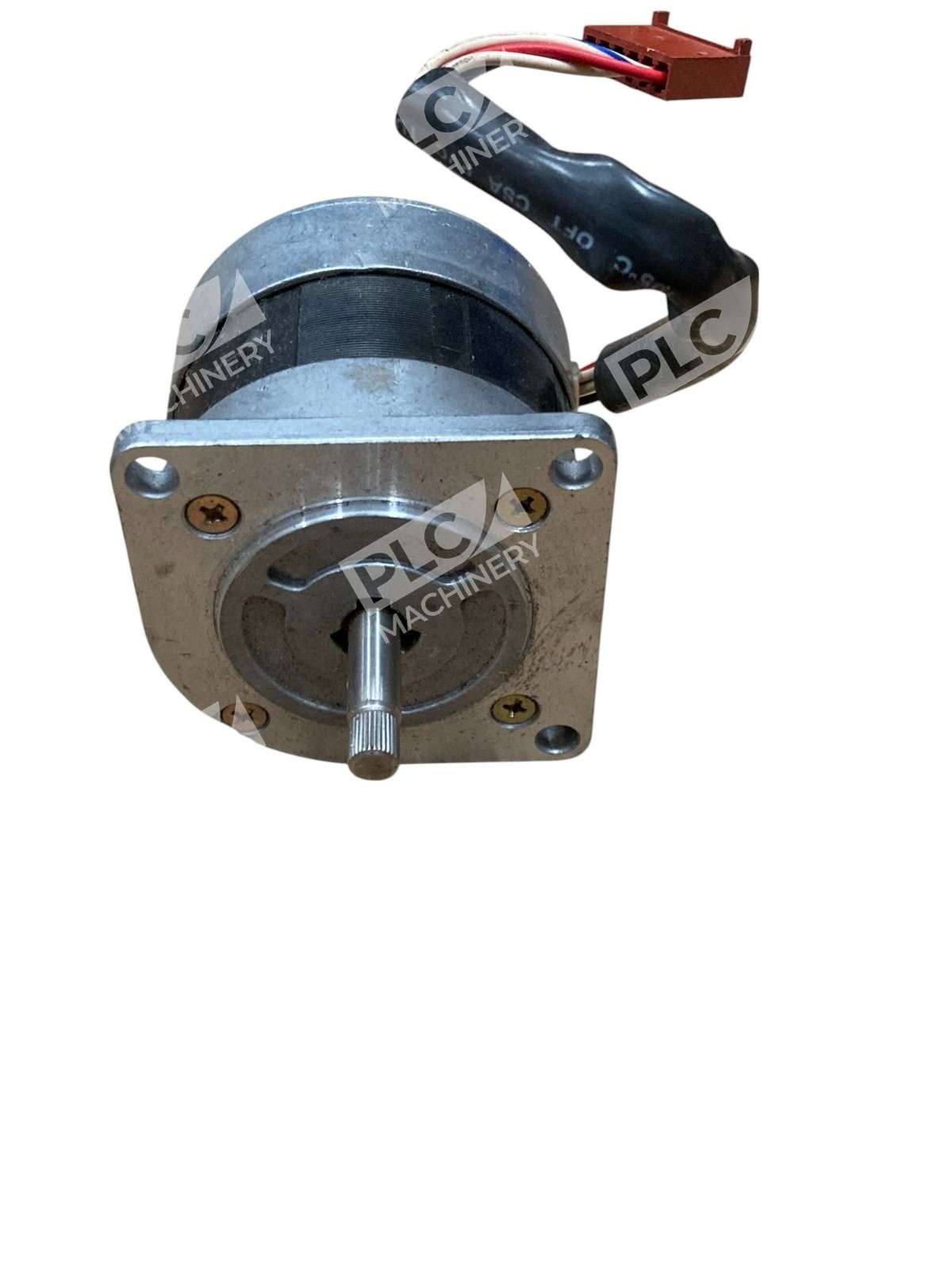

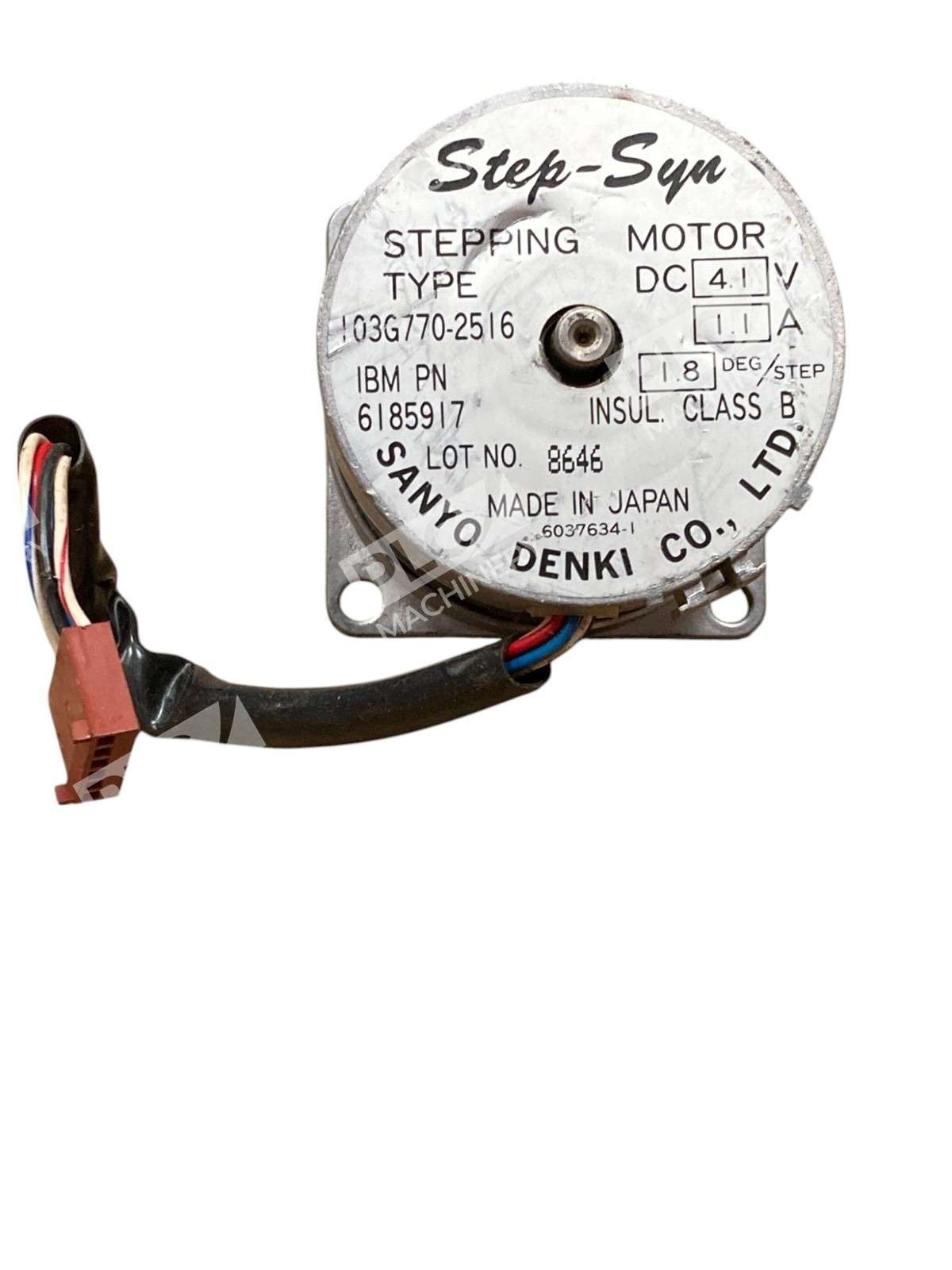

The Sanyo Denki 103G770-2516 is a precision stepping motor engineered for industrial automation and motion control applications. With a full step angle of 1.8° (200 steps per revolution), this motor delivers accurate, repeatable positioning required in automated machinery, packaging equipment, and precision motion systems. Made in Japan by Sanyo Denki, the 103G770-2516 operates on DC current and provides the reliable performance expected from Japan’s established motor manufacturers.
Key Features
- Full step angle of 1.8° (200 steps per revolution) for precise positioning
- DC current operation for straightforward driver integration
- Compact stepping motor suitable for general-purpose automation applications
- Made in Japan with Sanyo Denki’s reputation for reliability and quality
- Ideal for machinery requiring consistent, repeatable motion control
Technical Specifications
The 103G770-2516 stepping motor is designed to meet the performance requirements of standard industrial automation systems. Key specifications include a 1.8° step angle and 200 steps per full rotation, enabling precise positioning control. The motor operates on DC current and is compatible with standard stepper motor drivers and control systems commonly used in industrial automation.
Typical Applications
- Precision assembly and packaging machinery
- Conveyor system positioning and indexing
- Automated material handling equipment
- CNC machines and motion control systems
- Industrial automation and robotics
- Test and measurement equipment requiring repeatable motion
Compatibility & Replacements
Compatible With
- Standard stepper motor drivers and controllers
- DC power supplies and motor control systems
- Industrial automation platforms requiring 1.8° step angle motors
- General-purpose machinery and equipment using NEMA stepping motors
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering to confirm this unit meets your equipment’s specifications and mounting requirements.
Works With
- Standard stepper motor drivers
- DC motor control systems
- Industrial automation controllers
- Motion control software and PLC systems
