Overview

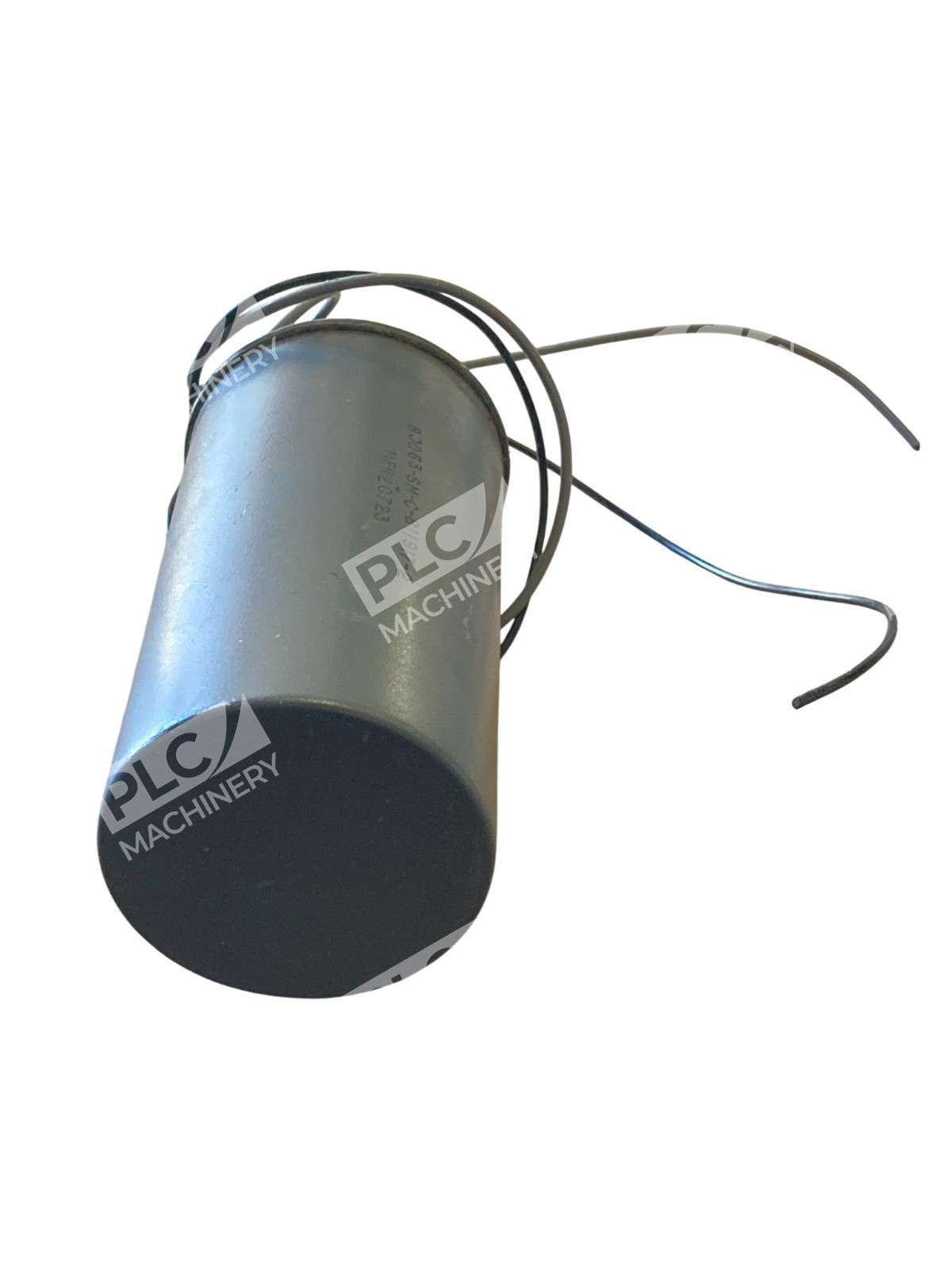

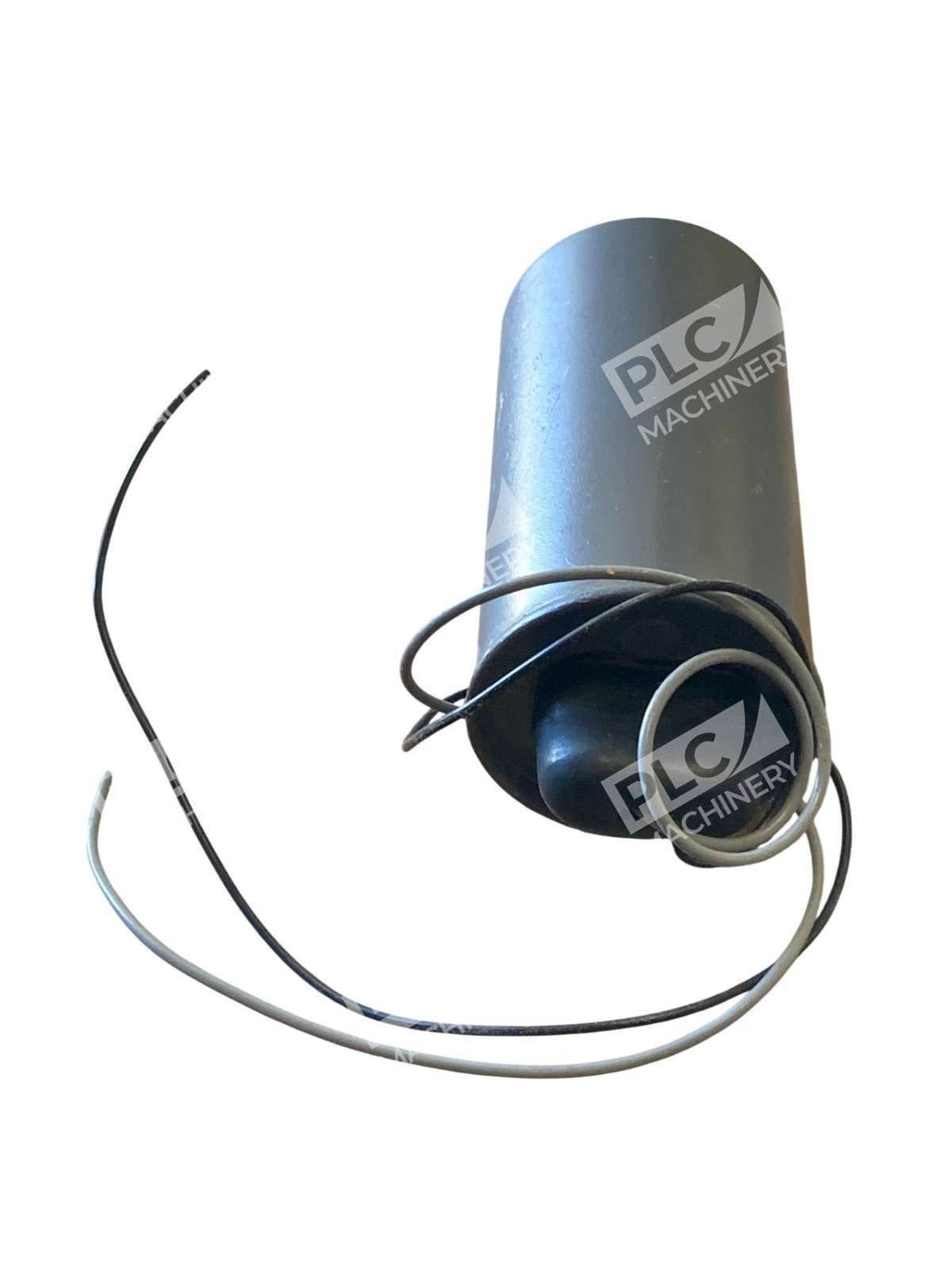

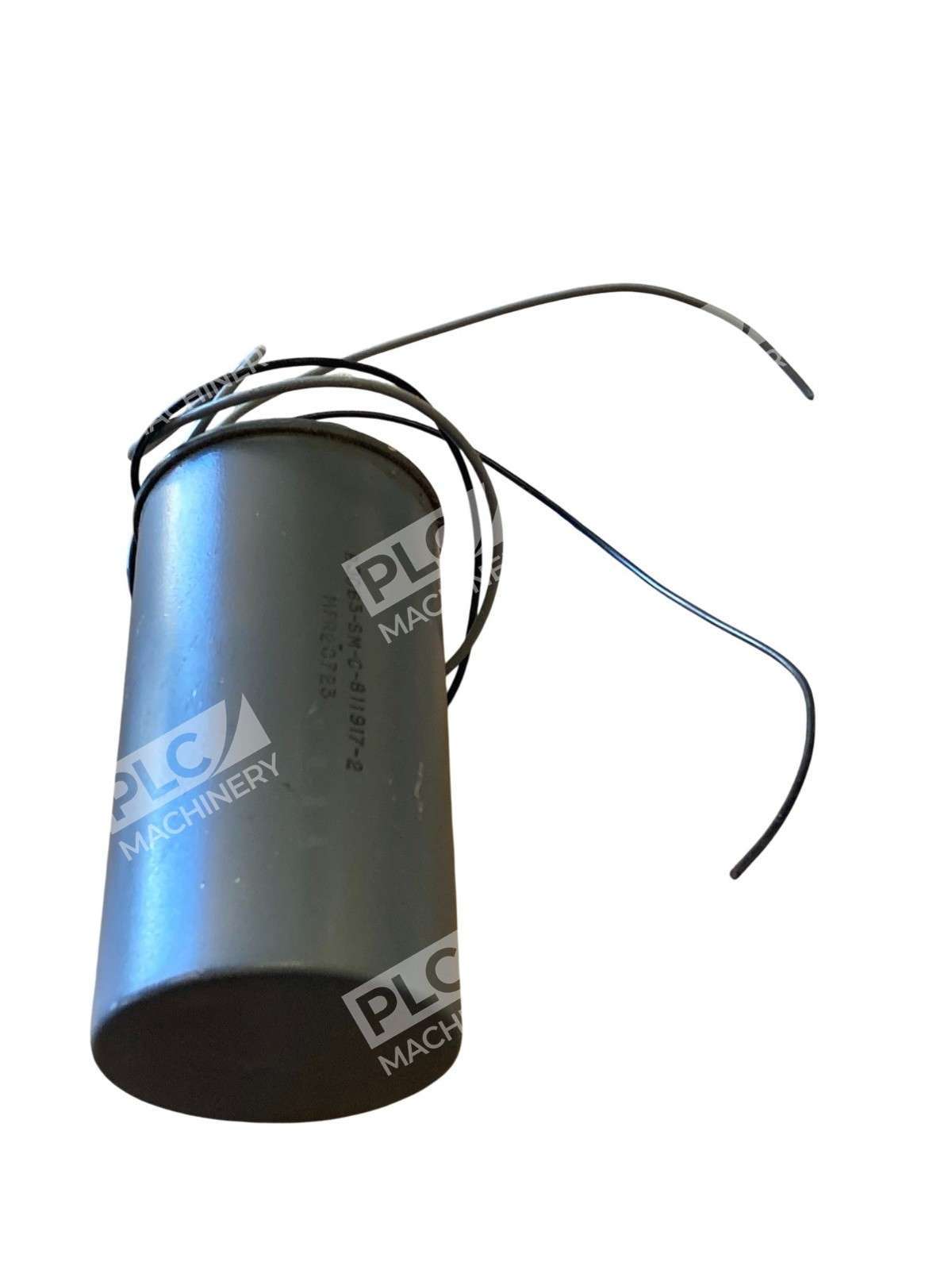

The Sprague 80063-SM-C-811917-2 AC motor run capacitor delivers dependable performance in single-phase AC motor circuits. Rated for 60µF capacitance at 300Vac, 60Hz operation, this run capacitor is engineered for continuous duty in motor-starting and motor-running applications. The unit is in used condition and has been tested to ensure full functionality.
Key Features
- Capacitance: 60µF (microfarads)
- Voltage Rating: 300Vac nominal
- Frequency: 60Hz standard for North American industrial motors
- Run Capacitor Type: Continuous duty operation in AC motor applications
- Original Sprague manufacture: Legacy brand trusted in motor control
- Tested and fully functional in used condition
Technical Specifications
Run capacitors like the Sprague 80063-SM-C-811917-2 are designed to stay energized continuously while the motor is running, improving power factor and efficiency. This unit’s 60µF rating is appropriate for fractional and small integral horsepower motors commonly found in HVAC systems, pump motors, and industrial machinery.
Typical Applications
- Single-phase AC induction motor systems
- HVAC equipment: blower motors, compressor fans
- Pump motors and fan motors
- General-purpose industrial electric motors
- Motor circuit power factor correction
Compatibility & Replacements
Compatible With
- Single-phase AC motors (fractional and small integral horsepower)
- Standard 60Hz electrical systems (North America)
- 300Vac motor circuits
- Motor capacitor-run circuits in HVAC, pump, and fan applications
Replaces / Drop-In Replacement For
The Sprague 80063-SM-C-811917-2 (also referenced as model 325P1009) is a legacy part. Modern equivalent run capacitors with 60µF capacitance at 300V include units from Vishay (Sprague successor), Capacitor Industries, and other industrial suppliers. Verify specific motor nameplate requirements and consult with your motor manufacturer or system integrator to confirm direct replacement compatibility before ordering.
Works With
- Standard single-phase AC motor control circuits
- Motor run-capacitor circuit topologies
- Electrical systems rated 300Vac, 60Hz
- Industrial motor starters and soft-start systems
