Overview

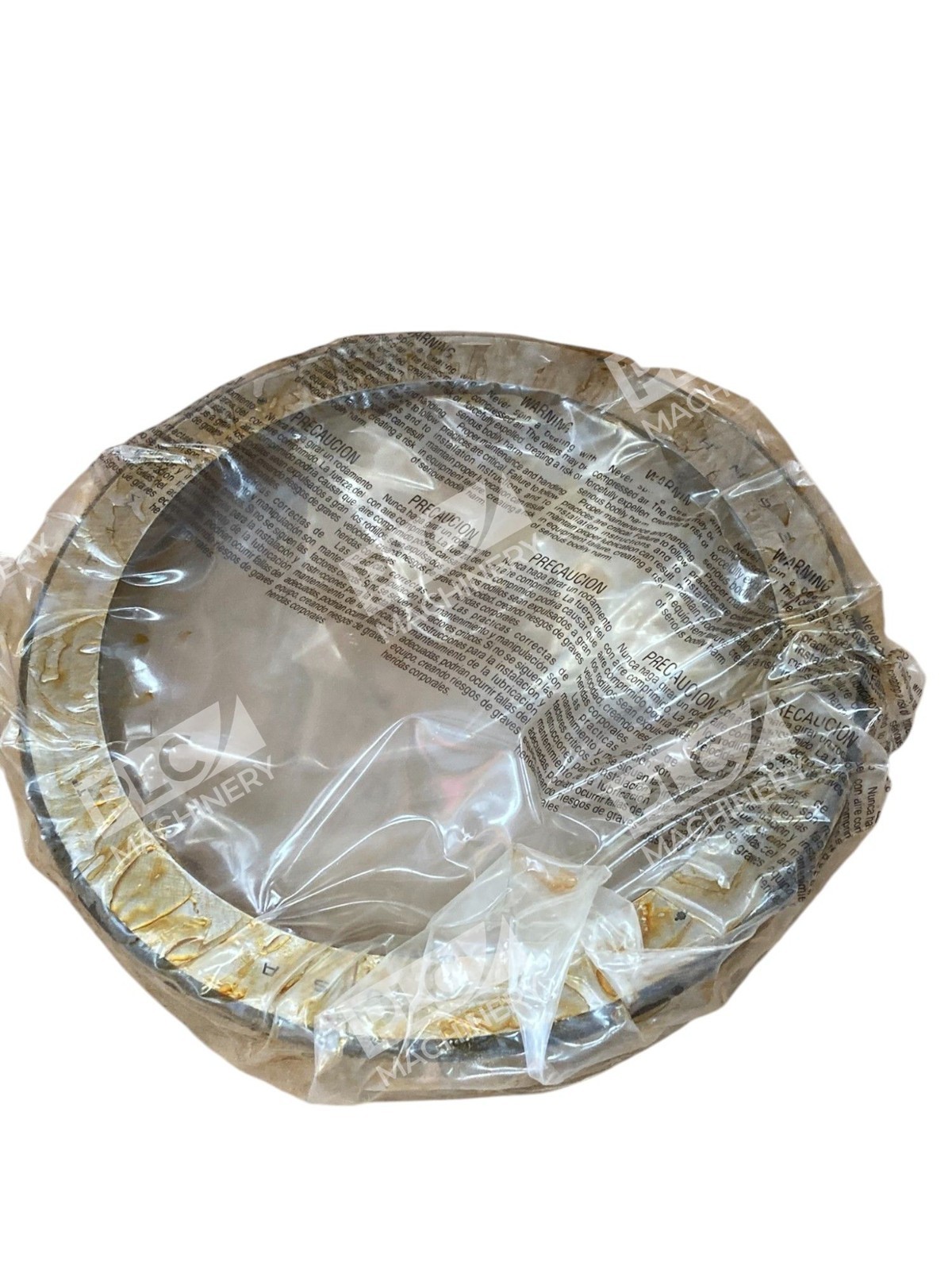

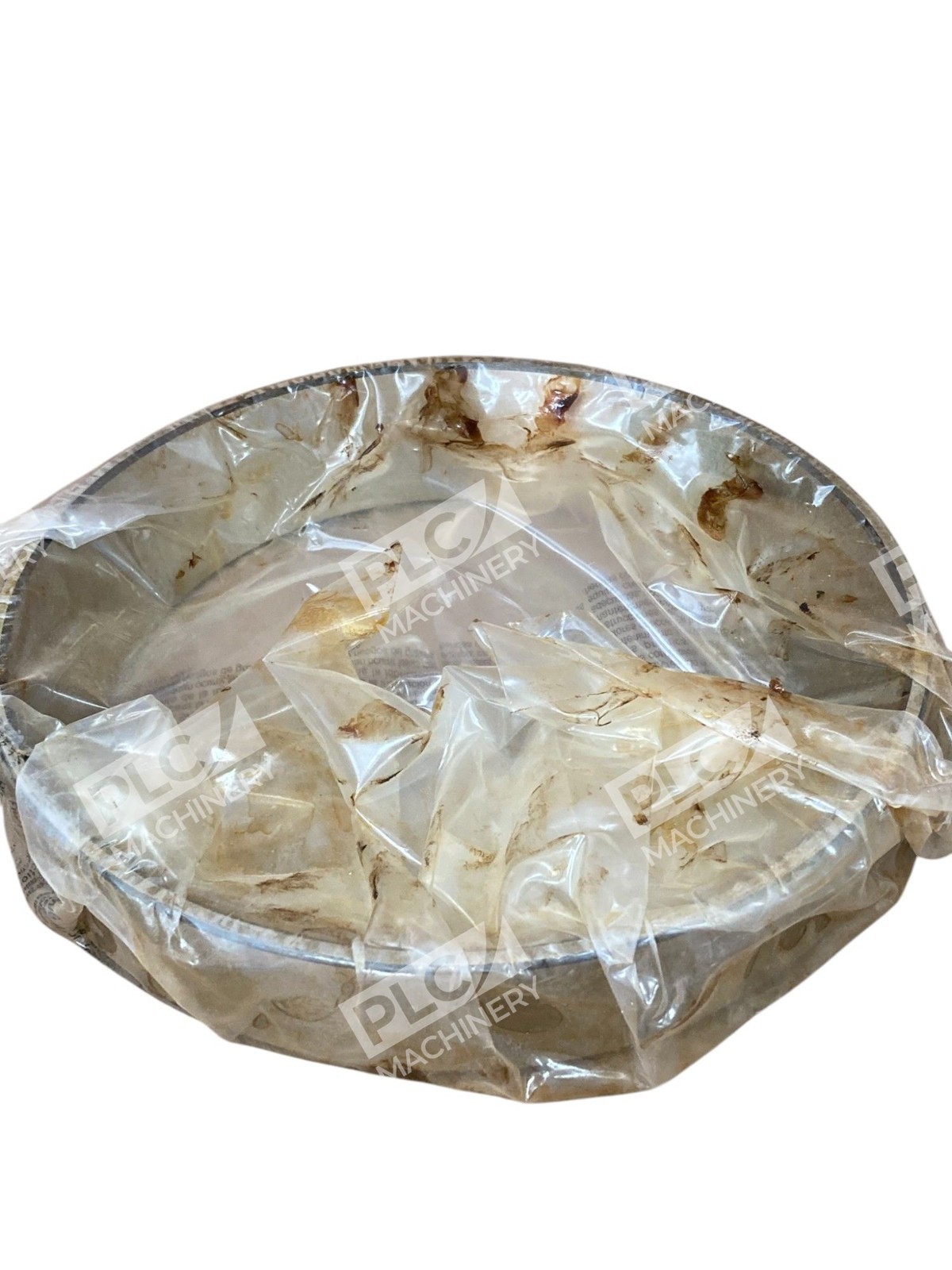

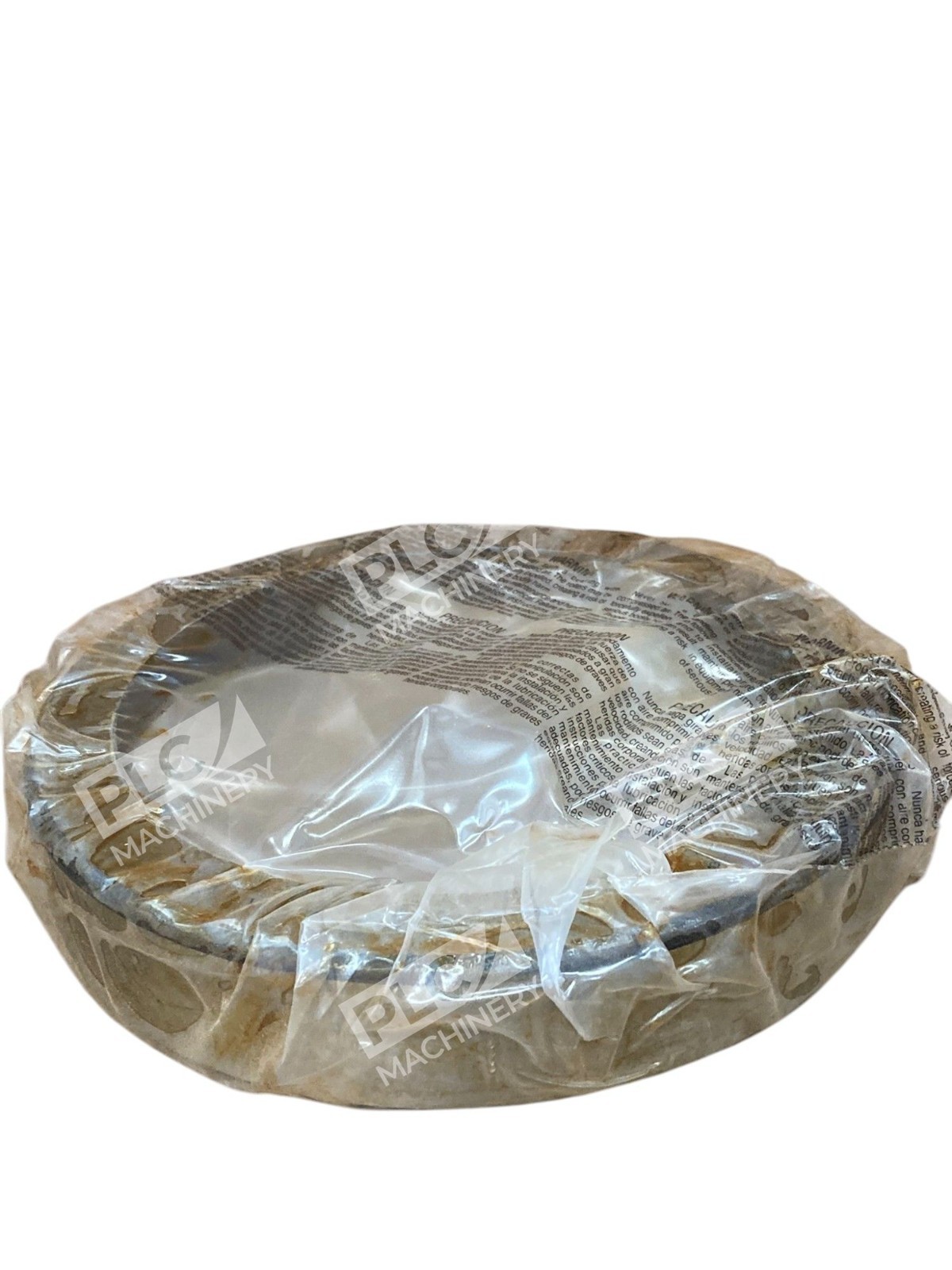

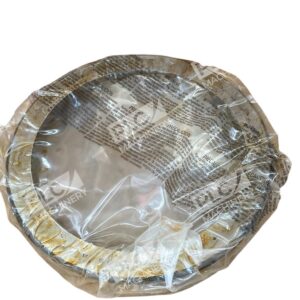

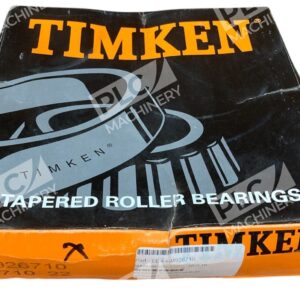

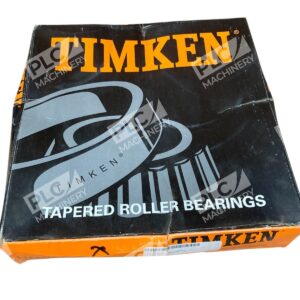

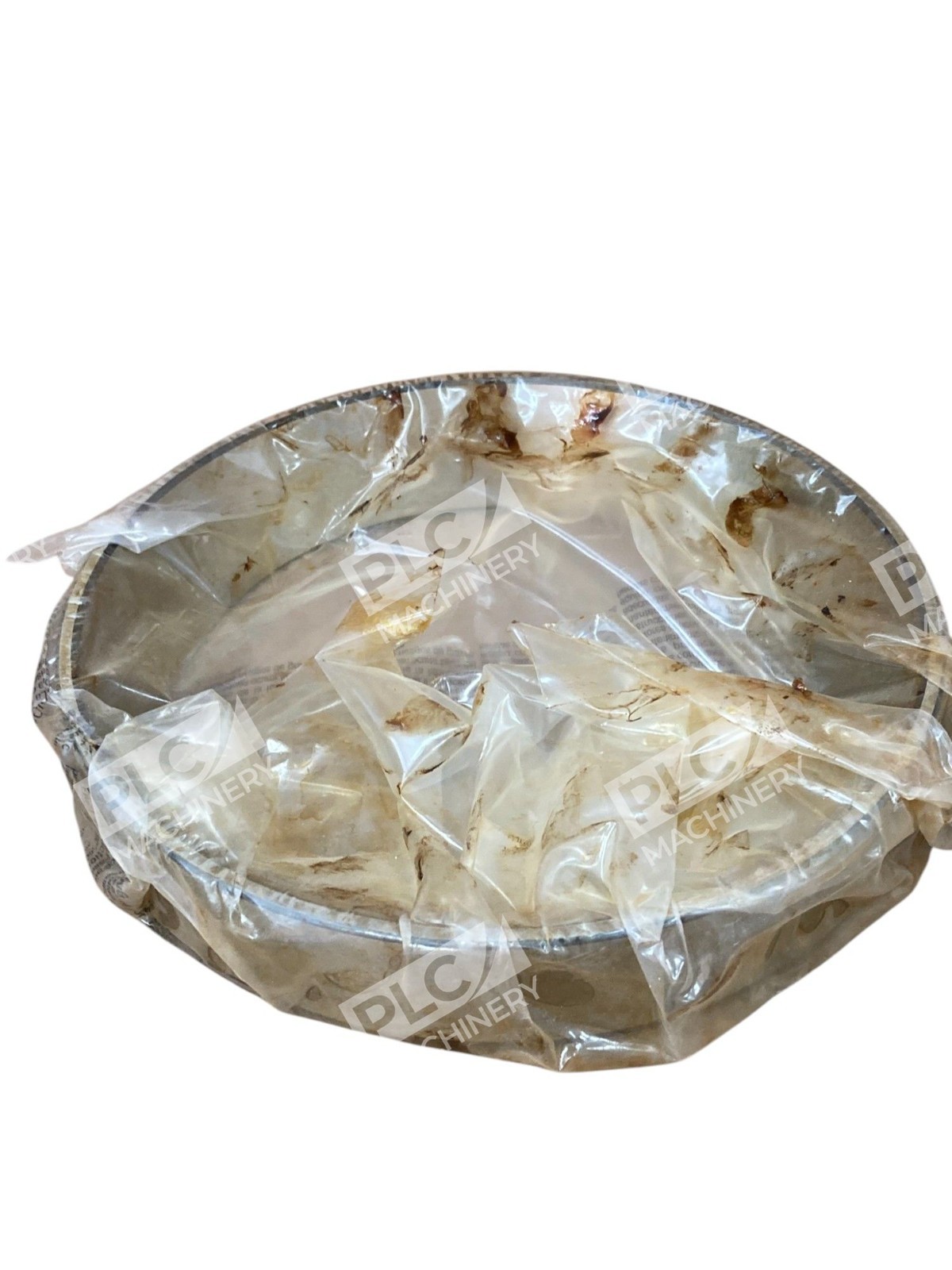

The Timken HM926710 is a high-precision tapered roller bearing cup engineered for demanding industrial applications. This bearing consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring), with the cup typically mounted in opposing pairs on a shaft. Built to Timken’s exacting standards, the HM926710 delivers consistent performance in automotive, construction, and industrial machinery where reliability is critical.
Key Features
- Single-row design that efficiently handles both radial and axial loads in a wide range of industrial applications
- Tapered roller design that facilitates load distribution along roller length and minimises friction, enhancing durability and longevity
- Inner and outer races carefully matched to optimise performance under varying operating conditions
- Imperial measurement system (TS-Type single-row configuration)
- Undergoes rigorous testing with high-quality materials and advanced manufacturing techniques to ensure reliable performance under demanding conditions
Technical Specifications
- Bore Diameter: 4.5 inches (114.3 mm)
- Outer Diameter: 9 inches (228.6 mm)
- Width: 2.125 inches (53.975 mm)
- Dynamic Load Rating (C₁): 586,000 N (ISO method, 1 × 10⁶ revolutions)
- Static Load Rating (C₀): 673,000 N
- Bearing Type: Tapered Roller Cup (TS-Type)
Typical Applications
TS Type bearings find application in automotive, construction, and industrial machinery, commonly used in gearboxes, wheel hubs, and other critical components where precision and reliability are paramount. The HM926710 suits high-load, high-speed environments requiring precise load distribution and minimal friction loss. Suitable for both standard machinery and custom engineered systems.
Compatibility & Replacements
Compatible With
- Timken matched bearing assemblies (2TS-DM and 2TS-IM configurations)
- Industrial machinery and automotive applications requiring imperial tapered roller bearings
- Shafts and housings designed for standard TS-Type tapered roller cup dimensions
- Equipment requiring both radial and axial load capacity
Replaces / Drop-In Replacement For
- Original Timken HM926710 bearings in repair or maintenance applications
- Compatible with matched bearing assemblies: HM926740-HM926710, HM926747-HM926710, HM926749-HM926710
Works With
- Timken TS-Type (single-row tapered roller) cone assemblies
- Standard industrial bearing installation and removal tools
- Timken engineering support and calculation software
- Both direct-mount (DM) and indirect-mount (IM) assembly configurations
