Overview

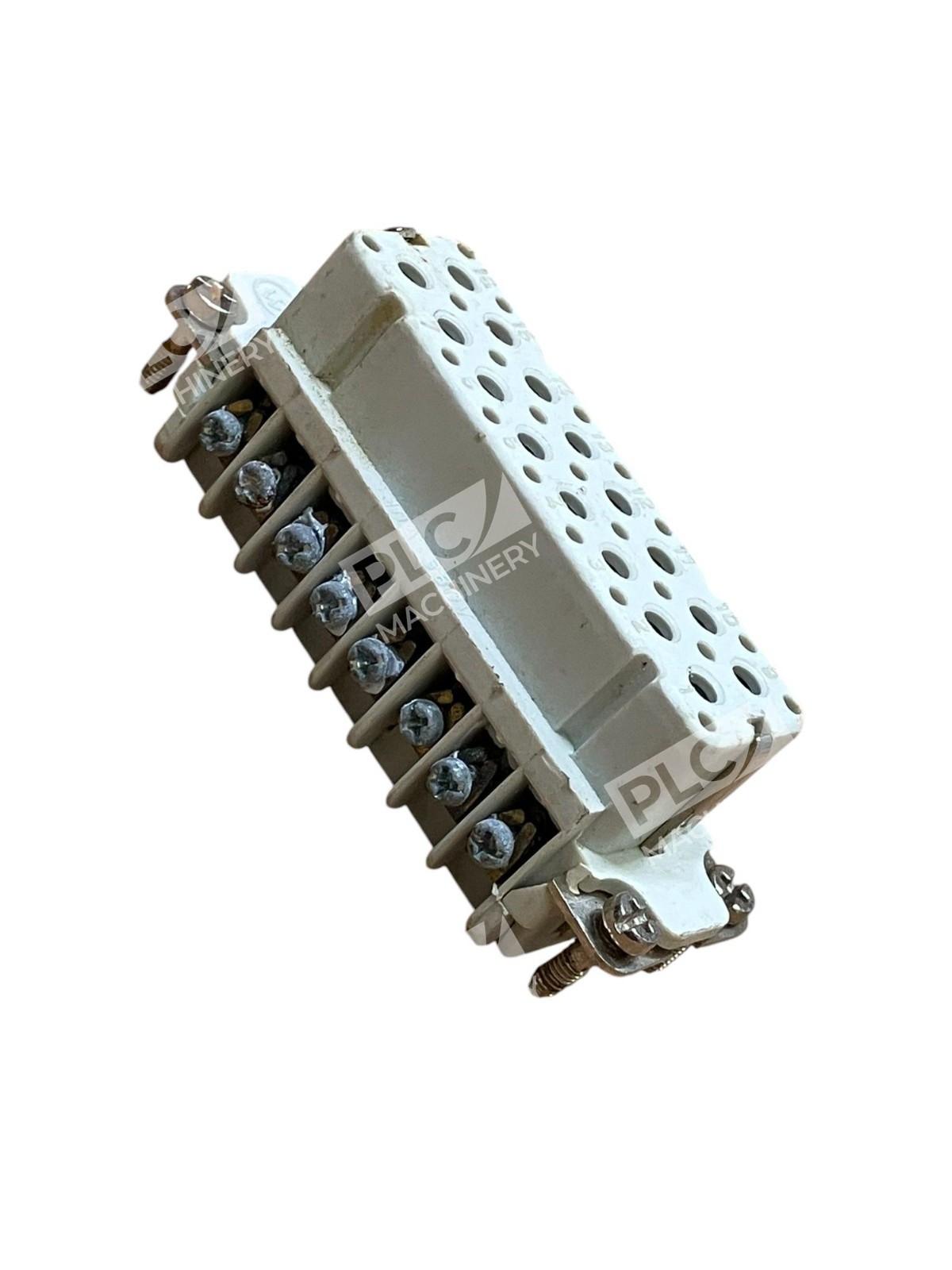

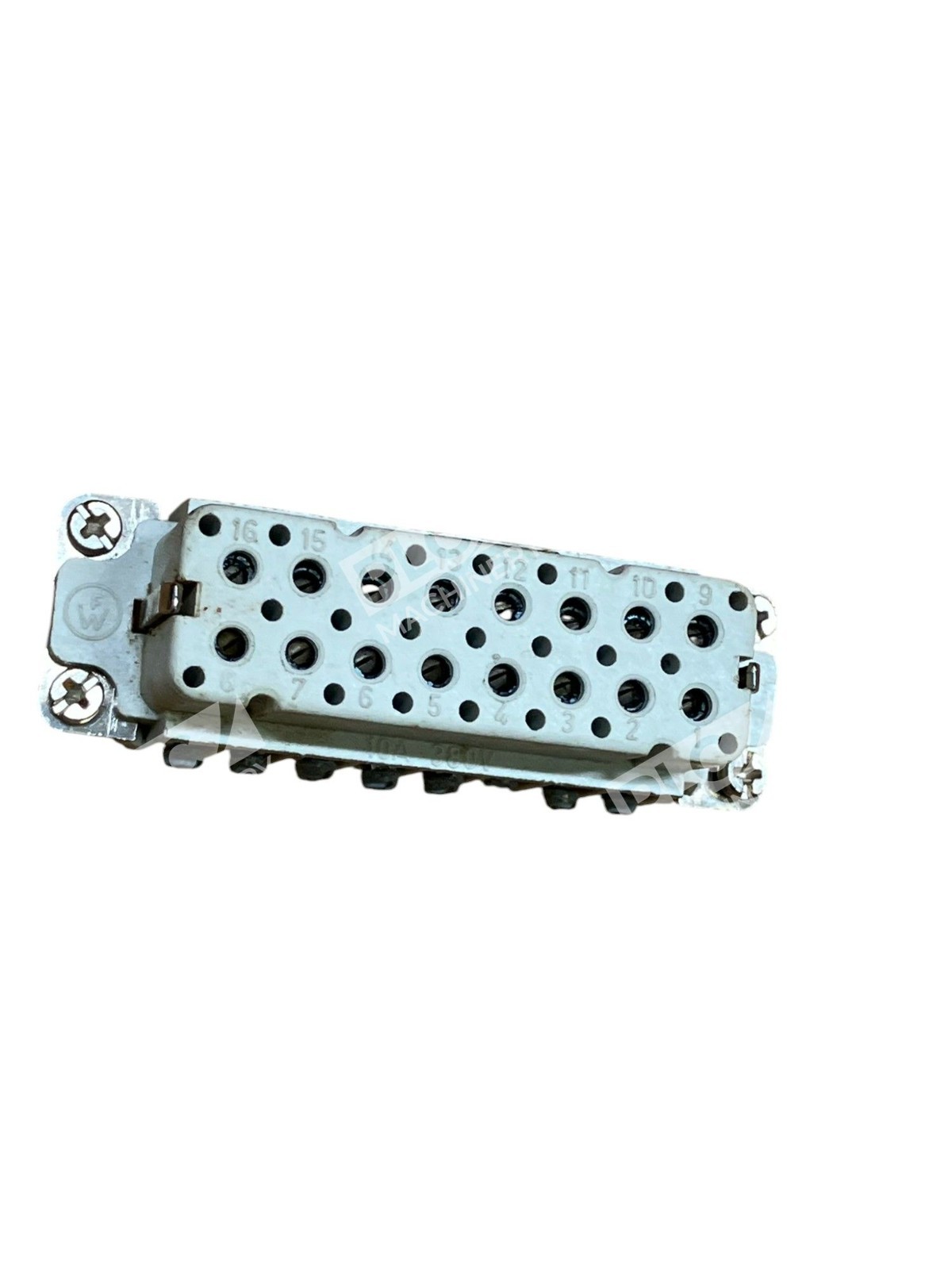

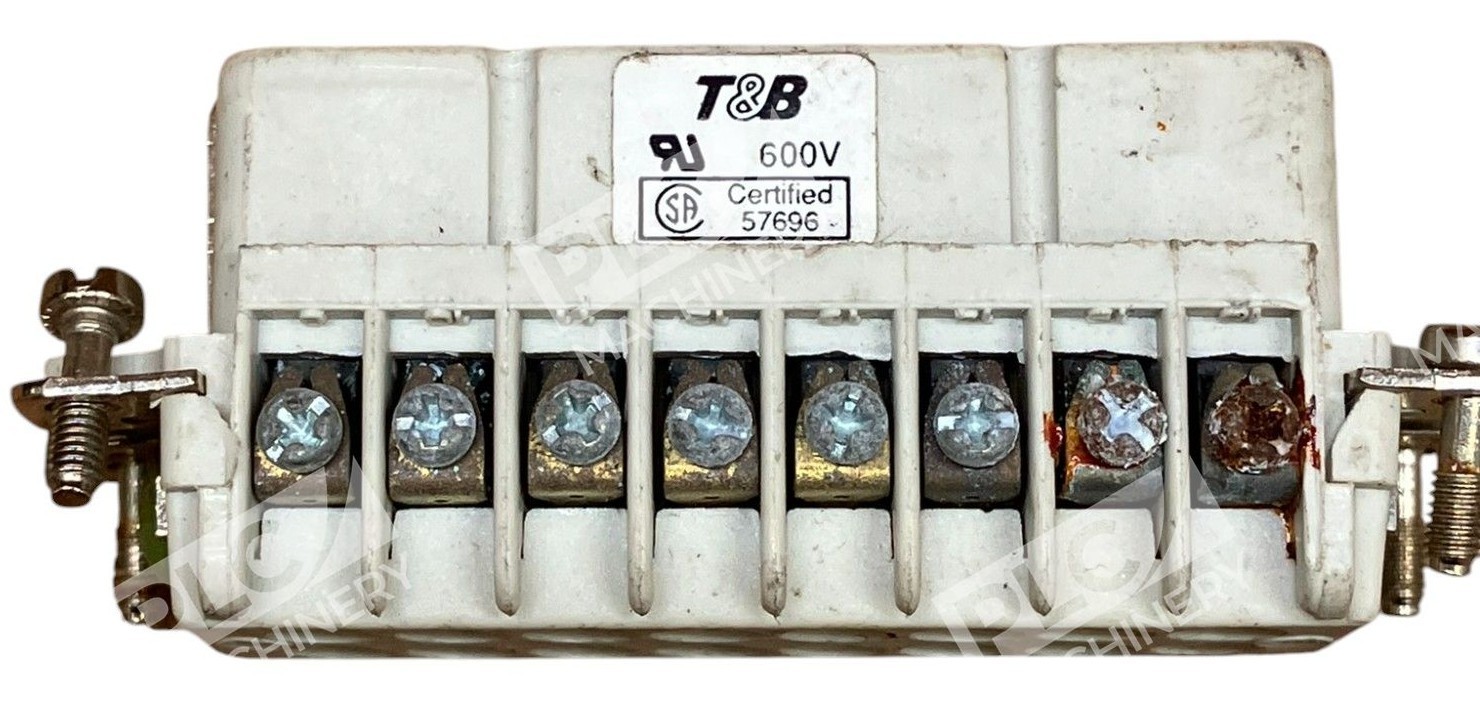

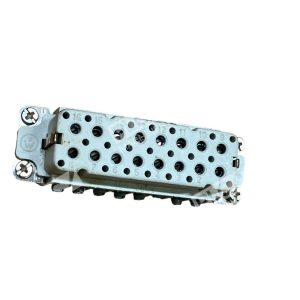

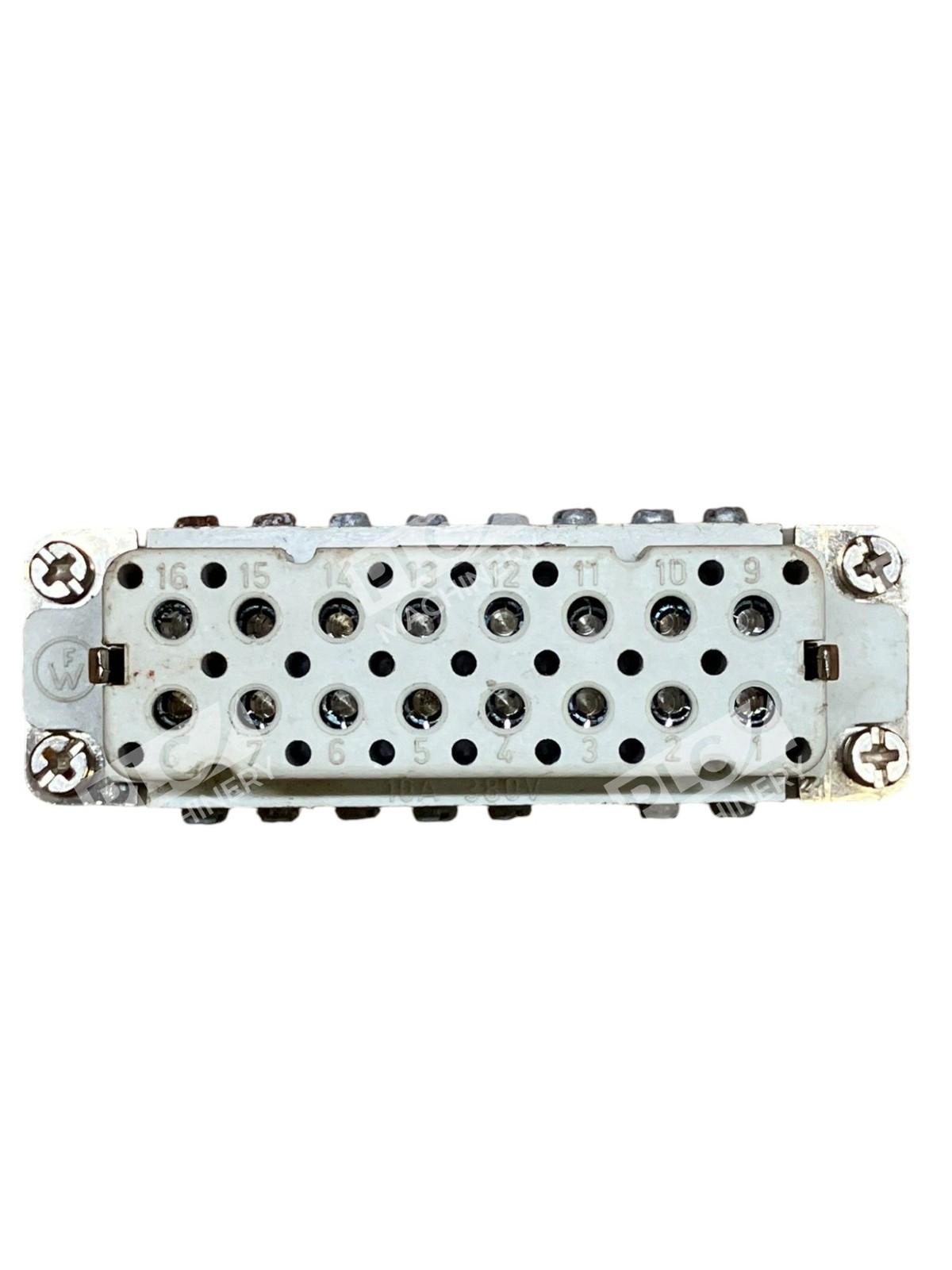

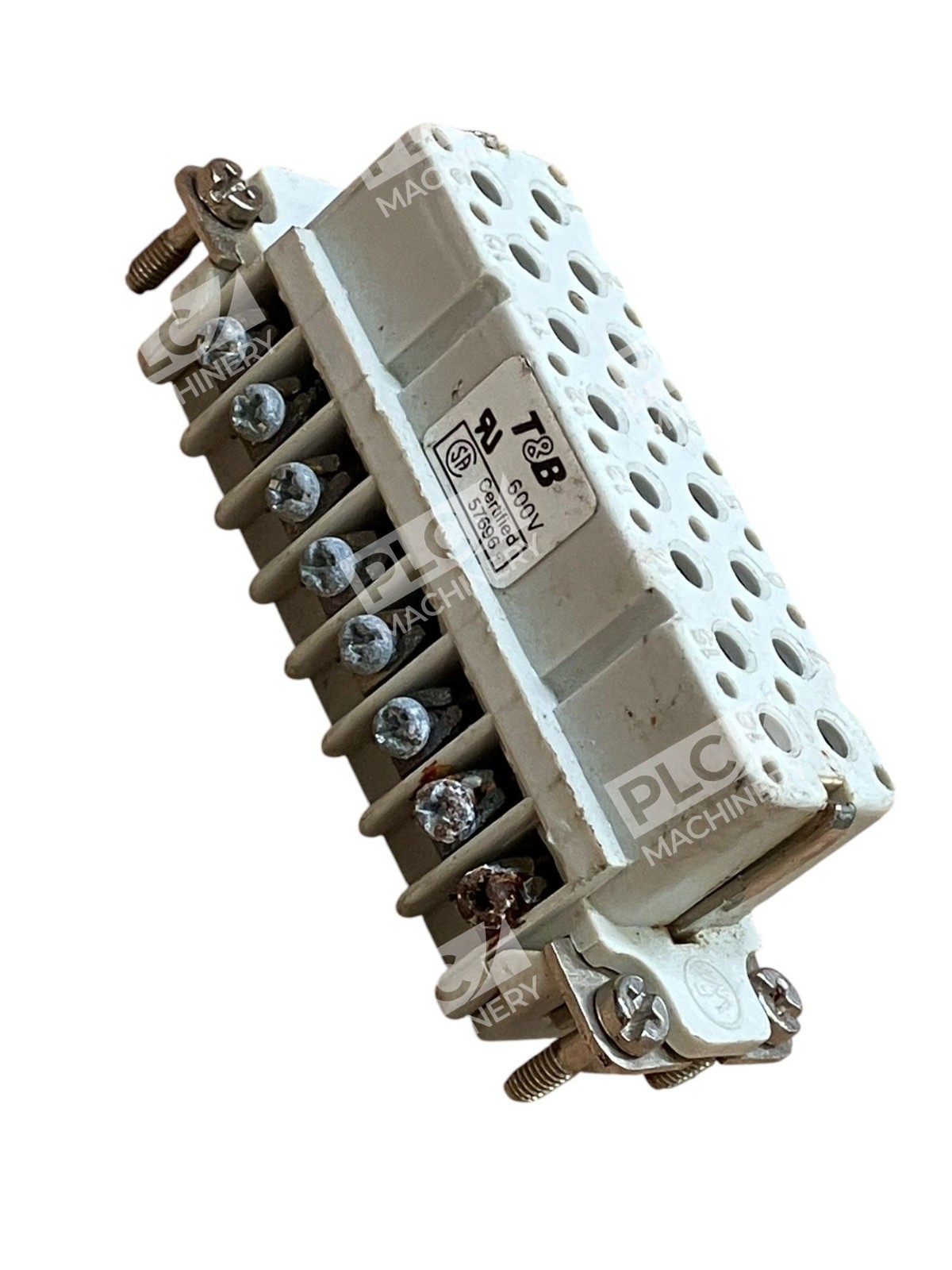

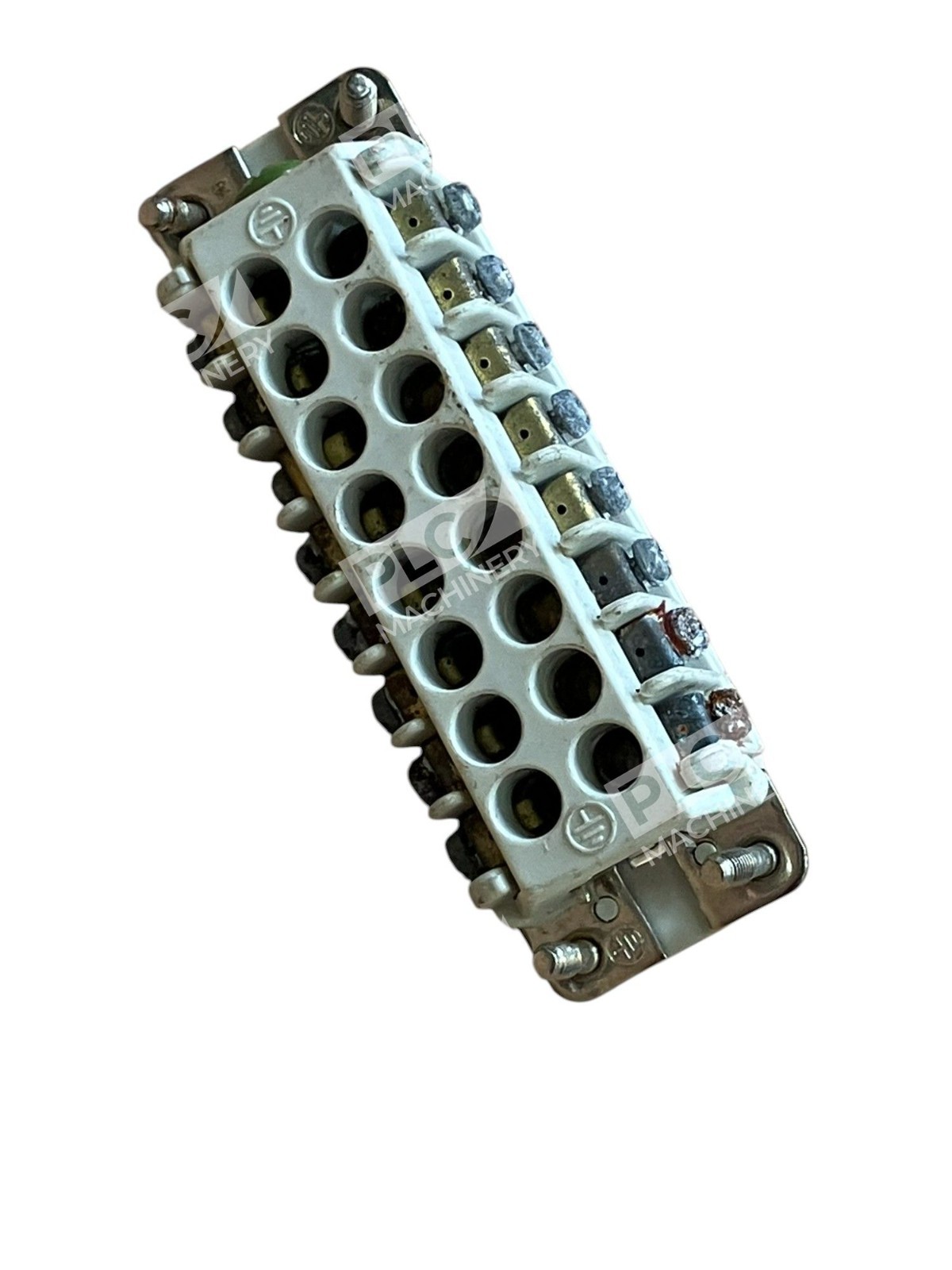

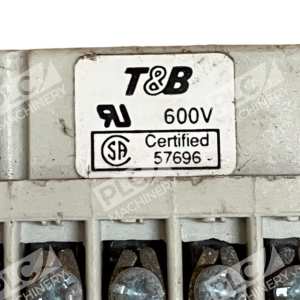

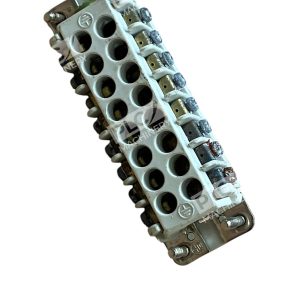

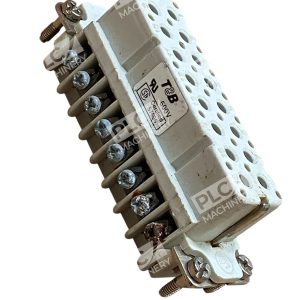

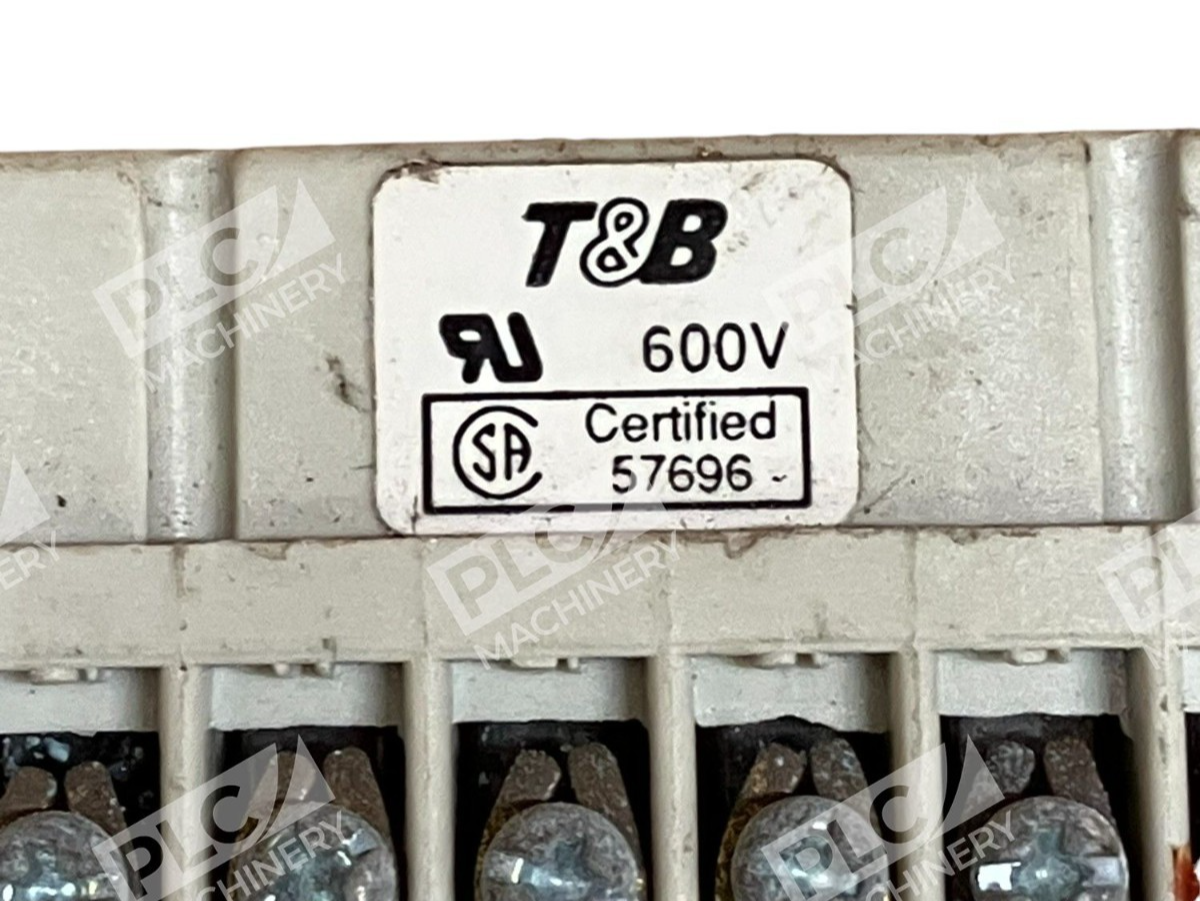

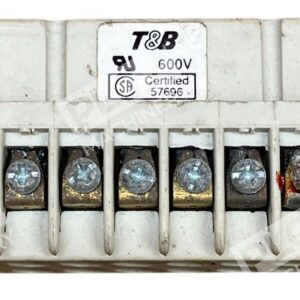

The Thomas Betts 57696 is a heavy-duty 600V female insert connector built for industrial and commercial electrical systems. With a 24-pin configuration and 16A current rating, this connector provides secure termination for demanding applications. Thomas & Betts (acquired by ABB) is recognized for precision-engineered electrical connectors that deliver reliability and durability across utility, industrial, and commercial installations.
Key Features
- 600V voltage rating (400/600V rated) suitable for high-voltage industrial applications
- 16A continuous current capacity for safe power distribution
- 24-pin female insert configuration for secure multi-conductor connections
- Heavy-duty construction designed for commercial and industrial electrical systems
- Precision engineering ensures low-resistance, reliable electrical continuity
Technical Specifications
- Voltage Rating: 400–600V
- Current Rating: 16A
- Pin Configuration: 24-pin female insert
- Contact Material: High-conductivity copper (standard for T&B connectors)
- Connector Type: Female insert
- Applications: Industrial power distribution, terminal blocks, control circuits
Typical Applications
The Thomas Betts 57696 is commonly used in:
- Industrial control panel wiring and power distribution systems
- Commercial electrical installations requiring heavy-duty connectors
- Terminal block interfaces in machinery and equipment
- Power supply connections in HVAC and industrial automation systems
- Multi-conductor harness assemblies in utility and facility power systems
Compatibility & Replacements
Compatible With
- ABB–Thomas & Betts connector systems and accessories
- Industrial terminal blocks and power distribution equipment
- Heavy-duty electrical connectors rated for 600V applications
- Commercial and industrial panel-mount installations
- Standard wire gauges and crimp termination tools
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 57696 female insert may have equivalent or successor models in the ABB–Thomas & Betts product line. Consult technical documentation or contact your distributor to confirm drop-in replacement compatibility for your specific application.
Works With
- Industrial wire harness assemblies and connector systems
- Heavy-duty terminal blocks and power distribution modules
- Commercial electrical installation standards (NEC, IEC 60947)
- Standard industrial crimping and termination tools
- ABB automation and control equipment (legacy Thomas & Betts product compatibility)
