Overview

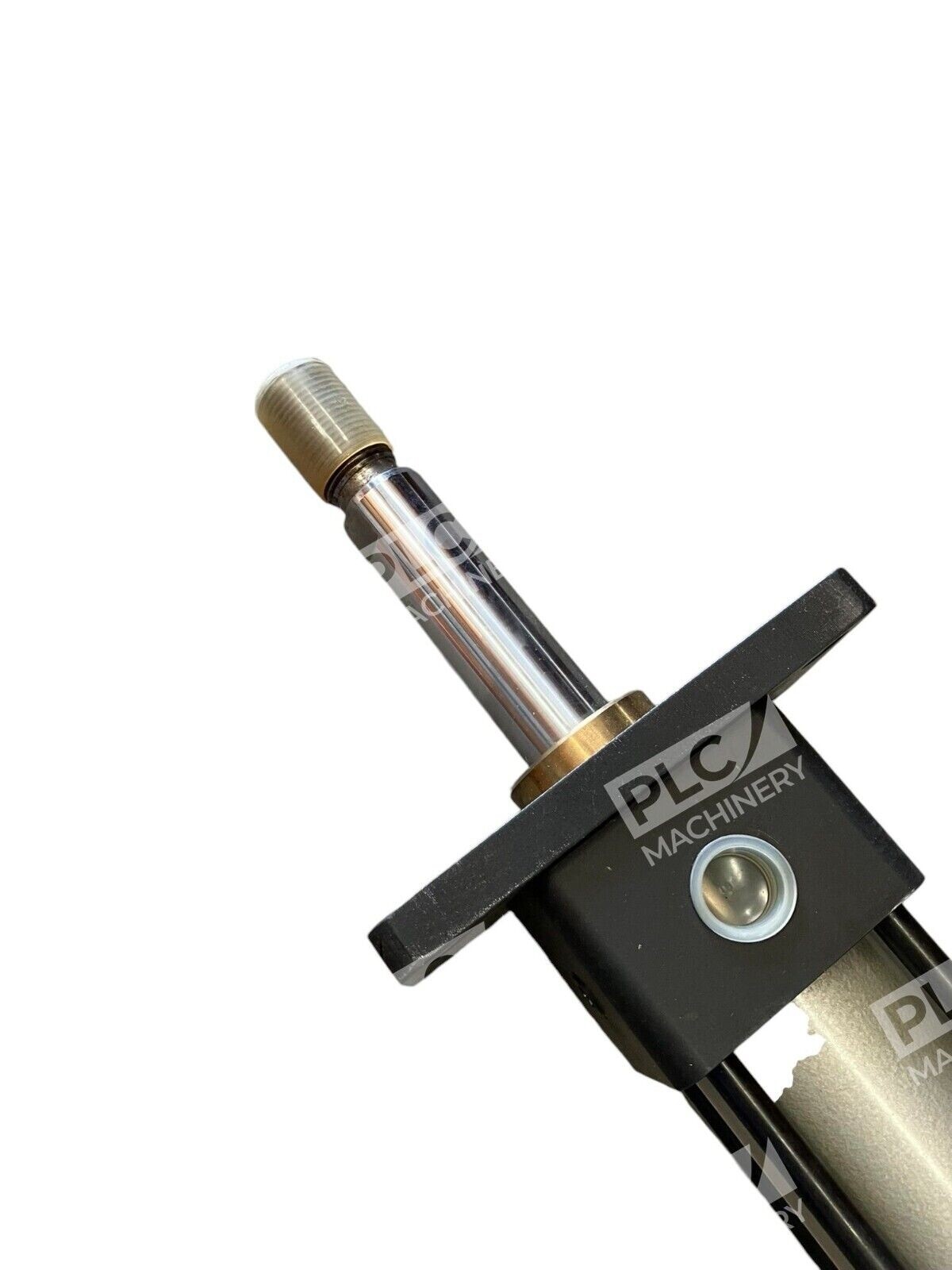

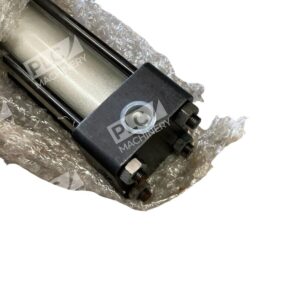

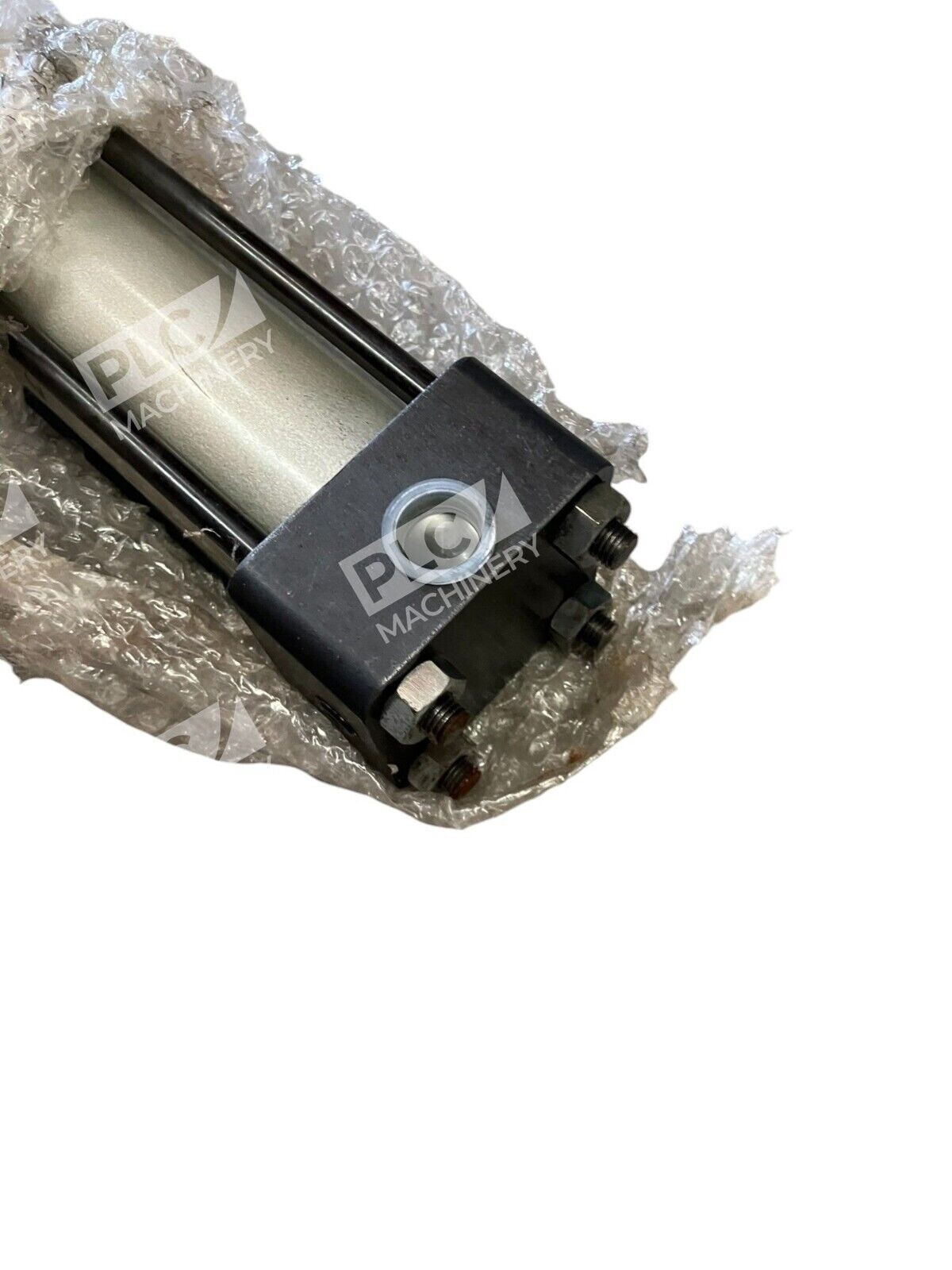

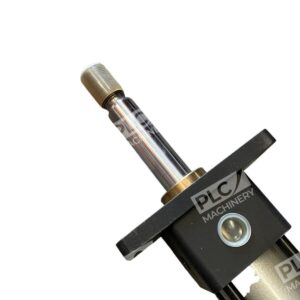

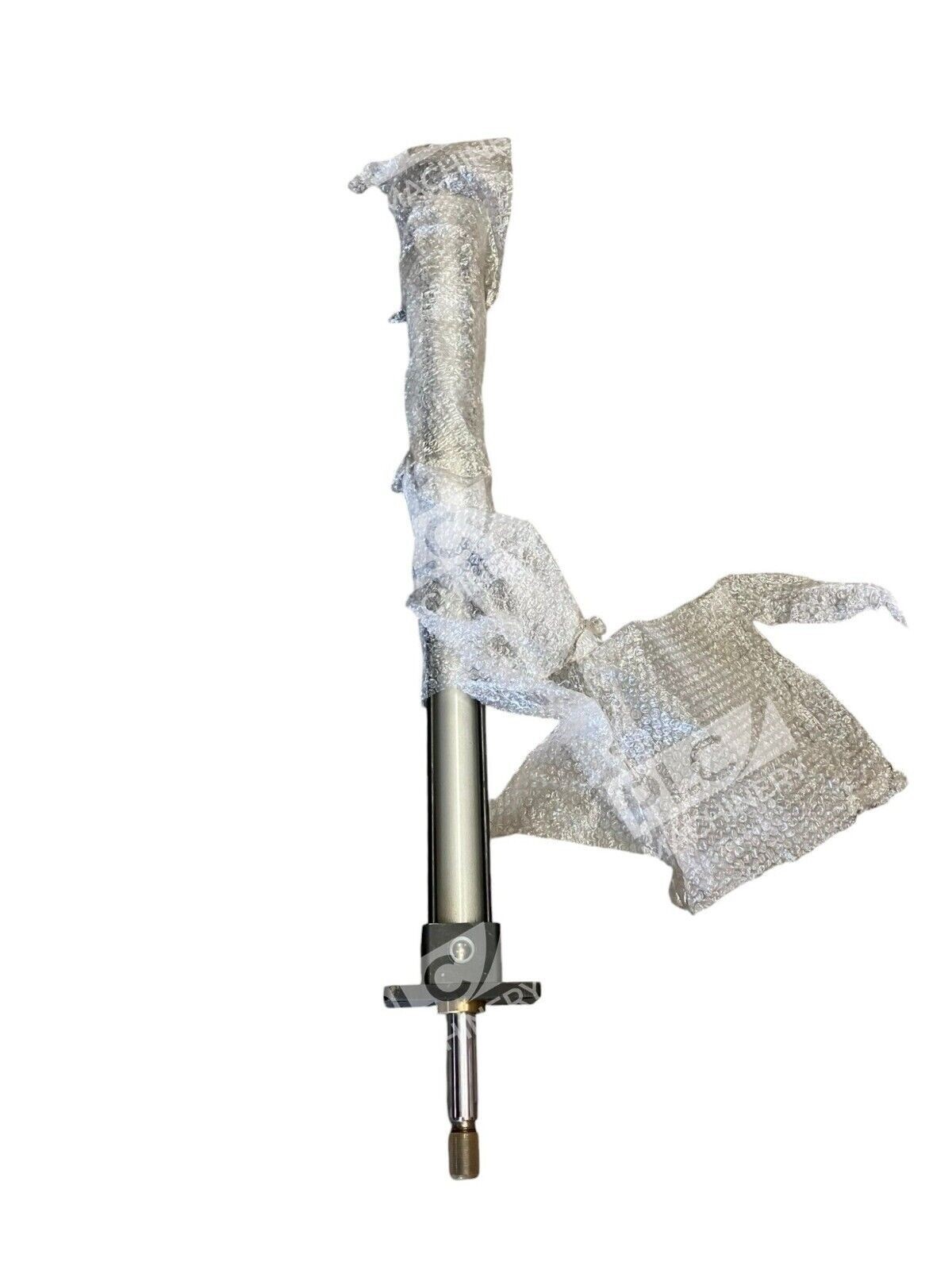

The Taiyo 8FA50BN900-A0-XA00A45W100M24P2 is a compact, double-acting hydraulic cylinder from Taiyo’s (now Parker TAIYO) 70H-8 series, designed for 7MPa (70 bar) operation. This standard industrial cylinder delivers consistent actuation performance across manufacturing, material handling, and machinery applications. Built-in cushioning provides smooth deceleration at the end of each stroke, reducing shock and extending equipment life.
Key Features
- Double-acting design for push-pull applications
- Built-in high-performance cushion for smooth operation
- Rated for 7MPa (70 bar) hydraulic pressure
- Compact form factor suitable for space-constrained installations
- Proven Taiyo engineering for durability and reliability
Technical Specifications
Complete technical details for this Taiyo 70H-8 series cylinder:

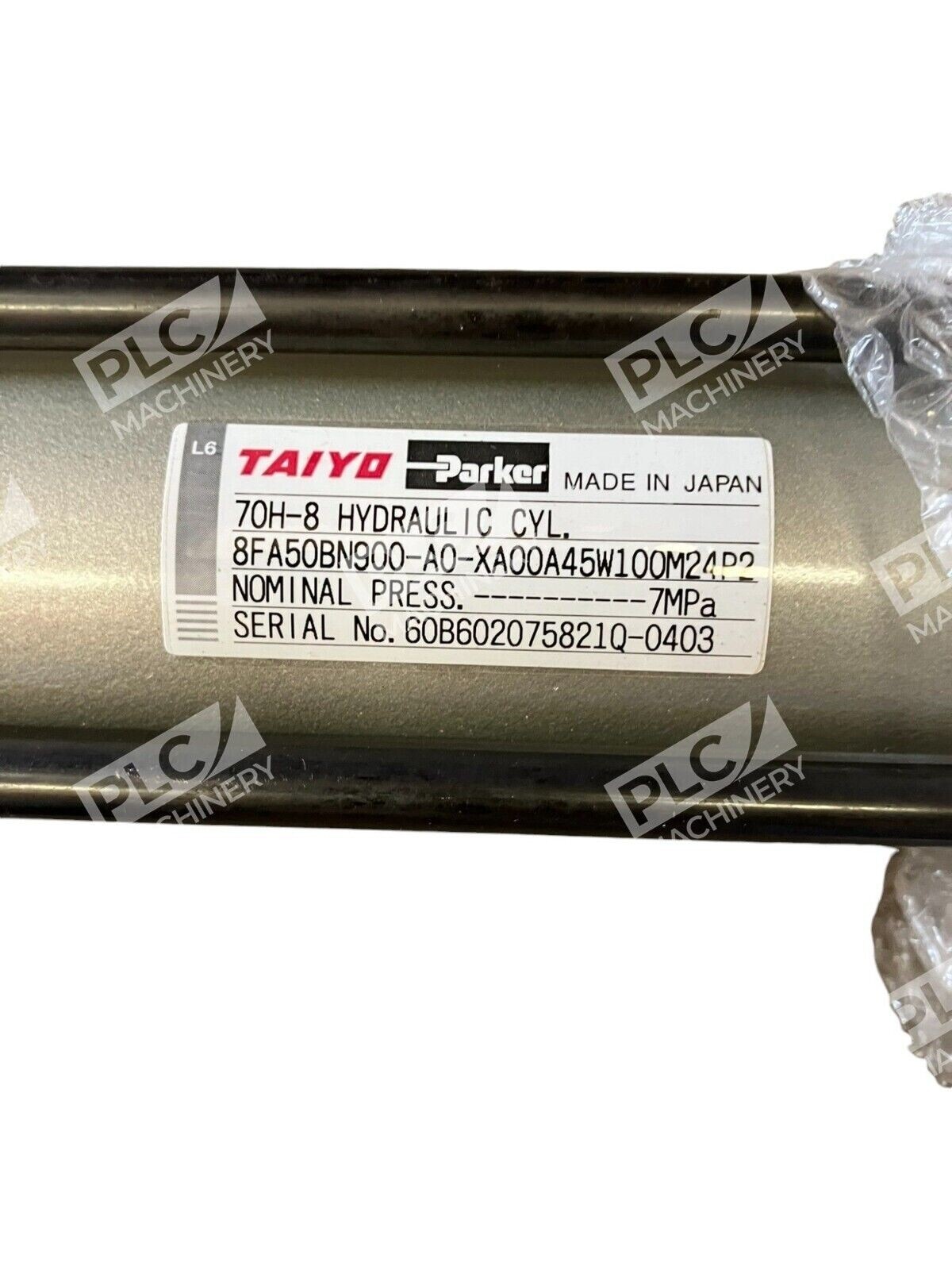

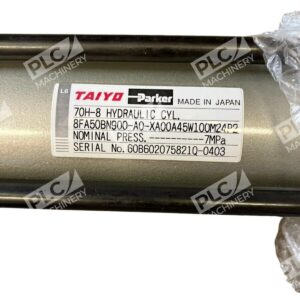

- Manufacturer: Taiyo (Parker TAIYO)
- Part Number: 8FA50BN900-A0-XA00A45W100M24P2
- Series: 70H-8
- Maximum Operating Pressure: 7 MPa (70 bar)
- Type: Double-Acting Compact Cylinder
- Cushioning: Built-in cushion, both ends
- Port Configuration: SAE standard porting
- Mounting Style: Trunnion mount compatible
Typical Applications
This Taiyo hydraulic cylinder is widely used in:
- Injection molding machine clamping and ejector systems
- Assembly line automation and material handling
- Press and bending equipment actuation
- Automotive manufacturing component clamping
- Food processing and packaging machinery
Compatibility & Replacements
Compatible With
- Standard 7MPa (70 bar) hydraulic systems
- ISO NG10 proportional and directional control valves
- Industrial mobile and stationary hydraulic circuits
- OEM equipment using Taiyo cylinder specifications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Direct replacement capability depends on bore diameter, rod diameter, stroke length, and port configuration of your original equipment.
Works With
- Standard industrial hydraulic pump and motor systems
- Proportional and on-off directional control valves
- Pressure relief and flow control valves rated 7MPa
- Manifold-integrated circuit systems
- Mobile and stationary hydraulic accumulator systems
